TT2BHF200WIRELESS HANDSFREE CARKIT

1. Before using your Hands-Free BHF-200 Status Indicators 1) Power LED – Power on mode 2) LED 1 -> Connecting Status Stand by Mode : two times blinking every two second Pairing Mode : blinking continuously. Active Mode : Power on continuously 3) LED 2 -> Call Activity Status Sending and Receiving Phone Call : Blinking shortly Using Hands Free : Power on continuously 4) LED 3 -> ( Low battery Status ) : LED blinking continuously 2. Charging Your Hands-Free Use the vehicle power charger provided. BHF-200 uses a rechargeable battery that must be fully charged before you use it For the first time. Connect the supplied vehicle power charger to power socket and then to your Hands-Free. The status of indicator on Vehicle charger will be illuminated red while charging and change to Green when the Hands-Free is fully charged. It takes approximately 2 hours to fully charge the Hands-free NOTICE: If battery is Low, Blue light of the LED 3 will blink in every second. 3. BLUETOOTH PAIRING Before using your hands-free for the first time with a mobile phone or another Bluetooth device, you must first pair it with the device. Follow the steps below for most devices. You can also refer your phone user guide. 1) Turn on both devices. For Hands-free, press the multifunction button for two seconds. 2) Place the Hands-free in pairing mode by pressing and holding the volume down Button for six seconds. Release the button when the status indicator begin to flash with beep sound. NOTICE: If the pairing is not success for two minutes, the Hands –free becomes to stands-by mode. 3) Use your phone’s menu to search for Bluetooth audio devices and select “BHF-200” 4) When the phone display asks for a pass key, enter “0000”. The Bluetooth icon appears on the display, once the hands-free successfully paired. If the Hands-free stops responding to button presses, you must reset the Hands-free. 4. USING YOUR HANDS-FREE 1) Power On / Off Press the multifunction buttons for two seconds in order to turn of the device. Press the multifunction buttons for five seconds in order to turn off the device. 2) Connect the Hands-free to the phone When disconnected, the Hands-free can be re-connected to the phone by simply short pressing the multifunction button. 3) Disconnect the Hands-free from the phone Press the volume up /down button simultaneously 4) Answer / End / Place a call To answer a call, short press the multifunction button. To end a call, long press the multifunction button for two seconds. To place a call using voice dialing, short press the multifunction button. If you are on a calling using your phone handset, you can transfer the call to your Hands-free by two times press of the multifunction button. 5) Call transfer back to phone To transfer a call from your Hands-free back to your phone, two times press of the Multifunction button. 6) Call reject To reject a call without answering when the Hands-free is ringing, long press the volume up and multifunction buttons simultaneously. 7) Last number redial To redial the last number, two times press the multifunction button. 8) Volume Up / Down Press the volume up / down button to adjust the volume Additional page Regulatory Information FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. The no co-location statement: "This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter." the n

October 10, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : ENUStech.,Inc. FCC ID : TT2BHF200 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [TT2BHF200] SCH.pdf), Parts list(File name: [TT2BHF200] PL.pdf), Block diagram (File name: [TT2BHF200] BLK.pdf) and Operational description (File name: [TT2BHF200] Op Description.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, __________________________ Taek-Soo Kim A. Manager ENUStech.,Inc. JnJ Bldg., 5 Yeoksam 2(i)-dong,785-12,Gangnam-gu,Seoul 135-515,Korea Tel. +82-2-565-0785 Fax +82-2-3452-3603

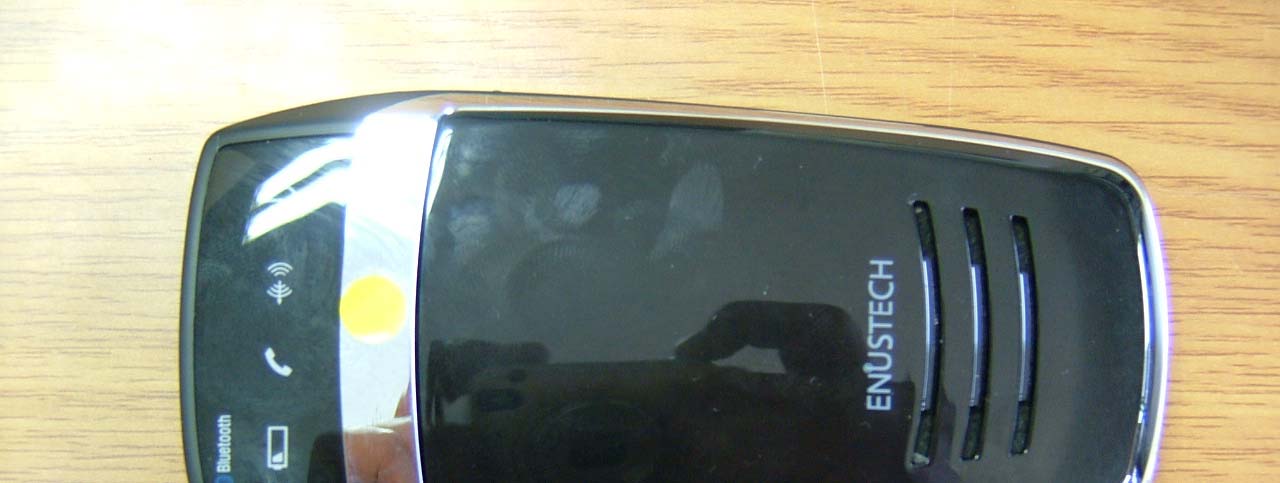

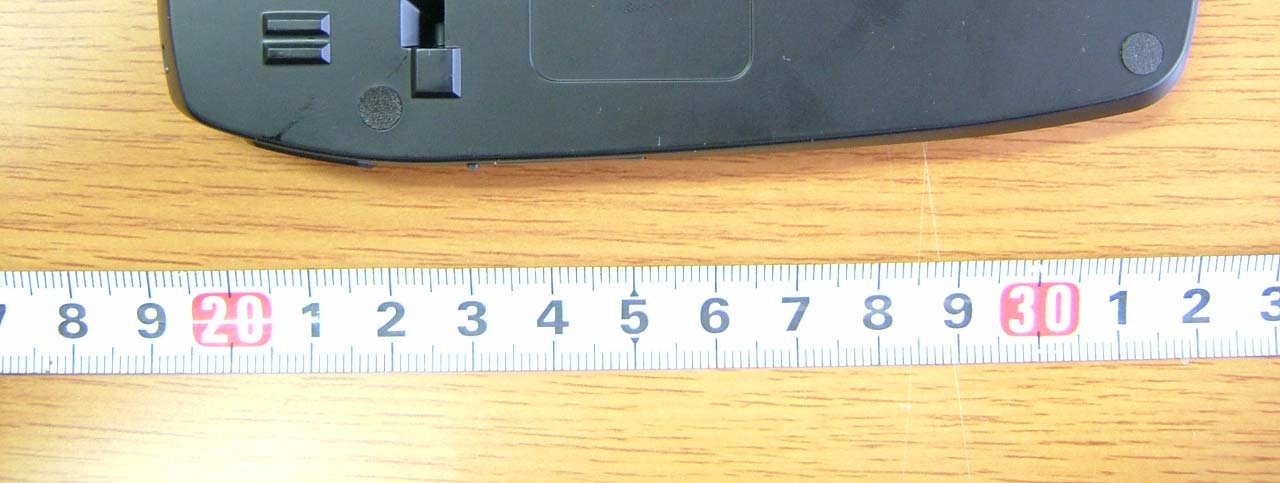

FCC ID: TT2BHF200 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 2 FCC ID: TT2BHF200 Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 2

FCC ID: TT2BHF200 Copyright Ⓒ 2006, LTA Co., Ltd. Page 1 of 1 SAMPLE LABEL & LOCATION Label ENUSTECH FCC ID:TT2BHF200 M/N: BHF200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Korea

FCC ID: TT2BHF200 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 2 FCC ID: TT2BHF200 Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 2

ATTACHMENT FCC ID: TT2BHF200 The peak radiated output power (ERP) is calculated as follows: EIRP = P + G + 2.15Where, EIRP = 3.22 dBm + (-1.0) dBi + P = Power input to the antenna (mW) EIRP = 4.37 dBmG = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) Where, S = (2.1 * 0.79) / (4 * 20 2 * π)S = Maximum power density (mW/cm 2 ) S = 0.0003 mW/cm 2 P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm2 . Estimated safe separation: R = √(PG / 4π)Where, R = √(2.1 * 0.79 / 4π)P = Power input to the antenna (mW) R = 0.36 cmG = Numeric power gain of the antenna R = Distance to the center of the radiation of the (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (-1.0 / 10) G = 0.79 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

RE : RF exposure information FCC ID : TT2BHF200 Model Name: BHF200 Wireless Handsfree Carkit To whom it may concern: This device is categorically excluded from routine environmental because it operate at very low power level. The equipment is deemed to comply with the SAR or MPE limits without testing due to this very low power level (EIRP < 3 mW) Sincerely, __________________________ Taek-Soo Kim A. Manager ENUStech.,Inc. JnJ Bldg., 5 Yeoksam 2(i)-dong,785-12,Gangnam-gu,Seoul 135-515,Korea Tel. +82-2-565-0785 Fax +82-2-3452-3603

Ref. No.: LR500110610A Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 32 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Wireless Handsfree Carkit Manufacturer : ENUStech.,Inc. Model name : BHF200 Test Device Serial No.: : Identification Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 3.22dBm - Conducted Data of issue : October 09, 2006 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 Dates of Tests: September 26 ~ 30, 2006 Test Report S/N: LR500110610A Test Site : LTA C O . , LT D . TT2BHF200 ENUStech.,Inc. Ref. No.: LR500110610A Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND - EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ------------------------------------------- 3 4 5 5 6 6 8 11 13 15 17 26 28 31 Ref. No.: LR500110610A Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 32 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500110610A Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 32 2. Information’s about test item 2-1 Client & Manufacturer Company name : ENUStech.,Inc. Address : JnJ Bldg., 5 Yeoksam 2(i)-dong,785-12,Gangnam-gu, Seoul 135-515,Korea TEL / FAX : +82-2-565-0785 / +82-2-565-0785 2-2 Equipment Under Test (EUT) Trade name : Wireless Handsfree Carkit FCC ID : TT2BHF200 Model name : BHF200 Serial number : Identification Date of receipt : September 22, 2006 EUT condition : Pre-production, not damaged Antenna type : Multilayer Chip Antenna Max Gain -1.0dBi Frequency Range : 2402 ~ 2480MHz RF output power : 3.22 dBm - Conducted Number of channels : 79 Duty cycle : 78 % Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 1100mAh rechargeable Lithium Polymer USB Charger Cable 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook Latitude D505 8N29F1S DELL - - - - Ref. No.: LR500110610A Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 32 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Te s t Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 75 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500110610A Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 32 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channels) RBW = 30 kHz (1% of the span or more) Sweep = auto VBW = 30 kHz Dete…
