TXTGLI18VBUFCCordless Spotlight with BTLE

1-877-BOSCH99 (1-877-267-2499) www.boschtools.com Operating/Safety Instructions Consignes d’utilisation/de sécurité Instrucciones de funcionamiento y seguridad IMPORTANT Read Before Using ● IMPORTANT Lire avant usage ● IMPORTANTE Leer antes de usar For English Version See page 2 ● Version française Voir page 13 ● Versión en español Ver la página 24 Call Toll Free for Consumer Information and Service Locations Pour obtenir des informations et les adresses de nos centres de service après-vente, appelez ce numéro gratuit Llame gratis para obtener información para el consumidor y ubicaciones de servicio GLI18V-4000C GLI18V-10000C 2610055548.qxp_GLI18V-4000C 3/26/20 2:05 PM Page 1 -2- Safety Symbols The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols. ! This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. IMPORTANT SAFETY INSTRUCTIONS Read all safety warnings and all instructions in this manual and in the battery charger manual. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not allow children to use the cordless floodlight. It is intended for professional use. Children can unintentionally blind themselves or other persons. Do not operate area lights in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Area lights create heat and sparks which may ignite the dust or fumes. Do not expose area lights to rain or wet conditions. Water entering an floodlight will increase the risk of electric shock or fire. After the automatic shut-off of the cordless floodlight, do not continue to press the On/Off button. The battery could become damaged. Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance). Do not turn on/off the light without line of sight to the light.Operator working near the light may be startled by the sudden bright light (turn light on) or left out in the dark (turn light off). Turning light on/off when there is operator near the light can cause personal injury or property damage. Do not cover the lamp head while operating the cordless floodlight. The lamp head heats up during operation and can cause burns or fire when the heat accumulates. Do not use the cordless floodlight in road traffic. The cordless floodlight is not approved for illumination in road traffic. Remove the battery from the cordless floodlight before any work on the cordless floodlight itself (e.g. assembling, maintenance, cleaning, etc.), as well as when transporting and storing. Do not position the lighted floodlight head on or near flammable or combustible materials. The lens gets hot during use. Do not touch the lens while the floodlight is in operation. Touching hot lens increases the risk of personal injury. Do not splash the lens of lighted floodlight with liquids. Hot lens may shatter when cooler liquids are contacted. The floodlight is ruggedly constructed. It should, however, be handled with care. Use only original Bosch accessories. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Recharge only with Bosch chargers listed in the battery/charger list.A charger that is 2610055548.qxp_GLI18V-4000C 3/26/20 2:05 PM Page 2 -3- suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload. Use only Bosch BAT612 or the batteries listed in the battery/charger list. When using other batteries, e. g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature.Exposure to fire or temperature above 265 °F may cause explosion. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Check the battery pack charge level at least once a month, especially if used for emergency purposes. Recharge the battery pack if charge level is low. User-Maintenance Instruction All repairs, electrical or mechanical,…

Text truncated - open the document above for the full version.

are Trademarks of Robert Bosch GmbH, Germany Robert Bosch Tool Corporation 1800 W. Central Rd. Mount Prospect, IL 60056 Telephone +1 224 232- 2382 Fax +1 224 232-2984 [email protected] ch.com www.bosch.us Confidentiality Request for: TXTGLI18VBUFC, 909H-GLI18VBUFC Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term ☐ Permanent External Photos ☐ Short Term ☐ Permanent Internal Photos ☐ Short Term ☒ Permanent Operation Description ☐ Short Term ☒ Permanent Parts List & Placement/BOM ☐ Short Term ☒ Permanent Tune-up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term ☐ Permanent Test Setup Photos ☐ Short Term ☐ Permanent User’s Manual Robert Bosch Tool Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the 08 June 2020 08 June 2020 Page 2 of 2 Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, Gerard Pasciak

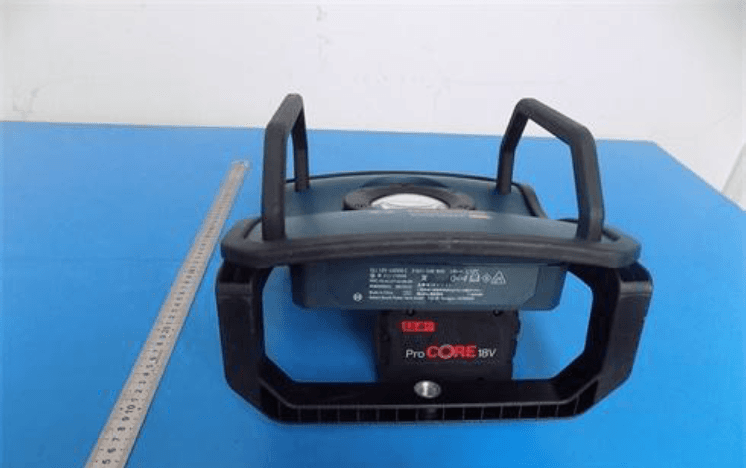

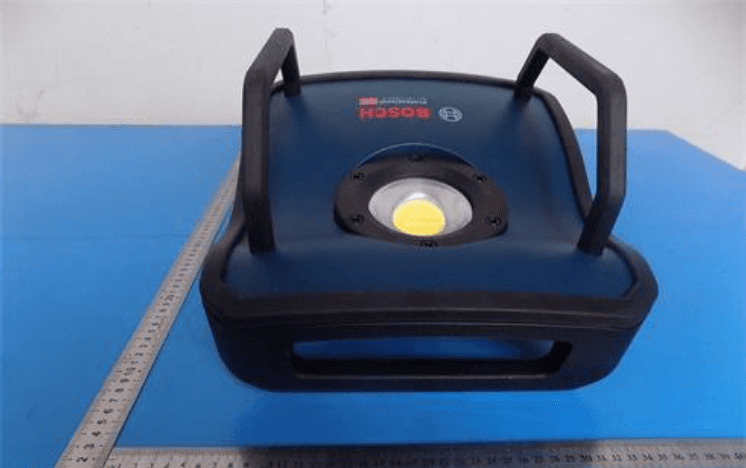

Page 30 of 41 Report No.: A1912117-C01-R02 12. EUT PHOTO Page 31 of 41 Report No.: A1912117-C01-R02 Page 32 of 41 Report No.: A1912117-C01-R02 Page 33 of 41 Report No.: A1912117-C01-R02

Page 30 of 40 Report No.: A1912117-C01-R03 12. EUT PHOTO Page 31 of 40 Report No.: A1912117-C01-R03 Page 32 of 40 Report No.: A1912117-C01-R03 Page 33 of 40 Report No.: A1912117-C01-R03

FCC ID: TXTGLI18VBUFC IC: 909H-GLI18VBUFC CAN ICES-005 (B) / NMB-005 (B) ROBERT BOSCH TOOL CORP., MOUNT PROSPECT, IL 60056 1X1 GLI18V-4000C 3601D46810 18V XXXXXXXXX MM/YYYY CAUTION MISE EN GARDE PRECAUCION LEA EL MANUAL DE INSTRUCCIONES. UTILICE ÚNICAMENTE LA BAT612 O LAS BATERÍAS INDICADAS EN LA LISTA DE BATERÍAS/CARGADORES. TIPO DOMÉSTICO. READ INSTRUCTION MANUAL. USE ONLY BAT612 OR THE BATTERIES LISTED IN THE BATTERY/ CHARGER LIST. HOUSEHOLD TYPE. LIRE LE MODE D’EMPLOI. UTILISEZ SEULEMENT BAT612 OU LES PILES INDIQUÉES SUR LA LISTE DES PILES/CHARGEURS. MODÈLE MÉNAGER. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. MADE IN CHINA MAC: ZZ:ZZ:ZZ:ZZ:ZZ:ZZ:

FCC ID: TXTGLI18VBUFC IC: 909H-GLI18VBUFC ROBERT BOSCH TOOL CORP., MOUNT PROSPECT, IL 60056 MAC: ZZ:ZZ:ZZ:ZZ:ZZ:ZZ: 1X1 GLI18V-10000C 3601D46910 18V XXXXXXXXX MM/YYYY CAUTION MISE EN GARDE PRECAUCION LEA EL MANUAL DE INSTRUCCIONES. UTILICE ÚNICAMENTE LA BAT612 O LAS BATERÍAS INDICADAS EN LA LISTA DE BATERÍAS/CARGADORES. TIPO DOMÉSTICO. READ INSTRUCTION MANUAL. USE ONLY BAT612 OR THE BATTERIES LISTED IN THE BATTERY/ CHARGER LIST. HOUSEHOLD TYPE. LIRE LE MODE D’EMPLOI. UTILISEZ SEULEMENT BAT612 OU LES PILES INDIQUÉES SUR LA LISTE DES PILES/CHARGEURS. MODÈLE MÉNAGER. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. MADE IN CHINA CAN ICES-005 (B) / NMB-005 (B)

Page 37 of 41 Report No.: A1912117-C01-R02 Page 38 of 41 Report No.: A1912117-C01-R02 Page 39 of 41 Report No.: A1912117-C01-R02 Antenna Page 40 of 41 Report No.: A1912117-C01-R02

Page 37 of 40 Report No.: A1912117-C01-R03 Page 38 of 40 Report No.: A1912117-C01-R03 Page 39 of 40 Report No.: A1912117-C01-R03 Antenna Page 40 of 40 Report No.: A1912117-C01-R03 Label ---------THE END OF REPORT-------

Page 28 of 41 Report No.: A1912117-C01-R02 10. RF EXPOSURE EVALUATION 10.1.Standard Requirement According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, --g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 10.2.Results The result is rounded to one decimal place for comparison Worse case is as below: [2440MHz: -2.51dBm (0.561mW) output power] (0.561mW /5.440(GHz)]= 0.18<3.0 for 1-g SAR Then SAR evaluation is not required The detail separation from each touchable point as follow: Antenna

Page 28 of 40 Report No.: A1912117-C01-R03 10. RF EXPOSURE EVALUATION 10.1.Standard Requirement According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, --g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 10.2.Results The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz: -2. 85 dBm (0.519 mW) output power] (0.519mW /5.4 02 (GHz)]= 0.16<3.0 for 1-g SAR Then SAR evaluation is not required The detail separation from each touchable point as follow: Antenna

FCC TEST REPORT FCC ID: TXTGLI18VBUFC On Behalf of Robert Bosch Tool Corporation LED Luminaires Model No.: GLI18V-4000C Prepared for : Robert Bosch Tool Corporation Address : Robert Bosch Tool Corp 1800 W Central Rd Mount Prospect, Illinois 60056 USA Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A1912117-C01-R02 Date of Receipt : February 19, 2020 Date of Test : February 19-21, 2020 Date of Report : February 21, 2020 Version Number : V0 Page 2 of 41 Report No.: A1912117-C01-R02 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ----------------------------------------------------------------- 6 1.1. Description of Standards and Results ---------------------------------------------------------- 6 2. General Information ------------------------------------------------------------------------------------ 7 2.1. Description of Device (EUT) -------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ------------------------------------------------------------------- 8 2.3. Tested Supporting System Details -------------------------------------------------------------- 8 2.4. Block Diagram of connection between EUT and simulators ------------------------------- 8 2.5. Test Mode Description --------------------------------------------------------------------------- 8 2.6. Test Conditions ------------------------------------------------------------------------------------ 8 2.7. Test Facility ---------------------------------------------------------------------------------------- 9 2.8. Measurement Uncertainty ----------------------------------------------------------------------- 9 2.9. Test Equipment List ---------------------------------------------------------------------------- 10 3. Spurious Emission --------------------------------------------------------------------------------------11 3.1. Test Limits --------------------------------------------------------------------------------------- 11 3.2. Test Procedure ----------------------------------------------------------------------------------- 11 3.3. Test Setup ---------------------------------------------------------------------------------------- 12 3.4. Test Results -------------------------------------------------------------------------------------- 13 4. Power Line Conducted Emission ------------------------------------------------------------------- 17 4.1. Test Limits --------------------------------------------------------------------------------------- 17 4.2. Test Procedure ----------------------------------------------------------------------------------- 17 4.3. Test Setup ---------------------------------------------------------------------------------------- 17 4.4. Test Results -------------------------------------------------------------------------------------- 18 5. Conducted Maximum Output Power ------------------------------------------------------------- 19 5.1. Test limits ---------------------------------------------------------------------------------------- 19 5.2. Test Procedure ----------------------------------------------------------------------------------- 19 5.3. Test Setup ---------------------------------------------------------------------------------------- 19 5.4. Test Results -------------------------------------------------------------------------------------- 19 6. Peak Power Spectral Density ------------------------------------------------------------------------ 20 6.1. Test limits ---------------------------------------------------------------------------------------- 20 6.2. Test Procedure ----------------------------------------------------------------------------------- 20 6.3. Test Setup ---------------------------------------------------------------------------------------- 20 6.4. Test Results -------------------------------------------------------------------------------------- 20 7. Bandwidth ----------------------------------------------------------------------------------------------- 22 7.1. Test limits ---------------------------------------------------------------------------------------- 22 7.2. Test Procedure ----------------------------------------------------------------------------------- 22 7.3. Test Setup ---------------------------------------------------------------------------------------- 22 7.4. Test Results -------------------------------------------------------------------------------------- 22 8. Band Edge Check -------------------------------------------------------------------------------------- 24 8.1. Test limits ---------------------------------------------------------------------------------------- 24 8.2. Test Procedure ----------------------------------------------------------------------------------- 24 8.3. Test Setup ---------------------------------------------------------------------------------------- 24 8.4. Test Results -------------------------------------------------------------------------------------- 24 9. Antenna Requirement -------------------------------------------------------------------------------- 27 9.1. Standard Requirement -------------------------------------------------------------------------- 27 9.2. Antenna Connected Construction ------------------------------------------------------------- 27 Page 3 of 41 Report No.: A1912117-C01-R02 9.3. Results -------------------------------------------------------------------------------------------- 27 10. RF Exposure evaluation ------------------------------------------------------------------------------ 28 10.1. Standard Requirement -------------------------------------------------------------------------- 28 10.2. Results -------------------------------------------------------------------------------------------- 28 11. Test setup photo -----------------------------------------------------------…

Text truncated - open the document above for the full version.

FCC TEST REPORT FCC ID: TXTGLI18VBUFC On Behalf of Robert Bosch Tool Corporation LED Luminaires Model No.: GLI18V-10000C Prepared for : Robert Bosch Tool Corporation Address : Robert Bosch Tool Corp 1800 W Central Rd Mount Prospect, Illinois 60056 US A Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzh en, Guangdong, China Report Number : A1912117-C01-R03 Date of Receipt : February 19, 2020 Date of Test : February 19-21, 2020 Date of Report : February 21, 2020 Version Number : V0 Page 2 of 40 Report No.: A1912117-C01-R03 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ----------------------------------------------------------------- 6 1.1. Description of Standards and Results ---------------------------------------------------------- 6 2. General Information ------------------------------------------------------------------------------------ 7 2.1. Description of Device (EUT) -------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ------------------------------------------------------------------- 8 2.3. Tested Supporting System Details -------------------------------------------------------------- 8 2.4. Block Diagram of connection between EUT and simulators ------------------------------- 8 2.5. Test Mode Description --------------------------------------------------------------------------- 8 2.6. Test Conditions ------------------------------------------------------------------------------------ 8 2.7. Test Facility ---------------------------------------------------------------------------------------- 9 2.8. Measurement Uncertainty ----------------------------------------------------------------------- 9 2.9. Test Equipment List ---------------------------------------------------------------------------- 10 3. Spurious Emission --------------------------------------------------------------------------------------11 3.1. Test Limits --------------------------------------------------------------------------------------- 11 3.2. Test Procedure ----------------------------------------------------------------------------------- 11 3.3. Test Setup ---------------------------------------------------------------------------------------- 12 3.4. Test Results -------------------------------------------------------------------------------------- 13 4. Power Line Conducted Emission ------------------------------------------------------------------- 17 4.1. Test Limits --------------------------------------------------------------------------------------- 17 4.2. Test Procedure ----------------------------------------------------------------------------------- 17 4.3. Test Setup ---------------------------------------------------------------------------------------- 17 4.4. Test Results -------------------------------------------------------------------------------------- 18 5. Conducted Maximum Output Power ------------------------------------------------------------- 19 5.1. Test limits ---------------------------------------------------------------------------------------- 19 5.2. Test Procedure ----------------------------------------------------------------------------------- 19 5.3. Test Setup ---------------------------------------------------------------------------------------- 19 5.4. Test Results -------------------------------------------------------------------------------------- 19 6. Peak Power Spectral Density ------------------------------------------------------------------------ 20 6.1. Test limits ---------------------------------------------------------------------------------------- 20 6.2. Test Procedure ----------------------------------------------------------------------------------- 20 6.3. Test Setup ---------------------------------------------------------------------------------------- 20 6.4. Test Results -------------------------------------------------------------------------------------- 20 7. Bandwidth ----------------------------------------------------------------------------------------------- 22 7.1. Test limits ---------------------------------------------------------------------------------------- 22 7.2. Test Procedure ----------------------------------------------------------------------------------- 22 7.3. Test Setup ---------------------------------------------------------------------------------------- 22 7.4. Test Results -------------------------------------------------------------------------------------- 22 8. Band Edge Check -------------------------------------------------------------------------------------- 24 8.1. Test limits ---------------------------------------------------------------------------------------- 24 8.2. Test Procedure ----------------------------------------------------------------------------------- 24 8.3. Test Setup ---------------------------------------------------------------------------------------- 24 8.4. Test Results -------------------------------------------------------------------------------------- 24 9. Antenna Requirement -------------------------------------------------------------------------------- 27 9.1. Standard Requirement -------------------------------------------------------------------------- 27 9.2. Antenna Connected Construction ------------------------------------------------------------- 27 Page 3 of 40 Report No.: A1912117-C01-R03 9.3. Results -------------------------------------------------------------------------------------------- 27 10. RF Exposure evaluation ------------------------------------------------------------------------------ 28 10.1. Standard Requirement -------------------------------------------------------------------------- 28 10.2. Results -------------------------------------------------------------------------------------------- 28 11. Test setup photo --------------------------------------------------------…

Text truncated - open the document above for the full version.

Page 29 of 41 Report No.: A1912117-C01-R02 11. TEST SETUP PHOTO 11.1.Photos of Radiated emission 11.2.Photos of Conducted Emission test N/A

Page 29 of 40 Report No.: A1912117-C01-R03 11. TEST SETUP PHOTO 11.1.Photos of Radiated emission 11.2.Photos of Conducted Emission test N/A
