TYLASNAnalog with temperature sensor

TX-3AS Analog/Temperature Two-in-One Sensor INTRODUCTION The TX-3AS is a battery operated wireless Analog/Temperature sensor specially designed for the LS-30 Security System. Any Analog external sensor with 0-20mA (or 0-2V*) output can be connected to the terminals and TX-3AS will translate it into 0-200 readings and transmit the result to the Base Unit by RF signal. With built-in temperature sensor and wireless operation, the sensor can be put anywhere to monitor/record the data from an Analog external sensor and the temperature in a room, a chamber or even a freezer and the reading will be remotely shown/store in the Base Unit. (* 0-2V actually is 0-1.952V, please refer to the Specifications.) Hole to reach TEST button inside Transmission LED LED JP3 20mA/2V Selector Input Terminals Wiring Inlet LED Test Button To Analog External GND Sen 3V I/P O/P (optional) Test Button INSTALLATION A. Enrolling Code 1. Loosen the screw of the TX-3AS, open the upper case and connect the Analog external sensor output to the terminals (make sure the output of the Analog external sensor is in the operation range of 0-20mA or 0-2V, if the output is over this range please see the Appendix to adjust the output level before connecting to the terminals). Insert two AAA alkaline batteries then put back the cover.. Important Notice: The sensor will issue battery low signal to the Base Unit if the battery voltages are too low for normal operation. In order to reset the microprocessor properly, please press TEST button for 5 seconds after removing the old batteries to discharge the energy that remains in the capacitors of TX-3AS then insert new batteries. Otherwise, it may not restart after changing batteries 2. Select “Installer Mode” on the Base Unit and enroll both sensors to the zone numbers according to your system configuration. (This Enrollment also can be done through the HyperSecureLink software from PC) Enter Installer Password to gain access authority then select \Set Device\Enroll Device\Special Sensor\Enter Zone No. to enroll the ID of the TX-3AS by pressing its TEST button. If the Base Unit receives correct RF code from TX-3AS, the Base Unit will issue “Ding Dong” and show “Enroll OK!” on the LCD display. Now the Base Unit has learnt one type of the two sensors (Temperature or Analog external sensor), next step is to enroll another type sensor. 3. Press YES, enter the Zone number and press the TEST button on the sensor again to enroll another type sensor. Note: If LCD shows “Duplicate” it means the received signal type of the reading (Temperature or Analog external Sensor) is the same as the last reading. You have to go to step 2 to enroll another type sensor again. 4. After the Device Enroll is completed, you can go to ”Device Check” to check the sensors. Select “Master Mode” on the Base Unit and press YES for “System Check? Or Hot Key” then select “Device Check” (There should be two new sensors in the device list, one is Temperature sensor and the other one is Analog sensor.) 5. You may change its various attributes under \Set Device\Change Device Setting\Special Sensor to fulfill different requirements. The sensor can be set as an Alarm Device or a Control Device. (Refer to the blocks below) Each time when you press the TEST button on the sensor it will send the current temperature (one flash) or Analog reading from external sensor (two flashes) alternatively. B. Mounting It is recommended to attach the sensor on a flat surface by the Velcro supplied. Note: Do not mount the sensor on a metal surface, the RF transmission range will be shrunk due to radio signal attenuation. If the sensor is put in a closed freezer, there maybe a large reduction in radio range. The user should move the Base Unit closer to the sensor or using a repeater to relay the RF signal. C. Testing Each time when you press the TEST button on the sensor it will send the current temperature (LED flashes once) or Analog reading (LED flashes twice) alternatively. D. Analog /Temperature Limit Setting (also can be done by HyperSecurLink software) Select “Installer Mode” on the Base Unit, and enter Installer Password to gain access authority. Then select \Set Device\Special Sensor Limit Set\Enter Zone Number and then set High Limit or Low Limit. If the Analog/temperature reading is over these limits, the LS-30 will issue Special Sensor alarm and inform the user (Special telephone number should be set). If both high/low limits are set, the high limit should be greater than the low limit at least for 1 reading. Note: If the sensor works in the temperature range over +50 °C to -20°C for a long time, the device’s life will be reduced and the performance maybe degraded. E. Operation and Display To save battery power, the device sends reading automatically only when the temperature change is over 1°C or Analog Reading change is over 2 readings. If there is no change for a long time, the device will send the reading hourly to refresh the display. If there is any new reading transmitted from the device, the Base Unit will keep the last reading on the display alternatively with the time display each for 5 seconds. You can clear the reading by Hot Key C. Alarm Device: The system issues alarm when the reading is over the limits and issues restore signal when the reading returns to the limits. (High Limit)+1: High Limit Alarm (High Limit) (High Limit)-1: Alarm Restore (Low Limit)+1: Alarm Restore (Low Limit) (Low Limit)-1: Low Limit Alarm Control Device: The reading from this device will not issue any alarm but control the operation of the switches those have been assigned by this device. High Limit Operation: Turn on at high limit reading and turn off at low limit reading. Low Limit Operation: Turn on at low limit reading and turn off at high limit reading. High Limit Operation Device Low Limit Operation Device (SW ON) (SW OFF) (High Limit)+1 (High Limit) (Low limit) (Low Limit)-1 (SW OFF) (SW ON) High Limit Operation Device Low Limit Operation…

Text truncated - open the document above for the full version.

V 25 FCC ID: TYLASN Device Name: Analog with temperature sensor Model No.: TX-3AS Date: 3/19/2013 Federal Communications Commission To whom it may concern: I, the undersigned, hereby authorize Mr . James Cheng / Application Examiner of ELECTRONICS TESTING CENTER, TAIWAN and hereafter referred to as ETC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr . James Cheng of ETC on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product  compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, By: By: Kevin Wang (Signature) (Printed)

V 25 Title : Marketing Manager Applicant : Scientech Electronics Co., Ltd. Address : 4F No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Tel : 886-2-22183085 Fax: 886-2-22187380 FCC ID: TYLASN Device Name: Analog with temperature sensor Model No.: TX-3AS Date: 3/19/2013 Federal Communications Commission Dear Sir: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. By: By: Kevin Wang (Signature) (Printed) Title : Marketing Manager Applicant : Scientech Electronics Co., Ltd. Address : 4F No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Tel : 886-2-22183085 Fax: 886-2-22187380

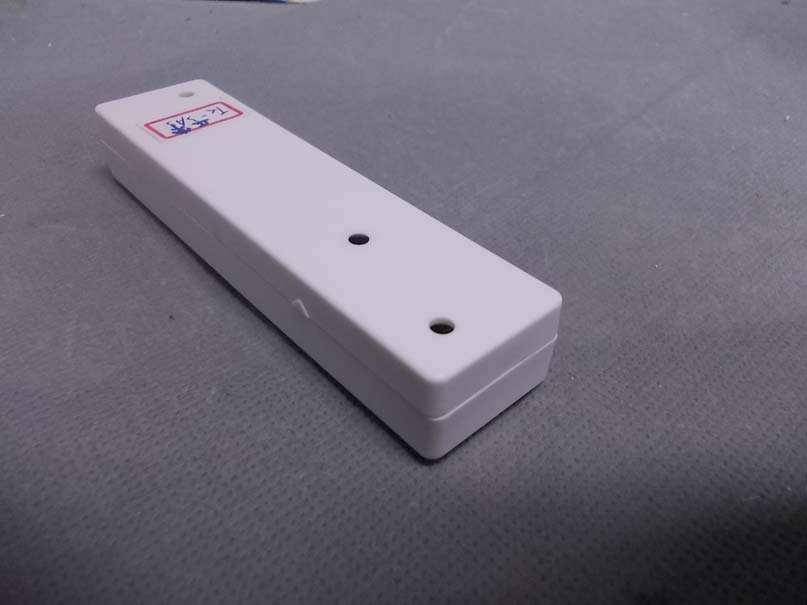

FCC ID.: TYLASN Page A1 of A1 ETC Report No.: 12-12-MAS-296-06 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

Model: TX-3AS Model: TX-3AS FCC ID:TYLASN 6mm 16mm

FCC ID.: TYLASN Page B1 of B2 ETC Report No.: 12-12-MAS-296-06 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID.: TYLASN Page B2 of B2 ETC Report No.: 12-12-MAS-296-06 3. Front view of PCB 4. Rear view of PCB

FCC ID.: TYLASN Sheet 1 of 18 Sheets ETC Report No. : 12-12-MAS-296-06 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 12-12-MAS-296-06 Client: Scientech Electronics Co., Ltd. Product: Analog with temperature sensor Model: TX-3AS Manufacturer/supplier: Scientech Electronics Co., Ltd. Date test item received: 2012/11/22 Date test campaign completed: 2013/02/20 Date of issue: 2013/02/20 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 18 pages Total number of pages of photos: External photos 1 pages Internal photos 2 pages Setup photos 2 pages Prepared By Technical Acceptance By Approved By Phillip Luo Perry Lin James Cheng ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID.: TYLASN Sheet 2 of 18 Sheets ETC Report No. : 12-12-MAS-296-06 Rev. No 1.0 Client : Scientech Electronics Co., Ltd. Address : 4F, No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Manufacturer : Scientech Electronics Co., Ltd. Address : 4F, No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan EUT : Analog with temperature sensor Trade name : ---- Model No. : TX-3AS Power Source : 3.0Vdc（Battery） Regulations applied : FCC 47 CFR, Part 15 Subpart C The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:  ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, TAF, NCC, NVLAP, ILAC MRA, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF  FCC Registration Number: 91095, 392735, 278818  Industry Canada Site Regisitation number: IC 2949A-2 NVLAP Lab Code 200133-0 FCC ID.: TYLASN Sheet 3 of 18 Sheets ETC Report No. : 12-12-MAS-296-06 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION.................................................................................................................................................. 4 1.2 CHARACTERISTICS OF DEVICE:....................................................................................................................................... 4 1.3 TEST METHODOLOGY..................................................................................................................................................... 4 1.4 TEST FACILITY............................................................................................................................................................... 4 2. DEFINITION AND LIMITS ....................................................................................................................................... 5 2.1 DEFINITION.................................................................................................................................................................... 5 2.2 RESTRICTED BANDS OF OPERATION...............................................................................................................................6 2.3 LIMITATION.................................................................................................................................................................... 6 2.4 LABELING REQUIREMENT............................................................................................................................................... 8 2.5 USER INFORMATION....................................................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION .......................................................................................................................... 9 3.1 DEVICES FOR TESTED SYSTEM....................................................................................................................................... 9 4. RADIATED EMISSION MEASUREMENT ........................................................................................................... 10 4.1 APPLICABLE STANDARD............................................................................................................................................... 10 4.2 MEASUREMENT PROCEDURE........................................................................................................................................ 10 4.3 TEST DATA................................................................................................................................................................... 12 4.4 FIELD STRENGTH CALCULATION.................................................................................................................................. 16 4.5 RADIATED TEST EQUIPMENT........................................…
