U43ICT400Double Induction Cooktop

ICT400 Professional induction cooktoP For your safety and continued enjoyment of this product, always read the instruction book carefully before using. 2 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS. 2. Unplug from outlet when not in use and before cleaning. Allow surface to cool before putting on or taking off parts. 3. Use unit only on a level surface. 4. Use only with induction-compatible cookware. 5. Do not let cord hang over edge of table or counter, or touch hot surfaces. 6. Dry outside of pan before use. 7. Do not heat empty pan. 8. Don’t spill any liquids into vent areas. 9. To protect against electrical shock do not immerse cord, plugs or housing unit in water or other liquids. 10. This appliance should not be used by or near children or individuals with certain disabilities. 11. Do not leave appliance unattended when it is on. 12. Do not touch hot surfaces. Use handles or knobs. 13. Do not cook on a broken cooktop – If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. 14. Clean cooktop with caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface. 15. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions or has been damaged in any manner. Call the nearest authorized Waring customer service center (see Warranty) to return for examination, repair or adjustment. 16. A short power-supply cord is supplied to reduce the risk resulting from becoming entangled in or tripping over a longer cord. 17. Extension cords are available and may be used if care is 3 exercised in their use. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. 18. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. 19. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 20. Do not use outdoors or while standing in a damp area. 21. Do not place on or near a hot gas or electric burner, or in a heated oven. 22. Extreme caution must be used when moving any pot or pan containing hot oil or other hot liquids from this appliance. 23. When using this appliance provide at least 4–6 inches of air space above and on all sides for air circulation. 24. Do not use this appliance for anything other than its intended use. This appliance is for household use only. 25. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn the unit off, then remove plug from wall outlet. 26. Do not operate your appliance in an appliance garage or under a wall cabinet. When storing in an appliance garage, always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes. 27. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. This device complies with Part 18 of the FCC Rules. This appliance is for 120 volts only and should not be used with a converter. 4 CAUTION To reduce the risk of electric shock, burns, fire or injury: 1. Always unplug cooktop from the electrical outlet immediately after using. 2. Do not use while bathing or in a shower. 3. Do not place or store unit where it can fall or be pulled into a tub or sink. 4. Do not place or drop into water or other liquids. 5. Do not reach for unit that has fallen into water. Unplug it immediately. 6. Care should be taken so that objects do not fall and liquids are not spilled onto the unit. • TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. THERE ARE NO USER- SERVICEABLE PARTS INSIDE. • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO WATER OR MOISTURE. SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLy CONTENTS Important Safeguards ..................................................................2 How Induction Cooking Works ....................................................5 Selecting Cookware for Induction Cooktops ..............................5 Safety Functions and Features ....................................................5 Using Your Induction Cooktop ....................................................6 Cleaning and Maintenance ..........................................................7 Your new Waring Pro ® Professional Double Induction Cooktop was an exceptionally smart choice. Induction heat technology not only uses less energy, it also heats and cools faster than conventional burners. You may end up using your new cooktop more often than your stovetop! 5 HOw INDUCTION COOkING wORkS Induction cooking uses electromagnetism to transfer energy into the bottom of your cookware. The surface of the cooktop does not work the same way as conventional cooktops – it sends the energy directly to the cookware. As long as the energy is transferring into the cookware, the cookware will stay hot. Once the energy is removed or reduced, the cookware begins to cool instantly. SELECTING COOkwARE FOR INDUCTION COOkTOPS Use only induction-ready cookware Selecting the proper induction-ready cookware is very important to the efficiency of your induction cooktop. As a general rule, copper, aluminum and glassware will not work on an induction cooktop. Waring highly recommends using magnetic stainless steel, enamel, porcelain on steel, or cast iron. If yo…

Text truncated - open the document above for the full version.

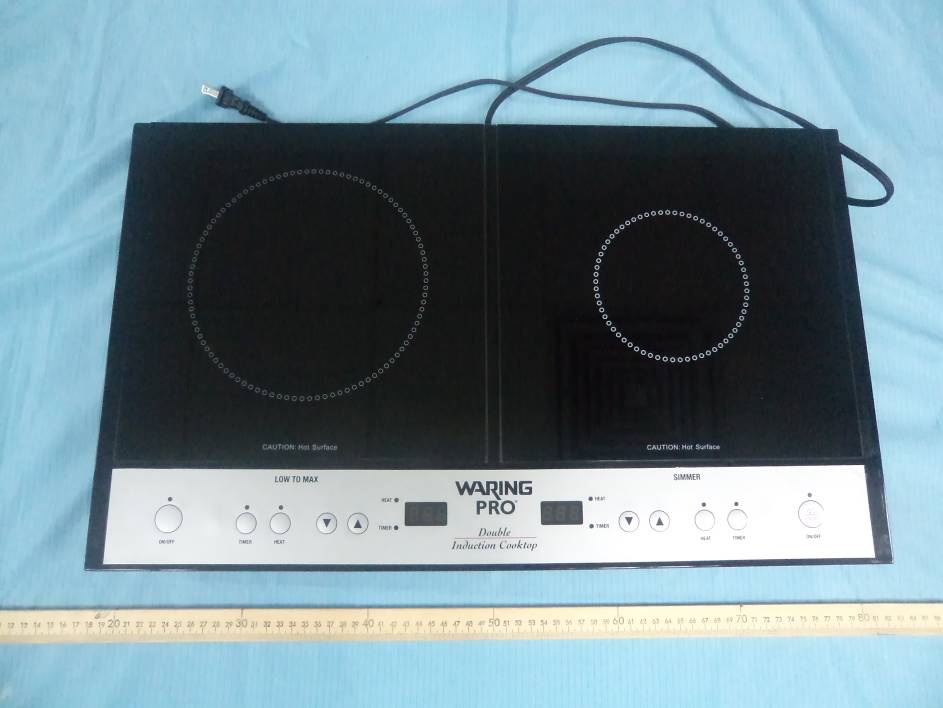

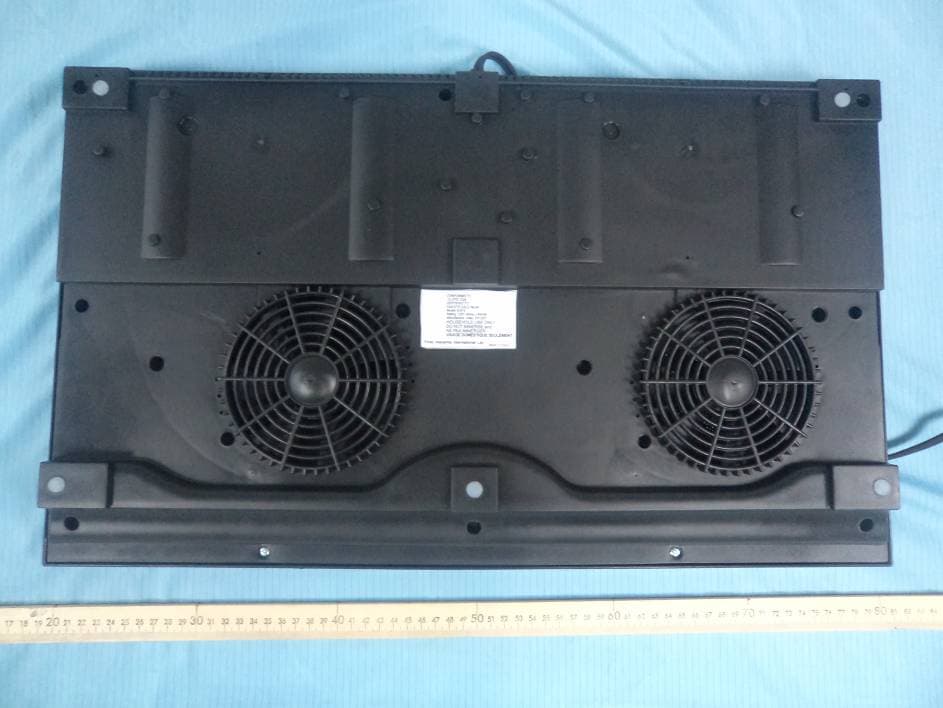

EXHIBIT B - EUT EXTERNAL PHOTOGRAPH EUT – Front View EUT - Rear View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Here

1 2 34 ABCD 4 3 2 1 D CBA 1 N-IN1 1 L-IN1 FUSE1T15AH 250VAC C1 8UF/275VAC 1 N-OUT1 1 N-OUT2 1 L-OUT2 C-PP-2 L1 40UH L2 40UH 1 L-OUT1 R2680k

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 TEST REPORT For Continental Conair Limited 35/F, Standard Chartered Tower, Millennium City 1, 388 Kwun Tong Road, Kwun Tong, Kowloon, Hong Kong. FCC ID: U43ICT400 Report Type: Original Report Product Name: Double Induction Cooktop Test Engineer: Andrew Shu Report Number: RSZ120703550-00 Report Date: 2012-07-19 Reviewed By: Dick Zhang EMC Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120703550-00 FCC Part 18 Page 2 of 16 TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE.......................................................................................................................................... 5 SPECIAL ACCESSORIES................................................................................................................................................ 5 EQUIPMENT MODIFICATIONS....................................................................................................................................... 5 EXTERNAL CABLE....................................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULT................................................................................................................................. 7 FCC §18.307 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 8 APPLICABLE STANDARD.............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY................................................................................................................................... 8 EUT SETUP................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP........................................................................................................................................ 9 TEST PROCEDURE........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 9 TEST RESULTS SUMMARY......................................................................................................................................... 10 TEST DATA................................................................................................................................................................ 10 FCC §18.305 – FIELD STRENGTH ......................................................................................................................... 13 MEASUREMENT UNCERTAINTY................................................................................................................................. 13 EUT SETUP............................................................................................................................................................... 13 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP............................................................................... 14 TEST PROCEDURE...................................................................................................................................................... 14 CORRECTED AMPLITUDE CALCULATION................................................................................................................... 14 TEST EQUIPMENT LIST AND DETAILS...............................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conducted Emissions – Front View AC Line Conducted Emissions – Side View Field Strength – Front View Field Strength – Rear View
