U7GBBGRMGlobal IOT mobile radio

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modi

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-06-23> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name U7GBBGRM Blackbox-BBGR-M For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name / Title: Michael Lopez / VP Product Management Company: Klein Electronics, Inc. Address: 349 North Vinewood Street, Escondido, California, USA 92029 Phone: 8009592899 Fax: 760-781-3232 E-Mail: [email protected]

Klein Electronics, Inc. 349 North Vinewood Street, Escondido, California, USA 92029 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/07/03 To whom it may concern: We, Klein Electronics, Inc. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: U7GBBGRM including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name / Title: Michael Lopez / VP Product Management Company: Klein Electronics, Inc. Address: 349 North Vinewood Street, Escondido, California, USA 92029 Phone: 8009592899 Fax: 760-781-3232 E-Mail: [email protected]

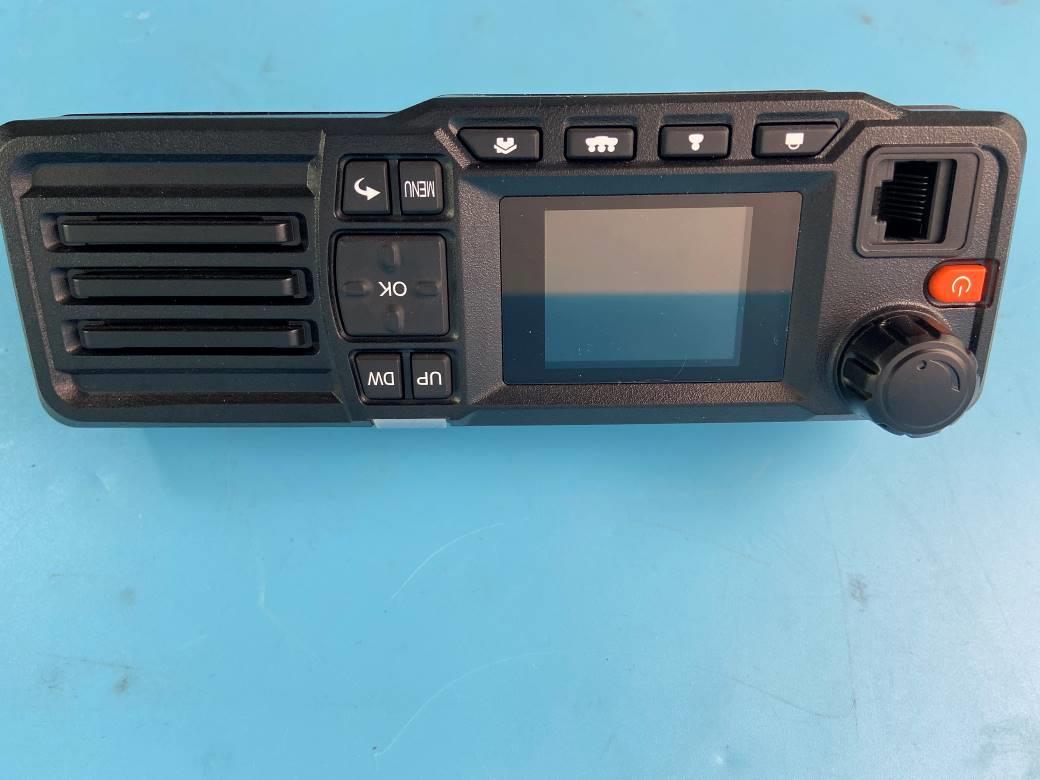

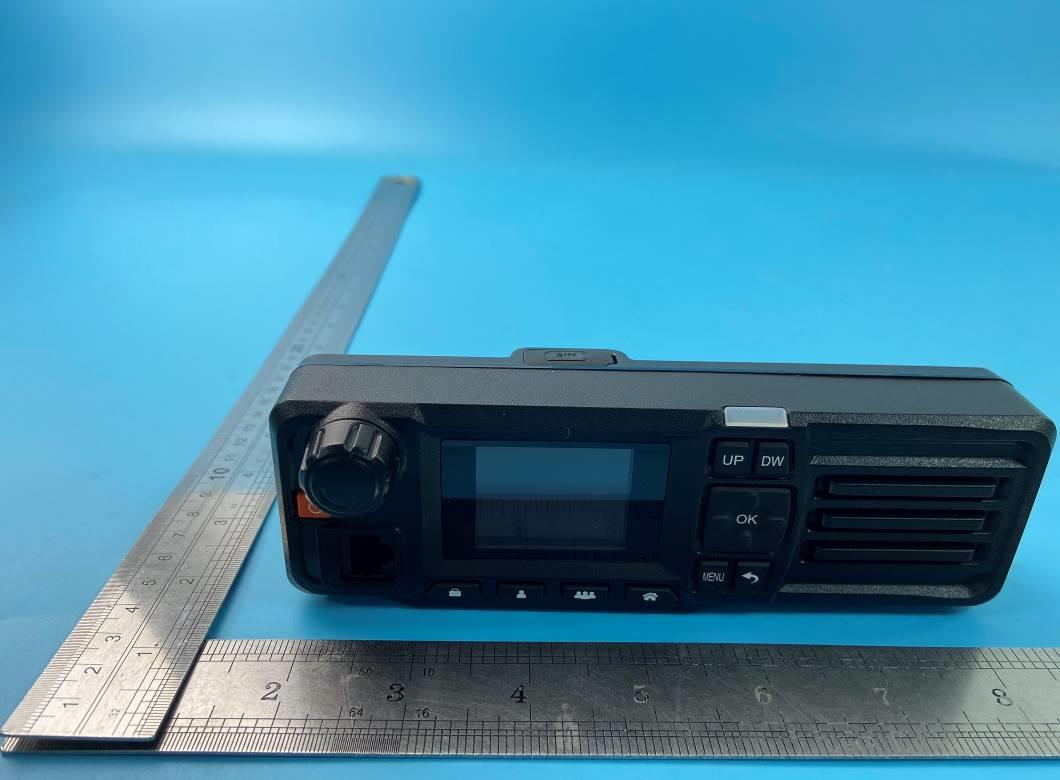

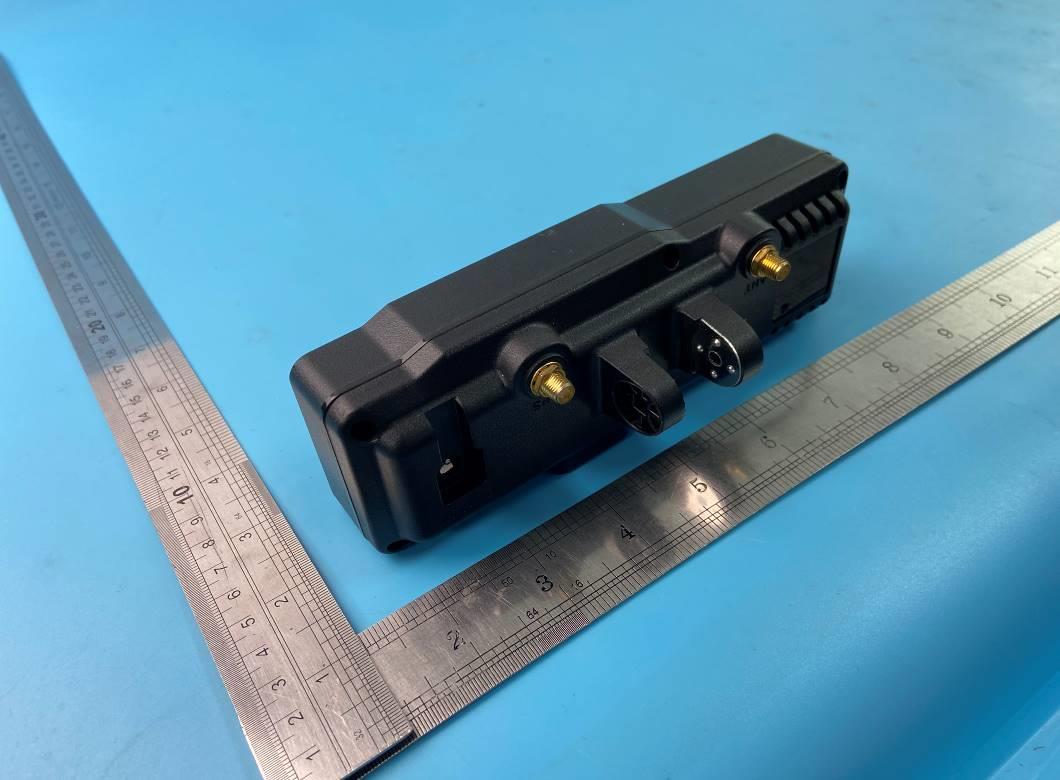

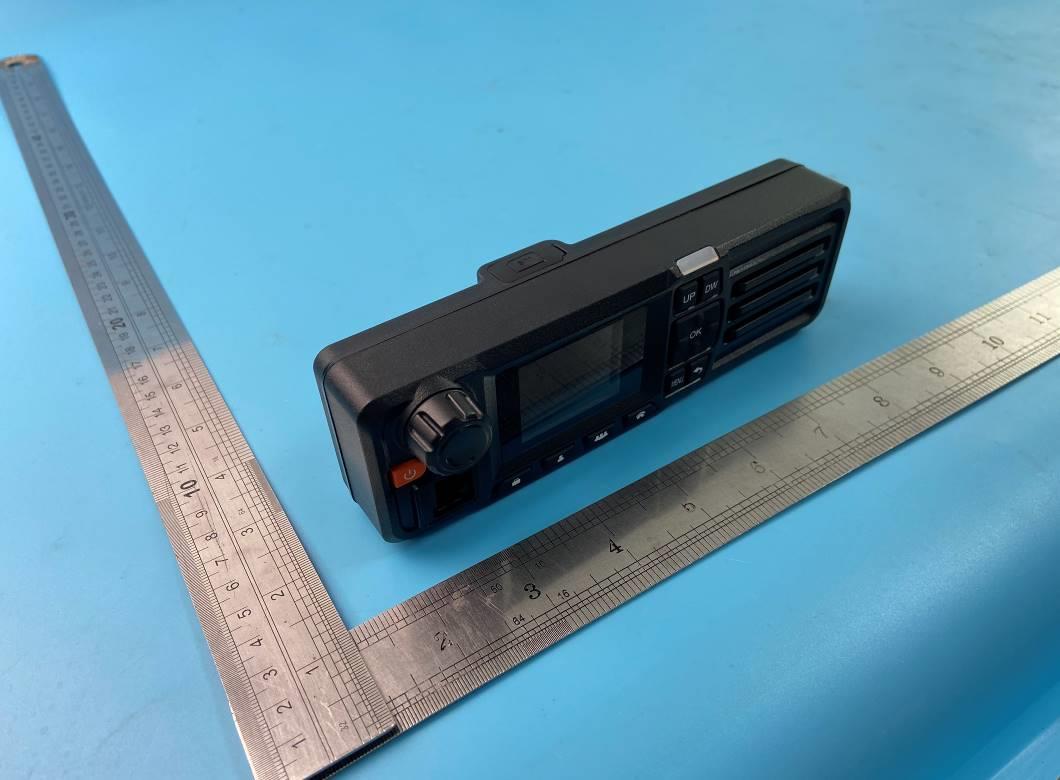

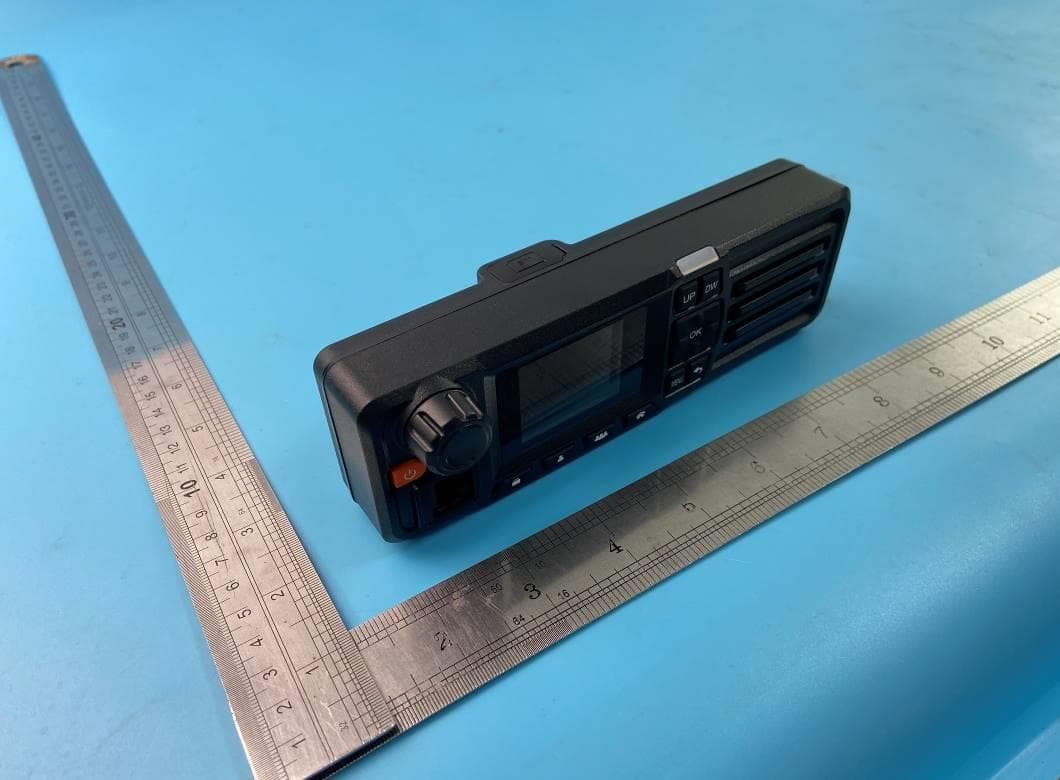

FCC ID: U7GBBGRM Fig. 1 Fig. 2 GPS Antenna GSM/WCDMA/LTE Antenna FCC ID: U7GBBGRM Fig. 3 Fig. 4 FCC ID: U7GBBGRM Fig. 5 Fig. 6 GPS Antenna port GSM/WCDMA/LTE Antenna port FCC ID: U7GBBGRM Fig. 7

FCC ID: U7GBBGRM Fig. 1 Fig. 2 BT/WIFI Antenna FCC ID: U7GBBGRM Fig. 3 Fig. 4 FCC ID: U7GBBGRM Fig. 5 Fig. 6 FCC ID: U7GBBGRM Fig. 7 Fig. 8 FCC ID: U7GBBGRM Fig. 9

RF Exposure evaluation FCC ID: U7GBBGRM Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information Blackbox-BBGR-M can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Bluetooth / FPC Antenna 2.0dBi for 2400-2500MHz 2.4GWIFI / FPC Antenna 2.0dBi for 2400-2500MHz GSM / External antenna GSM850: 2.5 dbi, DCS1900: 2.50dbi WCDMA / External antenna FDD Band V:2.50dbi, FDD Band IV :2.50 dbi, FDD Band II:2.50dbi LTE / External antenna FDD Band 2: 2.50dBi, FDD Band 4: 2.50dBi, FDD Band 5: 2.50dBi, FDD Band 7: 2.50dBi, FDD Band 12: 2.50dBi, FDD Band 17: 2.50dBi, FDD Band 25: 2.50dBi, FDD Band 26: 2.50dBi, 5. Manufacturing Tolerance <GSM> Band Mode The Tune-up Maximum Power (Customer Declared)(dBm) GSM 850 GPRS(GMSK, 1 Tx slot) 32.0±1.0 GPRS(GMSK, 2 Tx slot) 30.0±1.0 GPRS(GMSK, 3 Tx slot) 28.0±1.0 GPRS(GMSK, 4 Tx slot) 27.0±1.0 EDGE (8PSK, 1 Tx slot) 28.0±1.0 EDGE (8PSK, 2 Tx slot) 26.0±1.0 EDGE (8PSK, 3 Tx slot) 24.0±1.0 EDGE (8PSK, 4 Tx slot) 23.0±1.0 GSM 1900 GPRS(GMSK, 1 Tx slot) 30.0±1.0 GPRS(GMSK, 2 Tx slot) 27.0±1.0 GPRS(GMSK, 3 Tx slot) 26.0±1.0 GPRS(GMSK, 4 Tx slot) 26.0±1.0 EDGE (8PSK, 1 Tx slot) 27.0±1.0 EDGE (8PSK, 2 Tx slot) 25.0±1.0 EDGE (8PSK, 3 Tx slot) 23.5±1.0 EDGE (8PSK, 4 Tx slot) 23.0±1.0 <WCDMA> Band Mode The Tune-up Maximum Power (Customer Declared)(dBm) W-B2 RMC 12.2Kbps 21.5±2.0 HSDPA Subtest-1 21.5±2.0 HSDPA Subtest-2 21.5±2.0 HSDPA Subtest-3 21.5±2.0 HSDPA Subtest-4 21.5±2.0 HSUPA Subtest-1 21.5±2.0 HSUPA Subtest-2 21.5±2.0 HSUPA Subtest-3 21.5±2.0 HSUPA Subtest-4 21.5±2.0 HSUPA Subtest-5 21.5±2.0 W-B4 RMC 12.2Kbps 21.5±2.0 HSDPA Subtest-1 21.5±2.0 HSDPA Subtest-2 21.5±2.0 HSDPA Subtest-3 21.5±2.0 HSDPA Subtest-4 21.5±2.0 HSUPA Subtest-1 21.5±2.0 HSUPA Subtest-2 21.5±2.0 HSUPA Subtest-3 21.5±2.0 HSUPA Subtest-4 21.5±2.0 HSUPA Subtest-5 21.5±2.0 W-B5 RMC 12.2Kbps 21.5±2.0 HSDPA Subtest-1 21.5±2.0 HSDPA Subtest-2 21.5±2.0 HSDPA Subtest-3 21.5±2.0 HSDPA Subtest-4 21.5±2.0 HSUPA Subtest-1 21.5±2.0 HSUPA Subtest-2 21.5±2.0 HSUPA Subtest-3 21.5±2.0 HSUPA Subtest-4 21.5±2.0 HSUPA Subtest-5 21.5±2.0 <LTE> Mode Target Power QPSK 1RB 50%RB 100%RB LTE BAND 2 22.5±1.5 dBm 21.5±1.5 dBm 21.5±1.5 dBm LTE BAND 4 22.5±1.5 dBm 21.5±1.5 dBm 21.5±1.5 dBm LTE BAND 5 21.5±2.0 dBm 21.5±2.0 dBm 21.5±2.0 dBm LTE BAND 7 22.0±1.5 dBm 22.0±1.5 dBm 22.0±1.5 dBm LTE BAND 12 22.0±1.5 dBm 22.0±1.5 dBm 22.0±1.5 dBm LTE BAND 17 22.5±1.5 dBm 22.5±1.5 dBm 22.5±1.5 dBm LTE BAND 25 22.0±1.5 dBm 22.0±1.5 dBm 22.0±1.5 dBm LTE BAND 26(part 22) 22.5±1.5 dBm 22.5±1.5 dBm 22.5±1.5 dBm LTE BAND 26(part 90) 22.5±1.5 dBm 22.5±1.5 dBm 22.5±1.5 dBm Mode Target Power 16QAM 1RB 50%RB 100%RB LTE BAND 2 21.5±1.5 dBm 21.5±1.5 dBm 21.5±1.5 dBm LTE BAND 4 21.5±1.5 dBm 21.5±1.5 dBm 21.5±1.5 dBm LTE BAND 5 20.5±2.0 dBm 20.5±2.0 dBm 20.5±2.0 dBm LTE BAND 7 21.0±1.5 dBm 21.0±1.5 dBm 21.0±1.5 dBm LTE BAND 12 21.0±1.5 dBm 21.0±1.5 dBm 21.0±1.5 dBm LTE BAND 17 21.0±1.0 dBm 21.0±1.0 dBm 21.0±1.0 dBm LTE BAND 25 20.5±1.5 dBm 20.5±1.5 dBm 20.5±1.5 dBm LTE BAND 26(part 22) 21.5±1.5 dBm 21.5±1.5 dBm 21.5±1.5 dBm LTE BAND 26(part 90) 21.5±1.5 dBm 21.5±1.5 dBm 21.5±1.5 dBm <2.4GHz WLAN> 2G4WLAN IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.0 13.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14.0 14.0 14.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 12.0 13.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 11.0 12.0 12.0 Tolerance ±(dB) 1.0 1.0 1.0 BT Classics GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.0 2.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5.0 5.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 BT LE GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 2.0 2.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 25 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =25…

Text truncated - open the document above for the full version.

1 / 85 Appendix test data for LTE band 4 Temperature: 25 ° C Humidity: 44 % Atmospheric pressure: 950-1050mbar Test Engineer: Aaron Tan 2 / 85 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band4 1.4MHz QPSK 19957 1RB#0 4.78 13 PASS Band4 1.4MHz QPSK 19957 6RB#0 5.25 13 PASS Band4 1.4MHz QPSK 20175 1RB#0 4.61 13 PASS Band4 1.4MHz QPSK 20175 6RB#0 5.01 13 PASS Band4 1.4MHz QPSK 20393 1RB#0 4.78 13 PASS Band4 1.4MHz QPSK 20393 6RB#0 5.22 13 PASS Band4 1.4MHz 16QAM 19957 1RB#0 5.86 13 PASS Band4 1.4MHz 16QAM 19957 6RB#0 6.23 13 PASS Band4 1.4MHz 16QAM 20175 1RB#0 5.68 13 PASS Band4 1.4MHz 16QAM 20175 6RB#0 5.94 13 PASS Band4 1.4MHz 16QAM 20393 1RB#0 5.88 13 PASS Band4 1.4MHz 16QAM 20393 6RB#0 6.20 13 PASS Band4 3MHz QPSK 19965 15RB#0 5.28 13 PASS Band4 3MHz QPSK 20175 15RB#0 5.07 13 PASS Band4 3MHz QPSK 20385 15RB#0 5.30 13 PASS Band4 3MHz 16QAM 19965 15RB#0 6.23 13 PASS Band4 3MHz 16QAM 20175 15RB#0 5.94 13 PASS Band4 3MHz 16QAM 20385 15RB#0 6.20 13 PASS Band4 5MHz QPSK 19975 25RB#0 5.28 13 PASS Band4 5MHz QPSK 20175 25RB#0 5.01 13 PASS Band4 5MHz QPSK 20375 25RB#0 5.33 13 PASS Band4 5MHz 16QAM 19975 25RB#0 6.17 13 PASS Band4 5MHz 16QAM 20175 25RB#0 5.88 13 PASS Band4 5MHz 16QAM 20375 25RB#0 6.20 13 PASS Band4 10MHz QPSK 20000 50RB#0 5.30 13 PASS Band4 10MHz QPSK 20175 50RB#0 5.01 13 PASS Band4 10MHz QPSK 20350 50RB#0 5.33 13 PASS Band4 10MHz 16QAM 20000 50RB#0 6.14 13 PASS Band4 10MHz 16QAM 20175 50RB#0 5.94 13 PASS Band4 10MHz 16QAM 20350 50RB#0 6.20 13 PASS Band4 15MHz QPSK 20025 75RB#0 5.36 13 PASS Band4 15MHz QPSK 20175 75RB#0 5.16 13 PASS Band4 15MHz QPSK 20325 75RB#0 5.54 13 PASS Band4 15MHz 16QAM 20025 75RB#0 6.17 13 PASS Band4 15MHz 16QAM 20175 75RB#0 6.00 13 PASS 3 / 85 Band4 15MHz 16QAM 20325 75RB#0 6.32 13 PASS Band4 20MHz QPSK 20050 100RB#0 5.07 13 PASS Band4 20MHz QPSK 20175 100RB#0 4.96 13 PASS Band4 20MHz QPSK 20300 100RB#0 5.22 13 PASS Band4 20MHz 16QAM 20050 100RB#0 6.00 13 PASS Band4 20MHz 16QAM 20175 100RB#0 5.91 13 PASS Band4 20MHz 16QAM 20300 100RB#0 6.14 13 PASS 4 / 85 Test Graphs Band4-1.4MHz-QPSK-19957-1RB#0 Band4-1.4MHz-QPSK-19957-6RB#0 Band4-1.4MHz-QPSK-20175-1RB#0 5 / 85 Band4-1.4MHz-QPSK-20175-6RB#0 Band4-1.4MHz-QPSK-20393-1RB#0 Band4-1.4MHz-QPSK-20393-6RB#0 6 / 85 Band4-1.4MHz-16QAM-19957-1RB#0 Band4-1.4MHz-16QAM-19957-6RB#0 Band4-1.4MHz-16QAM-20175-1RB#0 7 / 85 Band4-1.4MHz-16QAM-20175-6RB#0 Band4-1.4MHz-16QAM-20393-1RB#0 Band4-1.4MHz-16QAM-20393-6RB#0 8 / 85 Band4-3MHz-QPSK-19965-15RB#0 Band4-3MHz-QPSK-20175-15RB#0 Band4-3MHz-QPSK-20385-15RB#0 9 / 85 Band4-3MHz-16QAM-19965-15RB#0 Band4-3MHz-16QAM-20175-15RB#0 Band4-3MHz-16QAM-20385-15RB#0 10 / 85 Band4-5MHz-QPSK-19975-25RB#0 Band4-5MHz-QPSK-20175-25RB#0 Band4-5MHz-QPSK-20375-25RB#0 11 / 85 Band4-5MHz-16QAM-19975-25RB#0 Band4-5MHz-16QAM-20175-25RB#0 Band4-5MHz-16QAM-20375-25RB#0 12 / 85 Band4-10MHz-QPSK-20000-50RB#0 Band4-10MHz-QPSK-20175-50RB#0 Band4-10MHz-QPSK-20350-50RB#0 13 / 85 Band4-10MHz-16QAM-20000-50RB#0 Band4-10MHz-16QAM-20175-50RB#0 Band4-10MHz-16QAM-20350-50RB#0 14 / 85 Band4-15MHz-QPSK-20025-75RB#0 Band4-15MHz-QPSK-20175-75RB#0 Band4-15MHz-QPSK-20325-75RB#0 15 / 85 Band4-15MHz-16QAM-20025-75RB#0 Band4-15MHz-16QAM-20175-75RB#0 Band4-15MHz-16QAM-20325-75RB#0 16 / 85 Band4-20MHz-QPSK-20050-100RB#0 Band4-20MHz-QPSK-20175-100RB#0 Band4-20MHz-QPSK-20300-100RB#0 17 / 85 Band4-20MHz-16QAM-20050-100RB#0 Band4-20MHz-16QAM-20175-100RB#0 Band4-20MHz-16QAM-20300-100RB#0 18 / 85 19 / 85 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band4 1.4MHz QPSK 19957 6RB#0 1.098 1.315 PASS Band4 1.4MHz QPSK 20175 6RB#0 1.098 1.315 PASS Band4 1.4MHz QPSK 20393 6RB#0 1.098 1.310 PASS Band4 1.4MHz 16QAM 19957 6RB#0 1.098 1.315 PASS Band4 1.4MHz 16QAM 20175 6RB#0 1.103 1.325 PASS Band4 1.4MHz 16QAM 20393 6RB#0 1.098 1.335 PASS Band4 3MHz QPSK 19965 15RB#0 2.705 3.000 PASS Band4 3MHz QPSK 20175 15RB#0 2.696 2.990 PASS Band4 3MHz QPSK 20385 15RB#0 2.705 2.990 PASS Band4 3MHz 16QAM 19965 15RB#0 2.696 3.000 PASS Band4 3MHz 16QAM 20175 15RB#0 2.696 3.000 PASS Band4 3MHz 16QAM 20385 15RB#0 2.696 2.990 PASS Band4 5MHz QPSK 19975 25RB#0 4.525 5.050 PASS Band4 5MHz QPSK 20175 25RB#0 4.505 5.030 PASS Band4 5MHz QPSK 20375 25RB#0 4.515 5.050 PASS Band4 5MHz 16QAM 19975 25RB#0 4.515 5.020 PASS Band4 5MHz 16QAM 20175 25RB#0 4.515 5.080 PASS Band4 5MHz 16QAM 20375 25RB#0 4.515 5.020 PASS Band4 10MHz QPSK 20000 50RB#0 9.018 10.000 PASS Band4 10MHz QPSK 20175 50RB#0 8.985 10.033 PASS Band4 10MHz QPSK 20350 50RB#0 9.018 10.033 PASS Band4 10MHz 16QAM 20000 50RB#0 9.018 9.933 PASS Band4 10MHz 16QAM 20175 50RB#0 8.985 9.933 PASS Band4 10MHz 16QAM 20350 50RB#0 8.985 9.933 PASS Band4 15MHz QPSK 20025 75RB#0 13.527 14.950 PASS Band4 15MHz QPSK 20175 75RB#0 13.478 14.900 PASS Band4 15MHz QPSK 20325 75RB#0 13.527 15.000 PASS Band4 15MHz 16QAM 20025 75RB#0 13.527 14.900 PASS Band4 15MHz 16QAM 20175 75RB#0 13.478 14.900 PASS Band4 15MHz 16QAM 20325 75RB#0 13.478 14.850 PASS Band4 20MHz QPSK 20050 100RB#0 18.037 19.867 PASS Band4 20MHz QPSK 20175 100RB#0 18.037 19.933 PASS Band4 20MHz QPSK 20300 100RB#0 18.037 19.800 PASS 20 / 85 Band4 20MHz 16QAM 20050 100RB#0 18.103 19.867 PASS Band4 20MHz 16QAM 20175 100RB#0 17.97 19.733 PASS Band4 20MHz 16QAM 20300 100RB#0 18.103 19.800 PASS 21 / 85 Test Graphs Band4-1.4MHz-QPSK-19957-6RB#0-1.098 Band4-1.4MHz-QPSK-20175-6RB#0-1.098 Band4-1.4MHz-QPSK-20393-6RB#0-1.098 22 / 85 Band4-1.4MHz-16QAM-19957-6RB#0-1.098 Band4-1.4MHz-16QAM-20175-6RB#0-1.103 Band4-1.4MHz-16QAM-20393-6RB#0-1.098 23 / 85 Band4-3MHz-QPSK-19965-15RB#0-2.705 Band4-3MHz-QPSK-20175-15RB#0-2.696 Band4-3MHz-QPSK-20385-15RB#0-2.705 24 / 85 Band4-3MHz-16QAM-19965-15RB#0-2.696 Band4-3MHz-16QAM-20175-15RB#0-2.696 Band4-3MHz-16QAM-20385-15RB#0-2.696 25 / 85 Band4-5MHz-QPSK-19975-25RB#0-4.525 Band4-5MHz-QPSK-20175-25RB#0-4.505 Band4-5MHz-QPSK-20375-25RB#0-…

Text truncated - open the document above for the full version.

1 / 46 Appendix test data for LTE band 5 Temperature: 25 ° C Humidity: 44 % Atmospheric pressure: 950-1050mbar Test Engineer: Aaron Tan 2 / 46 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band5 1.4MHz QPSK 20407 6RB#0 4.64 13 PASS Band5 1.4MHz QPSK 20525 6RB#0 5.36 13 PASS Band5 1.4MHz QPSK 20643 6RB#0 4.96 13 PASS Band5 1.4MHz 16QAM 20407 6RB#0 5.62 13 PASS Band5 1.4MHz 16QAM 20525 6RB#0 6.32 13 PASS Band5 1.4MHz 16QAM 20643 6RB#0 5.94 13 PASS Band5 3MHz QPSK 20415 15RB#0 4.78 13 PASS Band5 3MHz QPSK 20525 15RB#0 5.48 13 PASS Band5 3MHz QPSK 20635 15RB#0 5.07 13 PASS Band5 3MHz 16QAM 20415 15RB#0 5.68 13 PASS Band5 3MHz 16QAM 20525 15RB#0 6.35 13 PASS Band5 3MHz 16QAM 20635 15RB#0 5.97 13 PASS Band5 5MHz QPSK 20425 25RB#0 4.87 13 PASS Band5 5MHz QPSK 20525 25RB#0 5.51 13 PASS Band5 5MHz QPSK 20625 25RB#0 5.10 13 PASS Band5 5MHz 16QAM 20425 25RB#0 5.80 13 PASS Band5 5MHz 16QAM 20525 25RB#0 6.32 13 PASS Band5 5MHz 16QAM 20625 25RB#0 5.97 13 PASS Band5 10MHz QPSK 20450 50RB#0 5.04 13 PASS Band5 10MHz QPSK 20525 50RB#0 5.45 13 PASS Band5 10MHz QPSK 20600 50RB#0 5.13 13 PASS Band5 10MHz 16QAM 20450 50RB#0 6.03 13 PASS Band5 10MHz 16QAM 20525 50RB#0 6.32 13 PASS Band5 10MHz 16QAM 20600 50RB#0 6.06 13 PASS 3 / 46 Test Graphs Band5-1.4MHz-QPSK-20407-6RB#0 Band5-1.4MHz-QPSK-20525-6RB#0 Band5-1.4MHz-QPSK-20643-6RB#0 4 / 46 Band5-1.4MHz-16QAM-20407-6RB#0 Band5-1.4MHz-16QAM-20525-6RB#0 Band5-1.4MHz-16QAM-20643-6RB#0 5 / 46 Band5-3MHz-QPSK-20415-15RB#0 Band5-3MHz-QPSK-20525-15RB#0 Band5-3MHz-QPSK-20635-15RB#0 6 / 46 Band5-3MHz-16QAM-20415-15RB#0 Band5-3MHz-16QAM-20525-15RB#0 Band5-3MHz-16QAM-20635-15RB#0 7 / 46 Band5-5MHz-QPSK-20425-25RB#0 Band5-5MHz-QPSK-20525-25RB#0 Band5-5MHz-QPSK-20625-25RB#0 8 / 46 Band5-5MHz-16QAM-20425-25RB#0 Band5-5MHz-16QAM-20525-25RB#0 Band5-5MHz-16QAM-20625-25RB#0 9 / 46 Band5-10MHz-QPSK-20450-50RB#0 Band5-10MHz-QPSK-20525-50RB#0 Band5-10MHz-QPSK-20600-50RB#0 10 / 46 Band5-10MHz-16QAM-20450-50RB#0 Band5-10MHz-16QAM-20525-50RB#0 Band5-10MHz-16QAM-20600-50RB#0 11 / 46 12 / 46 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band5 1.4MHz QPSK 20407 6RB#0 1.093 1.315 PASS Band5 1.4MHz QPSK 20525 6RB#0 1.098 1.310 PASS Band5 1.4MHz QPSK 20643 6RB#0 1.098 1.315 PASS Band5 1.4MHz 16QAM 20407 6RB#0 1.103 1.315 PASS Band5 1.4MHz 16QAM 20525 6RB#0 1.103 1.320 PASS Band5 1.4MHz 16QAM 20643 6RB#0 1.098 1.310 PASS Band5 3MHz QPSK 20415 15RB#0 2.696 2.980 PASS Band5 3MHz QPSK 20525 15RB#0 2.705 2.980 PASS Band5 3MHz QPSK 20635 15RB#0 2.715 2.990 PASS Band5 3MHz 16QAM 20415 15RB#0 2.696 2.980 PASS Band5 3MHz 16QAM 20525 15RB#0 2.696 2.990 PASS Band5 3MHz 16QAM 20635 15RB#0 2.696 2.980 PASS Band5 5MHz QPSK 20425 25RB#0 4.496 5.030 PASS Band5 5MHz QPSK 20525 25RB#0 4.525 5.070 PASS Band5 5MHz QPSK 20625 25RB#0 4.525 5.060 PASS Band5 5MHz 16QAM 20425 25RB#0 4.515 5.070 PASS Band5 5MHz 16QAM 20525 25RB#0 4.515 5.030 PASS Band5 5MHz 16QAM 20625 25RB#0 4.515 5.010 PASS Band5 10MHz QPSK 20450 50RB#0 9.018 9.967 PASS Band5 10MHz QPSK 20525 50RB#0 8.985 10.000 PASS Band5 10MHz QPSK 20600 50RB#0 8.952 9.967 PASS Band5 10MHz 16QAM 20450 50RB#0 8.985 9.833 PASS Band5 10MHz 16QAM 20525 50RB#0 9.018 10.000 PASS Band5 10MHz 16QAM 20600 50RB#0 8.952 9.933 PASS 13 / 46 Test Graphs Band5-1.4MHz-QPSK-20407-6RB#0-1.093 Band5-1.4MHz-QPSK-20525-6RB#0-1.098 Band5-1.4MHz-QPSK-20643-6RB#0-1.098 14 / 46 Band5-1.4MHz-16QAM-20407-6RB#0-1.103 Band5-1.4MHz-16QAM-20525-6RB#0-1.103 Band5-1.4MHz-16QAM-20643-6RB#0-1.098 15 / 46 Band5-3MHz-QPSK-20415-15RB#0-2.696 Band5-3MHz-QPSK-20525-15RB#0-2.705 Band5-3MHz-QPSK-20635-15RB#0-2.715 16 / 46 Band5-3MHz-16QAM-20415-15RB#0-2.696 Band5-3MHz-16QAM-20525-15RB#0-2.696 Band5-3MHz-16QAM-20635-15RB#0-2.696 17 / 46 Band5-5MHz-QPSK-20425-25RB#0-4.496 Band5-5MHz-QPSK-20525-25RB#0-4.525 Band5-5MHz-QPSK-20625-25RB#0-4.525 18 / 46 Band5-5MHz-16QAM-20425-25RB#0-4.515 Band5-5MHz-16QAM-20525-25RB#0-4.515 Band5-5MHz-16QAM-20625-25RB#0-4.515 19 / 46 Band5-10MHz-QPSK-20450-50RB#0-9.018 Band5-10MHz-QPSK-20525-50RB#0-8.985 Band5-10MHz-QPSK-20600-50RB#0-8.952 20 / 46 Band5-10MHz-16QAM-20450-50RB#0-8.985 Band5-10MHz-16QAM-20525-50RB#0-9.018 Band5-10MHz-16QAM-20600-50RB#0-8.952 21 / 46 22 / 46 Appendix D: Band Edge Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band5 1.4MHz QPSK 20407 6RB#0 -25.47 PASS Band5 1.4MHz QPSK 20643 6RB#0 -26.72 PASS Band5 1.4MHz 16QAM 20407 6RB#0 -28.10 PASS Band5 1.4MHz 16QAM 20643 6RB#0 -26.43 PASS Band5 3MHz QPSK 20415 15RB#0 -24.70 PASS Band5 3MHz QPSK 20635 15RB#0 -26.94 PASS Band5 3MHz 16QAM 20415 15RB#0 -26.15 PASS Band5 3MHz 16QAM 20635 15RB#0 -26.74 PASS Band5 5MHz QPSK 20425 25RB#0 -23.88 PASS Band5 5MHz QPSK 20625 25RB#0 -27.65 PASS Band5 5MHz 16QAM 20425 25RB#0 -27.92 PASS Band5 5MHz 16QAM 20625 25RB#0 -28.58 PASS Band5 10MHz QPSK 20450 50RB#0 -27.10 PASS Band5 10MHz QPSK 20600 50RB#0 -31.49 PASS Band5 10MHz 16QAM 20450 50RB#0 -29.01 PASS Band5 10MHz 16QAM 20600 50RB#0 -32.18 PASS Test Graphs Band5-1.4MHz-QPSK-20407-6RB#0 Band5-1.4MHz-QPSK-20643-6RB#0 23 / 46 Band5-1.4MHz-16QAM-20407-6RB#0 Band5-1.4MHz-16QAM-20643-6RB#0 Band5-3MHz-QPSK-20415-15RB#0 24 / 46 Band5-3MHz-QPSK-20635-15RB#0 Band5-3MHz-16QAM-20415-15RB#0 Band5-3MHz-16QAM-20635-15RB#0 25 / 46 Band5-5MHz-QPSK-20425-25RB#0 Band5-5MHz-QPSK-20625-25RB#0 Band5-5MHz-16QAM-20425-25RB#0 26 / 46 Band5-5MHz-16QAM-20625-25RB#0 Band5-10MHz-QPSK-20450-50RB#0 Band5-10MHz-QPSK-20600-50RB#0 27 / 46 Band5-10MHz-16QAM-20450-50RB#0 Band5-10MHz-16QAM-20600-50RB#0 28 / 46 Appendix E: Conducted Spurious Emission Test Result Band Bandwidt h Modulatio n Chann el RB Configuratio n Frequency Range Resul t (dBm) Verdic t Band 5 1.4MHz QPSK 20407 6RB#0 Range1:30~1000MHz -32.2 2 PASS Band 5 1.4MHz QPSK 20407 6RB#0 Range2:1000~10000M Hz -29.4 9 PASS Band 5 1.4MHz QPSK 20525 6RB#0 Range1:30~100…

Text truncated - open the document above for the full version.

1 / 56 Appendix test data for LTE band 7 Temperature: 25 ° C Humidity: 44 % Atmospheric pressure: 950-1050mbar Test Engineer: Aaron Tan 2 / 56 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band7 5MHz QPSK 20775 25RB#0 4.96 13 PASS Band7 5MHz QPSK 21100 25RB#0 5.25 13 PASS Band7 5MHz QPSK 21425 25RB#0 5.19 13 PASS Band7 5MHz 16QAM 20775 25RB#0 5.88 13 PASS Band7 5MHz 16QAM 21100 25RB#0 6.06 13 PASS Band7 5MHz 16QAM 21425 25RB#0 6.00 13 PASS Band7 10MHz QPSK 20800 50RB#0 5.13 13 PASS Band7 10MHz QPSK 21100 50RB#0 5.19 13 PASS Band7 10MHz QPSK 21400 50RB#0 5.25 13 PASS Band7 10MHz 16QAM 20800 50RB#0 6.03 13 PASS Band7 10MHz 16QAM 21100 50RB#0 6.03 13 PASS Band7 10MHz 16QAM 21400 50RB#0 6.12 13 PASS Band7 15MHz QPSK 20825 75RB#0 5.51 13 PASS Band7 15MHz QPSK 21100 75RB#0 6.17 13 PASS Band7 15MHz QPSK 21375 75RB#0 5.54 13 PASS Band7 15MHz 16QAM 20825 75RB#0 6.26 13 PASS Band7 15MHz 16QAM 21100 75RB#0 6.17 13 PASS Band7 15MHz 16QAM 21375 75RB#0 6.32 13 PASS Band7 20MHz QPSK 20850 100RB#0 5.22 13 PASS Band7 20MHz QPSK 21100 100RB#0 5.16 13 PASS Band7 20MHz QPSK 21350 100RB#0 5.30 13 PASS Band7 20MHz 16QAM 20850 100RB#0 6.17 13 PASS Band7 20MHz 16QAM 21100 100RB#0 6.09 13 PASS Band7 20MHz 16QAM 21350 100RB#0 6.20 13 PASS 3 / 56 Test Graphs Band7-5MHz-QPSK-20775-25RB#0 Band7-5MHz-QPSK-21100-25RB#0 Band7-5MHz-QPSK-21425-25RB#0 4 / 56 Band7-5MHz-16QAM-20775-25RB#0 Band7-5MHz-16QAM-21100-25RB#0 Band7-5MHz-16QAM-21425-25RB#0 5 / 56 Band7-10MHz-QPSK-20800-50RB#0 Band7-10MHz-QPSK-21100-50RB#0 Band7-10MHz-QPSK-21400-50RB#0 6 / 56 Band7-10MHz-16QAM-20800-50RB#0 Band7-10MHz-16QAM-21100-50RB#0 Band7-10MHz-16QAM-21400-50RB#0 7 / 56 Band7-15MHz-QPSK-20825-75RB#0 Band7-15MHz-QPSK-21100-75RB#0 Band7-15MHz-QPSK-21375-75RB#0 8 / 56 Band7-15MHz-16QAM-20825-75RB#0 Band7-15MHz-16QAM-21100-75RB#0 Band7-15MHz-16QAM-21375-75RB#0 9 / 56 Band7-20MHz-QPSK-20850-100RB#0 Band7-20MHz-QPSK-21100-100RB#0 Band7-20MHz-QPSK-21350-100RB#0 10 / 56 Band7-20MHz-16QAM-20850-100RB#0 Band7-20MHz-16QAM-21100-100RB#0 Band7-20MHz-16QAM-21350-100RB#0 11 / 56 12 / 56 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band7 5MHz QPSK 20775 25RB#0 4.515 5.070 PASS Band7 5MHz QPSK 21100 25RB#0 4.515 5.060 PASS Band7 5MHz QPSK 21425 25RB#0 4.515 5.060 PASS Band7 5MHz 16QAM 20775 25RB#0 4.515 5.020 PASS Band7 5MHz 16QAM 21100 25RB#0 4.515 5.000 PASS Band7 5MHz 16QAM 21425 25RB#0 4.515 5.020 PASS Band7 10MHz QPSK 20800 50RB#0 8.985 10.033 PASS Band7 10MHz QPSK 21100 50RB#0 8.985 9.967 PASS Band7 10MHz QPSK 21400 50RB#0 8.985 10.000 PASS Band7 10MHz 16QAM 20800 50RB#0 8.985 9.933 PASS Band7 10MHz 16QAM 21100 50RB#0 8.985 9.933 PASS Band7 10MHz 16QAM 21400 50RB#0 8.985 10.000 PASS Band7 15MHz QPSK 20825 75RB#0 13.527 14.900 PASS Band7 15MHz QPSK 21100 75RB#0 13.478 14.950 PASS Band7 15MHz QPSK 21375 75RB#0 13.478 15.000 PASS Band7 15MHz 16QAM 20825 75RB#0 13.478 14.850 PASS Band7 15MHz 16QAM 21100 75RB#0 13.478 14.850 PASS Band7 15MHz 16QAM 21375 75RB#0 13.478 14.950 PASS Band7 20MHz QPSK 20850 100RB#0 18.037 19.933 PASS Band7 20MHz QPSK 21100 100RB#0 17.97 19.800 PASS Band7 20MHz QPSK 21350 100RB#0 18.037 19.867 PASS Band7 20MHz 16QAM 20850 100RB#0 18.103 19.867 PASS Band7 20MHz 16QAM 21100 100RB#0 18.037 19.800 PASS Band7 20MHz 16QAM 21350 100RB#0 18.103 19.800 PASS 13 / 56 Test Graphs Band7-5MHz-QPSK-20775-25RB#0-4.515 Band7-5MHz-QPSK-21100-25RB#0-4.515 Band7-5MHz-QPSK-21425-25RB#0-4.515 14 / 56 Band7-5MHz-16QAM-20775-25RB#0-4.515 Band7-5MHz-16QAM-21100-25RB#0-4.515 Band7-5MHz-16QAM-21425-25RB#0-4.515 15 / 56 Band7-10MHz-QPSK-20800-50RB#0-8.985 Band7-10MHz-QPSK-21100-50RB#0-8.985 Band7-10MHz-QPSK-21400-50RB#0-8.985 16 / 56 Band7-10MHz-16QAM-20800-50RB#0-8.985 Band7-10MHz-16QAM-21100-50RB#0-8.985 Band7-10MHz-16QAM-21400-50RB#0-8.985 17 / 56 Band7-15MHz-QPSK-20825-75RB#0-13.527 Band7-15MHz-QPSK-21100-75RB#0-13.478 Band7-15MHz-QPSK-21375-75RB#0-13.478 18 / 56 Band7-15MHz-16QAM-20825-75RB#0-13.478 Band7-15MHz-16QAM-21100-75RB#0-13.478 Band7-15MHz-16QAM-21375-75RB#0-13.478 19 / 56 Band7-20MHz-QPSK-20850-100RB#0-18.037 Band7-20MHz-QPSK-21100-100RB#0-17.97 Band7-20MHz-QPSK-21350-100RB#0-18.037 20 / 56 Band7-20MHz-16QAM-20850-100RB#0-18.103 Band7-20MHz-16QAM-21100-100RB#0-18.037 Band7-20MHz-16QAM-21350-100RB#0-18.103 21 / 56 22 / 56 Appendix D: Band Edge Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band7 5MHz QPSK 20775 25RB#0 -47.34,-42.42,-28.48 PASS Band7 5MHz QPSK 21425 25RB#0 -46.89,-46.23,-30.90 PASS Band7 5MHz 16QAM 20775 25RB#0 -47.99,-44.77,-31.27 PASS Band7 5MHz 16QAM 21425 25RB#0 -46.50,-46.29,-33.69 PASS Band7 10MHz QPSK 20800 50RB#0 -45.09,-42.65,-33.71 PASS Band7 10MHz QPSK 21400 50RB#0 -45.01,-44.74,-35.06 PASS Band7 10MHz 16QAM 20800 50RB#0 -45.30,-42.12,-35.83 PASS Band7 10MHz 16QAM 21400 50RB#0 -45.01,-44.39,-36.26 PASS Band7 15MHz QPSK 20825 75RB#0 -42.78,-38.43,-32.32 PASS Band7 15MHz QPSK 21375 75RB#0 -43.74,-43.13,-34.84 PASS Band7 15MHz 16QAM 20825 75RB#0 -43.22,-38.88,-35.01 PASS Band7 15MHz 16QAM 21375 75RB#0 -43.64,-42.90,-38.16 PASS Band7 20MHz QPSK 20850 100RB#0 -38.39,-35.28,-31.63 PASS Band7 20MHz QPSK 21350 100RB#0 -42.13,-41.75,-37.15 PASS Band7 20MHz 16QAM 20850 100RB#0 -39.57,-36.34,-33.41 PASS Band7 20MHz 16QAM 21350 100RB#0 -42.08,-41.39,-38.05 PASS Test Graphs Band7-5MHz-QPSK-20775-25RB#0 Band7-5MHz-QPSK-21425-25RB#0 23 / 56 Band7-5MHz-16QAM-20775-25RB#0 Band7-5MHz-16QAM-21425-25RB#0 Band7-10MHz-QPSK-20800-50RB#0 24 / 56 Band7-10MHz-QPSK-21400-50RB#0 Band7-10MHz-16QAM-20800-50RB#0 Band7-10MHz-16QAM-21400-50RB#0 25 / 56 Band7-15MHz-QPSK-20825-75RB#0 Band7-15MHz-QPSK-21375-75RB#0 Band7-15MHz-16QAM-20825-75RB#0 26 / 56 Band7-15MHz-16QAM-21375-75RB#0 Band7-20MHz-QPSK-20850-100RB#0 Band7-20MHz-QPSK-21350-100RB#0 27 / 56 Band7-20MHz-16QAM-20850-100RB#0 Band7-20MHz-16QAM-21350-100RB#0 28 …

Text truncated - open the document above for the full version.

1 / 47 Appendix test data for LTE band 12 Temperature: 25 ° C Humidity: 44 % Atmospheric pressure: 950-1050mbar Test Engineer: Aaron Tan 2 / 47 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band12 1.4MHz QPSK 23017 6RB#0 5.30 13 PASS Band12 1.4MHz QPSK 23095 6RB#0 6.41 13 PASS Band12 1.4MHz QPSK 23173 6RB#0 4.70 13 PASS Band12 1.4MHz 16QAM 23017 6RB#0 8.26 13 PASS Band12 1.4MHz 16QAM 23095 6RB#0 8.20 13 PASS Band12 1.4MHz 16QAM 23173 6RB#0 5.59 13 PASS Band12 3MHz QPSK 23025 15RB#0 5.36 13 PASS Band12 3MHz QPSK 23095 15RB#0 5.39 13 PASS Band12 3MHz QPSK 23165 15RB#0 4.61 13 PASS Band12 3MHz 16QAM 23025 15RB#0 6.35 13 PASS Band12 3MHz 16QAM 23095 15RB#0 8.20 13 PASS Band12 3MHz 16QAM 23165 15RB#0 5.45 13 PASS Band12 5MHz QPSK 23035 25RB#0 5.30 13 PASS Band12 5MHz QPSK 23095 25RB#0 5.39 13 PASS Band12 5MHz QPSK 23155 25RB#0 4.84 13 PASS Band12 5MHz 16QAM 23035 25RB#0 6.20 13 PASS Band12 5MHz 16QAM 23095 25RB#0 6.23 13 PASS Band12 5MHz 16QAM 23155 25RB#0 5.71 13 PASS Band12 10MHz QPSK 23060 50RB#0 8.06 13 PASS Band12 10MHz QPSK 23095 50RB#0 5.30 13 PASS Band12 10MHz QPSK 23130 50RB#0 5.48 13 PASS Band12 10MHz 16QAM 23060 50RB#0 6.03 13 PASS Band12 10MHz 16QAM 23095 50RB#0 6.17 13 PASS Band12 10MHz 16QAM 23130 50RB#0 6.17 13 PASS 3 / 47 Test Graphs Band12-1.4MHz-QPSK-23017-6RB#0 Band12-1.4MHz-QPSK-23095-6RB#0 Band12-1.4MHz-QPSK-23173-6RB#0 4 / 47 Band12-1.4MHz-16QAM-23017-6RB#0 Band12-1.4MHz-16QAM-23095-6RB#0 Band12-1.4MHz-16QAM-23173-6RB#0 5 / 47 Band12-3MHz-QPSK-23025-15RB#0 Band12-3MHz-QPSK-23095-15RB#0 Band12-3MHz-QPSK-23165-15RB#0 6 / 47 Band12-3MHz-16QAM-23025-15RB#0 Band12-3MHz-16QAM-23095-15RB#0 Band12-3MHz-16QAM-23165-15RB#0 7 / 47 Band12-5MHz-QPSK-23035-25RB#0 Band12-5MHz-QPSK-23095-25RB#0 Band12-5MHz-QPSK-23155-25RB#0 8 / 47 Band12-5MHz-16QAM-23035-25RB#0 Band12-5MHz-16QAM-23095-25RB#0 Band12-5MHz-16QAM-23155-25RB#0 9 / 47 Band12-10MHz-QPSK-23060-50RB#0 Band12-10MHz-QPSK-23095-50RB#0 Band12-10MHz-QPSK-23130-50RB#0…

Text truncated - open the document above for the full version.
