U7GPKTPLUStwo way radio

Klein Electronics, Inc.

Click to zoom

Application Details

Equipment Class: TNF - Licensed Non-Broadcast Transmitter Held to Face
Date of Grant: Aug 20, 2020
Application Purpose: Original Equipment
Date of Application: Aug 20, 2020
Equipment Note: two way radio
Frequency Range: 450.00000000 - 470.00000000
Company: Klein Electronics, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Klein Electronics, Inc. Agent Authorization Company: Klein Electronics, Inc. Address: 349 North Vinewood Street Escondido, California, USA 92029 Product Name: Blackbox Model Number(s): Pocket + Product Description: Blackbox We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-10 Name: Michael Lopez Company: Klein Electronics, Inc.

Cover Letter(s)

MiCOM Labs, 575 Boulder Court, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com Page 1 of 7 Doc#: Single Certification Service Agreement Rev 1.4 Certification Service Agreement Certification Service Agreement Introduction This Certification Service Agreement was written to cover the Scope of Service and Certification holder/ grantee responsibilities for the countires/domains that MiCOM Labs can issue compliance certificates under its ISO 17065 accreditation status – USA (FCC), Canada (ISED), Japan (MIC) and European Union. General Requirements This Service Agreement covers the requirements of the following four certification schemes as operated by MiCOM Labs Certification; Country Recognition Body Designation Identification No. USA Federal Communications Commission (FCC) TCB US0159 Canada Canada ISED FCB US0159 Japan MIC (Ministry of Internal Affairs and Communication) RCB R210 Europe European Commission NB NB 2280 1.The certification holder/grantee acknowledges and agrees to the following;- (a) always fulfills the certification requirements, including implementing appropriate changes when they are communicated by MiCOM Labs; (b) ensures the product for which a Certificate is issued always fulfils the product compliance requirements under the certification scheme and that all ongoing production of the certified product continues to fulfill the product requirements and agrees that if the conditions under which the Certification was issued are not met, that the Certification will not be valid and will be revoked; (c) makes all necessary arrangements for: 1) the conduct of the evaluation and surveillance (if required), including provision for examining documentation and records, and access to the relevant equipment, location(s), area(s), personnel, and certification holder / grantee's subcontractors; 2) investigation of complaints; 3) the participation of observers, if applicable; (d) makes claims regarding certification consistent with the scope of certification; (e) does not use its product certification in such a manner as to bring MiCOM Labs into disrepute and does not make any statement regarding its product certification that MiCOM Labs may consider misleading or unauthorized; (f) upon suspension, withdrawal, or termination of certification, the certification holder / grantee discontinues its use of all advertising matter that contains any reference thereto and takes action as required by the certification scheme (e.g. the return of certification documents) and takes any other required measures; (g) if the certification holder/ grantee provides copies of the certification documents to others, the documents shall be reproduced in their entirety or as specified in the certification scheme; MiCOM Labs, 575 Boulder Court, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com Page 2 of 7 Doc#: Single Certification Service Agreement Rev 1.4 Certification Service Agreement (h) in making reference to its product certification in communication media such as documents, brochures or advertising, the certification holder/ grantee complies with the requirements of MiCOM Labs or as specified by the certification scheme; (i) complies with any requirements that may be prescribed in the certification scheme relating to the use of marks of conformity, and that conformity marks are only on specific products found to comply with the requirements, and on information related to the product; (j) keeps a record of all complaints made known to it relating to compliance with certification requirements and makes these records available to MiCOM Labs when requested, and: 1) takes appropriate action with respect to such complaints and any deficiencies found in products that affect compliance with the requirements for certification. 2) documents the actions taken. 2.MiCOM Labs will issue Certification that is valid for the specified equipment as it is presented at the time of certification. The certification holder / grantee will inform MiCOM Labs, without delay, of changes that may affect its ability to conform with any of the requirements under the certification scheme. Some examples of this may be, but are in no way limited to the following;- Product modifications; Changes in the chassis material, chassis gasket methodology / material, grounding, antenna gain, antenna type, shielding material, modification of transmissions lines, changes to transmission line matching circuitry, operating duty cycle, change of product usage, operating frequency, bandwidth, transmit power / EIRP); Changes to; the Legal, commercial, organizational status; contact address and production sites. Such modifications shall require additional approval in the form of a review and amendment to the original product certification and changes to the product certification records including the certificate. 3.MiCOM Labs shall exercise the control as specified by the certification scheme over ownership, use and display of licenses, certificates, marks of conformity, and any other mechanisms for indicating a product is certified. Incorrect references to the certification scheme, standards or misleading use of licenses, certificates, marks, or any other mechanism for indicating a product is certified, found in documentation or other publicity, shall be dealt with by suitable action by MiCOM Labs and/or the appropriate regulatory authority. 4.Confidentiality - MiCOM Labs will hold all forms and documents that make up the certification application confidential and will not release any information to third parties without written consent from the applicant. MiCOM Labs, 575 Boulder Court, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com Page 3 of 7 Doc#: Single Certification Service Agreement Rev 1.4 Certification Service Agreement General Terms and Conditions: DOCUMENTATION Documentation required for evaluation of the certificat…

Text truncated - open the document above for the full version.

Cover Letter(s)

Klein Electronics, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-08-10 Subject; Request for Confidentiality FCC ID: U7GPKTPLUS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Klein Electronics, Inc. Contact person: Michael Lopez

Cover Letter(s)

Klein Electronics, Inc. 349 North Vinewood Street Escondido, California, USA 92029 Aug. 21, 2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: U7GPKTPLUS Dear Sir/Madam, This transmitter was designed to operate in following frequency ranges:450-470MHz To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Klein Electronics, Inc. is requesting that the FCC lists the frequencies 450-470MHz, under FCC Rule Parts 90 on the FCC Grant. Klein Electronics, Inc. attests that the Is Radio will not be marketed to USA users with the frequency band which is not allowed by the rule 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Also, equipment programming is the responsibility of Authorized Service Personnel, the Is Radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Plese contact me if you require any additional information. Sincerely Yours, Signature: Contact person: Michael Lopez Title: Manager Frequency(MHz) FCC Rule Part 400-406 For Federal 406.1-450 FCC Part90 450-454 FCC Part90 456-460 FCC Part90 460-462.5375 FCC Part90 462.7375-467.5375 FCC Part90 467.7375-470 FCC Part90 470-480 FCC Part90

External Photos

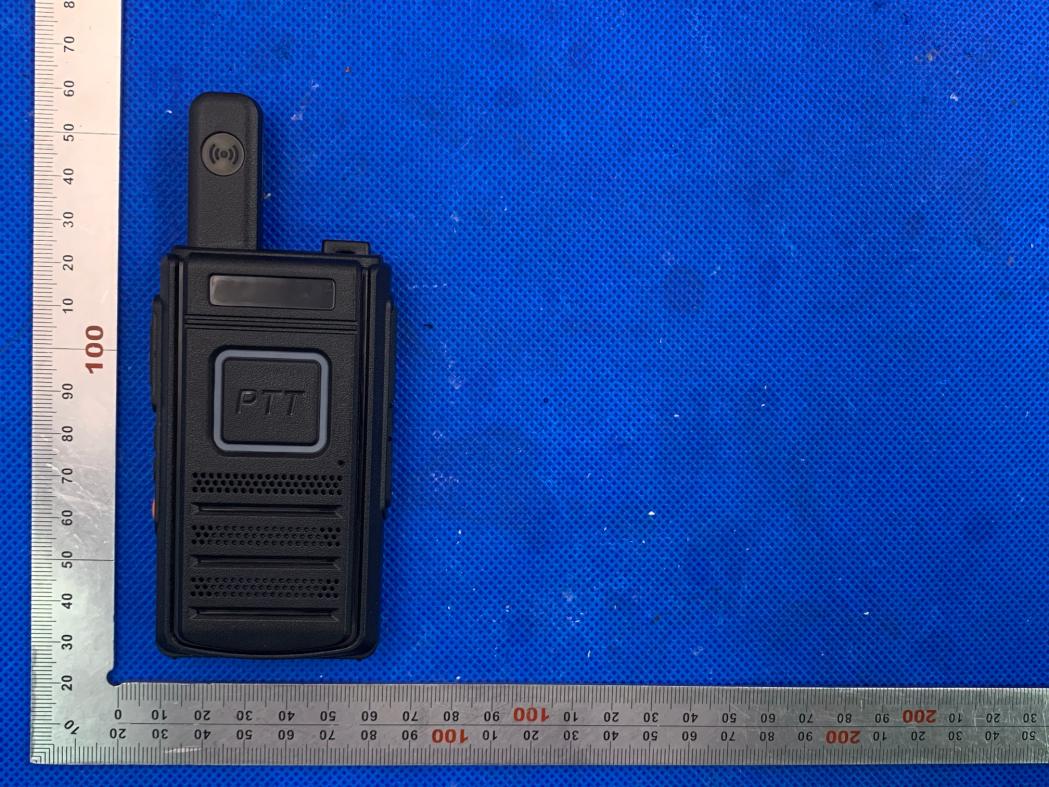

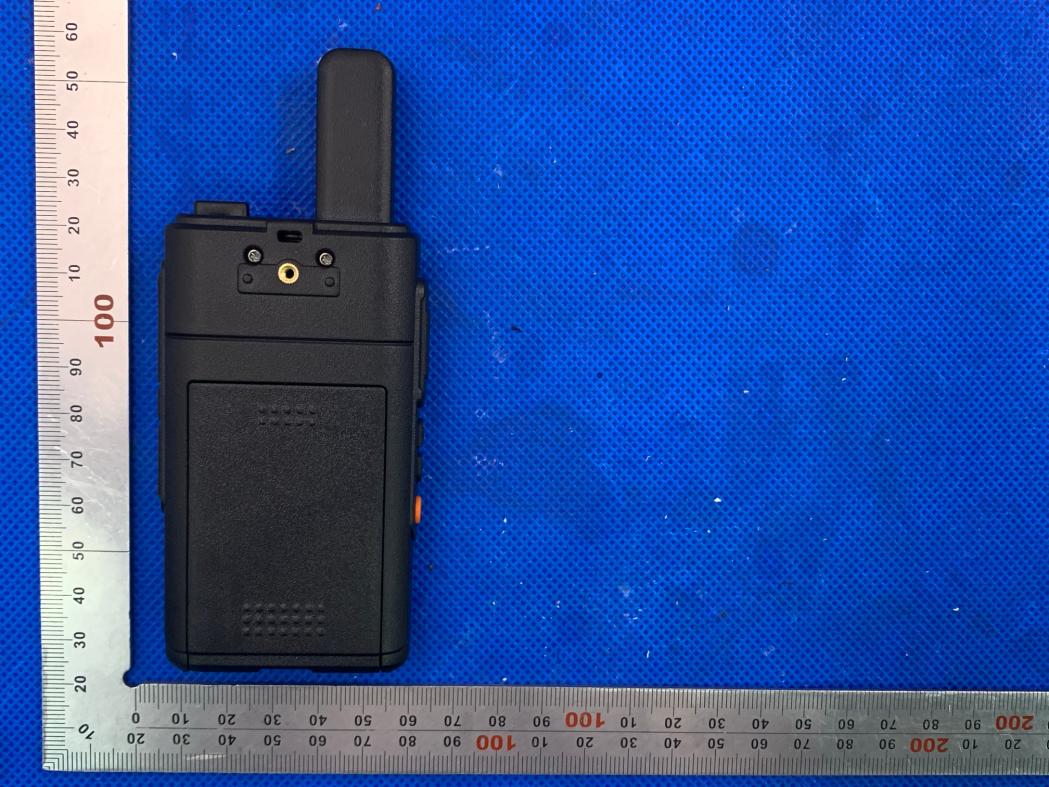

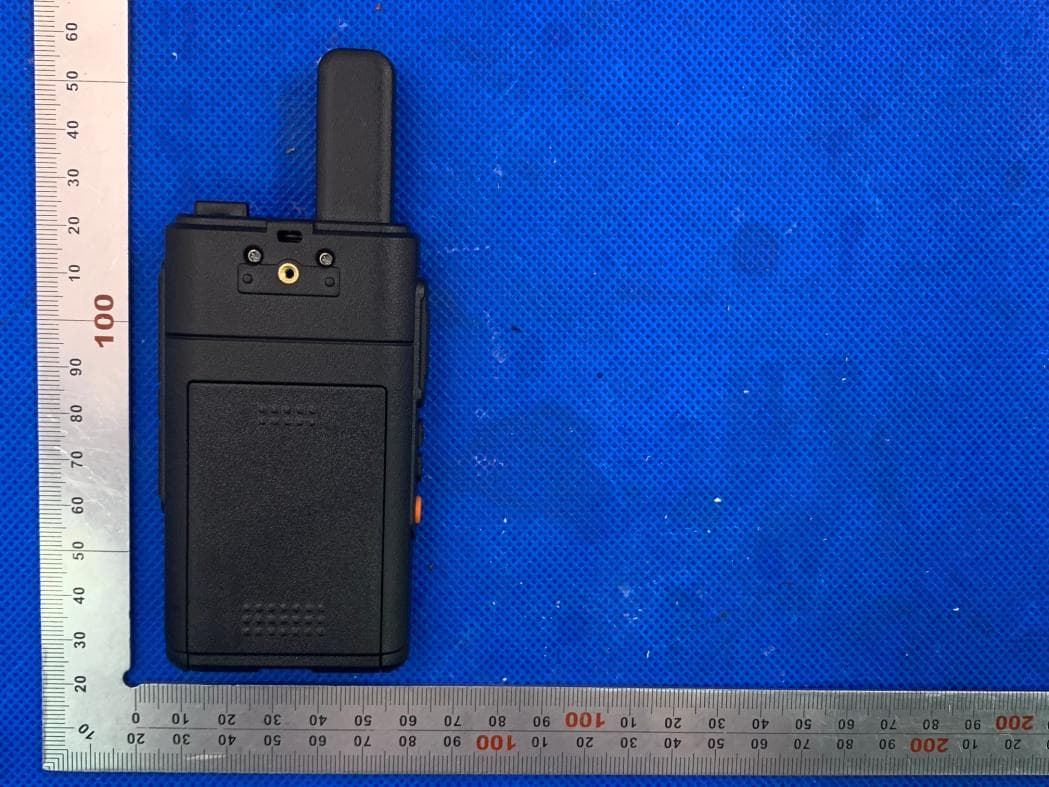

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

ID Label/Location Info

FCC ID Label Location size : 4.65 cm * 3.35cm FCC ID: U7GPKTPLUS

Internal Photos

Internal Photos OPEN VIEW OF EUT(FIGURE 1) OPEN VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) Antenna INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6)

RF Exposure Info

Ref : ACR.345.3.20.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 41/18 EPGO334 Calibrated at MVG US 2105 Barrett Park Dr. - Kennesaw, GA 30144 Calibration Date: 06/03/2020 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in MVG USA using the CALISAR / CALIBAIR test bench, for use with a COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.20.SATU.A Page: 2/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 6/05/2020 Checked by : Jérôme LUC Product Manager 6/05/2020 Approved by : Kim RUTKOWSKI Quality Manager 6/05/2020 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 6/05/2020 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.20.SATU.A Page: 3/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment .................................................................................................... 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.20.SATU.A Page: 4/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 41/18 EPGO334 Product Condition (new / used) New Frequency Range of Probe 0.45 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.191 M Dipole 2: R2=0.216 M Dipole 3: R3=0.197 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEEE 1528 and CEI/IEC 62209 standards. Figure 1 – MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEEE 1528 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.345.3.20.SATU.A Page: 5/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with the plastic box illuminated with the fields from a half wave dipole. The dip…

Text truncated - open the document above for the full version.

RF Exposure Info

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2008205H01 Issued for Klein Electronics, Inc. 349 North Vinewood Street | Escondido, California, USA 92029 Product Name: Two way radio Brand Name: Blackbox Model Name: Pocket + Series Model: N/A FCC ID: N/A Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR (1g): Face up : 0.107 W/kg Back side: 0.284 W/kg S T L A B S Page 2 of 32 Report No.: STS2008205H01 Test Report Certification Applicant’s name ................. : Klein Electronics, Inc. Address ................................. : 349 North Vinewood Street | Escondido, California, USA 92029 Manufacture's Name ............ : Klein Electronics, Inc. Address ................................. : 349 North Vinewood Street | Escondido, California, USA 92029 Product description Product name ........................ : Two way radio Brand Name ........................... : Blackbox Model name ......................... : Pocket + Series Model .......................... : N/A Standards ............................. : RSS 102 Issue 5,March 2015 IEEE 1528:2013 IEC 62209-2:2010 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 14 Aug 2020 Date of Issue .......................................... : 17 Aug 2020 Test Result .............................................. : Pass Testing Engineer : ( Aaron Bu) Technical Manager : (Jason Lu) Authorized Signatory : (Vita Li) Page 3 of 32 Report No.: STS2008205H01 Table of Contents 1. General Information 4 1.1 EUT Description 4 1.2 Test Environment 5 1.3 Test Factory 5 2. Test Standards and Limits 6 3. SAR Measurement System 7 3.1 Definition of Specific Absorption Rate (SAR) 7 3.2 SAR System 7 4. Tissue Simulating Liquids 10 4.1 Simulating Liquids Parameter Check 10 5. SAR System Validation 12 5.1 Validation System 12 5.2 Validation Result 12 6. SAR Evaluation Procedures 13 7. EUT Test Position 14 8. Uncertainty 15 8.1 Measurement Uncertainty 15 8.2 System validation Uncertainty 16 9. Conducted Power Measurement 17 Test Result 17 10. EUT And Test Setup Photo 18 10.1 EUT Photo 18 10.2 Setup Photo 21 11. SAR Result Summary 23 12. Equipment List 25 Appendix A. System Validation Plots 26 Appendix B. SAR Test Plots 30 Appendix C. Probe Calibration and Dipole Calibration Report 32 Page 4 of 32 Report No.: STS2008205H01 1. General Information 1.1 EUT Description Equipment Two way radio Brand Name Blackbox Model name Pocket + Series Model N/A Model Difference N/A Device Category Portable Product stage Production unit RF Exposure Environment Occupational/Controlled Hardware Version V1.1 Software Version V6 Frequency Range 450-470MHz Channel Spacing 12.5KHz Max. Reported SAR(1g): with 50% duty cycle Test Channel Face up (W/kg) Back Side (W/kg) CH 1 0.107 0.284 Modulation Type: FM Antenna Specification: External Antenna Note: 1. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power Page 5 of 32 Report No.: STS2008205H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC Registration No.: 625569 A2LA Certificate No.: 4338.01 IC Registration No.: 12108A Page 6 of 32 Report No.: STS2008205H01 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v06 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 5 FCC KDB 865664 D01 v01r04 SAR Measurement 100 MHz to 6 GHz 6 FCC KDB 865664 D02 v01r02 RF Exposure Reporting 7 FCC KDB 643646 D001 SAR Test Reduction Considerations for Occupational PTT Radios (A). Limits for Occupational/Controlled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.4 8.0 20.0 (B). Limits for General Population/Uncontrolled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.08 1.6 4.0 NOTE: Whole-Body SAR is averaged over the entire body, partial-body SAR is averaged over any 1 gram of tissue defined as a tissue volume in the shape of a cube. SAR for hands, wrists, feet and ankles is averaged over any 10 grams of tissue defined as a tissue volume in the shape of a cube. Population/Uncontrolled Environments: Are defined as locations where there is the exposure of individuals who have no knowledge or control of their exposure. Occupational/Controlled Environments: Are defined as locations where there is exposure that may be incurred by people who are aware of the potential for exposure, (i.e. as a resul…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 51 Report No.: AGC03393200701FE10 FCC ID : U7GPKTPLUS PRODUCT DESIGNATION : two way radio BRAND NAME : Blackbox MODEL NAME : Pocket + APPLICANT : Klein Electronics, Inc. DATE OF ISSUE : Jul. 31, 2020 STANDARD(S) : FCC Part 90 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. FCC Part 90 Rules Test Report Report No.:AGC02931200702FE10 Page 2 of 51 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 31, 2020 Valid Initial release Report No.: AGC03393200701FE10 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ....................................................................................... 5 2. GENERAL INFORMATION .................................................................................................... 6 2.1PRODUCT DESCRIPTION .......................................................................................................................... 6 2.2RELATED SUBMITTAL(S) / GRANT (S) ...................................................................................................... 8 2.3 TEST METHODOLOGY .............................................................................................................................. 8 2.4 TEST FACILITY ........................................................................................................................................... 8 2.5 SPECIAL ACCESSORIES ........................................................................................................................... 8 2.6 EQUIPMENT MODIFICATIONS .................................................................................................................. 8 3. SYSTEM TEST CONFIGURATION ....................................................................................... 9 3.1EUT CONFIGURATION ............................................................................................................................... 9 3.2 EUT EXERCISE .......................................................................................................................................... 9 3.3 GENERAL TECHNICAL REQUIREMENTS ................................................................................................ 9 3.4CONFIGURATION OF TESTED SYSTEM ................................................................................................ 10 4. SUMMARY OF TEST RESULTS .......................................................................................... 11 5. DESCRIPTION OF TEST MODES ...................................................................................... 13 6. FREQUENCY TOLERANCE ............................................................................................... 14 6.1 PROVISIONS APPLICABLE ..................................................................................................................... 14 6.2 MEASUREMENT PROCEDURE .............................................................................................................. 14 6.3 TEST SETUP BLOCK DIAGRAM ............................................................................................................. 15 6.4 TEST RESULTS ........................................................................................................................................ 16 7. EMISSION BANDWIDTH ....................................................................................................... 17 7.1 PROVISIONS APPLICABLE ..................................................................................................................... 17 7.2 MEASUREMENT PROCEDURE .............................................................................................................. 17 7.3 TEST SETUP BLOCK DIAGRAM ............................................................................................................. 17 7.4 MEASUREMENT RESULT ........................................................................................................................ 19 8．UNWANTED RADIATION .................................................................................................... 22 8.1 PROVISIONS APPLICABLE ..................................................................................................................... 22 8.2 MEASUREMENT PROCEDURE .…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Michael Lopez

[email protected]8009592899Fax: 760-781-3232

Technical Contact

Klein Electronics, Inc.

[email protected]

United States

Test Firm

Attestation of Global Compliance (Shenzhen) Co., LDoris Li

[email protected]+86-755-25234088

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	90	450 MHz - 470 MHz	1.3964 W	10K0F3E	1.0930000000 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is Conducted power. This device must be restricted to work-related operations only in an Occupational/Controlled RF exposure environment and must operate with a duty factor not exceeding 50%. This transmitter may operate with the antenna(s) documented in this filing in Push-to-Talk and body-worn configurations. RF exposure compliance is limited to the specific belt-clip and accessory configurations as documented in this filing and the separation distance between user and the device or its antenna shall be at least 2.5 cm. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational/Controlled Exposure limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. The highest reported SAR values are Head 0.11W/kg, Body-worn 0.28 W/kg when operating at 50% duty cycle.
