U88-CC25K700Cover4G25K

C o v e r C e l l 2 5 K / 1 0 0 K 7 0 0 Te c h n i c i a n ' s O p e r a t i o n a l M a n u a l & I n s t a l l a t i o n G u i d e V e r . 1 . 0 Version 1.0  September 2010 © 2010, GS Teletech, Inc. 2 Contents of Box(A) ContentsPictureQuantityContentsPictureQuantity Repeater1EA Ground Cable 6.6ft (2m) 1EA Mounting Bracket1EA Ground Sems Screw M4 x 8mm 4EA Installation Guide CD 1EA Bracket Sems Screw M6 x 16mm 4EA Ethernet Cable 6.6ft (2m) 1EA Lag Screw 1/2" x 2" 4EA Power Cord 6.6ft (2m) 1EA Anchor Bolt Set 1/2" x 2" 4EA Registration Form1EA Version 1.0  September 2010 © 2010, GS Teletech, Inc. 3 Contents of Box(B)_Option ContentsPictureQuantityContentsPictureQuantity RF Cable 33ft(10m) 1EA ANT Pole Set1Set RF Cable 66ft(20m) 1EA Donor ANT1EACable Clamp12EA Coverage ANT1EA (+)FH Tapping Screw for Clamp Ø 4 x 25mm 24EA Cable Tie12EAUniversal Filter Kit1EA Wide Band 2way Splitter (300MHz - 2.5GHz) 1EA Version 1.0  September 2010 © 2010, GS Teletech, Inc.  The images for the User Interface in this publication may vary from the repeater’s depending on its S/W Version. Copyright © 2010, GS Teletech, Inc. All Rights Reserved Printed in Republic of Korea Revision History DateVersionChanges 09/20101.0Original Certification UL/FCC: This equipment complies with UL and FCC Version 1.0  September 2010 © 2010, GS Teletech, Inc.  Warnings and Hazards WARNING! ELECTRIC SHOCK Opening the BDA (bi-directional amplifier) could result in electric shock and may cause severe injury. WARNING! EXPOSURE TO RF Working with the repeater while in operation, may expose the technician to RF electromagnetic fields that exceed FCC rules for human exposure. Visit the FCC website at http://www.fcc.gov/oet/rfsafety to learn more about the effects of exposure to RF electromagnetic fields. WARNING! DAMAGE TO EQUIPMENT Operating the BDA with antennas in very close proximity facing each other could lead to severe damage to the repeater. RF EXPOSURE & ANTENNA PLACEMENT Actual separation distance is determined upon gain of antenna used. Please maintain a minimum safe distance of at least 8 inch while operating near the donor and the server antennas. Also, the donor antenna needs to be mounted outdoors on a permanent structure. WARRANTY Unauthorized opening or tampering the BDA will void all warranties. One-year Warranty will start when the ownership of CoverCell25K/100K700 is transferring. CAUTION: REPEATER SHOULD BE INSTALLED AS CLOSE AS POSSIBLE TO POWER SOURCE. CAUTION: THIS REPEATER IS FOR INDOOR USE ONLY AND SHOULD BE LOCATED INSIDE OF BUILDING. CAUTION: RISK OF EXPLOSION IF BATTERY ON CONTROLLER BOARD IS REPLACED WITH AN INCORRECT TYPE. CAUTION: DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. ! ! ! ! Version 1.0  September 2010 © 2010, GS Teletech, Inc.  System Specification Version 1.0  September 2010 © 2010, GS Teletech, Inc.  Mounting Repeater Masonry Wall 1. Using a pencil, mark the location of each of the mounting bracket's four mounting holes on the wall. 2. Drill holes in the wall at the locations marked in step 1. 3. Set the anchors in the wall using a hammer. 4. Locate the four mounting bolts and place a lock washer and flat washer on each bolt. 5. Place the mounting bracket over the four holes with anchors, making sure that the washers are on the repeater side of the mounting bracket. Tighten bolts until secure. Anchor Bolt Set 1/2" x 2" RF Repeater Masonry Wall Mounting Bracket <Figure 1> Mounting the Repeater on a Masonry Wall Version 1.0  September 2010 © 2010, GS Teletech, Inc.  Mounting Repeater Wood-Framed Wall 1. It is recommended to first attach a sheet of plywood to the wall. The sheet of plywood should be anchored to the studs in the wall. 2. Using a pencil, mark the location for each of the mounting bracket's four mounting holes on the plywood. 3. Place the mounting bracket over the four lag screws heads. 4. Thread a lag screw at the positions marked in step 2. <Figure 2> Mounting the Repeater on a Wood-Framed Wall Lag Screw 1/2" x 2" RF Repeater Wood-Framed Wall Mounting Bracket Version 1.0  September 2010 © 2010, GS Teletech, Inc.  Bracket Sems Screw M6 x 16 mm Ground Sems Screw M4 x 8 mm Ground lug detail drawing To approved ground source ! <Figure 3> Hanging and Grounding the Repeater Hanging and Grounding 1. Hang the Repeater from the mounting bracket. 2. Locate the four Bracket Sems Screws with installed washers. Tighten bolts until secure. 3. Locate the ground lug on the underside(or side) of the repeater. 4. Crimp the ground cable to the ground lug. 5. Route the free end of the ground cable to an approved(per local code or practice) ground source. CAUTION Ground cable must be properly grounded to provide both EMI and voltage surge protection for the repeater. Version 1.0  September 2010 © 2010, GS Teletech, Inc. 10 Mounting Coverage & Donor ANT 10ft Version 1.0  September 2010 © 2010, GS Teletech, Inc. 11 Coverage • Common Condition 1. System Output Power -> LTE : 0dBm/FA @ pilot 2. Mobile Input Power : -90dBm/FA @ pilot 3. Donor Antenna Gain -> LTE : 8dBi 4. Coverage Antenna -> Common : 2dBi • SUBURBAN 5. LTE : 1 channel -> 9dBm/total @ EIRP <Small Room> Path Loss = 32.+20Log[Frequency]+20Log[Distance(km)]+Indoor Loss Version 1.0  September 2010 © 2010, GS Teletech, Inc. 12 Coverage • Common Condition 1. System Output Power -> LTE : 6dBm/FA @ pilot 2. Mobile Input Power : -90dBm/FA @ pilot 3. Donor Antenna Gain -> LTE : 8dBi 4. Coverage Antenna -> Common : 2dBi • SUBURBAN 5. LTE : 1 channel -> 15dBm/total @ EIRP <Small Room> Path Loss = 32.+20Log[Frequency]+20Log[Distance(km)]+Indoor Loss Version 1.0  September 2010 © 2010, GS Teletech, Inc. 13 Mounting Donor & Coverage ANT Mounting Donor ANT Pole ① ② ③ ④ Version 1.0  September 2010 © 2010, GS Teletech, Inc. 1 Mounting Donor & Coverage ANT Version 1.0  September 2010 © 2010, GS Teletech, Inc. 1 Mounting Type <Pole Mount> <Wall Mount> Version 1.0  September 2010 © 2010, GS Teletech, Inc. 1 Vertical Tilt V…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 GS Instruments Co., Ltd. Nov 10, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, GS Instruments Co.,Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Cover4G25K, CoverCell25K700 We affirm that between SIEMIC and GS Instruments Co.,Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Applicant’s Company : GS Instruments Co.,Ltd. Address : 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea FCC ID : U88-CC25K700

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 GS Instruments Co.,Ltd.. To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID U88-CC25K700 We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics 3 Operational Description 4 Part List & Tune-UP Procedure CONFIDENTIAL 5 Internal Photos 6 External Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant’s Company : GS Instruments Co.,Ltd. Address : 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea

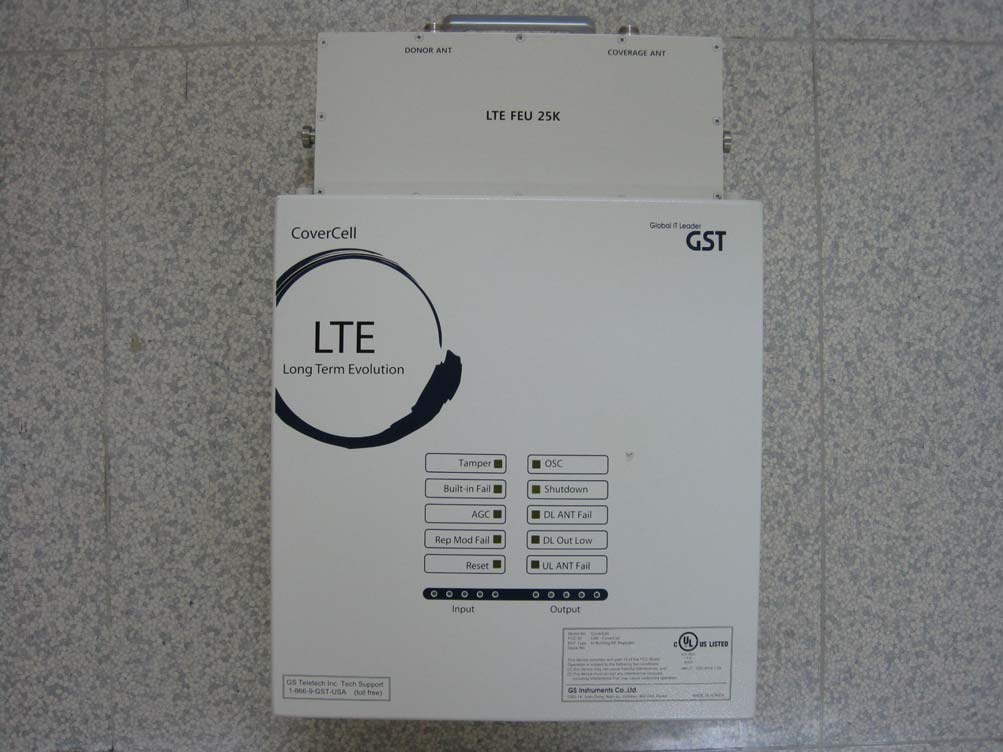

FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 1/6 (Front) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 2/6 (Back) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 3/6 (Left) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 4/6 (Right) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 5/6 (Lower Side) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 6/6 (Upper Side)

FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 1/2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL Model Name : CoverCell25K700 FCC ID : U88-CC25K700 EUT Type : Cover4G25K Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. GS Instruments Co.,Ltd. 1385-14, Juan-Dong, Nam-Ku, Incheon, 402-200 Korea MADE IN KOREA FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 2/2 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL LOCATION

FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 1/19 (Opne) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 2/19 (UL Converter Module_1) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 3/19 (UL Converter Module_2) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 4/19 (DL Converter Module_1) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 5/19 (DL Converter Module_2) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 6/19 (Cavity Filter_1) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 7/19 (Cavity Filter_2) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 8/19 (Digital Filter_1) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 9/19 (Digital Filter_2) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 10/19 (DL HPA Module) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 11/19 (UL HPA Module) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 12/19 (Ethernet Board_1) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 13/19 (Ethernet Board_2) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 14/19 (IO board_1) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 15/19 (IO board_2) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 16/19 (LED Module_1) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 17/19 (LED Module_2) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 18/19 (NMS board_1) FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 19/19 (NMS board_2)

Report No.: HCTR1011FR09-2 FCC ID: U88-CC25K700 DATE: November 25, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 75 of 78 3.6 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Report No.: HCTR1011FR09-2 FCC ID: U88-CC25K700 DATE: November 25, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 76 of 78 Max Peak output Power at antenna input terminal 23.990 dBm Max Peak output Power at antenna input terminal 250.611 mW Prediction distance 40.000 cm Prediction frequency 782.000 MHz Antenna Gain(typical) 8.000 dBi Antenna Gain(numeric) 6.310 - Power density at prediction frequency( S) 0.07864 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.521 mW/cm 2 Max Peak output Power at antenna input terminal 23.530 dBm Max Peak output Power at antenna input terminal 225.424 mW Prediction distance 40.000 cm Prediction frequency 698.500 MHz Antenna Gain(typical) 8.000 dBi Antenna Gain(numeric) 6.310 - Power density at prediction frequency( S) 0.07074 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.466 mW/cm 2 3. RESULTS The power density level at 40cm is 0.07864 mW/cm², which is below the uncontrolled exposure limit of 0.521 mW/cm² at 782 MHz The power density level at 40cm is 0.07074 mW/cm², which is below the uncontrolled exposure limit of 0.466 mW/cm² at 698.5 MHz

HCT CO., LTD. CERTIFICATION DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX: +82 31 639 8525 CERTIFICATE OF COMPLIANCE TEST REPORT EUT Type: LTE Repeater UL Frequency: 777.0 MHz – 787.0 MHz 698.5 MHz – 703.5 MHz 704.5 MHz – 709.5 MHz DL Frequency: 746.0 MHz – 756.0 MHz 728.5 MHz – 733.5 MHz 734.5 MHz – 739.5 MHz Max. RF Output Power: 24 dBm (251 mW) Trade Name/Model(s): GS Instruments Co., Ltd. / CoverCell25K700 FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) Application Type: Certification FCC Rule Part(s): §2, §15 Subpart B, §27 Subpart C Emission Designator(s): 8M61G7D (QPSK), 8M61D7D (16QAM), 8M61D7D (64QAM) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in 2.947. ∮ I attest to the accuracy of data. All measurements reported herein wer e performed b y me or were made under m y supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC : APPLICANT : U88-CC25K700 GS Instruments Co., Ltd. GS Instruments Co., Ltd. 1385-14, Juan-Dong, Nam-Ku, Incheon, 402-200 Korea Date of Issue: November 25, 2010 Test Report No.: HCTR1011FR09-2 Test Site: HCT CO., LTD. Report No.: HCTR1011FR09-2 FCC ID: U88-CC25K700 DATE: November 25, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 78 Version TEST REPORT NO. DATE DESCRIPTION HCTR1011FR09 November 08, 2010 First Approval Report HCTR1011FR09-1 November 11, 2010 Change the Section 3 RF Exposure test limit. HCTR1011FR09-2 November 25, 2010 Add Value to provide th e calculation the limit is the lowest (698.5 MHz). Report No.: HCTR1011FR09-2 FCC ID: U88-CC25K700 DATE: November 25, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 78 Table of Contents 1. SCOPE.........................................................................................................................................................４ 3. DESCRIPTION OF TESTS.........................................................................................................................６ 3.1 Conducted RF Power Test.............................................................................................................７ 3.2 Occupied bandwidth...................................................................................................................２０ 3.3 Spurious Emissions at Antenna Terminal...............................................................................４１ 3.4 Radiated Spurious Emissions....................................................................................................７１ 3.5 Frequency stability.....................................................................................................................７３ 3.6 RF Exposure Statement.............................................................................................................７５ 4. LIST OF TEST EQUIPMENT..................................................................................................................７７ 5. CONCLUSION.........................................................................................................................................７８ Report No.: HCTR1011FR09-2 FCC ID: U88-CC25K700 DATE: November 25, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 4 of 78 MEASUREMENT REPORT 1. SCOPE Measurement and determi nation of electromagnetic emissions (EME) of radio frequency devices includi ng intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information FCC: U88-CC25K700 EUT Type: LTE Repeater Trade Name: GS Instruments Co., Ltd. Model(s): CoverCell25K700 Uplink : 777.0 MHz – 787.0 MHz 698.5 MHz - 703.5 MHz 704.5 MHz - 709.5 MHz Frequency Ranges Downlink: 746.0 MHz – 756.0 MHz 728.5 MHz - 733.5 MHz 734.5 MHz - 739.5 MHz Application Type: Certification FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §2, §15 Subpart B, §27 Subpart L Modulation(s): QPSK, 16QAM, 64QAM RF Output Power: Uplink: 24 dBm Downlink : 24 dBm Company Name: GS Instruments Co., Ltd. Address: 1385-14, Juan-Dong, Nam-Ku, Incheon, 402-200 Korea Tel. / Fax : + 82-32-870-5782 / + 82-32-870-5784 E-Mail: [email protected] Report No.: HCTR1011FR09-2 FCC ID: U88-CC25K700 DATE: November 25, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 5 of 78 2. INTRODUCTION EUT DESCRIPTION The GS Instruments Co., Ltd. CoverCell25K700 LTE User Equipment. Its basic purpose is used for communications. It transmits from Uplink : 777 - 787 MHz,698.5 - 703.5 MHz,704.5 - 709.5 MHz and receives from Downlink: 746 - 756 MHz,728.5 - 733.5 MHz. The RF power is rated at 0.251 W (24 dBm). MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. TEST FACILITY The SAC(Semi-Anechoic Chamb…

Text truncated - open the document above for the full version.

FCC ID : U88-CC25K700 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1011FR09 1/1 (Test Setup)
