U88-COVERCELL25KNIn-Building RF Repeater

FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 1/1 ATTACHMENT E. - USER MANUAL - CoverCell25KN Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 2 Contents of Box ContentsPictureQuantityContentsPictureQuantity Repeater1EA Ground Cable 6.6ft (2m) 1EA Mounting Bracket1EA Ground Sems Screw M4 x 8mm 4EA Installation Guide CD 1EA Bracket Sems Screw M6 x 16mm 4EA Ethernet Cable 6.6ft (2m) 1EA Lag Screw 1/2" x 2" 4EA Power Cord 6.6ft (2m) 1EA Anchor Bolt Set 1/2" x 2" 4EA Registration Form1EA Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 3 This publication provides instruction for installing Verizon 24dBm Dual Band Inbuilding RF repeater. The images for the User Interface in this publication may vary from the repeater’s depending on its S/W Version. Copyright © 2010, GS Teletech, Inc. All Rights Reserved Printed in Republic of Korea Revision History DateVersionChanges 04/20100.1Draft Certification UL/FCC: This equipment complies with UL and FCC Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 4 Warnings and Hazards WARNING! ELECTRIC SHOCK Opening the BDA (bi-directional amplifier) could result in electric shock and may cause severe injury. WARNING! EXPOSURE TO RF Working with the repeater while in operation, may expose the technician to RF electromagnetic fields that exceed FCC rules for human exposure. Visit the FCC website at http://www.fcc.gov/oet/rfsafety to learn more about the effects of exposure to RF electromagnetic fields. WARNING! DAMAGE TO EQUIPMENT Operating the BDA with antennas in very close proximity facing each other could lead to severe damage to the repeater. RF EXPOSURE & ANTENNA PLACEMENT Actual separation distance is determined upon gain of antenna used. Please maintain a minimum safe distance of at least 8 inch while operating near the donor and the server antennas. Also, the donor antenna needs to be mounted outdoors on a permanent structure. WARRANTY Unauthorized opening or tampering the BDA will void all warranties. One-year Warranty will start when the ownership of CoverCell25KN Repeater is transferring. ! CAUTION: REPEATER SHOULD BE INSTALLED AS CLOSE AS POSSIBLE TO POWER SOURCE. ! CAUTION: THIS REPEATER IS FOR INDOOR USE ONLY AND SHOULD BE LOCATED INSIDE OF BUILDING. ! CAUTION: RISK OF EXPLOSION IF BATTERY ON CONTROLLER BOARD IS REPLACED WITH AN INCORRECT TYPE. Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 5 System Specification ItemDownlinkUplinkRemark Cellular Frequency (MHz) A1869 ~ 880824 ~ 835 A2890 ~ 891.5845 ~ 846.5 B1880 ~ 890835 ~ 845 B2891.5 ~ 894846.5 ~ 849 PCS Frequency (MHz)1930 ~ 19901850 ~ 1910 Sub Band Filtering A1+A2 or B1+B2 or A1+B1+A2+B2 5, 10, 15, 20MHz BW (tunable) Gain Cellular80dB80dB PCS80dB80dB Flatness5dB peak to peakChannel power Input Range Cellular-56dBm ~ -86dBmMax -56dBm PCS-56dBm ~ -86dBmMax -56dBm Output Power Cellular24dBm24dBmEIRP PCS24dBm24dBmEIRP AGC Range Cellular30dB PCS30dB Roll off Cellular ≥45dBc@±2MHz ≥30dBc @±0.25MHz (B1+B2 Inside Edge) PCS≥30dBc @±1.5MHz Group Delay≤ 6μs Single & 2-tone Cellular≤Not to exceed maximum output power@-30dBm PCS≤Not to exceed maximum output power@-40dBm Noise Figure≤ 7dB Input Inter-modulation≤ 10dB Adjacent Channel Power Cellular ≥ 45dBc @ 750kHz ≥ 45dBc @ 1.98MHz PCS ≥ 45dBc @ 885kHz ≥ 45dBc @ 1.98MHz Radiated Spurious Emissions≤ -13dBm Frequency Error± 300Hz @cellular, ± 150Hz @PCS Signal QualityRho >0.98 * type of modulation : F9W Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 6 Mounting Repeater Masonry Wall 1. Using a pencil, mark the location of each of the mounting bracket's four mounting holes on the wall. 2. Drill holes in the wall at the locations marked in step 1. 3. Set the anchors in the wall using a hammer. 4. Locate the four mounting bolts and place a lock washer and flat washer on each bolt. 5. Place the mounting bracket over the four holes with anchors, making sure that the washers are on the repeater side of the mounting bracket. Tighten bolts until secure. Anchor Bolt Set 1/2" x 2" RF Repeater Masonry Wall Mounting Bracket <Figure 1> Mounting the Repeater on a Masonry Wall Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 7 Mounting Repeater Wood-Framed Wall 1. It is recommended to first attach a sheet of plywood to the wall. The sheet of plywood should be anchored to the studs in the wall. 2. Using a pencil, mark the location for each of the mounting bracket's four mounting holes on the plywood. 3. Place the mounting bracket over the four lag screws heads. 4. Thread a lag screw at the positions marked in step 2. <Figure 2> Mounting the Repeater on a Wood-Framed Wall Lag Screw 1/2" x 2" RF Repeater Wood-Framed Wall Mounting Bracket Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 8 Bracket Sems Screw M6 x 16 mm Ground Sems Screw M4 x 8 mm Ground lug detail drawing To approved ground source ! <Figure 3> Hanging and Grounding the Repeater Hanging and Grounding 1. Hang the Repeater from the mounting bracket. 2. Locate the four Bracket Sems Screws with installed washers. Tighten bolts until secure. 3. Locate the ground lug on the underside(or side) of the repeater. 4. Crimp the ground cable to the ground lug. 5. Route the free end of the ground cable to an approved(per local code or practice) ground source. CAUTION Ground cable must be properly grounded to provide both EMI and voltage surge protection for the repeater. Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 9 Position Antenna • Customer specifications should be followed for positioning the antennas properly. <Figure 4> An installer is directing Donor Antenna to nearby BTS to receive strong input signal. Version 0.1 ؼ April 2010 © 2010, GS Teletech, Inc. 10 Cable Connections • Connect Donor and Coverage Antenna ! CAUTION Do not connect or disconnect cable from ANT port when power is ON <Figure 5> ANT Ports <Figure 6> DONOR ANT Port Connection<Figure 7> Cove…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 GS Instruments Co., Ltd. July 5, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, GS Instruments Co.,Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): In-Building RF Repeater, CoverCell 25KN We affirm that between SIEMIC andGS Instruments Co.,Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Applicant’s Company : GS Instruments Co.,Ltd. Address : 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea FCC ID: U88-COVERCELL25KN

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 GS Instruments Co.,Ltd.. To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID U88-COVERCELL25KN We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics 3 Operational Description 4 Part List & Tune-UP Procedure CONFIDENTIAL 5 Internal Photos 6 External Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant’s Company : GS Instruments Co.,Ltd. Address : 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea

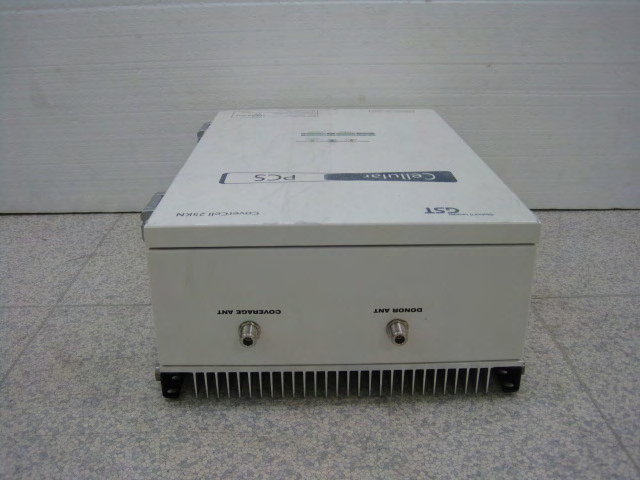

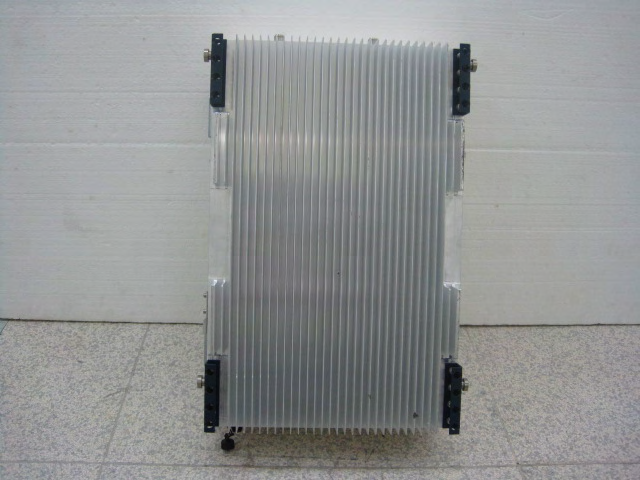

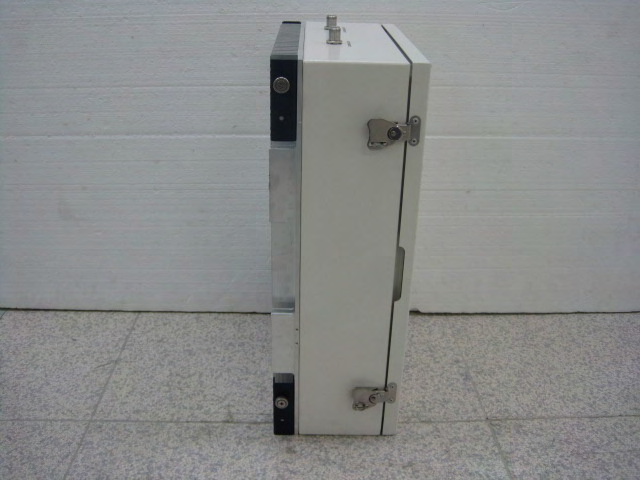

FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 1/7 ATTACHMENT B. -EXTERNAL PHOTOS - FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 2/7 (Front) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 3/7 (Back) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 4/7 (Left) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 5/7 (Right) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 6/7 (Lower Side) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 7/7 (Upper Side)

FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 1/3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 2/3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL Model No : CoverCell 25KN FCC ID : U88-COVERCELL25KN EUT Type : In-Building RF Repeater Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. GS Instruments Co., Ltd.. 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea MADE IN KOREA FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 3/3 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 1/39 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 2/39 (WD_CELL1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 3/39 (WD_CELL2.) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 4/39 (WD_CELL) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 5/39 (WD_PCS1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 6/39 (WD_PCS2) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 7/39 (WD_PCS) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 8/39 (CDM_DL1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 9/39 (CDM_DL2) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 10/39 (CDM_DL) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 11/39 (CDM_UL1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 12/39 (CDM_UL2) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 13/39 (CDM_UL) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 14/39 (PDM_DL) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 15/39 (PDM_DL1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 16/39 (PDM_UL) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 17/39 (PDM_UL1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 18/39 (PDM_UL2) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 19/39 (CELL_RX1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 20/39 (CELL_RX2) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 21/39 (CELL_TX1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 22/39 (CELL_TX2) . FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 23/39 (PCS_RX1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 24/39 (PCS_RX2) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 25/39 (PCS_TX1) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 26/39 (PCS_TX2) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 27/39 (CoverCell2KN_GDF150M_Comp_side) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1006FR16 28/39 (CoverCell2KN_GDF150M_Solder_side) FCC ID : U88-COVERCELL25KN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr R…

Text truncated - open the document above for the full version.

Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 59 /62- 10. RF EXPOSURE STATEMENT 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 60 /62- 2-1. Cellular Downlink Max Peak output Power at antenna input terminal 23.98 dBm Max Peak output Power at antenna input terminal 250.035 mW Prediction distance 20.000 cm Prediction frequency 869.700 MHz Antenna Gain(typical) 7.000 dBi Antenna Gain(numeric) 5.012 - Power density at prediction frequency( S) 0.249 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.580 mW/cm 2 2-2. PCS Downlink Max Peak output Power at antenna input terminal 23.95000 dBm Max Peak output Power at antenna input terminal 248.31331 mW Prediction distance 20.00000 cm Prediction frequency 1931.25000 MHz Antenna Gain(typical) 12.00000 dBi Antenna Gain(numeric) 15.84893 - Power density at prediction frequency (S) 0.78294 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.00000 mW/cm 2 Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 61 /62- 2-3. Cellular Uplink Max Peak output Power at antenna input terminal 24.100 dBm Max Peak output Power at antenna input terminal 257.040 mW Prediction distance 20.000 cm Prediction frequency 824.700 MHz Antenna Gain(typical) 2.000 dBi Antenna Gain(numeric) 1.585 - Power density at prediction frequency( S) 0.081 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.550 mW/cm 2 2-4. PCS Uplink Max Peak output Power at antenna input terminal 23.95 dBm Max Peak output Power at antenna input terminal 248.31331 mW Prediction distance 20.00000 cm Prediction frequency 1851.25000 MHz Antenna Gain(typical) 2.00000 dBi Antenna Gain(numeric) 1.58489 - Power density at prediction frequency (S) 0.07829 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.00000 mW/cm 2 3. RESULTS The power density level at 20 cm is 0.081 mW/cm²(Cellular UpLink), 0.249 mW/cm²(Cellular DownLink), 0.078294 mW/cm²(PCS UpLink), 0.7829 mW/cm²(PCS DownLink), which is below the uncontrolled exposure limit for Cellular & PCS band. Warning: In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, it must also have a minimum distance of 20 cm from the body during normal operation.

Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 1 /62- CONTENTS 1. CLIENT INFORMATION............................................................................................................................................ 2 2. TEST SPECIFICATIONS........................................................................................................................................... 3 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS...................................................................................... 4 4. TEST EQUIPMENT..................................................................................................................................................... 4 5. RF OUTPUT POWER................................................................................................................................................. 5 6. OCCUPIED BANDWIDTH....................................................................................................................................... 14 7. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL........................................................... 28 8. FIELD STRENGTH OF SPURIOUS RADIATION................................................................................................ 54 9. FREQUENCY STABILITY OVER TEMPERATURE AND VOLTAGE VARIATIONS...................................... 56 10. RF EXPOSURE STATEMENT.............................................................................................................................. 59 Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 2 /62- 1. CLIENT INFORMATION The EUT has been tested by request of Company GS Instruments Co., Ltd Contact Point 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea EUT Type: In-Building RF Repeater FCC ID: U88-COVERCELL25KN Frequency Ranges: Uplink : 1850 - 1910 MHz (PCS) 824 – 849 MHz (Cellular) Downlink : 1930 - 1990 MHz (PCS) 869 – 894 MHz (Cellular) RF Output Power: 24 dBm FCC Rules Part(s): Title 47 of CFR, Part 22 Subpart H (PCS) Part 24 Subpart E (Cellular) Emission Designators: F9W Modulation : QPSK Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 3 /62- 2. TEST SPECIFICATIONS 2.1 Standards The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance With Part 22 Subpart H, Part 24 Subpart E. Reference Description Results §2.1046; §22.913, §24.232 RF Power Output Compliant §2.1047 Modulation Characteristics N/A §2.1049 Occupied Bandwidth Compliant §2.1051, §22.917, §24.238 Spurious Emissions at Antenna Terminals Compliant §2.1053, §22.917, §24.238 Radiated Spurious Emissions Compliant §2.1055; §22.355, §24.235 Frequency Stability Compliant Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 4 /62- 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS Temperature : + 15 ୅ to + 35 ୅ Relative humidity: 30 % to 60 % Air pressure 860 mbar to 1060 mbar 4. TEST EQUIPMENT Manufacturer Model / Equipment Cal Interval Calibration Due Serial No. Agilent E4438C /Signal Generator Annual 12/15/2010 MY42082646 Agilent E4416A /Power Meter Annual 01/14/2011 GB41291412 WEINSCHEL 67-30-33/ATTENUATOR Annual 01/14/2011 BR0530 Korea Eng KR-1005L/ Temperature and Humidity Chamber Annual 12/28/2010 KRAC05063-3CH Agilent N9020A /Signal Analyzer Annual 03/03/2011 US46220219 Schwarzbeck VULB 9168/BI-LOG Antenna Biennial 01/06/2011 9168-200 HD MA240/ Antenna Position Tower N/A N/A 556 EMCO 1050/ Turn Table N/A N/A 114 HD GmbH HD 100/ Controller N/A N/A 13 HD GmbH KMS 560/ SlideBar N/A N/A 12 MITEQ AFS44-00102650-42-10P44-PS Annual 04/05/2011 1532439 Schwarzbeck BBHA 9120D/ Horn Antenna Biennial 04/13/2011 147 Schwarzbeck BBHA 9120D/ Horn Antenna Biennial 09/23/2010 296 EMCO 6502/Loop Antenna Biennial 01/13/2012 9009-2536 Agilent E4438C /Signal Generator Annual 12/15/2010 MY42082646 Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 5 /62- 5. RF OUTPUT POWER 5.1 Test Procedure Test Requirements: § 2.1046 Measurements required: RF power output: § 2.1046 (a) For transmitters other than single sideband, independent sideband and controlled carrier radiotelephone, power output shall be measured at the RF output terminals when the transmitter is adjusted in accordance with the tune-up procedure to give the values of current and voltage on the circuit elements specified in § 2.1033(c)(8).The electrical characteristics of the radio frequency load attached to the output terminals when this test is made shall be stated. § 2.1046 (b) For single sideband, independent sideband, and single channel, controlled carrier radiotelephone transmitters, the procedure specified in paragraph (a) of this section shall be employed and, in addition, the transmitter shall be modulated during the test as specified and as applicable in § 2.1046 (b) (1-5). In all tests, the input level of the modulating signal shall be such as to develop rated peak envelope power or carrier power, as appropriate, for the transmitter. § 2.1046 (c) For measurements conducted pursuant to paragraphs (a) and (b) of this section, all calculations and methods used by the applicant for determining carrier power or peak envelope power, as appropria…

Text truncated - open the document above for the full version.

Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 31 /62- ( Downlink Low CH-PCS) (Downlink High CH-PCS) Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 32 /62- (Uplink Low CH-PCS) (Uplink High CH-PCS) Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 33 /62- Plots of Spurious Emission Conducted Spurious Emissions Downlink Low CH (30 MHz – 1 GHz-Cellular) Conducted Spurious Emissions Downlink Mid CH (30 MHz – 1 GHz-Cellular) Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 34 /62- Conducted Spurious Emissions Downlink High CH (30 MHz – 1 GHz-Cellular) Conducted Spurious Emissions Uplink Low CH (30 MHz – 1 GHz-Cellular) Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 35 /62- Conducted Spurious Emissions Uplink Mid CH (30 MHz – 1 GHz-Cellular) Conducted Spurious Emissions Uplink HighCH (30 MHz – 1 GHz-Cellular) Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 36 /62- Conducted Spurious Emissions Downlink Low CH (30 MHz – 1 GHz-PCS) Conducted Spurious Emissions Downlink Mid CH(30 MHz – 1 GHz-PCS) Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 37 /62- Conducted Spurious Emissions Downlink High CH (30 MHz – 1 GHz-PCS) Conducted Spurious Emissions Uplink Low CH(30 MHz – 1 GHz-PCS) Report No.: HCTR1006FR16 FCC ID: U88-COVERCELL25KN DATE : June 24, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea ٻ TE…

Text truncated - open the document above for the full version.
