U88-GRS-1930R-SPRRF Repeater

GS Instech Co., Ltd.
RF Repeater - FCC ID U88-GRS-1930R-SPR - GS Instech Co., Ltd.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Aug 10, 2010
Application Purpose
Original Equipment
Date of Application
Aug 10, 2010
Equipment Note
RF Repeater
Frequency Range
1850.00000000 - 1915.00000000
Company
GS Instech Co., Ltd.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

© 2010, GS Teletech, Inc.  Version 0.2  May 2010 RF Configuration Menu FAQ’s • What is the relationship between AGC (Auto Gain Control) and ALC (Auto Limit Control)? ALC is for custom installations, and AGC is automatically used when AGS is turned on which is for normal installations. If the repeater is having difficulties with isolation check, or if you wantto “power down” the repeater ALC should be manually set. Attenuation may also be addedfor reducing power levels. ALC also provides optional U/L and D/L settings. - The relationship between AGC and ALC is that they both will control the output power, but in different ways. AGC will take priority over ALC, meaning if AGC is on, ALC cannot be used. - If you want to use the ALC function, AGC should be turned off. - The difference is that ALC will reduce max gain by the set value even if the input signal decreases. AGC will limit the total output power to a set value while still allowing the repeaterto fluctuate to max gain if input signal gets weaker. • What does the Shutdown ON/OFF control? - An internal wave-detection is checking the noise level. If the repeater cannot secure isolation it will go through a process of turning itself off, and turning back on while doing isolation checking. - If it is impossible for the repeater to secure isolation after 30 minutes, the repeater will shut down and stay shutdown. The items that may automatically require the repeater to shut down are: -> VSWR Alarm, Over Power Alarm, and Over Input Alarm • What is Gain Balance Control? - Gain Balance Control will always keep the UL and DL ATT the same while using AGC. GBC should always be left on to prevent damage to BTS while using AGC. - This is used for BTS to cell phone power control. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 RF Configuration Menu • This table is for reference only and not critical for installation. -> CDMA Band Selection Algorithm ITEMBANDWIDTHNOTE Band Select 5MHz Any of these bandwidths from A to F can be chosen 10MHz 15MHz 20MHz 5MHz + 5MHz 5MHz + 5MHz + 5MHz 10MHz + 5MHz 15MHz + 5MHz • CDMA Band Structure © 2010, GS Teletech, Inc.  Version 0.2  May 2010 RF Confi guration Menu • Also, by adding Channel Select Function, it enables users to select bands sophisticatedly. • When you select a single channel has a 1.25MHz bandwidth. • Can select up to 15 channel and has a maximum 18.75MHz bandwidth. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 RF Configuration Menu • For normal setup, GST recommends using the Auto Gain Setting. • User may configure gain and secure isolation by switching Auto Gain Setting to “ON”. • Click “Apply”. • The default values in various fields will differ with different models of CDMA Repeater. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 RF Configuration Menu • After setting AGS to ON and clicking Apply, the screen below will be displayed while AGS is initializing. • After AGS is completed, click “Click Result”. The equipment will set AGC, Gain Balance and HPA “ON”, and then provide normal service. If automatic setup works you will see the Status page. (ALC “ Off ”) © 2010, GS Teletech, Inc.  Version 0.2  May 2010 AGS Flow Chart © 2010, GS Teletech, Inc.  Version 0.2  May 2010 RF Configuration Menu • If AGS process fails, it is most likely one of 3 issues: -> 1st) too weak input signal, 2nd) too strong input signal, or 3rd) the Donor and Service antennas are too close to each other. To resolve, antenna tuning is required. • In case of 30dBm, if isolation is below Gain +7dB, i.e. 97dBc, this warning will be displayed. © 2010, GS Teletech, Inc. 0 Version 0.2  May 2010 Alarm Configuration Menu • Click Alarm Configuration link. • In case that Report Alarms is OFF, all alarms will be disabled. In case that Report Alarms is ON, you can enable and disable individual alarms. © 2010, GS Teletech, Inc. 1 Version 0.2  May 2010 User Management Menu • Click on the User Management link. • On this page you can create and delete users, change passwords, and assign authorities to individual users. • Read will only all the user to view information on the menu pages, but cannot make any changes. • Read/Write Authority means that the user can view and change various values. • Super User is very similar to an Administrator account. ! CAUTION DO NOT DELETE 'admin' © 2010, GS Teletech, Inc. 2 Version 0.2  May 2010 Alarm Logs • Click on the Alarm Logs link. • You can see a history of reported and reset Alarms. When an alarm is reported, the name and time of the alarm is displayed along with it’s current status. Red color means that the alarm is reported, and green color means that the alarm has returned to normal status. • After an Alarm condition lasts for the “Delay Alarm Reporting Minutes” set in RF Configuration page, the Alarm will be reported. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Logs • Click on the Alarm Logs link. • You can see Alarm Logs regarding Web UI operation. Logs will maintain a history of up to 30 operations. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Troubleshooting • Click on the Troubleshooting link. • You can refer to this page for a general troubleshooting guide. • In case that screen resolution is 1024 x 768, you may need to use scroll bars to view all. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Software Upgrade • Click on the Remote Software Upgrade link. • In case that software upgrade is needed, you should use this page. • Click Browse button to select the file to upgrade from the laptop. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Software Upgrade • Choose the file to upgrade provided by GST. After you choose the file, you should click “upload” to send the file from your laptop to the repeater. ! CAUTION Be careful not to unplug the crossover Ethernet cable during software upgrade. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Software Upgrade • After uploading is finished, verify that the File Name and the File Size is co…

Text truncated - open the document above for the full version.

Users Manual

FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 1/1 ATTACHMENT E. - USER MANUAL - GRS-1930R-SPR R e p e a t e r INSTALLATION GUIDE Ver. 0.2 © 2010, GS Teletech, Inc. 2 Version 0.2  May 2010 Contents of Box ContentsPictureQuantityContentsPictureQuantity Repeater1EA Ground Cable 6.6ft (2m) 1EA Mounting Bracket1EA Ground Sems Screw M4 x 8mm 4EA CD which Contains User Manual Ver 1.0 and Installation Guide Ver 1.0 1EA Bracket Sems Screw M6 x 16mm 4EA Ethernet Cable 6.6ft (2m) 1EA Lag Screw 1/4" x 3/2" 4EA Power Cord 10ft (3m) 1EA Anchor Bolt Set 1/4" x 3/2" 4EA © 2010, GS Teletech, Inc.  Version 0.2  May 2010 The images for the User Interface in this publication may vary from the repeater’s depending on its S/W Version. Copyright © 2010, GS Teletech, Inc. All Rights Reserved Printed in Republic of Korea Revision History DateVersionChanges 05/2010Draft Certification UL/FCC: This equipment complies with UL and FCC © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Warnings and Hazards WARNING! ELECTRIC SHOCK Opening the BDA (bi-directional amplifier) could result in electric shock and may cause severe injury. WARNING! EXPOSURE TO RF Working with the repeater while in operation, may expose the technician to RF electromagnetic fields that exceed FCC rules for human exposure. Visit the FCC website at http://www.fcc.gov/oet/rfsafety to learn more about the effects of exposure to RF electromagnetic fields. WARNING! DAMAGE TO EQUIPMENT Operating the BDA with antennas in very close proximity facing each other could lead to severe damage to the repeater. RF EXPOSURE & ANTENNA PLACEMENT Actual separation distance is determined upon gain of antenna used. Please maintain a minimum safe distance of at least 8inch while operating near the donor and the server antennas. Also, the donor antenna needs to be mounted outdoors on a permanent structure. WARRANTY Opening or tampering the BDA will void all warranties. ! CAUTION: REPEATER SHOULD BE INSTALLED AS CLOSE AS POSSIBLE TO POWER SOURCE. ! CAUTION: THIS REPEATER IS FOR INDOOR USE ONLY AND SHOULD BE LOCATED INSIDE OF BUILDING. ! CAUTION: RISK OF EXPLOSION IF BATTERY ON CONTROLLER BOARD IS REPLACED WITH AN INCORRECT TYPE. DANGER electrical hazard © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Anchor Bolt Set 1/2" x 2" RF Repeater Masonry Wall Mounting Bracket Mounting Repeater Masonry Wall 1. Using a pencil, mark the location of each of the mounting bracket's four mounting holes on the wall. 2. Drill holes in the wall at the locations marked in step 1. 3. Set the anchors in the wall using a hammer. 4. Locate the four mounting bolts and place a lock washer and flat washer on each bolt. 5. Place the mounting bracket over the four holes with anchors, making sure that the washers are on the repeater side of the mounting bracket. Tighten bolts until secure. <Figure 1> Mounting the Repeater on a Masonry Wall © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Lag Screw 1/2" x 2" RF Repeater Wood-Framed Wall Mounting Bracket Mounting Repeater Wood-Framed Wall 1. It is recommended to first attach a sheet of plywood to the wall. The sheet of plywood should be anchored to the studs in the wall. 2. Using a pencil, mark the location for each of the mounting bracket's four mounting holes on the plywood. 3. Place the mounting bracket over the four lag screws heads. 4. Thread a lag screw at the positions marked in step 1. <Figure 2> Mounting the Repeater on a Wood-Framed Wall © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Bracket Sems Screw M6 x 16 mm Ground Sems Screw M4 x 8 mm Ground lug detail drawing To approved ground source Hanging and Grounding 1. Hang the Repeater from the mounting bracket. 2. Locate the four Bracket Sems Screws with installed washers. Tighten bolts until secure. 3. Locate the ground lug on the underside(or side) of the repeater. 4. Crimp the ground cable to the ground lug. 5. Route the free end of the ground cable to an approved(per local code or practice) ground source. CAUTION Ground cable must be properly grounded to provide both EMI and voltage surge protection for the repeater. ! <Figure 3> Hanging and Grounding the Repeater © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Position Antenna • Customer specifications should be followed for positioning the antennas properly. <Figure 4> An installer is directing Donor Antenna to nearby BTS to receive strong input signal. © 2010, GS Teletech, Inc.  Version 0.2  May 2010 Cable Connections • Connect Donor and Server Antennas ! CAUTION Do not connect or disconnect cable from ANT port when power is ON <Figure 5> ANT Ports <Figure 7> Server ANT Port Connection<Figure 8> Donor ANT Port Connection © 2010, GS Teletech, Inc. 10 Version 0.2  May 2010 Connecting Power Cable and LED Light Verifi cation • Connect Power Cable <Figure 9> AC Power Port Connection<Figure 10> Verifi cation of LED Lights © 2010, GS Teletech, Inc. 11 Version 0.2  May 2010 LED Indicators • The LED’s on the repeater will light up and should change to green. RUN LED : Green light ON ALARM LED : Green light is normal status, Red light is alarm status SHUT DOWN LED : Green light is normal status, Red light is shutdown status <Figure 11> Front LED Display © 2010, GS Teletech, Inc. 12 Version 0.2  May 2010 Input Power Signal • Please note the number of LED bars for input indicates signal strength level. • The tables below indicate the input signal levels. CDMA 30dBm Less than ~ -86dBmLED 1bar -85dBm ~ -70dBmLED 2 bars -69dBm ~ -54dBmLED 3 bars -53dBm ~ -41dBmLED 4 bars More than –40dBmLED 5 bars © 2010, GS Teletech, Inc. 1 Version 0.2  May 2010 Output Power Signal • Please note the number of LED bars for input indicates signal strength level. • The tables below indicate the output signal levels. CDMA 30dBm Less than +9dBmLED 1bar +10dBm ~ +14dBmLED 2 bars +15dBm ~ +19dBmLED 3 bars +20d…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 GS Instruments Co., Ltd. August 6, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, GS Instruments Co.,Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): RF Repeater, GRS-1930R-SPR (FCC ID : U88-GRS-1930R-SPR) We af firm that between SIEMIC and GS Instruments Co.,Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Applicant’s Company : GS Instruments Co.,Ltd. Address : 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea FCC ID: U88-GRS-1930R-SPR

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 GS Instruments Co.,Ltd.. To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID U88-GRS-1930R-SPR We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics 3 Operational Description 4 Part List CONFIDENTIAL 5 Internal Photos 6 External Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant’s Company : GS Instruments Co.,Ltd. Address : 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea

External Photos

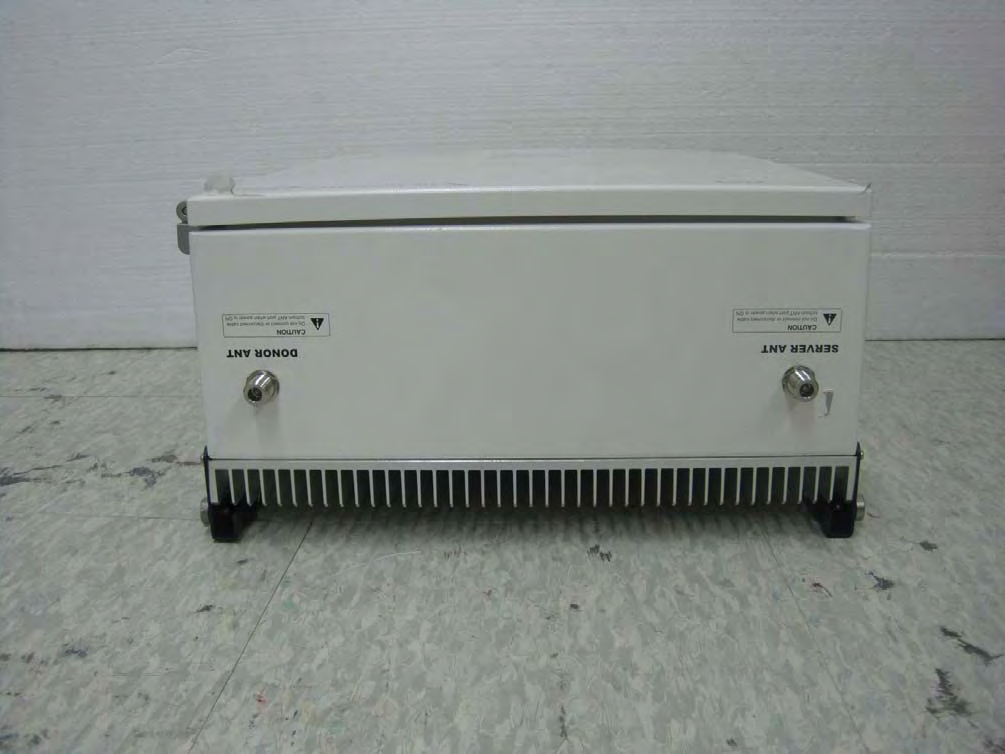

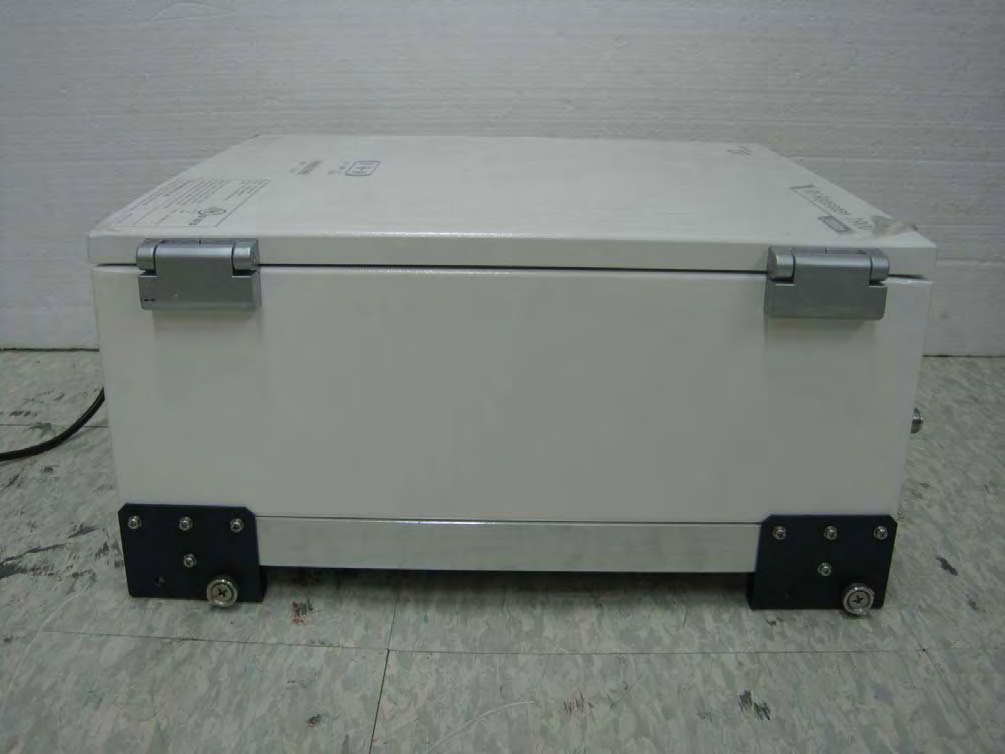

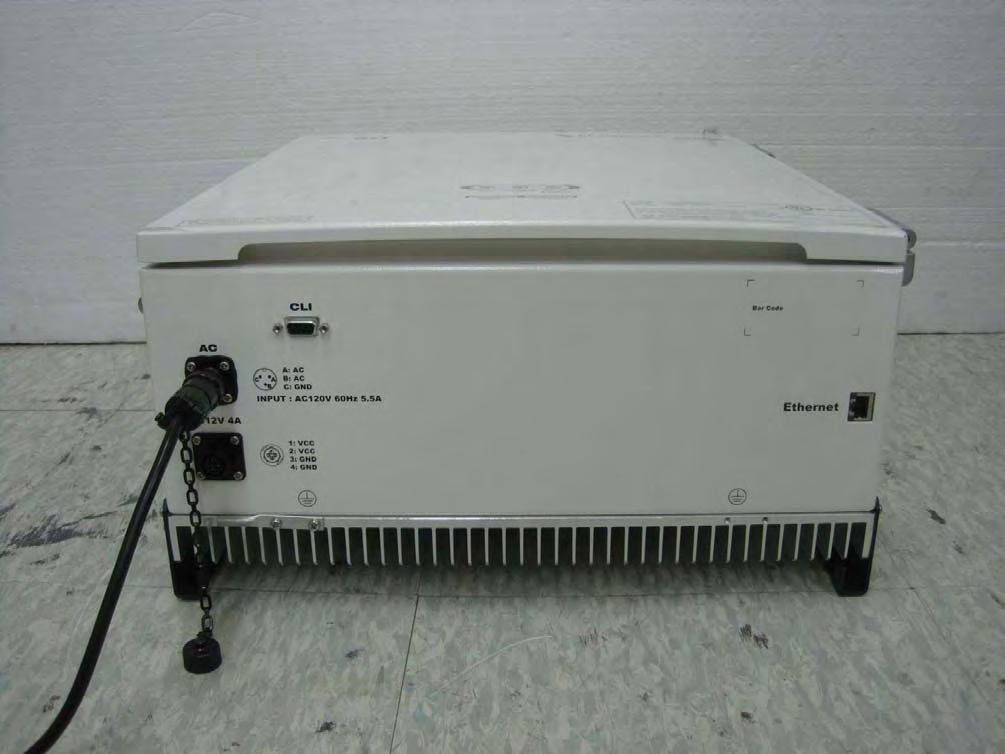

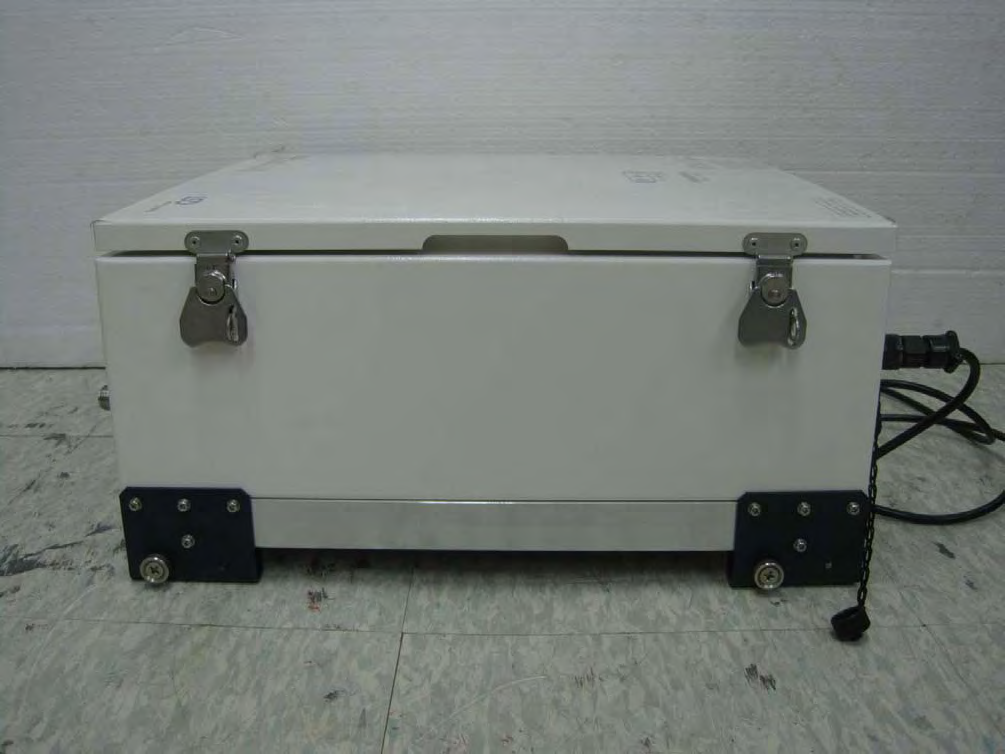

FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 1/7 ATTACHMENT B. -EXTERNAL PHOTOS - FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 2/7 (Front) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 3/7 (Back) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 4/7 (Left) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 5/7 (Right) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 6/7 (Lower Side) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 7/7 (Upper Side)

ID Label/Location Info

FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 1/3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 2/3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL Model No : GRS-1930R-SPR FCC ID : U88-GRS-1930R-SPR EUT Type : RF Repeater Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. GS Instruments Co., Ltd.. 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea MADE IN KOREA FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 3/3 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

Internal Photos

FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 1/23 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 2/23 FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 3/23 (Cavity Filter_1) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 4/23 (Cavity Filter_2) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 5/23 (Cavity Filter_3) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 6/23 (Cavity Filter_4) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 7/23 (NMS BOARD_1) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 8/23 (NMS BOARD_2) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 9/23 (RX Converter_1) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 10/23 (RX Converter_2) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 11/23 (TX Converter_1) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 12/23 (TX Converter_2) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 13/23 (Digital Filter) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 14/23 (Ethernet Board_1) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 15/23 (Ethernet Board_2) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 16/23 (HPA) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 17/23 (IO Board_1) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 18/23 (LED_1) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 19/23 (LED_2) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 20/23 (PSU_1) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 21/23 (PSU_2) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 22/23 (PSU_3) FCC ID : U88-GRS-1930R-SPR HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR30 23/23 (PSU_4)

RF Exposure Info

HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 1 /2- RF EXPOSURE STATEMENT 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 2 /2- Max Peak output Power at antenna input terminal 30.06000 dBm Max Peak output Power at antenna input terminal 1013.91139 mW Prediction distance 36.00000 cm Prediction frequency 1957.50000 MHz Antenna Gain(typical) 12.00000 dBi Antenna Gain(numeric) 15.84893 - Power density at prediction frequency (S) 0.79923 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.00000 mW/cm 2 3. RESULTS The power density level at 36 cm is 0.79923 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 1957.5 MHz f or PCS band. Warning: In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, it must also have a minimum distance of 36 cm from the body during normal operation.

Test Report

Report No.: HCTR1007FR30 FCC ID: U88-GRS-1930R-SPR DATE : July 30, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 1 /36- CONTENTS 1. CLIENT INFORMATION ............................................................................................................................................ 2 2. TEST SPECIFICATIONS ........................................................................................................................................... 3 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS ...................................................................................... 4 4. TEST EQUIPMENT ..................................................................................................................................................... 5 5. RF OUTPUT POWER ................................................................................................................................................. 6 6. OCCUPIED BANDWIDTH ....................................................................................................................................... 11 7. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL ........................................................... 18 8. FIELD STRENGTH OF SPURIOUS RADIATION ................................................................................................ 30 10. FREQUENCY STABILITY OVER TEMPERATURE AND VOLTAGE VARIATIONS .................................... 32 11. RF EXPOSURE STATEMENT .............................................................................................................................. 34 Report No.: HCTR1007FR30 FCC ID: U88-GRS-1930R-SPR DATE : July 30, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 2 /36- 1. CLIENT INFORMATION The EUT has been tested by request of Company GS Instruments Co., Ltd Contact Point 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea  EUT Type: RF Repeater  FCC ID: U88-GRS-1930R-SPR  Frequency Ranges: Downlink : 1930 - 1995 MHz Uplink : 1850 - 1915 MHz  RF Output Power: Downlink : 30.0 dBm Uplink : 30.0 dBm  FCC Rules Part(s): CFR Title 47 Part 24 Sub Part E  Emission Designators: 1M26F9W Report No.: HCTR1007FR30 FCC ID: U88-GRS-1930R-SPR DATE : July 30, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 3 /36- 2. TEST SPECIFICATIONS 2.1 Standards The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance With Part 24 Subpart E. Reference Description Results §2.1046, §24.232 RF Power Output Compliant §2.1047 Modulation Characteristics N/A §2.1049 Occupied Bandwidth Compliant §2.1051, §24.238 Spurious Emissions at Antenna Terminals Compliant §2.1053, §24.238 Radiated Spurious Emissions Compliant §2.1055, §24.235 Frequency Stability Compliant Report No.: HCTR1007FR30 FCC ID: U88-GRS-1930R-SPR DATE : July 30, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 4 /36- 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS Temperature : + 15 °C to + 35 °C Relative humidity: 30 % to 60 % Air pressure 860 mbar to 1060 mbar Report No.: HCTR1007FR30 FCC ID: U88-GRS-1930R-SPR DATE : July 30, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 5 /36- 4. TEST EQUIPMENT Manufacturer Model / Equipment Cal Interval Calibration Due Serial No. Agilent E4438C /Signal Generator Annual 12/15/2010 MY42082646 Agilent E4416A /Power Meter Annual 01/14/2011 GB41291412 WEINSCHEL 67-30-33/ATTENUATOR Annual 01/14/2011 BR0530 Korea Eng KR-1005L/ Temperature and Humidity Chamber Annual 12/28/2010 KRAC05063-3CH Agilent N9020AA /Signal Analyzer Annual 03/03/2011 US46220219 Schwarzbeck VULB 9168/BI-LOG Antenna Biennial 01/06/2011 9168-200 HD MA240/ Antenna Position Tower N/A N/A 556 EMCO 1050/ Turn Table N/A N/A 114 HD GmbH HD 100/ Controller N/A N/A 13 HD GmbH KMS 560/ SlideBar N/A N/A 12 MITEQ AFS44-00102650-42-10P44-PS Annual 04/05/2011 1532439 Schwarzbeck BBHA 9120D/ Horn Antenna Biennial 04/13/2011 147 Schwarzbeck BBHA 9120D/ Horn Antenna Biennial 09/23/2010 296 EMCO 6502/Loop Antenna Biennial 01/13/2012 9009-2536 Agilent E4438C /Signal Generator Annual 12/15/2010 MY42082646 Report No.: HCTR1007FR30 FCC ID: U88-GRS-1930R-SPR DATE : July 30, 2010 HCT Co., Ltd. San 136-1, Ami-ri , Bubal-eup, Icheon-si, Kyounki-do, 467-701,Korea TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr - 6 /36- 5. RF OUTPUT POWER 5.1 Test Procedure Test Requirements: § 2.1046 Measurements required: RF power output: § 2.1046 (a) For transmitters other than single sideband, independent sideband and controlled carrier radiotelephone, power output shall be measured at the RF output terminals when the transmitter is adjusted in accordance with the tune-up procedure to give the values of current and voltage on the circuit elements specified in § 2.1033(c)(8).The electrical characteristics of the radio frequency load attached to the output terminals when this test is made shall be stated. § 2.1046 (b…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Guanyong Jung
[email protected]+82328705525Fax: +82328705640

Test Firm

HCT Co., LTDSang Lee
[email protected]82-31-645-6420Fax: 82-31-645-6401

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.92 GHz1 WF9WAmp
Confidentiality
Long Term
Grant Notes
CDMA RF Repeater. Power Output is maximum single channel conducted. Professional Installation is required. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 36 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
