U88-SC-2630AMP

GS Instech Co., Ltd.

In-Building Repeater

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jun 13, 2011
Application Purpose: Original Equipment
Date of Application: Jun 13, 2011
Equipment Note: In-Building Repeater
Frequency Range: 2502.00000000 - 2690.00000000
Company: GS Instech Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

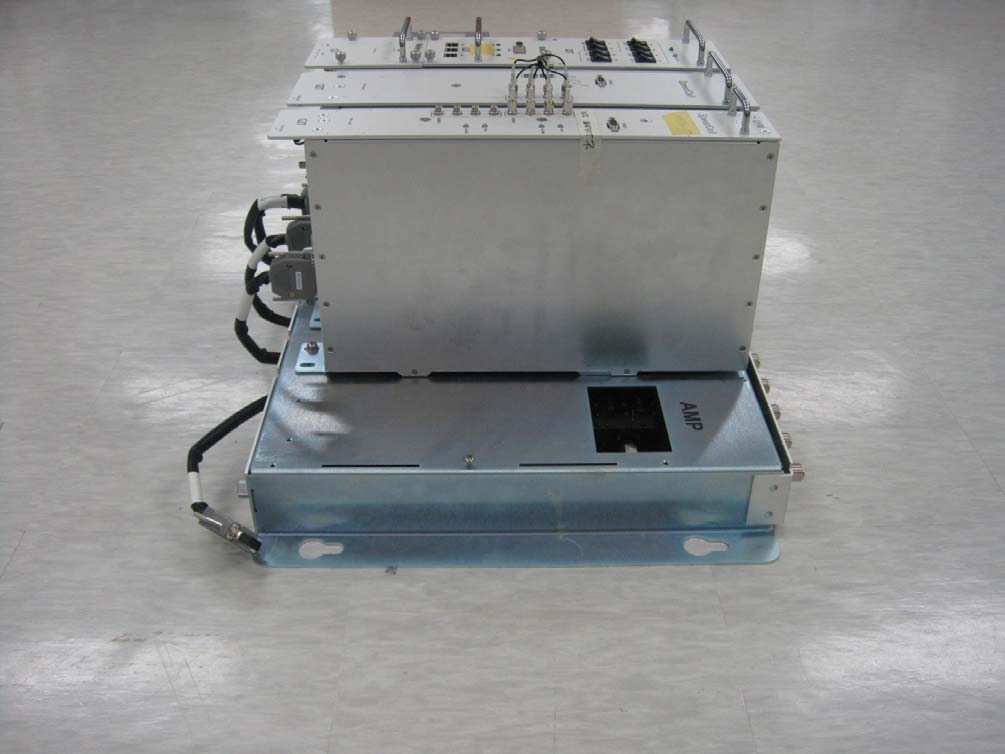

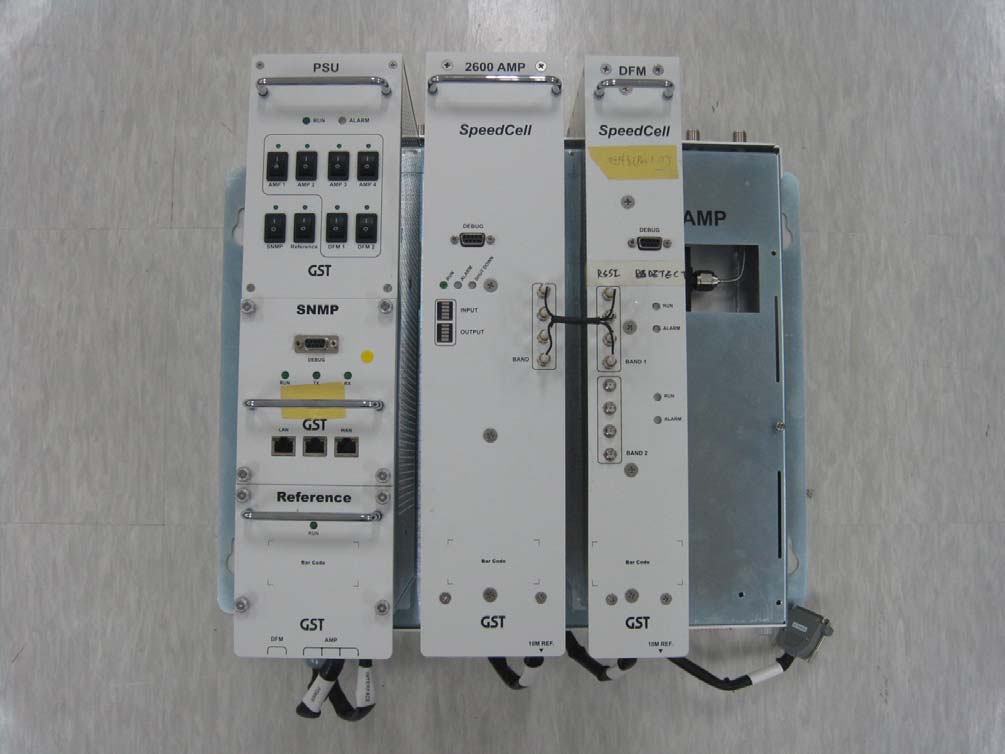

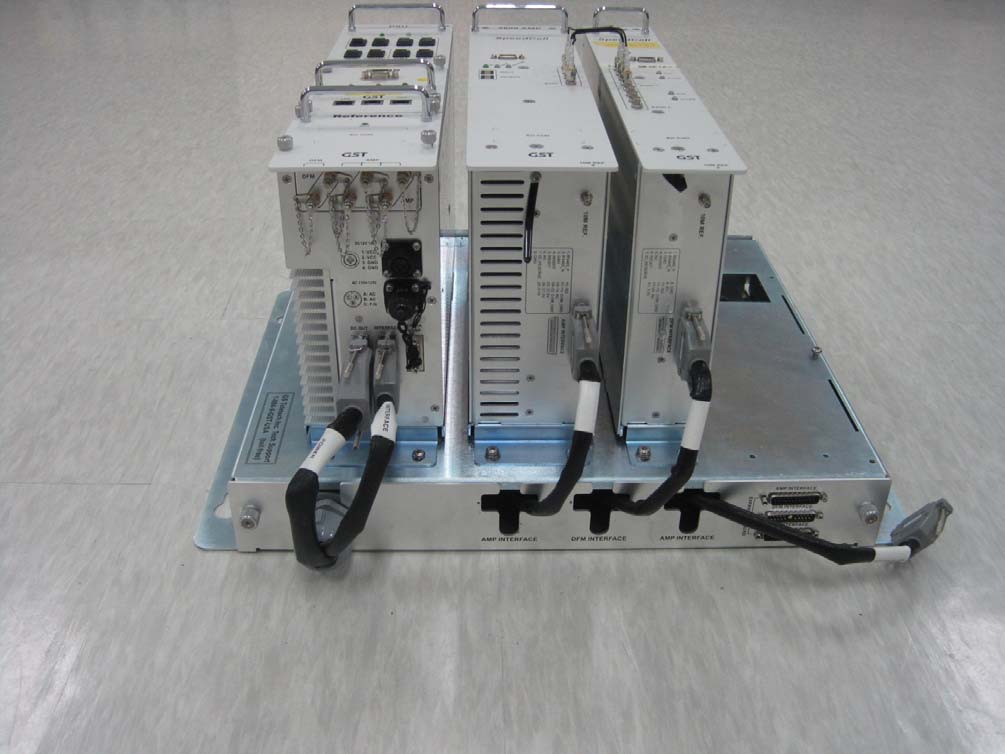

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	27	2.50 GHz - 2.69 GHz	1 W	D7D	Amp

Confidentiality

Long Term

Grant Notes

Wimax RF Repeater. Power Output is maximum single channel conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 40 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Approval is for maximum gain 12.0 dBi antennas as shown in this filing. Installations with higher gain or co-located antennas require RF exposure to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
