U88-SC-8924AMPIn-Building Repeater

SpeedCell Repeater INSTALLATION GUIDE Ver. 1.0 SpeedCellRepeater Installation Guide Ver. 1.0 Contents of Box ContentsPictureQuantityContentsPictureQuantity SpeedCell Repeater System PSU Unit 4.3”(W) x 16.9”(H) x 10.7”(D) , 15 lbs DFM Unit 2.8”(W) x 16.9”(H) x 10.7”(D), 9.9 lbs 800/900 AMP Unit 3.9”(W) x 16.9”(H) x 10.7”(D) , 19 lbs 1900 AMP Unit 3.9”(W) x 16.9”(H) x 10.7”(D), 15.2 lbs 1EA Ground Cable 6.6ft (2m) 1EA Power Cord 5.9ft (1.8m) 1EA Ethernet Cable 6.6ft (2m) 1EA Mounting Bracket 23.2”(W) x 18.5”(H) x 2.75”(D), 23.5 lbs 1EA Lag Screw 1/2” x 2” 4EA CD which contains - User Manual - Installation Guide 1EA Ground Sems Screw M4 x 8mm 4EA RF Cable Set Front RF Cable 2EA, Top RF Cable 4EA, Reference Cable 3EA 1EA Mounting Sems Screw M6 x 10mm 8EA 3 UL/FCC: This equipment complies with UL and FCC This publication provides instruction for installing the SpeedCell repeaters. The images for the User Interface in this publication may vary from the repeater’s depending on its S/W Version. Copyright © 2011, GS Teletech, Inc. All Rights Reserved Printed in Republic of Korea Revision History Certification DateVersionChanges 03/2011version1.0 4 WARNING! EXPOSURE TO RF Working with the repeater while in operation, may expose the technician to RF electromagnetic fields that exceed FCC rules for human exposure. Visit the FCC website at http://www.fcc.gov/oet/rfsafety to learn more about the effects of exposure to RF electromagnetic fields. Warnings and Hazards WARNING! ELECTRIC SHOCK Opening the BDA (bi-directional amplifier) could result in electric shock and may cause severe injury. WARNING! DAMAGE TO EQUIPMENT Operating the BDA with antennas in very close proximity facing each other could lead to severe damage to the repeater. RF EXPOSURE & ANTENNA PLACEMENT Actual separation distance is determined upon gain of antenna used. Please maintain a minimum safe distance of at least 8inch while operating near the donor and the server antennas. Also, the donor antenna needs to be mounted outdoors on a permanent structure. WARRANTY Opening or tampering the BDA will void all warranties. CAUTION: REPEATER SHOULD BE INSTALLED AS CLOSE AS POSSIBLE TO POWER SOURCE. CAUTION: THIS REPEATER IS FOR INDOOR USE ONLY AND SHOULD BE LOCATED INSIDE OF BUILDING. CAUTION: RISK OF EXPLOSION IF BATTERY ON CONTROLLER BOARD IS REPLACED WITH AN INCORRECT TYPE. CAUTION: DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS 5 <Picture 1> Mounting the Bracket on a Wood-Framed Wall. Mounting Repeater Wood-Framed Wall • It is recommended to first attach a sheet of plywood to the wall. The sheet of plywood should be anchored to the studs in the wall. • Using a pencil, mark the location for each of the mounting bracket's four mounting holes on the plywood. • Place the mounting bracket over the four lag screws heads. • Thread a lag screw at the positions marked in step 2. Mounting Bracket Lag Screw 1/2” x 2” Wood-Framed Wall 6 Hang and Grounding <Picture 2> Hanging the PSU Unit. • Hang the PSU unit to the mounting bracket. • Locate the two Mounting Sems Screws (M6 x10mm) underneath the PSU unit. Tighten bolts until secure. Mounting Sems Screw M6 x 10mm 7 Hang and Grounding • Hang the rest of the units in the following order: 1900 AMP, DFM, 800/900 AMP. • Locate the two Mounting Sems Screws (M6 x10mm) underneath each unit. Tighten bolts until secure. <Picture 3> Hanging the Rest of Units. CAUTION Units must be hung in the following order only: PSU -> 1900 AMP -> DFM -> 800/900 AMP. 8 Hang and Grounding Ground Cable • Connect ground cables of each unit to the bracket using Ground Sems Screws (M4 x 8mm) as displayed at the picture below. CAUTION Ground cables must be properly grounded to provide both EMI and voltage surge protection for the repeater. <Picture 3> Grounding of the PSU, 1900 AMP, DFM, 800/900 AMP Units. 9 Hang and Grounding <Picture 4> Grounding the Bracket. • Locate the ground lug on the underside (or side) of the bracket. • Crimp the ground cable to the ground lug. • Route the free end of the ground cable to an approved (per local code or practice) ground source. CAUTION Ground cable must be properly grounded to provide both EMI and voltage surge protection for the repeater. 10 Position Antenna • After installing 800/900MHz and 1900MHz antennas the installer should make line of site. • Customer specifications should be followed for positioning the antennas properly. Warning: In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should not be less than 25cm during normal operation. The gain of the antenna is 12 dBi. <Picture 5> An installer is directing Donor Antenna to nearby BTS to receive strong input signal. 11 RF Cable Connections: Top of The Repeater CAUTION Do not connect or disconnect cable from ANT port when power is ON. • Connect the 800/900 and 1900 Donor Antennas to their corresponding ports. • Plug in four N(M) to N(M) type RF cables as demonstrated in the picture below. AB CD AB C D <Picture 6> Top View of the Repeater. 12 RF Cable Connections: Front Side A B • Take out two SMA (M) to SMA (M) type RF cables. • Please, pay attention to cable‟s corresponding number and its color while connecting. • Connect 1900 AMP and DFM via Band 1, and 800/900 AMP and DFM via Band 2. <Picture 7> Front View of the Repeater. 13 AB RF Cable Connections: Bottom of The Repeater • Take out three SMA (M) to SMA (M) type RF cables. • While connecting the PSU and the DFM units underneath, use referenced cable and pay attention to the labels. Plug them into their corresponding outlets. • User may choose either of the two SMA ports on the bottom of the PSU to connect to the DFM. • User may choose any two of the four SMA ports on the bottom of the PSU to connect to amplifiers. CAUTION Please, pay attention while connecting PSU and DFM, PSU and 800/900 AMP, 1900 AMP units. The repeater will not work if connection is inappropriate. <Picture 8> Bottom View of the Repeate…

Text truncated - open the document above for the full version.

GS Instruments Co., Ltd. #1385-14, Juan-Dong, Nam-Ku, Incheon, 402-200 Korea TEL : +82 32 870 5621, FAX : +82 32 876 3495, Date : May 23, 2011 Federal Communication Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT : FCC Application for FCC ID : U88-SC-8924AMP To Whom It may Concern: We, GS Instruments Co., Ltd., hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class A In-Building RF Repeater of this composite filing. Sincerely yours, Yong-il You

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 GS Instruments Co., Ltd. May 19, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, GS Instruments Co.,Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): In-Building Repeater, GMS-8924AMP/DFU-SPR We affirm that between SIEMIC and GS Instruments Co.,Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Applicant’s Company : GS Instruments Co.,Ltd. Address : 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea FCC ID : U88-SC-8924AMP

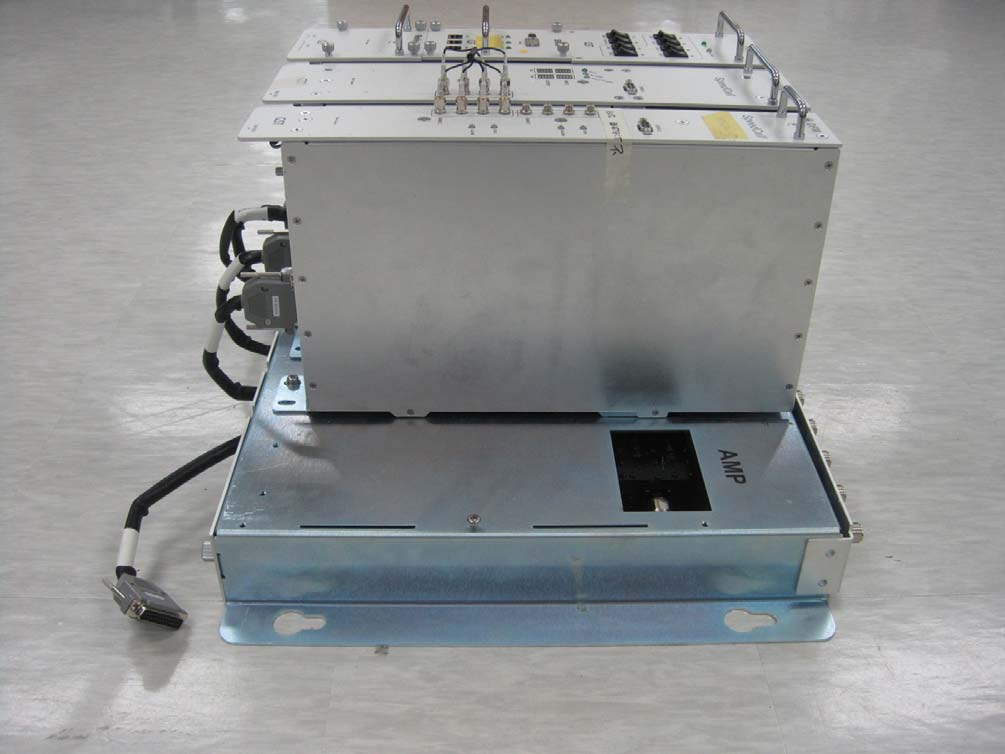

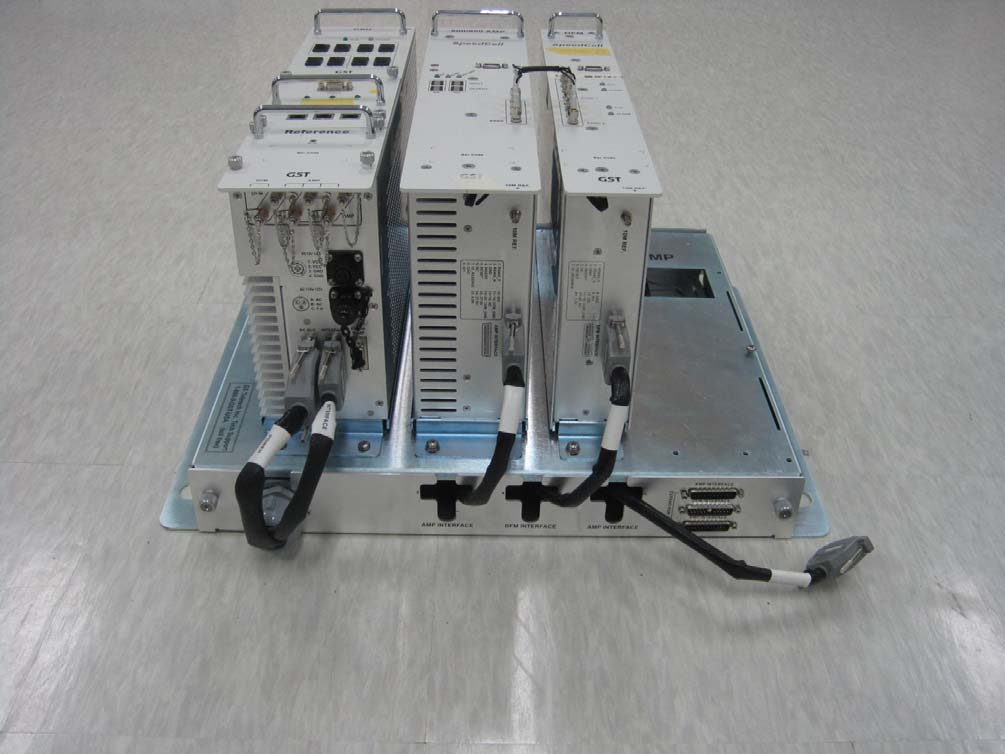

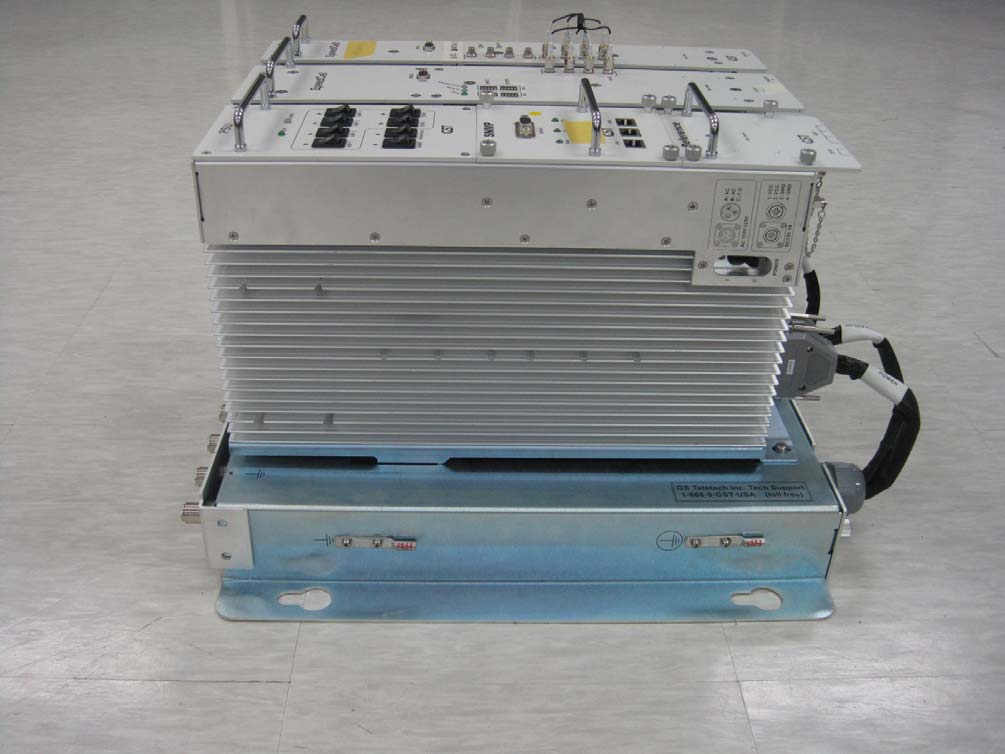

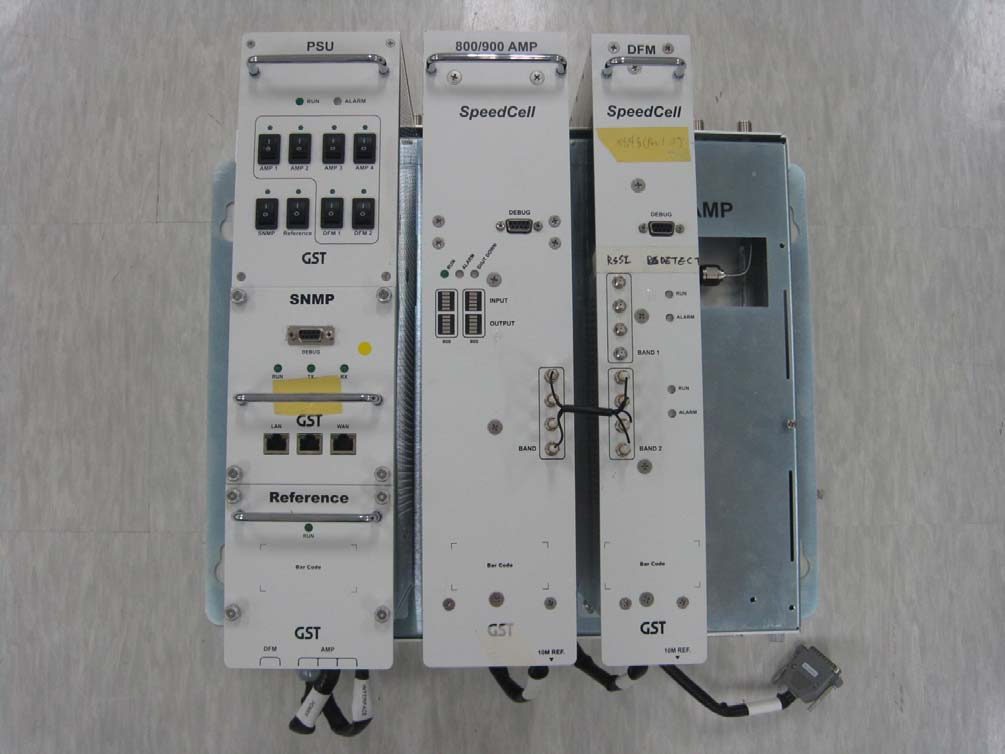

FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr (Front) 1/6 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr (Back) 2/6 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr (Left) 3/6 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr (Right) 4/6 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Lower Side) 5/6 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/6 (Upper Side)

FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1105FR08 1/2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL Model Name : GMS-8924AMP/DFU-SPR FCC ID : U88-SC-8924AMP EUT Type : In-Building Repeater Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. GS Instruments Co.,Ltd. 1385-14, Juan-Dong, Nam-Ku, Incheon, 402-200 South Korea MADE IN KOREA FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1105FR08 2/2 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL LOCATION

FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 10M REF TOP 1/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 10M REF BOTTOM 2/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 800_1900 IO BOARD_ TOP 3/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 800_1900 IO BOARD_ BOTTOM 4/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 800_CAVITY 5/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 800_CONVERTER_DL_TOP 6/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 800_CONVERTER_DL_Bottom 7/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 800_CONVERTER_UL_TOP 8/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 800_CONVERTER_DL_Bottom 9/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr SCA-802S PCB 10/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 800 iDEN LED BOARD 11/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr AMP Controller _TOP 12/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr AMP Controller _BOTTOM 13/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr DFM_DIGITAL_TOP . 14/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr DFM_DIGITAL_BOTTOM 15/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr DFM_LED BOARD_TOP 16/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr DFM_LED BOARD_BOTTOM 17/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr DFM RF MODULE _TOP 18/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr DFM RF MODULE _BOTTOM 19/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr FEU 20/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr SNMP_MAIN_TOP 21/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr SNMP_MAIN_BOTTOM 22/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr SNMP_SUB_TOP 23/24 FCC ID : U88-SC-8924AMP HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO,KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 24/24 SNMP_SUB_BOTTOM

HCT. CO., LTD. CERTIFICATION DIVISION 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, KOREA TEL : +82 31 645 6300 FAX : +82 31 645 6401 CERTIFICATE OF COMPLIANCE (ERM EVALUATION) Manufacture: GS Instruments Co., Ltd. 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea Date of Issue : May 19, 2011 Test Report No.: HCTR1105FR08 Test Site: HCT CO., LTD. FCC ID: APPLICANT: EUT Type: In-Building Repeater Model: GMS-8924AMP/DFU-SPR Uplink: 806 MHz – 824 MHz (iDEN800-18 MHz) 817 MHz – 824 MHz (iDEN800-7 MHz) 896 MHz – 901 MHz (iDEN900-5 MHz) Frequency Ranges: Downlink: 851 MHz – 869 MHz (iDEN800-18 MHz) 862 MHz – 869 MHz (iDEN800-7 MHz) 935 MHz – 940 MHz (iDEN900-5 MHz) Uplink: 21.0 dBm (iDEN800 / iDEN900) RF Output Power: Downlink: 21.0 dBm (iDEN800 / iDEN900) FCC Rules Part(s): CFR 47 Part 90 U88-SC-8924AMP GS Instruments Co., Ltd. Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 90 of the FCC Rules under normal use and maintenance. Report prepared by : Chang Seok Choi Test engineer of RF Team Approved by : Sang Jun Lee Manager of RF Team ▷▷▷ HCT CO., LTD. ◁◁◁ Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 2 /92- CONTENTS 1. CLIENT INFORMATION............................................................................................................................................ 3 2. TEST SPECIFICATIONS........................................................................................................................................... 4 3. ST ANDARDS ENVIRONMENTA L TEST CONDITIONS...................................................................................... 5 4. TEST EQUIPMENT..................................................................................................................................................... 5 5. RF OUTP UT POWER................................................................................................................................................. 6 6. OC CUPIED BANDWIDTH....................................................................................................................................... 18 7. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL........................................................... 39 8. FIELD STRENGTH OF SPURIOUS RADIATION................................................................................................ 83 9. FREQUENCY STABILITY OVER TEMPERATURE AND VOLTAGE VARIATIONS...................................... 86 10. RF EXPOSURE STATEMENT.............................................................................................................................. 89 Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 3 /92- 1. CLIENT INFORMATION The EUT has been tested by request of Company GS Instruments Co., Ltd. Contact Point 1385-14, Juan-Dong, Nam-Ku, Incheon,,402-200 Korea ■ EUT Type: In-Building Repeater ■ FCC ID: U88-SC-8924AMP Uplink: 806 MHz – 824 MHz (iDEN800-18 MHz) 817 MHz – 824 MHz (iDEN800-7 MHz) 896 MHz – 901 MHz (iDEN900-5 MHz) ■ Frequency Ranges: Downlink: 851 MHz – 869 MHz (iDEN800-18 MHz) 862 MHz – 869 MHz (iDEN800-7 MHz) 935 MHz – 940 MHz (iDEN900-5 MHz) Uplink: 21.0 dBm (iDEN800 / iDEN900) ■ RF Output Power: Downlink: 21.0 dBm (iDEN800 / iDEN900) ■ FCC Rules Part(s): CFR Title 47 Part90 ■ Emission Designators: GXW(iDEN) Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 4 /92- 2. TEST SPECIFICATIONS The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance With Part 90. Reference Description Results §2.1046; §90.205 RF Power Output Compliant §2.1047 Modulation Characteristics N/A §2.1049 Occupied Bandwidth Compliant §2.1051; §90.210 Spurious Emissions at Antenna Terminals Compliant §2.1053; §90.210 Radiated Spurious Emissions Compliant §2.1055; §90.213 Frequency Stability Compliant Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 5 /92- 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS Temperature : + 15 °C to + 35 °C Relative humidity: 30 % to 60 % Air pressure 860 mbar to 1 060 mbar 4. TEST EQUIPMENT Manufacturer Model / Equipment Cal Interval Calibration Due Serial No. Agilent E4438C /Signal Generator Annual 11/11/2011 MY42082646 Agilent E4416A /Power Meter Annual 01/04/2012 GB41291412 Agilent E9327A/ Power Sensor Annual 07/23/2011 MY4442009 Korea Eng KR-1005L/ Temperature and Humidity Chamber Annual 12/28/2011 KRAC05063-3CH Agilent N9020A /Signal Analyzer Annual 03/03/2012 US46220219 WEINSCHEL 67-30-33/ATTENUATOR Annual 12/29/2011 BR0530 HD MA240/ Antenna Position Tower N/A N/A 556 EMCO 1050/ Turn Table N/A N/A 114 HD GmbH HD 100/ Controller N/A N/A 13 HD GmbH KMS 560/ SlideBar N/A N/A 12 MITEQ AMF-6D-001180-35-20P/AMP Annual 05/20/2011 990893 Schwarzbeck BBHA 9120D/ Horn Antenna Biennial 04/13/2012 147 Schwarzbeck BBHA 9120D/ Horn Antenna Biennial 09/23/2011 296 Schwarzbeck VULB 9168/TRILOG Antenna Biennial 02/09/2013 9168-200 Schwarzbeck VULB 9160/TRILOG Antenna Biennial 07/15…

Text truncated - open the document above for the full version.

Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr iDEN900 Uplink Mid CH Input iDEN900 Uplink Mid CH Output - 31 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr iDEN900 Uplink High CH Input iDEN900 Uplink High CH Output - 32 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Plots of Occupied Bandwidth-7 MHz iDEN800 Downlink Low CH Input iDEN800 Downlink Low CH Output - 33 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr iDEN800 Downlink Mid CH Input iDEN800 Downlink Mid CH Output - 34 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr iDEN800 Downlink High CH Input iDEN800 Downlink High CH Output - 35 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr iDEN800 Uplink Low CH Input iDEN800 Uplink Low CH Output - 36 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr iDEN800 Uplink Mid CH Input iDEN800 Uplink Mid CH Output - 37 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr iDEN800 Uplink High CH Input iDEN800 Uplink High CH Output - 38 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 39 /92- 7. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL Test Requirement(s): § 2.1051 Measurements required: Spurious emissions at antenna terminals: The radio frequency voltage or powers generated within the equipment and appearing on a spurious frequency shall be checked at the equipment output terminals when properly loaded with a suitable artificial antenna. Curves or equivalent data shall show the magnitude of each harmonic and other spurious emission that can be detected when the equipment is operated under the conditions specified in § 2.1049 as appropriate. The magnitude of spurious emissions which are attenuated more than 20 dB below the permissible value need not be specified. § 2.1053 Measurements required: Field strength of spurious radiation. § 2.1053 (a) Measurements shall be made to detect spurious emissions that may be radiated directly from the cabinet, control circuits, power leads, or intermediate circuit elements under normal conditions of installation and operation. Curves or equivalent data shall be supplied showing the magnitude of each harmonic and other spurious emission. For this test, single sideband, independent sideband, and controlled carrier transmitters shall be modulated under the conditions specified in paragraph (c) of § 2.1049, as appropriate. For equipment operating on frequencies below 890 MHz, an open field test is normally required with the measuring instrument antenna located in the far-field at all test frequencies. In the event it is either impractical or impossible to make open field measurements (e.g. a broadcast transmitter installed in a building) measurements will be accepted of the equipment as installed. Such measurements must be accompanied by a description of the site where the measurements were made showing the location of any possible source of reflections which might distort the field strength measurements. Information submitted shall include the relative radiated power of each spurious emission with reference to the rated power output of the transmitter, assuming all emissions are radiated from half-wave dipole antennas. § 2.1053 (b): The measurements specified in paragraph (a) of this section shall be made for the Following equipment: (1) Those in which the spurious emissions are required to be 60 dB or more below the mean power of the transmitter. (2) All equipment operating on frequencies higher than 25 MHz. (3) All equipment where the antenna is an integral part of, and attached directly to the transmitter. (4) Other types of equipment as required, when deemed necessary by the Commission. Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 40 /92- § 90.210 Emission limits: The rules in this section govern the spectral characteristics of emissions in the Radiotelephone Service. The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) or 80 dB whichever is the lesser attenuation. Test Procedures: A modulated carrier generated by the signal generator carrier was connected to either the Uplink or Downlink RF port at a maximum level as determined by the OEM A spectrum analyzer was connected to either the Uplink or Downlink port depending on the circuitry being measured. The spectrum analyzer was set to 1MHz RBW and 3MHz VBW. The spectrum was investigated from 30MHz to the 10th harmonic of the carrier. The inter-modul…

Text truncated - open the document above for the full version.

Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Conducted Spurious Emissions Downlink High CH (30 MHz – 1 GHz) Conducted Spurious Emissions Downlink High CH (1 GHz – 26.5 GHz) - 61 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Conducted Spurious Emissions Uplink Low CH (30 MHz – 1 GHz) Conducted Spurious Emissions Uplink Low CH (1 GHz – 26.5 GHz) - 62 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Conducted Spurious Emissions Uplink Mid CH (30 MHz – 1 GHz) Conducted Spurious Emissions Uplink Mid CH (1 GHz – 26.5 GHz) - 63 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Conducted Spurious Emissions Uplink High CH (30 MHz – 1 GHz) Conducted Spurious Emissions Uplink High CH (1 GHz – 26.5 GHz) Plots of Two Tone Intermodulation, iDEN 900 - 64 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Two Tone Downlink Low End Intermodulation Two Tone Downlink Hi End Intermodulation - 65 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Two Tone Uplink Low End Intermodulation Two Tone Uplink Hi End Intermodulation - 66 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Plots of Band Reject iDEN900 (iDEN900 Downlink Mid CH) (iDEN900 Uplink Mid CH) Plots of Emission Mask iDEN900 - 67 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr (iDEN900 Downlink Low CH) (iDEN900 Downlink Mid CH) - 68 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr (iDEN900 Downlink High CH) (iDEN900 Uplink Low CH) - 69 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr (iDEN900 Uplink Mid CH) (iDEN900 Uplink High CH) - 70 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Plots of Spurious Emission, iDEN800-7 MHz Conducted Spurious Emissions Downlink Low CH (30 MHz – 1 GHz) Conducted Spurious Emissions Downlink Low CH (1 GHz – 26.5 GHz) - 71 /92- Report No.: HCTR1105FR08 FCC ID: U88-SC-8924AMP DATE : May 19, 2011 HCT Co., Ltd. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr Cond…
