UH5M12-2771BBCBLE 4.0 Combo Sensor

National Electronics & Watch Co,. Ltd. Bike Speed & Cadence Sensor Installation How to install the Bike Speed & Cadence sensor • Place the Speed sensor on the rear chain-stays. Loosely attach the sensor using two cable ties. Note: Place the rubber pad in between the Speed sensor and the Chain-stays for stability. • Attach the Spoke magnet to the spoke. The speed sensor must be within 5 to 10 mm. of the spoke magnet. • Place the Cadence sensor on the front chain-stays. Loosely attach the sensor using two cable ties Note: Place the rubber pad in between the Cadence sensor and the Chain-stays for stability. • Attach the Pedal magnet to the spoke. The Cadence sensor must be within 5 to 10 mm. of the spoke magnet. -Working temperature: -10 deg. to +50 deg. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. National Electronics & Watch Co,. Ltd. Hereby, National Electronics & Watch Co. Ltd declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Since the output power is so low, no SAR measurement is required.

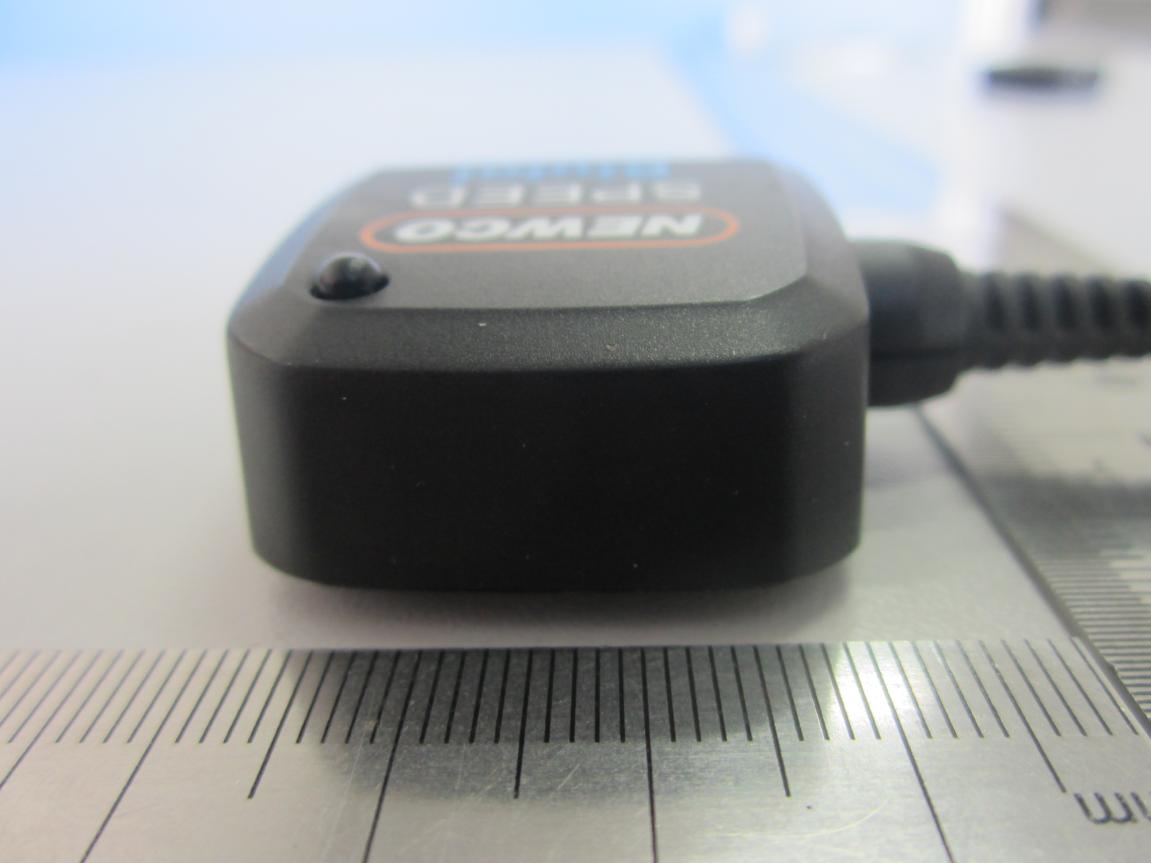

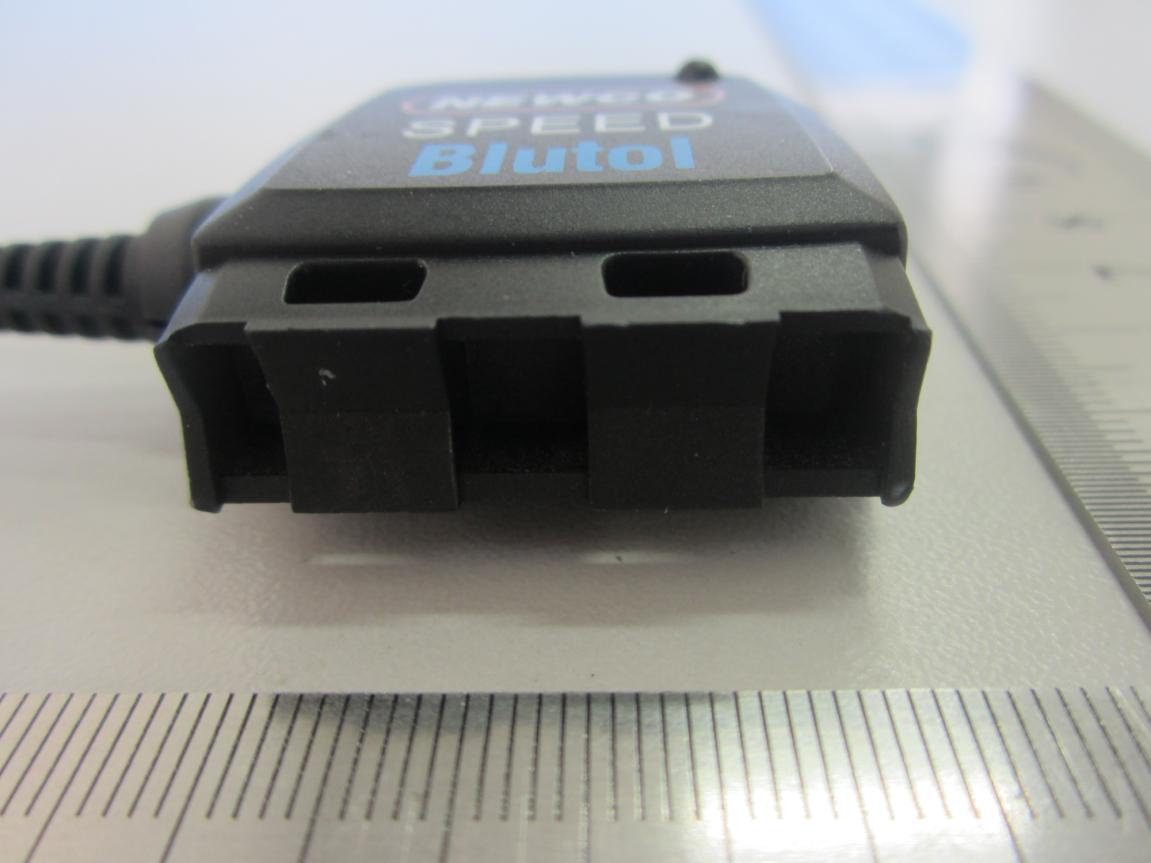

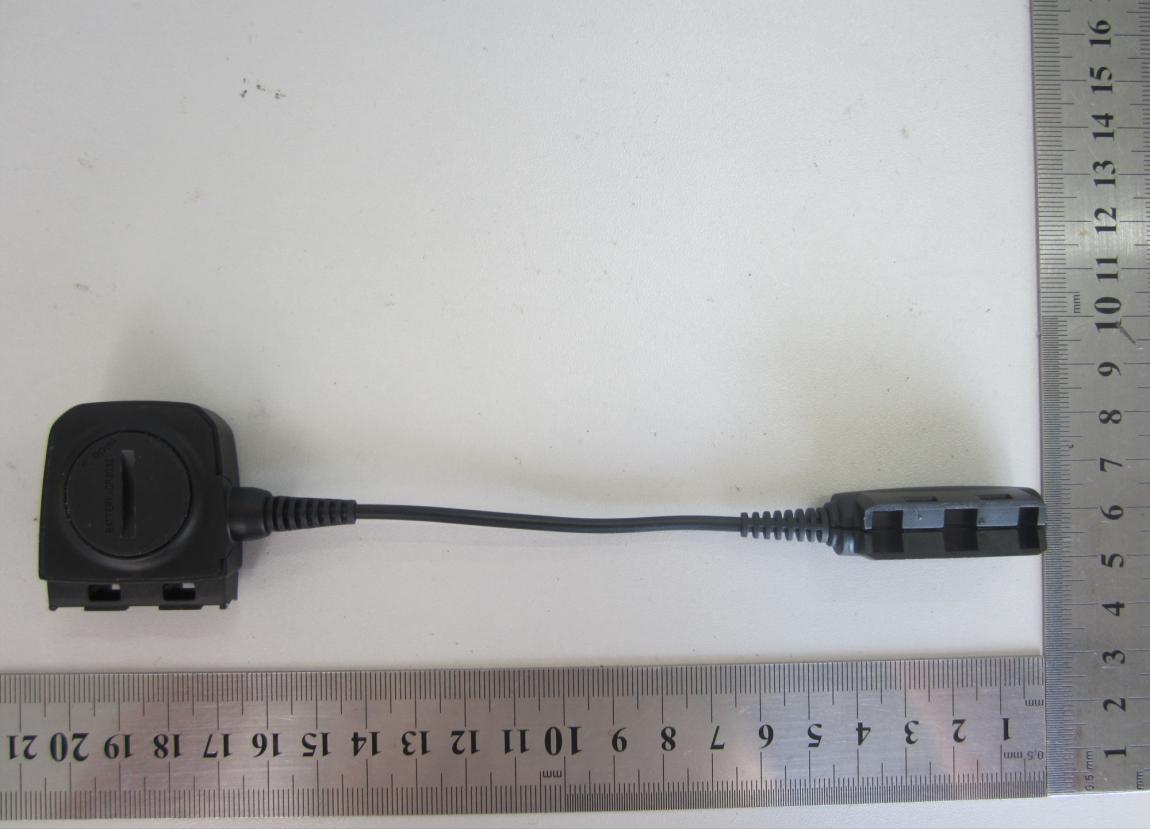

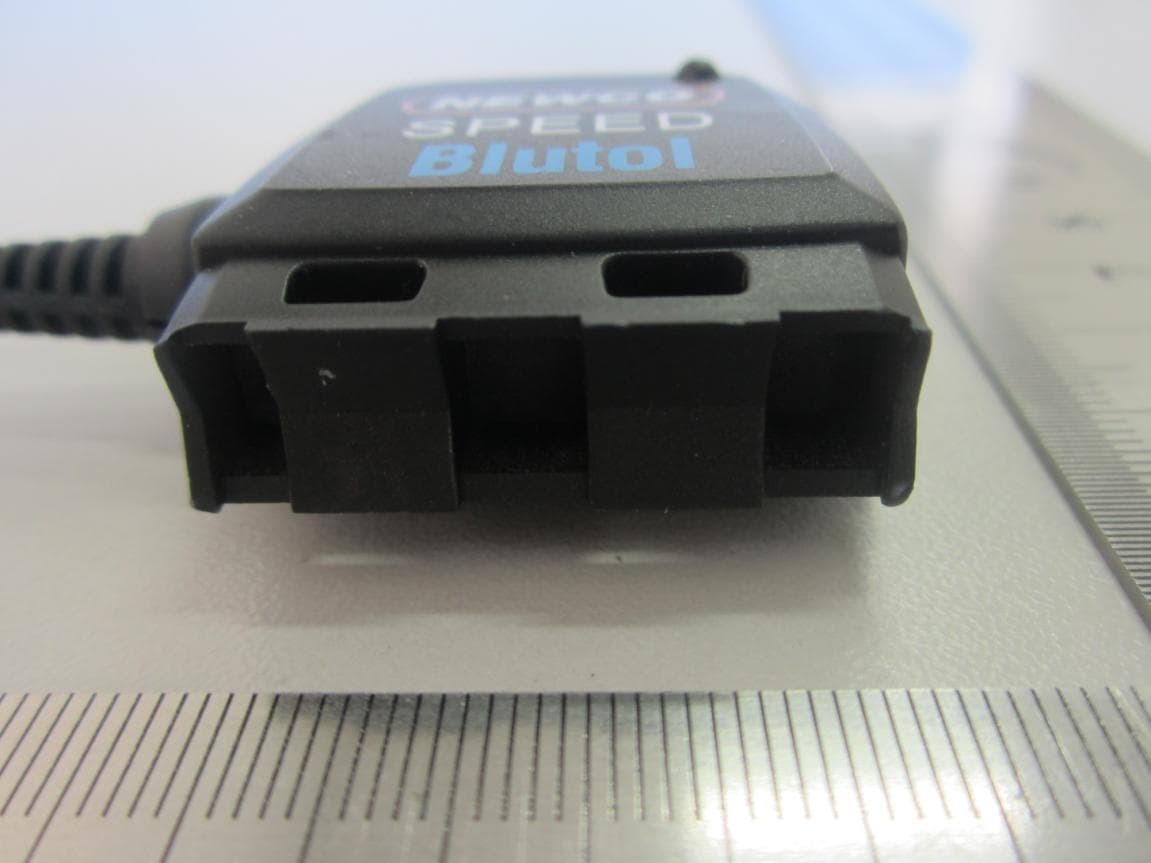

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

SIZE: Project: Model No.: Movement: File: Drawer: Wesley Wai Date: 18/July/2013 1:1 Scale SIZE: FCC/IC label & label location 1.Label 2.Location

Internal Photos 1. EUT uncover view 2. Mainboard front view 3. Mainboard rear view 4. BT chip view 5. BT antenna view

SZ13030131W02 Page 2 of 34 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 1.2. Test Standards and Results ........................................................................................................ 4 1.3. Facilities and Accreditations ..................................................................................................... 5 2. 47 CFR PART 15C AND RSS-210 REQUIREMENTS ........................................................... 6 2.1. Antenna requirement ................................................................................................................. 6 2.2. Peak Output Power.................................................................................................................... 6 2.3. Average power .......................................................................................................................... 9 2.4. 6dB & 99% Bandwidth ........................................................................................................... 10 2.5. Conducted Spurious Emissions and Band Edge ..................................................................... 12 2.6. Power spectral density (PSD) ................................................................................................. 16 2.7. Restricted Frequency Bands.................................................................................................... 19 2.8. Conducted Emission ............................................................................................................... 23 2.9. Radiated Emission................................................................................................................... 25 2.10. RF exposure evaluation ........................................................................................................... 34 Change History Issue Date Reason for change 1.0 August 2, 2013 First edition SZ13030131W02 Page 3 of 34 1. General Information 1.1. EUT Description EUT Type ............................. : BLE 4.0 Combo Sensor Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : M12-2771R3 M12-471R4 Software Version .................. : Applicant .............................. : Manufacturer ........................ : M12-2771 0101 National Electronics & Watch Co. Ltd 15/F., Shing Dao Ind. Bldg., 232 Aberdeen Main Road, Aberdeen, HK EASTERN MOUNT ELECTRONICS & WATCH CO.,LTD The second industrial Estate, Hong Hua Shan, Gong Ming Zhen,Bao’an District, Shenzhne, P.R.C. Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (40 channels, at intervals of 2MHz); Modulation Type .................. : GFSK Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0.04dBi Note 1: The EUT is BLE 4.0 Combo Sensor, it contain Bluetooth 4.0 LE Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth 4.0 LE is F(MHz)=2402+2*n (0<=n<=39). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 19 (2440MHz) and 39 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. SZ13030131W02 Page 4 of 34 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C and RSS-210 (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC/IC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices 2 RSS-GEN: Issue 3, December 2010 General Requirements and Information for the Certification of Radio Apparatus 3 RSS-210: Issue 8 , December 2010 Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47 Section in RSS-GEN, RSS-210 Description Result 1 15.203 7.1.4 Antenna Requirement PA S S 2 15.247(b) A8.4 (2) Peak Output Power PASS 3 15.247(b) A8.4 (2) Average power PASS 4 15.247(a) A8.2 (a) 6dB Bandwidth PASS 5 15.247(a) A8.2 (a) 99% Bandwidth PASS 8 15.247(d) A8.5 Conducted Spurious Emission PASS 9 15.247(d) A8.5 Restricted Frequency Bands PASS 10 15.207 7.2.4 Conducted Emission N/A 11 15.209 15.247(d) A8.5 Radiated Emission PASS 12 15.247(e) A8.2(b) Power spectral density (PSD) PASS 10 15.247(i). §1.1307&2.1093 RSS-102 RF exposure evaluation PASS The tests of Conducted Emission and Radiated Emission were performed according to the method of measurements prescribed in ANSI C63.4-2009. These RF tests were performed according to the method of measurements prescribed in KDB558074 D01 V02 10/04/2012. SZ13030131W02 Page 5 of 34 1.3. Facilities and Accreditations 1.3.1. Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at FL.1, Building A, FeiYang Science Park, Block 67, BaoAn District, Shenzhen, 518101 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.10 2009, ANSI C63.4 2009 and CISPR Publication 22: 2010; the FCC registration number is 695796. The IC registration number is 7183A-2. 1.3.2. Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 - 60 Atmospheric Pressure (kPa): 86 -106 SZ13030131W02 Page 6 of 34 2. 47 CFR Part 15C and RSS-210 Requireme…

Text truncated - open the document above for the full version.

Test Setup Photos 1. Radiated emission (9KHz-30MHz) 2. Radiated emission (30MHz-1GHz) 3. CSE
