Bluetooth Cracker device Introduction Thank you for purchasing the Bluetooth (BLE 4.0) Cracker device. This device can record the Calories, Steps, Pace, Distance and Sleep that will track your sleep time, light sleep, deep sleep, and wake-up time. It has one (1) button in the middle. Note that the actual color and artwork may vary from style to style. How to sync or pair your Cracker device with smart phone  Press S1 button from LED OFF to enter SYNC mode (red light appears).  Press and hold S1 for 2-3 seconds and the red light will flash. Then tap the smart phone App to pair. You may follow the function flow as shown. Notes:  During the pairing process, the 3 LED’s will flash alternately and once pairing is successful, the red light will flash.  If pairing is unsuccessful, the flashing red light will turn OFF.  Open the Apps by tapping the Smart Gear icon on the Smartphone. The Welcome Smart Gear screen appears and continue tap as highlighted in red as shown.  Continue tap the icon highlighted in red of the screen as shown. User can select the various screens such as, HOME, ACTIVITY, SLEEP and EXERCISE. Important reminder:  Before use of the Cracker device, you may delete device data through the ff. steps:  Go to MENU screen on your smart phone and tap RECORD (highlighted in red as shown).  Tap “Clear all saved data on device” then tap “YES” and tap “OK” on the phone.  Tap “Clear current user data in the app” then tap “YES” and tap “OK” on the phone.  Tap “Clear all user data in the app” then tap “YES” on the phone.  Tap “Home” button on the phone.  Go to “Settings” and turn Bluetooth OFF then turn back ON. Knowing the Exercise or Sleep function of Cracker device How to start and stop/save your Sleep function  Press S1 button from LED OFF to enter SLEEP mode. The blue light appears.  Press and hold S1 button to start your sleep and wait until the blue light will flash.  Press and hold S1 button to stop/save your sleep data while the blue light is flashing. How to start and stop/save your Exercise  Press S1 button from LED OFF to enter EXERCISE mode. The orange light appears.  Press and hold S1 button to start your exercise and wait until the orange light will flash.  Press and hold S1 button to stop/save your exercise while the orange light is flashing. You may follow the function flow as shown.  Note that there is no restart function on both Exercise and Sleep function.  If no button operation in Sleep mode, Exercise mode or Sync mode, after about 3 seconds it will automatically turn to LED OFF state.  When Sleep or Exercise data is saved, the light will stay only for about 8 seconds.  When Sleep or Exercise is ON, the light will flash for about 8 seconds. Important note:  The arrow or blue light should be aligned in 12H location as shown. This is for better performance of the device. Battery low When the battery level is low, the red light will flash for about 5 seconds. Battery Replacement The battery (CR2032) on this device is replaceable and it is highly recommended by an authorized service personnel only. Data Memory Exercise / Activity: 10 files Sleep data profile: 7 files Size and Weight Device size (Diameter / Thickness): approx. 24.5 x 8.0 mm. Device weight: approx. 11 grams Water Resistance This device is an IPX7 standard. Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference including interference that may cause undesired operation of the device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Compliance statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Warnings Sound pressure: • Battery Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. • Temperature：35 °C Hereby, National Electronics & Watch Co. Ltd, declares that this Bluetooth device is in compliance with the essential requirements and other relevant provisions of Directive1999/5/EC. This device complies with Industry Canada licence-exemptRSSstandard(s). Operation is subject to the following two conditions: (1) this device may not cause interference,and (2) this device must accept any interference,including interference that may cause undesired operation ofthe device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire…

Text truncated - open the document above for the full version.

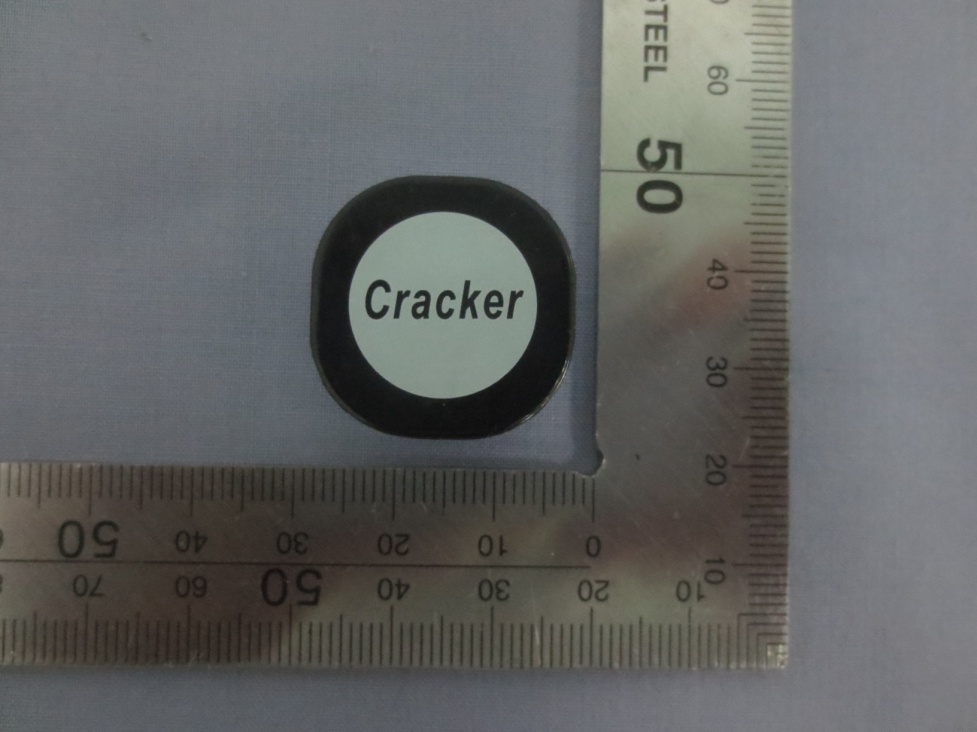

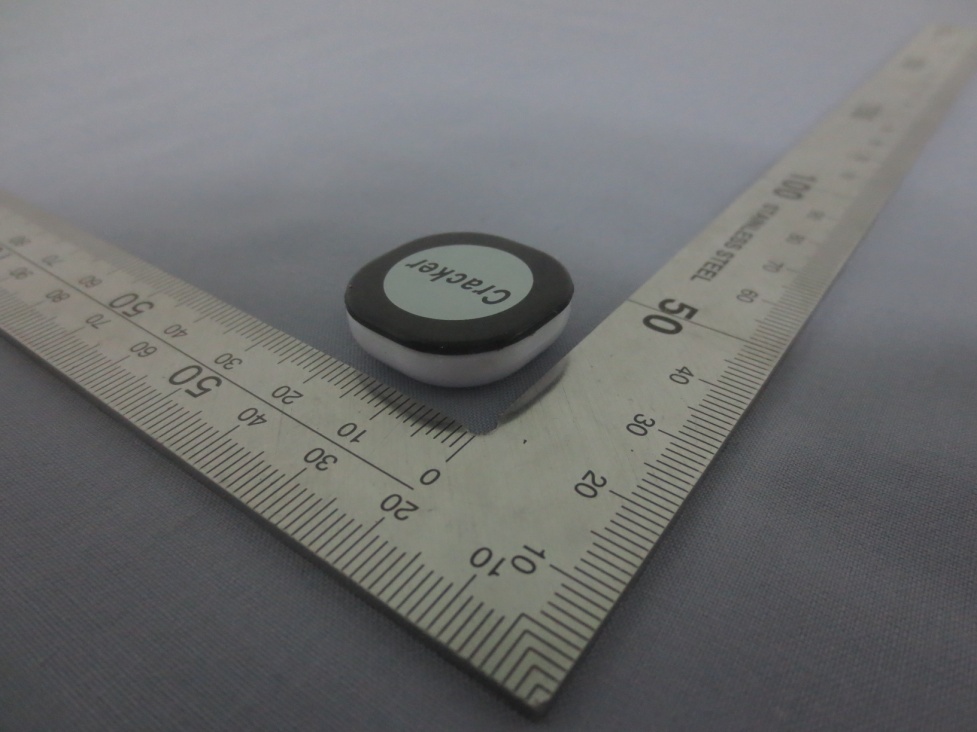

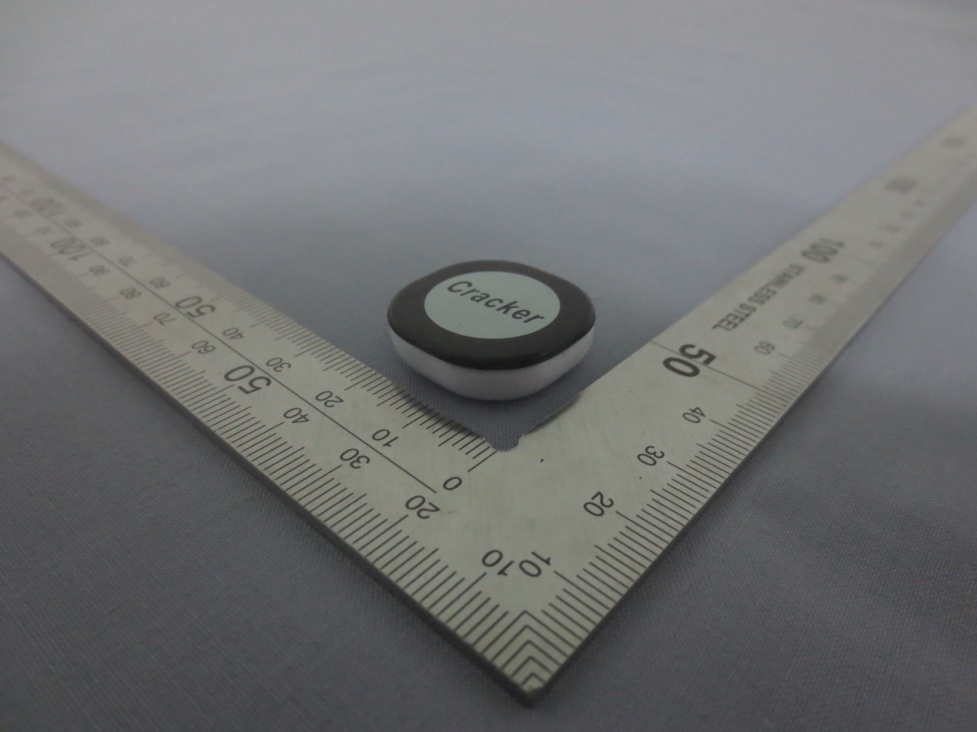

Report No: CCIS14040021401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400214RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 35 of 38 8 EUT Constructional Details Report No: CCIS14040021401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400214RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 36 of 38

Label and label location Label: Label size: 24.5mm Label location

Report No: CCIS14040021401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400214RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 37 of 38 Report No: CCIS14040021401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400214RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 38 of 38 -----End of report------

RF exposure evaluation According to 447498 D01 General RF Exposure Guidance v05. The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/ (min. test separation distance, mm)] ∙ [ f(GHz) ] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where z f(GHz) is the RF channel transmit frequency in GHz z Power and distance are rounded to the nearest mW and mm before calculation z The result is rounded to one decimal place for comparison The device was worn on the human hand, and the distance between antennas and human is 5mm. The maximum output power of EUT is ‐5.88dBm =0.26 mW, so the calculated result is: (0.26mW /5mm) •[ (GHz)48.2 ] =0.08 <3.0 for 1‐g SAR Then SAR evaluation is not required

Authorized Bru c Laborato This report d to other sam should ensur This report m that detailed This docum e alteration, for to the fullest and such sa m 1 Applican Address Equipme Produc Model FCC ID: Applica b Date of s Date of T Date of r Test Res * In the co S Signature: ce Zhang ory Manager etails the resu ples of the sa re that all prod may only be re in the report, ent cannot be rgery or falsific extent of the mple(s) are re Cove F nt: s of Applic ent Under ct Name: No.: ble standa sample re Test: report iss sult: onfiguration t Shenzhe r ults of the test me product a ducts in series eproduced and the manufactu e reproduced cation of the c law. Unless ot tained for 90 d er Page FCC N cant: 1 A r Test (EUT c M U ards: F eceipt: 1 1 ued: 2 P tested, the E en Zhon ting carried ou nd does not p production ar d distributed in urer must ens except in fu content or app therwise state days only. C R National Ele 5/F., Shing Aberdeen, H T) racke r M13-470D UH5M13-47 FCC CFR T 4 Apr., 201 5 Apr., to 1 0 May 201 PASS * UT complied ngjian N ut on one sam permit the use re in conformit n full. If the pr ure the new sy ll, without pri pearance of th ed the results s REP ectronics & g Dao Ind. HK 70DBC Title 47 Pa 14 19 May 20 14 d with the sta Nanfang mple. The resu of the CCIS p ty with the pro roduct in this r ystem complie or written ap is document is shown in this POR & Watch Co Bldg., 232 rt 15 Subp 014 andards spec Testing Report N ults contained product certific oduct sample d report is used es with all rele pproval of the s unlawful and test report ref RT (B o. Ltd 2 Aberdeen part C Sect cified above. g Co., L No: CCIS1 in this test re cation mark. T detailed in this in any configu evant standard e Company. A d offenders m fer only to the BLE) n Main Roa tion 15.247 Ltd. 140400214 port do not re The manufactu s report. uration other t ds. Any unauthori ay be prosecu sample(s) tes ad, 7 401 elate urer than ized uted sted Shenzhen Zh No.B-C, 1/F. Bao’an Distri Telephone: + 2 Ver Versi Prepar e Review hongjian Nanfa , Building 2, L ct, Shenzhen , +86 (0) 755 23 rsion ion No. 00 ed by: wed by: ang Testing C aodong No.2 , Guangdong, 3118282 Fax: 20 Pr Co., Ltd. Industrial Par China +86 (0) 755 2 Date 0 May 2014 Report C roject En k, Xixiang Roa 23116366 4 Clerk ngineer ad, Date: Date: Report N Pr Descri Orig No: CCIS1 roject No.: CC iption inal 20 May 2 20 May 2 140400214 CIS140400214 Page 2 of 3 2014 2014 401 RF 8 Report No: CCIS14040021401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400214RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 38 3 Contents Page 1 COVER PAGE ................................................................................................................................................... 1 2 VERSION ........................................................................................................................................................... 2 3 CONTENTS ....................................................................................................................................................... 3 4 TEST SUMMARY .............................................................................................................................................. 4 5 GENERAL INFORMATION .............................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST ENVIRONMENT AND MODE ............................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 7 5.5 LABORATORY FACILITY.......................................................................................................................................... 7 5.6 LABORATORY LOCATION ....................................................................................................................................... 7 5.7 TEST INSTRUMENTS LIST ....................................................................................................................................... 8 6 TEST RESULTS AND MEASUREMENT DATA ............................................................................................. 9 6.1 ANTENNA REQUIREMENT: ...................................................................................................................................... 9 6.2 CONDUCTED OUTPUT POWER ............................................................................................................................ 10 6.3 OCCUPY BANDWIDTH .......................................................................................................................................... 12 6.4 POWER SPECTRAL DENSITY ............................................................................................................................... 15 6.5 BAND EDGE ......................................................................................................................................................... 17 6.5.1 Conducted Emission Method ..................................................................................................................... 17 6.5.2 Radiated Emission Method ......................................................................................................................... 19 6.6 SPURIOUS EMISSION .........................................…
