UH5M12-317HRBLE Chest Strap Heart Monitor

CE31 M12-317 User Manual (Preliminary) Introduction Heart rate Belt is an accessory for I-phone 4S or other devices using BLE. It will gather heart rate signals from your body and transmit it to the phone wirelessly through BLE (Bluetooth Low Energy version 4.0) transmission technology. Pair your Heart Rate monitor with the phone The HRM belt is on standby and ready to send dat a to your phone. Wear the belt directly on your skin just below your breast plate. It should be snug enough to stay in place during your run. 1) Snap the two ends of the strap around your body. 2) Wet both electrodes with a damp cloth on the back of the HRM belt. This will help create a strong electrical connection between your chest and the HRM transmitter. 3) Wrap around the chest belt around your rib cage just below the pectoral muscles and attach the other end of the st rap to the HRM transmitter. The elastic strap should be adjusted so that it is snug enough so that it will not move during use but not so tight as to restrict breathing. 4) Open the NEWCO HR application in your I-Phon e 4S. Tap the LINK tab to start pairing the HR belt to the phone. For other devices, refer to the separate instruction manual on how to link the HR belt. 5) If the heart rate data does not appear on the pho ne, or if you have erratic data, follow the tips below. If the problem persists, you may have to pair the HR belt again. 5.1) Make sure the HR belt is sn ugly fit to your body 5.2) Reapply water, saliva, or electrode ge l to the electrode of the HR belt 5.3) Clean the electrodes from possible contamin ation that may interfere with heart rate signals 5.4) Wear a cotton shirt or if possible, wet your cotton shirt. Synthetic fabrics that rubs with your skin may create static electricity and interfere with the heart rate signal 5.5) Move away from strong electromagnetic fields and other wireless sensors which can interfere with your heart rate sensor. Po ssible sources of wireless interference may include high voltage power lines, electric motors, microwave ovens, cordless phones, and wireless LAN or access points. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rule s. These limits are designed to provide reasonable protection against harmful interfer ence in a residential installation. This equipment generates, uses and c an radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guaran tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer ence by one of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circui t different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rule s. Operation is subject to the following two conditions: (1) This device may not cause ha rmful interference, and (2) this device must accept any interference received, including inte rference that may cause undesired operation.

National Electronics & Watch Co., Ltd 15/F, Shing Dao Ind. Bldg. 232 Aberdeen Main Road Hong Kong China FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name National Electronics & Watch Co., Ltd Address 15/F, Shing Dao Ind. Bldg. 232 Aberdeen Main Road City Hong Kong Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: UH5 M12-317HR of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hong Kong China 2013-1-14 Alfred Ma Manager

National Electronics & Watch Co., Ltd 15/F, Shing Dao Ind. Bldg. 232 Aberdeen Main Road Hong Kong China FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name National Electronics & Watch Co., Ltd Address 15/F, Shing Dao Ind. Bldg. 232 Aberdeen Main Road City Hong Kong Country China declare that the following representative (agent): Name (person) Ruby Zhang Company name Compliance Certification Services Inc. Address No.10-1 Mingkeda Logistics park, No.18 Huanguan South Road. Guan Lan Town, Baoan District, Shenzhen, China City Shenzhen, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description BLE Chest Strap Type or Model(s) M12-317 Tradename or Brand(s) NEWCO/PEARL We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hong Kong China 2013-1-14 Alfred Ma Manager

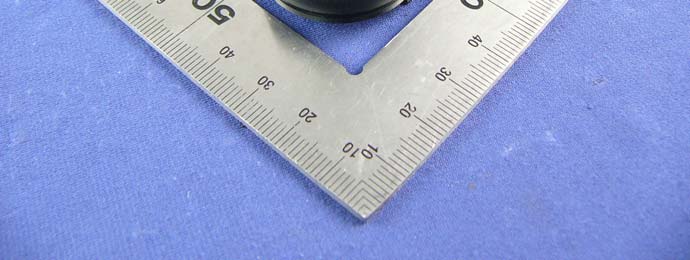

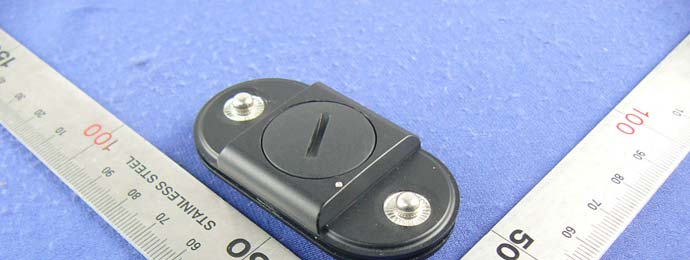

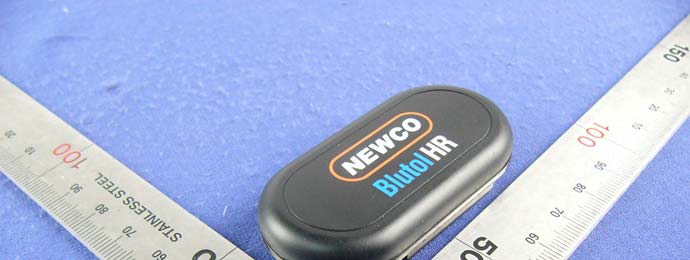

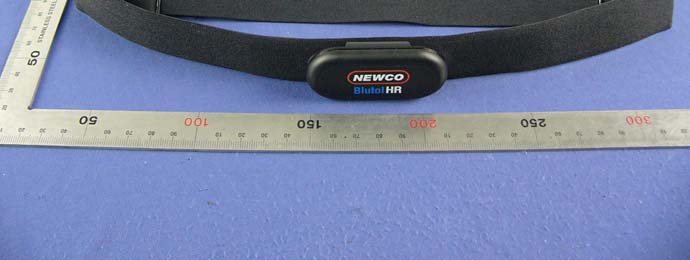

DRAFT REPORT Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 Page 1/2 External Photos of EUT DRAFT REPORT Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 Page 2/2

Label and Location FCC ID: UH5M12-317HR

DRAFT REPORT Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 Page 1/3 Internal Photos of EUT DRAFT REPORT Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 Page 2/3 DRAFT REPORT Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 Page 3/3

FCC RF Exposure FCC ID: UH5M12-317HR Frequency: 2402-2480 MHz (79Ch) Max Peak Power, Conducted: 0.33 mW == -4.81 dBm Antenna Gain: G = -8.75 dBi Worst case Peak Power, Radiated = -4.81 dBm + -8.75 dBi = -13.56 dBm = 0.04 mW SAR Test Exclusion Thresholds specified in KDB447498 Appendix A: Evaluation: The Calculated Radiated Peak output power is 0.04 mW, and this emission level appears to be far under the allowed emission level at even the closest distance for 2.4G devices, as specified in this table. Conclusion: The emitted power appears to be (far) below the required limit, so PASS.

Reference No.: C121105Z01-RP1 Report No.: C13010503-RP1 FCC ID: UH5M12-317HR Page 1 / 42 FCC 47 CFR PART 15 SUBPART C for Issued for National Electronics & Watch Co., Ltd. 15/F, Shing Dao Ind. Bldg. 232 Aberdeen Main Road Issued by: Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. BLE Chest Strap Model: M12-317 Brand: NEWCO/PEARL Test Report Number: C130105Z03-RP1 Compliance Certification Services (Shenzhen) Inc. No.10-1, Mingkeda Logistics Park, No.18 Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: January 15,2013 Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 FCC ID: UH5M12-317HR Page 2 / 42 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C121105Z01-RP1 Initial Issue ALL Amay Tang 01 C130105Z03-RP1 Update report ALL Anna Liu Rev.01:C130105Z03-RP1 Note: 1. The applicant company, the Manufacturer company, product name,model name and the brand were changed. And changed the model M12-317 based on the report C121105Z01-RP1, 2. The Product appearance and internal PCB size have changed . So after the reassessment, These changes will not affect the test results. The other information, please refer to the Report No.: C121105Z01-RP1 and this report. Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 FCC ID: UH5M12-317HR Page 3 / 42 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION .............................................................................................. 4 2 TEST RESULT SUMMARY ........................................................................................ 5 3 EUT DESCRIPTION ................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST .................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS ....................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS ...................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 13 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 26 7.4. PEAK OUTPUT POWER ................................................................................................... 29 7.5. BAND EDGES MEASUREMENT....................................................................................... 33 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 39 Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 FCC ID: UH5M12-317HR Page 4 / 42 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product BLE Chest Strap Model M12-317 Brand NEWCO/PEARL Tested November 5~19, 2012 & January 5~14,2013 Applicant National Electronics & Watch Co., Ltd. 15/F, Shing Dao Ind. Bldg. 232 Aberdeen Main Road Manufacturer National Electronics & Watch Co., Ltd. 15/F, Shing Dao Ind. Bldg. 232 Aberdeen Main Road APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 FCC ID: UH5M12-317HR Page 5 / 42 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMA…

Text truncated - open the document above for the full version.

DRAFT REPORT Reference No.: C121105Z01-RP1 Report No.: C130105Z03-RP1 FCC ID: R3SHRM01 Page 1/1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Below 1GHz Above 1GHz
