UH5M13-963DBSGSmart Gear

National Electronics & Watch Co., Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 10, 2014
Application Purpose: Original Equipment
Date of Application: Mar 10, 2014
Equipment Note: Smart Gear
Frequency Range: 2402.00000000 - 2480.00000000
Company: National Electronics & Watch Co., Ltd
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

National Electronics & Watch Co, Ltd. User Guide (M13-963SW123) Bluetooth Smart Gear device Introduction Thank you for purchasing the Bluetooth (BLE 4.0) Fit Band OLED display. This product can record your Exercise time, Calorie, Distance, Pace; Speed, Steps and Sleep that will track your total sleep time, light sleep, deep sleep, wake-up time and target % sleep. It also monitors the weather and the temperature. It also has a vibration function when there is an incoming call or message. The product has two (2) buttons on the sides of the screen. Note that the actual color and artwork may vary from style to style. How to pair your Smart Gear device with smart phone: • Press and hold the S1 or S2 button of the Smart Gear device from OFF screen. Or press and hold S1 button from ON screen (any view). The Bluetooth icon and SYNC will flash followed with SYNC and status bar scrolling. While the “SYNC” appears in the Smart Gear device, tap the smart phone App to sync. Notes: ¾ If pairing is successful, the “ OK ” and Bluetooth icon appears. After 2-3 seconds, it will show “PHONE CONNECTED”. ¾ If pairing is unsuccessful, after 1 minute, the “ X ” and Bluetooth icon appears. ¾ In any mode, press and hold S1 button to turn off the Bluetooth. It will then display “BLE OFF”. • Open the Apps by tapping the Smart Gear icon on the Smartphone. The Welcome Smart Gear screen appears and continue tap as highlighted in red as shown. • Continue tap the icon highlighted in red of the screen as shown. User can select the various screens such as, HOME, ACTIVITY, SLEEP and EXERCISE. National Electronics & Watch Co, Ltd. Important reminder: Before use of the Smart Gear device, you may delete device data through the ff. steps: • Go to MENU screen on your smart phone and tap RECORD highlighted in red as shown. • Tap “Clear all device’s data” and “Clear all my data” on the Smartphone. • Tap “Yes” to confirm. Knowing the Bluetoot h Smart Gear device Pushing the device buttons will cycle the displays as shown: • Press S1 button to scroll the different modes; TIME, WEEKDAY/MONTH/DATE, CALORIE, STEP, WEATHER/TEMP, PHONE, MESSAGE, FIND ME and the screen icons. If no Bluetooth connection, only TIME, WEEKDAY/MONTH/DATE, CALORIE, STEP will appear in the device. The Weather/Temperature displayed on the Smart Gear device is from the Smartphone thru Bluetooth connection. • Press S2 button to scroll the different modes; SLEEP, EXERCISE, DATA and SET mode. PHONE and MESSAGE ( upcoming features) This portion is an on-going App revision: ¾ Shows Caller ID and Messages. ¾ When receive an incoming call or message, the motor vibrates. ¾ I f no phone call or message data, it will display “NO DATA”. ¾ Maximum of 20 data files (20 calls & 20 messages) can be saved in memory. When memory is full, Memory is managed in “First in- First out” basis. The Oldest file will be automatically deleted and replaced by the newest file. • Press and hold S2 button to enter phone data or message data. • Press S1 button to view the data. The phone icon or message icon is shown with the date, day, time and among others. • Press and hold S2 button to exit and it will automatically return to Time mode. National Electronics & Watch Co, Ltd. View your progress Goal CALORIE or STEP While doing your exercise, you can view the progress of your Goal Calorie or Goal Steps. • Press S1 button from OFF screen to enter CALORIE mode or • Press S1 button from OFF screen to enter STEP mode There are 5 display conditions: TIME mode • Press S1 button from OFF screen to enter Time mode. It will then appear and blink human icon if EXERCISE is ON or running. Likewise, when SLEEP is ON or active, the human face icon will appear. Note: The Weather/Temperature displayed on the Smart Gear device is from the Smart phone via Bluetooth connection. EXERCISE mode • Press S2 button from OFF screen to enter EXERCISE mode. • Press and hold S2 and wait until “HOLD START” stops blinking and release the button to start your exercise. • Press and hold S2 and wait until “HOLD SAVE” stops blinking then release the button to save your exercise. It will auto scroll EXERCISE, CALORIE, DISTANCE, PACE, SPEED and STEP. • Press and hold S2 and wait until “HOLD RESET” stops blinking then release the button to reset your reset your current data . Notes: ¾ When you go to SLEEP mode while the Exercise is ON or active, it will display “EXER IS ON”. ¾ There is no restart function. SLEEP mode • Press S2 button from OFF screen to en ter SLEEP mode. • Press and hold S2 and wait until “HOLD START” stops blinking and release the button to start your sleep activity. • Press and hold S2 and wait until “HOLD SAVE” stops blinking then release the button to save. It will auto scroll the LS- Light sleep, DS- Deep sleep, WU- Wake-up time and TG- target % sleep . • Press and hold S2 and wait until “HOLD RESET” stops blinking then release the button to reset your reset your current data. It will auto return TO BED screen. Notes: ¾ When you go to EXERCISE mode while the SLEEP is ON or active, it will display “SLEEP IS ON”. ¾ There is no restart function. National Electronics & Watch Co, Ltd. DATA mode How to view the Data • Press S2 button from OFF screen to enter DATA mode. • Press and hold S2 to enter DAILY data. While DAILY is blinking, press S1 to select EXERCISE data, SLEEP data and DAILY data. • Press S2 button to view the data. Follow the function flow as shown for Exercise & Sleep data. SET • Press S2 button from display OFF screen to enter SET mode. • Press and hold S2 button to enter setting mode. TIME appears and blinks • Press S1 button to scroll through the parameters to set: TIME Æ UNIT Æ USER Æ SLEEP Æ GOAL Æ BLE Æ MOVE TIME Æ VIBRATION Æ back to Time. How to Set • Press and hold S2 button until “TIME” appears and blinks. • Press S2 to set the Hour Æ Minute Æ Seconds Æ Month Æ Day Æ Year Æ 12/24H Æ MM- DD / DD . MM and go back to Time mode. • PressS1 button to change the values of the blinking digits…

Text truncated - open the document above for the full version.

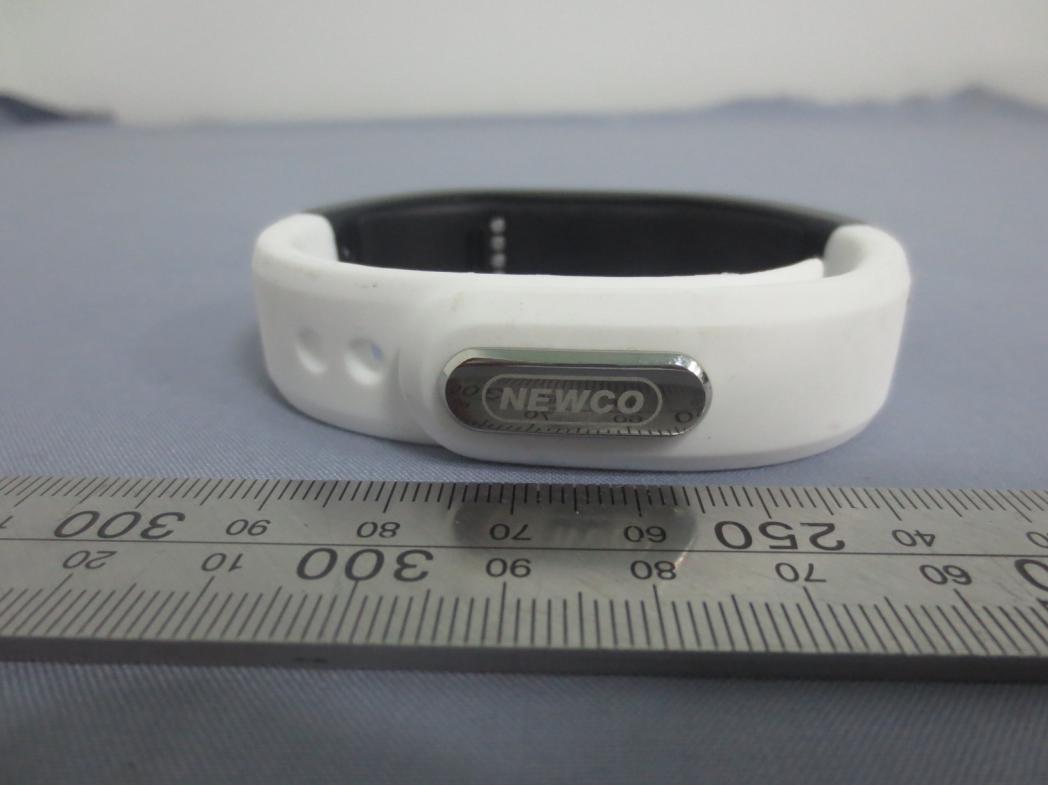

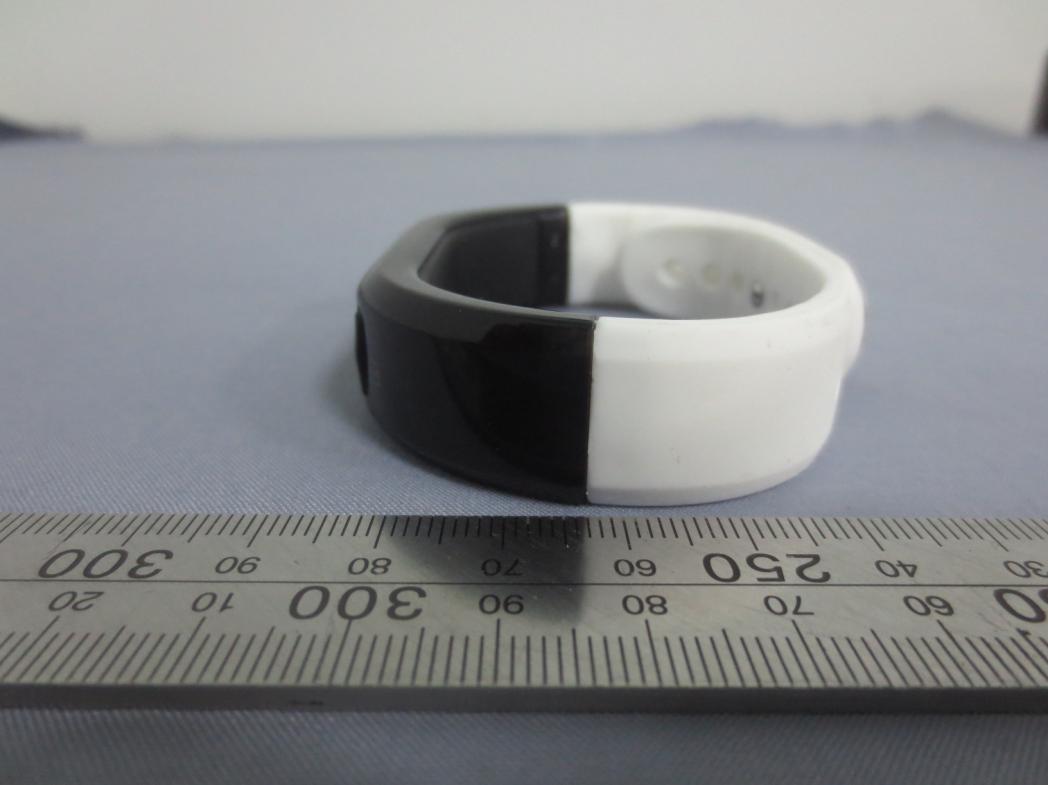

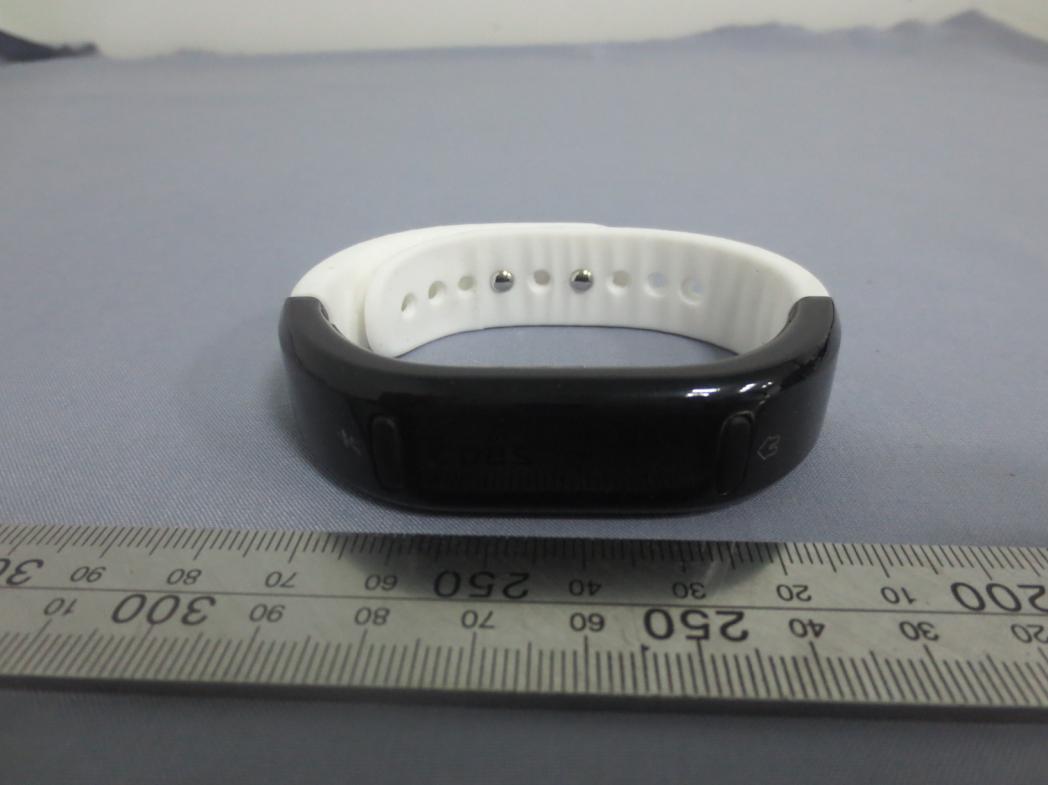

External Photos

ID Label/Location Info

Label and label location Label: Label size: 25.0mm*12.0mm Labellocation M13-963D Model No.˖M13-963D IC :4127AM13963DBSG

Internal Photos

Report No: CCIS14020001401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140100014RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 42 of 47 Report No: CCIS14020001401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140100014RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 43 of 47 Report No: CCIS14020001401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140100014RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 44 of 47 Report No: CCIS14020001401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140100014RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 45 of 47 Report No: CCIS14020001401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140100014RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 46 of 47 Report No: CCIS14020001401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140100014RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 47 of 47 -----End of report------

RF Exposure Info

RF exposure evaluation According to 447498 D01 General RF Exposure Guidance v05. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [ f(GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz : -1.21dBm(0.76mW) output power] (0.76mW /5mm) •[√2.404(GHz)]=0.24 <3.0 for 1-g SAR Then SAR evaluation is not required
