UM603102.4G WIRELESS OPTICAL MOUSE

Optical 2.4GHz Wireless Mouse Model #: JM-031R User’s Manual 2 SYSTEM REQUIREMENTS: Please be sure that you meet all of the system requirements below to avoid difficulties during installation - PC & Mac ® Compatibles - Windows ® 2000, XP, Vista and 7 - Mac ® OS 10.3 or Above - Available USB Port SPECIFICATIONS: Your new Wireless Optical Mouse complies with the following specifications. - USB Interface FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 3 INSTALLING BATTERIES: To properly install batteries into your Mouse, please follow the instructions below: 1. Pull the Battery Compartment Release Latch at the bottom of your Mouse and remove the Battery Compartment Cover from your Mouse. Note: Remove the Battery Compartment Cover from your Mouse gently, otherwise the Nano Receiver stowed inside the battery bay will pop out. 2. Install two AAA Batteries into your Mouse following the battery orientation guide in the battery bay, make sure the guide is under the batteries so that you can remove the batteries out of the battery bay easily, then replace the Battery Compartment Cover back onto your Mouse until it securely locks. Note: The LED at the bottom of your mouse will flash one time after Batteries have been installed into your Mouse properly, the LED will remain on when the Nano Receiver is connected to your computer. Note: To save power, please press the button at the bottom of your mouse for three seconds, the LED will turn off and your mouse will be put into sleep mode. To restart your mouse, press the button at the bottom of your mouse again. Nano Receiver LED 4 INSTALLATION: For All Operating Systems 1. Make sure you have successfully installed the Batteries into your Mouse, refer to the Installing Batteries section in this manual if necessary. 2. Turn on your computer, plug the enclosed Nano Receiver into an available USB port on your computer. (TIP: If you are not able to find an available USB port on your computer, please refer to the user’s manual of your computer for more detail. 3. Your wireless optical mouse is now ready to be used. 5 CHANGING THE SPEED OF YOUR MOUSE: To adjust the speed of the cursor or the scroll button features on your computer, please follow the instructions below: NOTE: The screenshots show in this section are for demonstration only and your screen may look slightly different but with similar options. For Windows ® Open the “Control Panel”, and double-click the “Mouse” icon to open the mouse properties screen, and then select the “Pointer Options”. After you have made your changes; select “Apply”, and then “OK”. For Mac ® Open the “System Preferences”. At the System Preferences screen, click the “Keyboard & Mouse” icon to open the Keyboard & Mouse screen, and then select the “Mouse” tab and make your changes. Windows ® Mac ®

Block Diagram MCU EM78P447 1.5V Voltage Regulator or DC to DC RF Circuit-EM198810 OSC 4MHz Key Encoder Power Control LED Optical Sensor OSC 12MHz Ant 2403~2479MHz

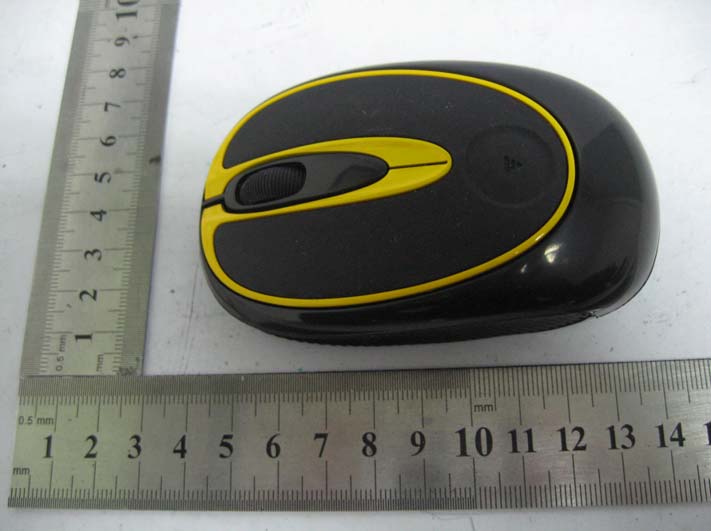

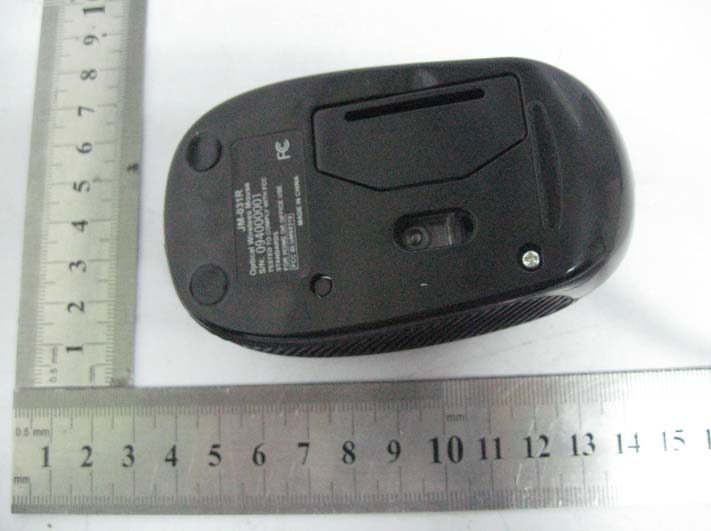

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I FCC PART 15.249 EUT View 3 (JM-031R-yellow)

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I FCC PART 15.249 Solder Board-Component View 2 Solder Board-Component View 3 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I FCC PART 15.249 Solder Board-Component View 4

Circuit Description a. IC-EM78P447：IC- EM78P447 is the wireless controller. The key and sensor encoder transforms the image of the mouse movement to the electronic signal, and then send to the controlling IC, the MCU with a 4MHz oscillator. b. IC-EM198810 is the 2.4 G module with a 12MHz external clock signal. MCU will send a signal to the manner in GFSK modulation, frequency modulation 2403 ~ 2479 MHZ. c. Supply Voltage: 1.5V Battery, Then step-up to 2.7V by the DC-DC transformer to working.

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:22-Dec-2009Sheet of File:C:\Documents and Settings\user\桌面\JM-031~1.DDBDrawn By: Y1 4MHz C2 27P C3 27P C5 104 R1 20K A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 24C02(SOP-8) IIC_SDA IIC_SCL R4 10K R2 150K 主控电路 S1 LFET S3 MIDDLE S2 RIGHT LBUTTON MBUTTON RBUTTON COM 3 B 2 A 1 SE1 EC10E ZWH_AZWH_BZWH_C C1 104 C4 104 C4 靠近 U2 电源脚 C1 靠近 U1 电源脚 SPI_MISO 备注:带*的元器件为选用或根据具体情况选定 L1 100uH BT1 1.5V X1 C18 47uF C21 100uF L1请使用低ESR电感 B+ Vout 2 GND 1 LX 3 U4 BL8530-XX(SOT-89) D3 SS12 TCC连线规则 TCC连接SENSOR安装 VDD P51 P52 P53 0° 90° 180° 270° 270° 180° 0° 90° LED LEDLED LEDSENSOR SENSOR SENSOR SENSOR Vin 3 GND 2 Vout 1 U5 BL8506-XX(SOT-23) B+ LVD# D1 Batt_Low R10 *(150R) IIC_SCL VCC VCC VCC VCC VCC VCC R3 20K VCC RST5030# 使用 3 脚 (3000ppm) 陶振则不用 C2 ， C3 S7 PD PD#ID C20 104 SPI_MISO SPI_CLK SPI_MOSI RF_CS# LVD# DPI_BTN MBUTTON RBUTTON LBUTTON ZWH_B ZWH_A ZWH_C SNS_CS# IIC_SCL IIC_SDA PKT_FLAG GND VSS 1 TCC 2 VDD 3 INT 4 P50 5 P51 6 P52 7 P53 8 P60 9 P61 10 P62 11 P63 12 P64 13 VSS 14 P65 15 P66 16 P67 17 P70 18 P71 19 P72 20 P73 21 P74 22 P75 23 P76 24 P77 25 OSCO 26 OSCI 27 RESET 28 U1 EM78P447SASJ-G GND BACK_BTN FWD_BTN PD#ID VCC OSCI OSCO SSOP-28 REST# OSCO OSCI REST# ANT 2.4G C6 104 RF_RST R5 150K RF_CS# CF2 * L2 * Y3 12M C16 30PF C15 30PF TVCC +1.8V +1.8V +1.8V C14 0.1uF C8 2.2UF C13 0.1uF C12 10NF SPI_MISO RF_RST SPI_CLK SPI_MOSI RF_CS# PKT_FLAG C10 0.1uF ANT PLL_VDD 2 VCO_VDD 3 ANT 4 GND 5 RF_VDD 6 IF_VDD 7 AMS_VDD 8 GND 12 PKT_FLAG 11 RXCLK 10 FIFO_FLAG 9 DIG_VDD 13 SPI_SS 14 SPI_MOSI 15 SPI_CLK 16 RESET_n 17 SPI_MISO 18 VDD_IO 19 LDO_VOUT 20 CKPHA 21 GND 22 VDD_IN 23 XTALO 24 XTALI 1 U3 EM198810AWJ(QFN-24) C11 10nF R9 680K R8 560R 使用封装片 R7 4.7~10R C7 10uF TVCC ANT R6 150K 需在测试后在进行匹配 D2 LED1 MISO 1 XY_LED 2 NRESET 3 NCS 4 SCLK 5 GND 6 VDD3 7 MOSI 8 U6 ADNS5030，16083，5090 SPI_MISO RST5030# SNS_CS# R12 150K SPI_CLK GND VCC SPI_MOSI R11 *(100R) C22 104 + C23 10uF V1.0 CF1 * MS JM031R 16083 V1.0 +1.8V TCC VCC VCC VCC VCC VCC VCC RF电路 Sensor电路 可选用低电压检测电路POWER电路 按键、编码电路 R3 在 16083 和 5030 上使用 5090 不使用 R3 ，则 SENSOR 第三脚悬空

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I PAGE 1 OF 20 FCC PART 15.249 FCC PART 15C MEASUREMENT AND TEST REPORT FOR JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China FCC ID: UM60310 Report Concerns: Original Report Equipment Type: 2.4G Wireless Optical Mouse Model: JM-031R Report No.: STR09128137I Test/Witness Engineer: Test Date: 2009-12-24 to 2009-12-28 Issue Date: 2009-12-31 Prepared By: SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I PAGE 2 OF 20 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................18 5.1 STANDARD APPLICABLE.......................................................................................................................................18 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 5.3 TEST PROCEDURE.................................................................................................................................................18 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................18 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................19 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I PAGE 3 OF 20 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of applicant: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China Manufacturer: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of manufacturer: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China General Description of E.U.T Items Description EUT Description: 2.4G Wireless Optical Mouse Trade Name: / Model No.: JM-031R Rated Voltage: DC 3V Output Power: <0dBm Frequency Range: 2403~2479MHz No. of Channel: 77 Antenna Type: Integral Antenna Size: 9.2X5.3X3.0cm For more information…

Text truncated - open the document above for the full version.

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR09128137I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup Below 1GHz Above 1GHz
