UM62291OPTICAL WIRELESS MOUSE

User Manual 1．Plug two batteries into the battery compartment and turn on power switch, LED light would blink. 2．Pairing: Press mouse right key and scroll wheel together several seconds. 3．You could use it normally after pairing successfully. 4．The mouse will enter sleeping mode under the condition of not any operation in 8 minutes, press any key to wake up, meanwhile, LED light goes out automatically. Note: after pairing OK first, it is unnecessary to pair when you use it once again. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram MCU SE28A DICE RF Chip 8713 DICE XTAL 4MHz XTAL 12MHz Key Encoder Sensor LED Battery 3V Ant. 2402~2479MHz

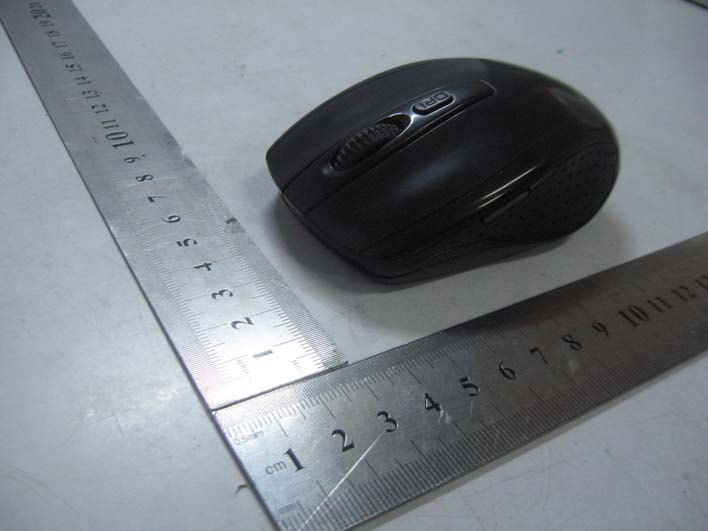

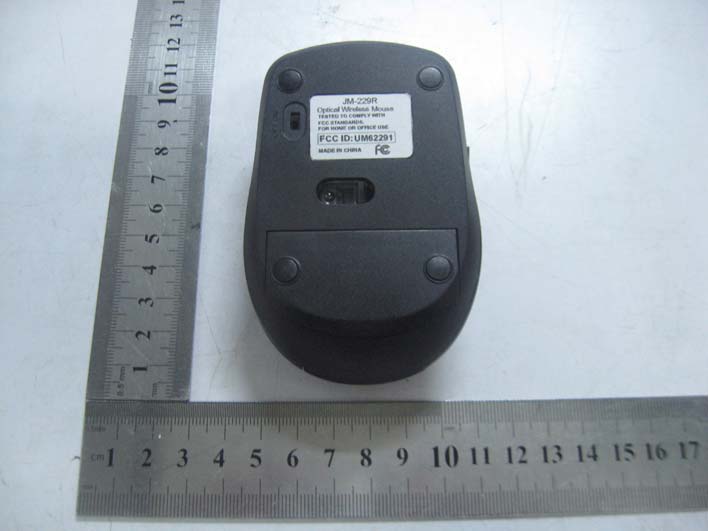

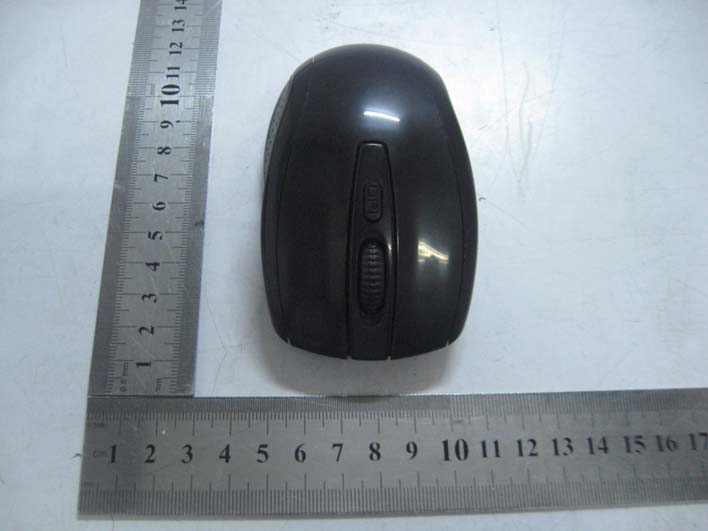

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 (JM-229R With Six Keys) EUT View 2 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 EUT View 3 EUT View 4 (JM-229R With Four Keys) JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 EUT View 5 EUT View 6

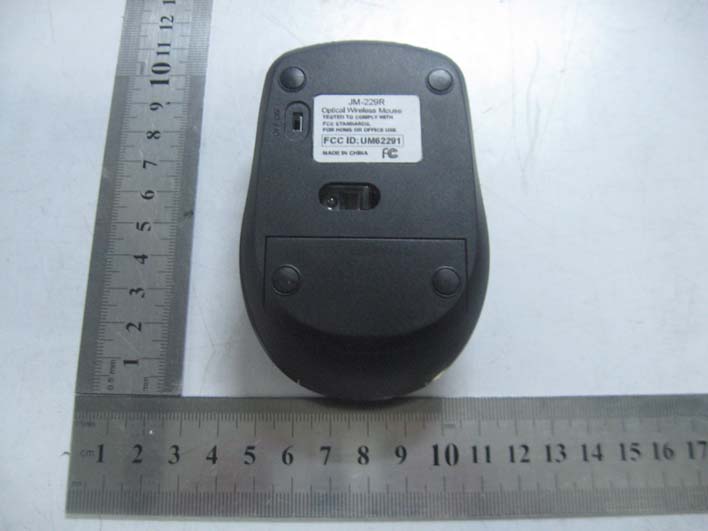

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM62291 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM62291 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 Solder Board-Component View 2 Solder Board-Component View 3 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 Solder Board-Component View 4

Circuit Description 1, IC U3(8713DICE) is used for wireless transmission chip, then transmit signal to the receiver by built-in RF, and a clock frequency of the 12MHz as base clock signal, the 2.4G RF transmitting frequency is 2402 to 2479MHz with GFSK modulation. 2, IC U1(SE28ADICE) is used for collecting the signal from keys or sensor and coder, and a clock frequency of the 4MHz as base clock signal. 3, The work voltage is DC 3V by 2xAAA battery.

12345678 A B C D 8 7654321 D C B A SNS_CS# Y1 4MHz C2 27P C3 27P C5 N/A R1 20K A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 24C02(SOP-8) IIC_SDA IIC_SCL R4 10K R2 150K 主控电路 C1 104 C4 104 C4靠近U2电源脚 C1靠近U1电源脚 SPI_MISO 备注:带*的元器件为选用或根据具体情况选定 L1 100uH BT1 1.5V X1 C18 47uF C21 100uF C19是备用电容，可使用1210 X5R瓷片电容10u~22uF L1请使用低ESR电感 B+ Vout 2 GND 1 LX 3 U4 BL8530-XX(SOT-89) D3 SS12 TCC连线规则 Vin 3 GND 2 Vout 1 U5 BL8506-XX(SOT-23) B+ LVD# D1 Batt_Low R10 *(150R) IIC_SCL VCC VCC VCC VCC VCC VCC 使用3脚(3000ppm)陶振则不用C2，C3 C17 104 C20 104 C19 * C5选用，但位置保留 OSCO OSCI ANT 2.4G C6 104 RF_RST R5 150K RF_CS# CF2 * L2 * Y3 12M C16 30PF C15 30PF TVCC +1.8V +1.8V +1.8V C14 0.1uF C8 2.2UF C13 0.1uF C12 10NF SPI_MISO RF_RST SPI_CLK SPI_MOSI RF_CS# PKT_FLAG C9 0.1uF C10 0.1uF ANT PLL_VDD 2 VCO_VDD 3 ANT 4 GND 5 RF_VDD 6 IF_VDD 7 AMS_VDD 8 GND 12 PKT_FLAG 11 RXCLK 10 FIFO_FLAG 9 DIG_VDD 13 SPI_SS 14 SPI_MOSI 15 SPI_CLK 16 RESET_n 17 SPI_MISO 18 VDD_IO 19 LDO_VOUT 20 CKPHA 21 GND 22 VDD_IN 23 XTALO 24 XTALI 1 U3 8713 DICE C11 10nF R9 680K R8 560R 使用 DICE 芯片 R7 4.7~10R C7 10uF TVCC ANT R6 150K 需在测试后在进行匹配 CF1 * GiGa HiD 2.4G RF Mouse TX(带多媒体键功能) GiGa HiD-V2-SE-5030/16083/5090 +1.8V VCC VCC VCC RF电路 可选用低电压检测电路POWER电路 RA 1M V2.3 Title Size A4 Date: File: Number Sheet of Drawn By: Revision 20100309 WYJ S1LFET S3MIDDLE S2RIGHT LBUTTON MBUTTON RBUTTON COM 3 B 2 A 1 SE1 EC10E ZWH_AZWH_BZWH_C S4DPI DPI_BTN S7PD/ID PD#/ID 按键、编码电路 SW1 4键 P74 P75 P57P56P55P54 SW2 左滚 SW3 www home SW4 volume down SW5 5键 SW6 右滚 SW7 play/pause SW8 volume up 默认多媒体键配置 SPI_MISO SPI_CLK SPI_MOSI RF_CS# LVD# DPI_BTN MBUTTON RBUTTONLBUTTON ZWH_B ZWH_A ZWH_C IIC_SCL IIC_SDA PKT_FLAGGND P74 P75 TCC PD#/ID VCC REST OSCI OSCO P55 1 P54 2 TCC 3 VDD 4 NC 5 VSS 6 INT 7 P50 8 P51 9 P52 10 P53 11 P60 12 P61 13 P62 14 P63 15 P64 16 P65 17 P66 18 P67 19 P70 20 P71 21 P72 22 P73 23 P74 24 P75 25 P76 26 P77 27 OSCO 28 OSCI 29 RESET 30 P57 31 P56 32 U1 SE28A DICE P57 P56P55 P54 REST 4键/5键功能必须按矩阵IO口连接 TCC连接: VCC 270°180° 0°90° Sensor 方向选择 SPI_CLKSPI_MOSIRF_CS# TCC连接:TCC连接: TCC连接: R3 20K VCC RST5030# D2 LED1 MISO 1 XY_LED 2 NRESET 3 NCS 4 SCLK 5 GND 6 VDD3 7 MOSI 8 U6 ADNS5030，8503,16083，A5090 SPI_MISO RST5030# SNS_CS# R12 150K SPI_CLK GND VCC SPI_MOSI R11 *(100R) C22 0.1uF + C23 10uF VCC VCC VCC Sensor电路 *R3在16083和A5030上使用,A5090不用R3. *R11在16083和A5030上用100R *R11在A5090上用150R 说明

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I PAGE 1 OF 15 FCC PART 15.249 FCC PART 15.249 MEASUREMENT AND TEST REPORT FOR JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuanDong, China FCC ID: UM62291 Report Concerns: Original Report Equipment Type: Optical Wireless Mouse Model: JM-229R Report No.: STR11058085I Test Date: 2011-05-13 to 2011-05-17 Issue Date: 2011-05-19 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I PAGE 2 OF 15 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................13 5.1 STANDARD APPLICABLE.......................................................................................................................................13 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 5.3 TEST PROCEDURE.................................................................................................................................................13 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I PAGE 3 OF 15 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of applicant: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuanDong, China Manufacturer: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of manufacturer: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuanDong, China General Description of E.U.T Items Description EUT Description: Optical Wireless Mouse Trade Name: / Model No.: JM-229R Rated Voltage: DC 3V 2xAAA Battery Rated Current: 15mA Frequency Range: 2402~2479MHZ Antenna Type: Integral Antenna Size: 10.0X4.0X3.5 cm For more information refer to the circuit diagram form and the user’…

Text truncated - open the document above for the full version.

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11058085I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
