2.4G Wireless Mouse Model #: JM-183R User’s Manual 2 INSTALLING BATTERIES: To properly install batteries into your Mouse, please follow the instructions below: 1. Remove the Battery Compartment Cover of your Mouse by pressing the silver release button in the middle of the mouse and slide the Battery Compartment Cover open. 2. Install two AAA Batteries into your Mouse following the battery orientation guide in the battery bay and then replace the Battery Compartment Cover back onto your Mouse until it securely locks. 3. After the AAA Batteries have been installed into your Mouse properly, the sensor LED inside your Mouse will light up. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Block Diagram MCU SE11M Key Encoder Sensor RF Chip 8713XT XTAL 12MHz Ant. 2403-2479MHz LED Battery DC 1.5V

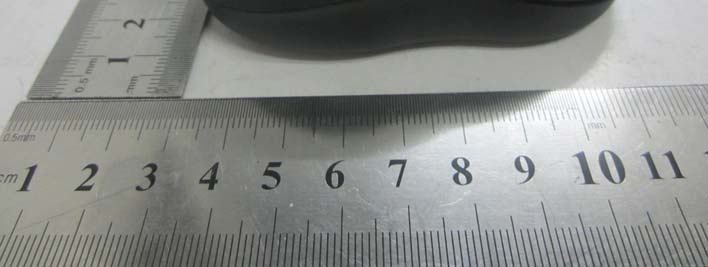

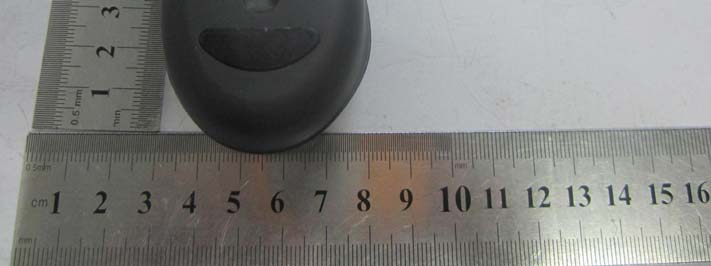

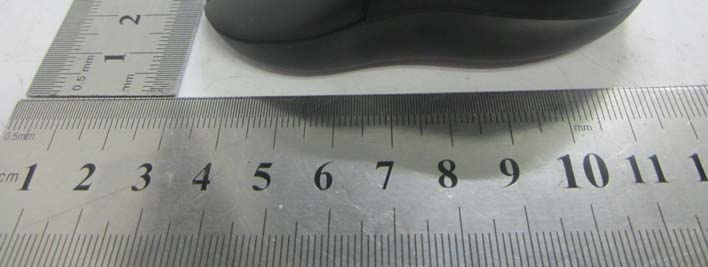

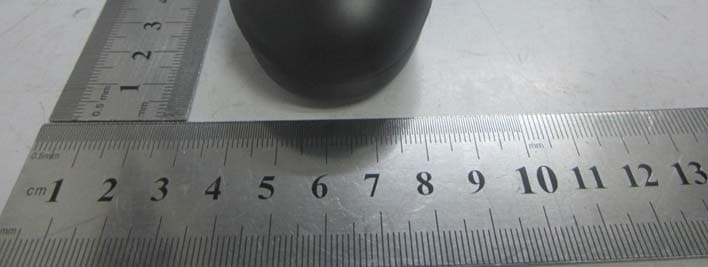

JUNENG ELECTRONICS TECHNOLOGYCO.,LTD. Model: JM-183R REPORT NO.: STR12118243I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 JUNENG ELECTRONICS TECHNOLOGYCO.,LTD. Model: JM-183R REPORT NO.: STR12118243I FCC PART 15.249 EUT View 3 EUT View 4 JUNENG ELECTRONICS TECHNOLOGYCO.,LTD. Model: JM-183R REPORT NO.: STR12118243I FCC PART 15.249 EUT View 5 EUT View 6

JUNENG ELECTRONICS TECHNOLOGYCO.,LTD. Model: JM-183R REPORT NO.: STR12118243I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM61833 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGYCO.,LTD. Model: JM-183R REPORT NO.: STR12118243I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM61833 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGYCO.,LTD. Model: JM-183R REPORT NO.: STR12118243I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 JUNENG ELECTRONICS TECHNOLOGYCO.,LTD. Model: JM-183R REPORT NO.: STR12118243I FCC PART 15.249 Solder Board-Component View 1 Solder Board-Component View 2

Circuit Description 1, IC U2(8713XT) is used for wireless transmission chip, then transmit signal to the receiver by built-in RF, and a clock frequency of the 12MHz as base clock signal, the 2.4G RF transmitting frequency is 2402 to 2479MHz with GFSK modulation. 2, IC U1(SE11M) is used for collecting the signal from keys or sensor and coder. 3, The work voltage is DC 1.5V by 1xAAA battery.

ABCD DCBA R1150k SPIMISO VCC 270° 180° 0° 90° C20.1uF R5 33k C10.1uF VCC SPIMISOSPICLKSPIMOSIRFCSLVDDPIBTNMBUTTONRBUTTON LBUTTON ZWHBZWHAZWHC PKTFLAG GND P74P75 TCCPDID VCC P55 1 P54 2 TCC 3 VDD 4 NC 5 VSS 6 INT 7 P50 8 P51 9 P52 10 P53 11 P60 12 P61 13 P62 14 P63 15 P64 16 P65 17 P66 18 P67 19 P70 20 P71 21 P72 22 P73 23 P74 24 P75 25 P76 26 P77 27 OSCO 28 OSCI 29 RESET 30 P57 31 P56 32 U1SE11M P57P56 P55P54 RFRST IICSCL SNSCS Vout 1 GND 2 LX 3 U5 CE88NXX B+ LVD D3LED R11 *(150R) IICSCL VCC C 3 B 2 A 1 SE1 Encoder ZWHA ZWHB ZWHC 123 321 Batt_Low L147uH BAT1 1.5V *2 C13 47uF C15 100uF Vout 2 GND 1 LX 3 U4CE8401A27P D2SS12 VCC C140.1uF C16 0.1uF C19 * R63.3R C610uF TVCC VCC R3150k X1 12M C4 30pF C5 30pF +1.8V +1.8V +1.8V C8 0.1uF C112.2uF C100.1uF C1710nF SPIMISO RFRST SPICLK SPIMOSIRFCS PKTFLAG C9 0.1uF C7 0.1uF ANT PLL_VDD 2 VCO_VDD 3 ANT 4 GND 5 RF_VDD 6 IF_VDD 7 AMS_VDD 8 GND 12 PKT_FLAG 11 RXCLK 10 FIFO_FLAG 9 DIG_VDD 13 SPI_SS 14 SPI_MOSI 15 SPI_CLK 16 RESET_n 17 SPI_MISO 18 VDD_IO 19 LDO_VOUT 20 CKPHA 21 GND 22 VDD_IN 23 XTALO 24 XTALI 1 U28713XT C1210nF R8680k R7 560R R2 150k +1.8V VCC VCC TVCC SW9 R91k 备注： 1 、 带 * 的元器件为选用或根据具体情况选定。 2 、 L1 请使用低 ESR 电感。 4 、 C19 是备用电容，可使用 12 10 X5R 瓷片电容 10 ~22 uF 。 5 、 晶振 X1 使用 2*6 或 3*8 或 49 S 封装时参数如下 : 12 MHz±20 pp m( 建议 ±10ppm) ，负载电容为 20 pF 。 参考值 :C4 、 C5 电容为 30 pF ， C4 、 C5 具体值需根据晶振细调。 6 、 TCC 的连接方法是根据 Sens or 方向的摆放来定。 V1.61 2.4G Wireless Mouse SE11 Series Electrical Diagrams SE11M(A5030/5090) R1320k VCC RST5030 D1LED MISO 1 XY_LED 2 NRESET 3 NCS 4 SCLK 5 GND 6 VDD3 7 MOSI 8 U3 AD NS50 30 、 50 90 SPIMISORST5030SNSCS R4 150k SPICLK GNDVCC SPIMOSI R12 (*100R) C30.1uF VCC VCC 8 、 R13 在 50 30 上使用， 50 90 不用 R13 ，则 SENSOR 第三脚悬空。 7 、 R12 在 50 30 上使用 10 0R ， R12 在 50 90 上使用 18 0R 。 C18 10uF R10 1k 3 、 C13 建议使用 X5R 瓷片电容或电解电容。 Creat Check StandardApprove 1 OF 1 Grade: A ShenZhen Semitek Co.,Ltd Main Circuit Low-Batt Encoder ForwardBackward RF Circuit Sensor Circuit Main Circuit Sensor direction select * * ANT12.4G CF2 * CF3 * ANT Matching Circuit CF1 * 011-0016-DL-M3V1 05 J1 0R TCC VCC J2 0R TCC SPICLK J3 0R TCC SPIMOSI J4 0R TCC RFCS S3S4S5 LBUTTONMBUTTONRBUTTON S1 DPIBTN S2 PDID SW1 P74 P75 P57 P56 P55 P54 SW3 SW5 SW7 SW2 SW4 SW6 SW8 4-key5-key L-TiltR-Tilt www home V- play/pause V+ * 9 、 D2 预留。 B+
