UM68601Optical Wireless Mouse

Juneng Electronics Technology Co., Ltd.
Optical Wireless Mouse - FCC ID UM68601 - Juneng Electronics Technology Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Aug 02, 2011
Application Purpose
Original Equipment
Date of Application
Aug 02, 2011
Equipment Note
Optical Wireless Mouse
Frequency Range
2402.00000000 - 2479.00000000
Company
Juneng Electronics Technology Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual Model: JM-086R 1.Plug two batteries into the battery compartment and turn on power switch, LED light would blink. 2.Pairing: Press mouse right key and scroll wheel together several seconds. 3.You could use it normally after pairing successfully. 4.The mouse will enter sleeping mode under the condition of not any operation in 8 minutes, press any key to wake up, meanwhile, LED light goes out automatically. Note: after pairing OK first, it is unnecessary to pair when you use it once again. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram

Block Diagram MCU SE28A DICE RF Chip 8713 DICE XTAL 4MHz XTAL 12MHz Key Encoder Sensor LED Battery 1.5V Ant. 2402~2479MHz

External Photos

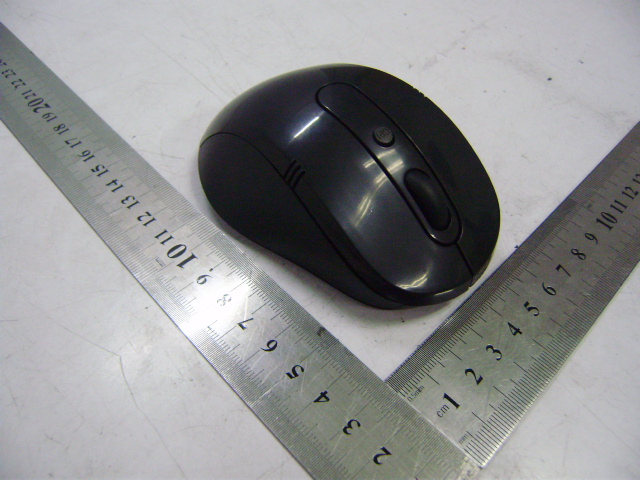

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11078248I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11078248I FCC PART 15.249 EUT View 3

ID Label/Location Info

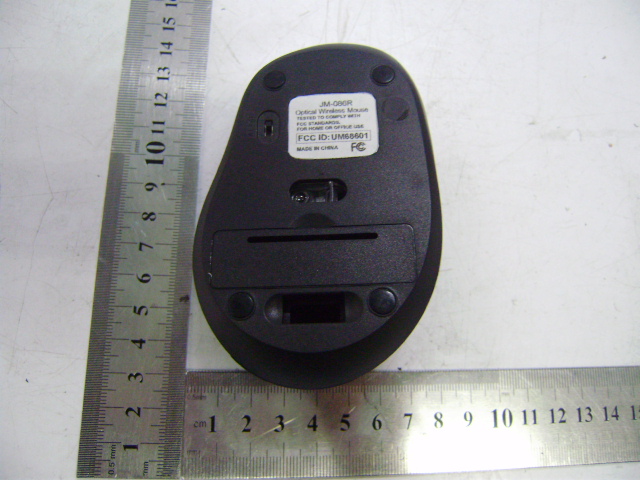

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11078248I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM68601 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ID Label/Location Info

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11078248I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM68601 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Internal Photos

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11078248I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11078248I FCC PART 15.249 Solder Board-Component View 2 Solder Board-Component View 3 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11078248I FCC PART 15.249 Solder Board-Component View 4

Operational Description

Circuit Description 1, IC U3(8713DICE) is used for wireless transmission chip, then transmit signal to the receiver by built-in RF, and a clock frequency of the 12MHz as base clock signal, the 2.4G RF transmitting frequency is 2402 to 2479MHz with GFSK modulation. 2, IC U1(SE28ADICE) is used for collecting the signal from keys or sensor and coder, and a clock frequency of the 4MHz as base clock signal. 3, The work voltage is DC 1.5V by 1xAAA battery.

Schematics

12345678 A B C D 8 7654321 D C B A Y1 4MHz C2 27P C3 27P C5 N/A R1 20K A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 24C02(SOP-8) IIC_SDA IIC_SCL R4 10K R2 150K C1 104 C4 104 SPI_MISO L1 100uH BT1 1.5V X1 C18 47uF C21 100uF B+ Vout 2 GND 1 LX 3 U4 BL8530-XX(SOT-89) D3 SS12 Vin 3 GND 2 Vout 1 U5 BL8506-XX(SOT-23) B+ LVD# D1 Batt_Low R10 *(150R) IIC_SCL VCC VCC VCC VCC VCC VCC R3 150K VCC SNS_SCLK C17 104 C20 104 C19 * OSCO OSCI REST C6 104 RF_RST R5 150K RF_CS# Y3 12M C16 30PF C15 30PF TVCC +1.8V +1.8V +1.8V C14 0.1uF C8 2.2UF C13 0.1uF C12 10nF SPI_MISO RF_RST SPI_CLK SPI_MOSI RF_CS# PKT_FLAG C9 0.1uF C10 0.1uF ANT PLL_VDD 2 VCO_VDD 3 ANT 4 GND 5 RF_VDD 6 IF_VDD 7 AMS_VDD 8 GND 12 PKT_FLAG 11 RXCLK 10 FIFO_FLAG 9 DIG_VDD 13 SPI_SS 14 SPI_MOSI 15 SPI_CLK 16 RESET_n 17 SPI_MISO 18 VDD_IO 19 LDO_VOUT 20 CKPHA 21 GND 22 VDD_IN 23 XTALO 24 XTALI 1 U3 EM198810/8713 DICE C11 10nF R9 680K R8 560R DICE R7 4.7~10R C7 10uF TVCC R6 150K C22 104 C23 2.2uF R11 *(100R) D2 LED1 SNS_SDIO SNS_SCLK C24 1uF VCC VCC VCC OSCI 1 OSCO 2 SDIO 3 SCLK 4 LED 5 VSS 6 VDD 7 VREF 8 U6 GND OM15 ANT 2.4G CF2 * L2 * ANT CF1 * GiGa HiD-V2-SE-OM15 +1.8V RF Sensor POWER VCC VCC VCC SNS_SDIO R14 150K VCC RA 1M HiD 2.4G RF Mouse TX V2.3 Title Size A4 Date: File: Number Sheet of Drawn By: Revision 20100309 WYJ R18 390K ZWH_C S1LFET S3MIDDLE S2RIGHT LBUTTON MBUTTON RBUTTON COM 3 B 2 A 1 SE1 EC10E ZWH_AZWH_BZWH_C S4DPI DPI_BTN S7PD/ID PD#/ID SW1 4键 P74 P75 P57P56P55P54 SW2 左滚 SW3 www home SW4 volume down SW5 5键 SW6 右滚 SW7 play/pause SW8 volume up SPI_MISO SPI_CLK SPI_MOSI RF_CS# LVD# DPI_BTN MBUTTON RBUTTONLBUTTON ZWH_B ZWH_A ZWH_C SNS_SDIO IIC_SCL IIC_SDA PKT_FLAGGND P74 P75 TCC PD#/ID SNS_SCLK VCC REST OSCI OSCO P55 1 P54 2 TCC 3 VDD 4 NC 5 VSS 6 INT 7 P50 8 P51 9 P52 10 P53 11 P60 12 P61 13 P62 14 P63 15 P64 16 P65 17 P66 18 P67 19 P70 20 P71 21 P72 22 P73 23 P74 24 P75 25 P76 26 P77 27 OSCO 28 OSCI 29 RESET 30 P57 31 P56 32 U1 SE28A DICE P57 P56P55 P54 TCC TCC连接: VCC 270°180° 0°90° Sensor dir SPI_CLK SPI_MOSI RF_CS# TCC连接:TCC连接:TCC连接:

Test Report

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-086R REPORT NO.: STR11078248I PAGE 1 OF 22 FCC PART 15.249 FCC PART 15.249 MEASUREMENT AND TEST REPORT FOR JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuanDong, China FCC ID: UM68601 Report Concerns: Original Report Equipment Type: Optical Wireless Mouse Model: JM-086R Report No.: STR11078248I Test Date: 2011-07-26 to 2011-08-02 Issue Date: 2011-08-02 Tested By: Jason Jiang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.(518101) Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-086R REPORT NO.: STR11078248I PAGE 2 OF 22 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................17 5.1 STANDARD APPLICABLE.......................................................................................................................................17 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................17 5.3 TEST PROCEDURE.................................................................................................................................................17 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................17 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................17 6. OCCUPIED BANDWIDTH....................................................................................................................................20 6.1 STANDARD APPLICABLE.......................................................................................................................................20 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................20 6.3 TEST PROCEDURE.................................................................................................................................................20 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................20 6.5 SUMMARY OF TEST RESULTS/PLOTS.................…

Text truncated - open the document above for the full version.

Test Setup Photos

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-229R REPORT NO.: STR11078248I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)

Contact Information

Applicant

Halley Chen(General Manager)
[email protected]0086076986103313Fax: 0086076986103433

Test Firm

SEM.Test Compliance Service Co., Ltd.Jandy So
[email protected]086-755-33663308Fax: 086-755-33663309

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
