UM60311OPTICAL WIRELESS MOUSE

User Manual Model: JM-031R 1．Plug two batteries into the battery compartment and turn on power switch, LED light would blink. 2．Pairing: Press mouse right key and scroll wheel together several seconds. 3．You could use it normally after pairing successfully. 4．The mouse will enter sleeping mode under the condition of not any operation in 8 minutes, press any key to wake up, meanwhile, LED light goes out automatically. Note: after pairing OK first, it is unnecessary to pair when you use it once again. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE : Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM60311 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM60311 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

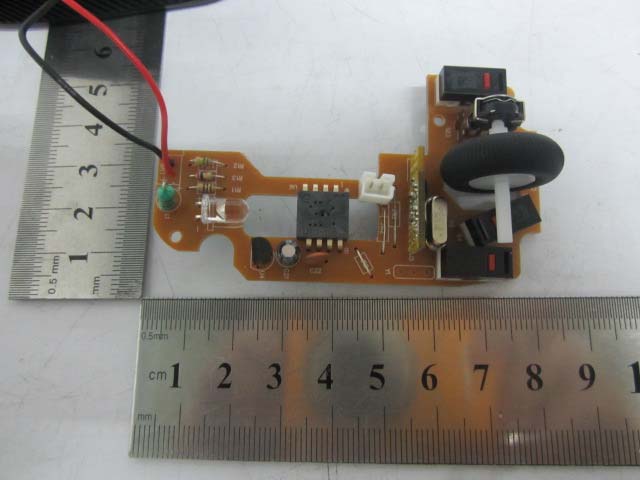

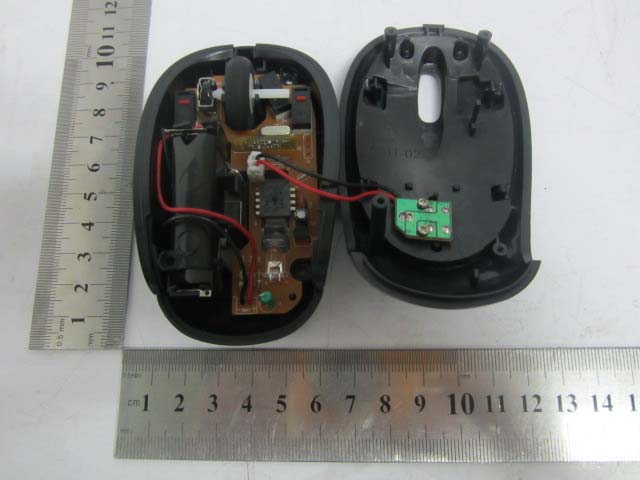

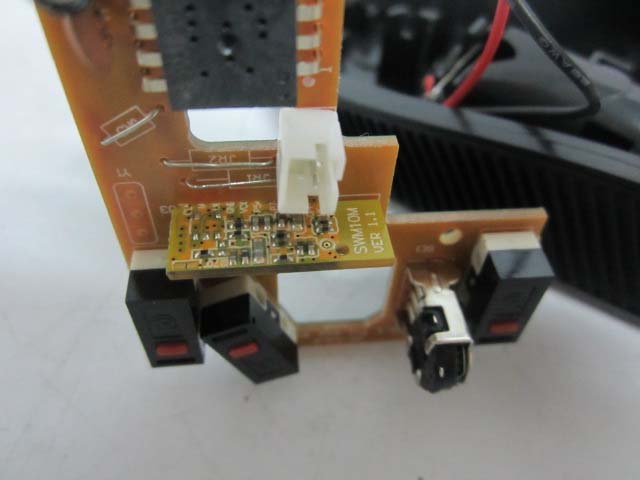

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I FCC PART 15.249 Solder Board-Component View 2 Solder Board-Component View 3 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I FCC PART 15.249 Solder Board-Component View 4

Circuit Description a. IC-EM78P447：IC- EM78P447 is the wireless controller. The key and sensor encoder transforms the image of the mouse movement to the electronic signal, and then send to the controlling IC, the MCU with a 4MHz oscillator. b. IC-EM198810 is the 2.4 G module with a 12MHz external clock signal. MCU will send a signal to the manner in GFSK modulation, frequency modulation 2402 ~ 2479 MHZ. c. Supply Voltage: 3.0V Battery, Then step-up to 2.7V by the DC-DC transformer to working.

12345678 A B C D 8 7654321 D C B A Title NumberRevisionSize A3 Date:2-Nov-2011 Sheet of File:C:\Documents and Settings\Administrator\桌面\JM-031~1.DDBDrawn By: C5 104 R1 20K R2 150K 主控电路 S1 LFET S4 MIDDLE S2 RIGHT LBUTTON MBUTTON RBUTTON COM 3 B 2 A 1 SE1 EC10E ZWH_AZWH_BZWH_C C1 104 C4 104 C4靠近U2电源脚 C1靠近U1电源脚 SPI_MISO 备注:带*的元器件为选用或根据具体情况选定 L1 220uH BT1 3V X1 C21 100uF L1请使用低ESR电感 B+ Vout 2 GND 1 LX 3 U4 BL8527-XX(TO-92) TCC连线规则 TCC连接SENSOR安装 VDD P51 P52 P53 0° 90° 180° 270° 270° 180° 0° 90° LED LEDLED LEDSENSOR SENSOR SENSOR SENSOR VCC VCC VCC VCC R3 20K VCC RST5030# S7 DPI DPI_BTN C20 104 SPI_MISO SPI_CLK SPI_MOSI RF_CS# LVD# DPI_BTN MBUTTON RBUTTON LBUTTON ZWH_B ZWH_A ZWH_C SNS_CS# IIC_SCL IIC_SDA PKT_FLAG GND VSS 1 TCC 2 VDD 3 INT 4 P50 5 P51 6 P52 7 P53 8 P60 9 P61 10 P62 11 P63 12 P64 13 VSS 14 P65 15 P66 16 P67 17 P70 18 P71 19 P72 20 P73 21 P74 22 P75 23 P76 24 P77 25 OSCO 26 OSCI 27 RESET 28 U1 GND BACK_BTN FWD_BTN PD#ID VCC OSCI OSCO DICE REST# REST# ANT 2.4G C6 104 RF_RST R5 150K RF_CS# CF2 * L2 * Y3 12M C16 30PF C15 30PF TVCC +1.8V +1.8V +1.8V C14 0.1uF C8 2.2UF C13 0.1uF C12 10NF SPI_MISO RF_RST SPI_CLK SPI_MOSI RF_CS# PKT_FLAG C10 0.1uF ANT PLL_VDD 2 VCO_VDD 3 ANT 4 GND 5 RF_VDD 6 IF_VDD 7 AMS_VDD 8 GND 12 PKT_FLAG 11 RXCLK 10 FIFO_FLAG 9 DIG_VDD 13 SPI_SS 14 SPI_MOSI 15 SPI_CLK 16 RESET_n 17 SPI_MISO 18 VDD_IO 19 LDO_VOUT 20 CKPHA 21 GND 22 VDD_IN 23 XTALO 24 XTALI 1 U3 EM198810AWJ(QFN-24) C11 10nF R9 680K R8 560R DICE R7 4.7~10R C7 10uF TVCC ANT R6 150K 需在测试后在进行匹配 D2 LED1 MISO 1 XY_LED 2 NRESET 3 NCS 4 SCLK 5 GND 6 VDD3 7 MOSI 8 U6 SENSOR，16083，5090,8503,8509 SPI_MISO RST5030# SNS_CS# R12 150K SPI_CLK GND VCC SPI_MOSI R11 *(100R) C22 104 + C23 10uF V1.0 CF1 * JM031R 8503/8509 V1.0 +1.8V TCC VCC VCC VCC VCC VCC VCC RF电路 Sensor电路 POWER电路 按键、编码电路 R3在8503和5030上使用 5090/8509不使用R3，则SENSOR第三脚悬空

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I PAGE 1 OF 19 FCC PART 15.249 FCC PART 15.249 MEASUREMENT AND TEST REPORT FOR JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China FCC ID: UM60311 Report Concerns: Original Report Equipment Type: Optical Wireless Mouse Model: JM-031R Report No.: STR11118037I Test Date: 2011-11-05 to 2011-11-11 Issue Date: 2011-11-15 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I PAGE 2 OF 19 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................17 5.1 STANDARD APPLICABLE.......................................................................................................................................17 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................17 5.3 TEST PROCEDURE.................................................................................................................................................17 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................17 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................17 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I PAGE 3 OF 19 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of applicant: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China Manufacturer: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of manufacturer: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China General Description of E.U.T Items Description EUT Description: Optical Wireless Mouse Trade Name: / Model No.: JM-031R Rated Voltage: DC 3V Rated Current: 15mA Frequency Range: 2402-2479 MHz Antenna Type: Integral Antenna For more information refer to the circuit diagram form and the user’s manual. The test data is gathere…

Text truncated - open the document above for the full version.

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-031R REPORT NO.: STR11118037I FCC PART 15.249 Radiation Emission Test Setup (Above 1GHz)
