UM63903OPTICAL WIRELESS MOUSE

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram Battery Power Supply Optical Sensor MCS-16083 Key and Scroll Encoder input DC-DC Converter Power Control Micro controller Fsk Modulator PLL Power Amplifier 6M Crystal ANT TCM1213 Ant. 27.045MHz

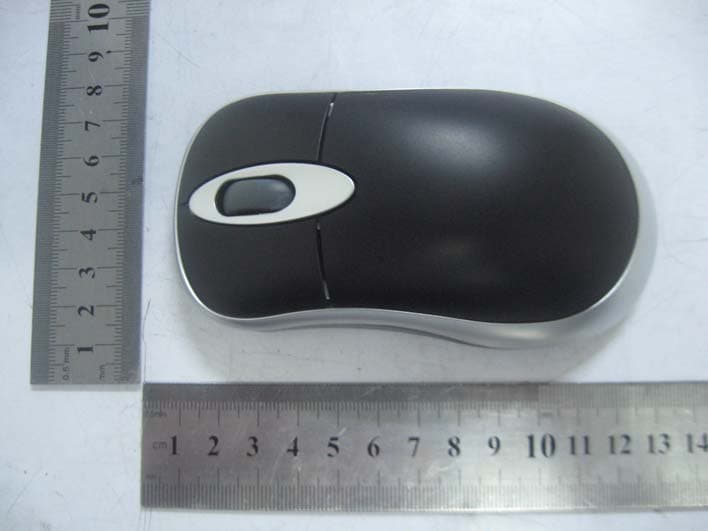

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I FCC PART 15.227 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I FCC PART 15.227 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM63903 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I FCC PART 15.227 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM63903 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I FCC PART 15.227 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I FCC PART 15.227 Solder Board-Component View 2

Wireless Mouse Circuit Description a. TCM1213 is the wireless mouse transimitter IC. It is equipped with controller, FSK modulator and PA etc. With the PLL technology , only need one 6M crystal .It encodes the data from the optical sensor , the keys and the scroll, and sends these data via RF channel with 27.045MHz band. b. MCS-16083 is the optical sensor with the 1000DPI. It captures the motion information of the mouse and send it to controller. c. The operating voltage is 3V

1 2 3 4 A BC D 4 3 2 1 D C B A Title N umbe r Revision Size A4 Date: 23-Feb-2011 Sheet o f File: C:\¹¤×÷\Êó±êÏîÄ¿2008\μç·Éè¼Æ\ÎÞÏßÊó±ê\ÎÞÏßÔ-Àíͼ\TCM1213_SSOP24_3101.DDB Drawn By: Y1 6MHz C1 30pF C2 30pF C3 5.6nF C456nF R1 470 OSC1 1 OSC2 2 CPOUT 3 AVDD 4 PA P 5 PA N 6 Z2 7 Z1 8 BLIN 9 IDB 10 MODE_CH 11 LV 12 PD 13 SCLK/Y1 14 SDO/Y2 15 SDI/X2 16 N CS/X1 17 BMIN 18 BRIN 19 VDDO 20 SW 21 VSS 22 VFB 23 VBT 24 U1TCM1213 VDD_3V L1 2.2uH L2 2.2uH C5 10nF C6 *56pF C7 *8pF PCB ANT 1 1 2 2 3 3 ENC ENC VDD_3V R210K SWL VDD_3V R4 10K SWID VDD_3V R5 100K VDD_3.3V SWM SWR VBT R9 100K R10240K L3100uH + C8 100uF D2 1N5819 + C9100uF C10 200pF VDD_3V + C12100uF C130.1uF VDD_3V R111K R1268 D3 J210K MISO 1 XY_LED 2 N RESET 3 N CS 4 SCLK 5 VSS 6 VDD 7 MOSI 8 U2 SENSOR C110.1uF VDD_3V TX

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I PAGE 1 OF 13 FCC PART 15.227 FCC PART 15.227 MEASUREMENT AND TEST REPORT FOR JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China FCC ID: UM63903 Report Concerns: Original Report Equipment Type: Optical Wireless Mouse Model: JM-039R Report No.: STR11048165I Test Date: 2011-04-18 to 2011-04-27 Issue Date: 2011-04-28 Tested By: Jason Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I PAGE 2 OF 13 FCC PART 15.227 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.227- RADIATED EMISSION ..............................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................7 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. §15.227(B) OUT OF BAND EMISSIONS .............................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I PAGE 3 OF 13 FCC PART 15.227 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of applicant: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China Manufacturer: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of manufacturer: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China General Description of E.U.T Items Description EUT Description: Optical Wireless Mouse Trade Name: / Model No.: JM-039R Rated Voltage: DC 3V Battery Frequency Range: 27.045 MHz Antenna Type: Integral Antenna Size: 12.1X6.4X4.0 cm For more information refer to the circuit diagram form and the user’s manual. The test dat…

Text truncated - open the document above for the full version.

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-039R REPORT NO.: STR11048165I FCC PART 15.227 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz)
