UM63901WIRELESS OPTICAL MOUSE

JM-39R USER MANUAL Installation: NOTE: The pictures show in the User’s manual are for demonstration purposes only. Your computer may look slightly different. 1. Remove the battery compartment cover located on the bottom of your mouse. 2. Install two AAA batteries into your mouse following the battery orientation guide in the battery bay, and then replace the cover back onto your mouse. 3. Turn on your computer and wait for it to load. 4. Plug the Wireless USB Receiver into an available USB port on your computer .Your mouse will establish a connection with the receiver and is ready to be used. If a connection is not established , there might be a high level of surrounding interference, press the Connect button on the back of the Receiver , and press the Connect button on the back of your mouse. 5. Your computer will detect your mouse and the necessary drivers will be installed automatically. 6. Your mouse is now ready to be used. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Notes: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

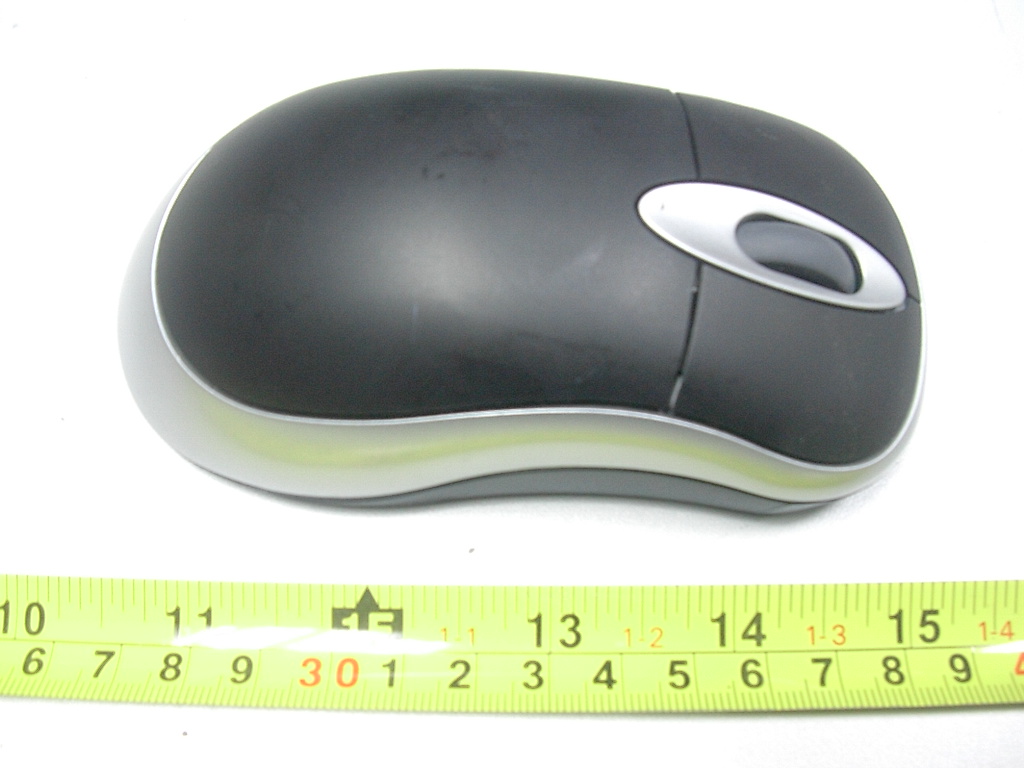

EXHIBIT 2 - EUT PHOTOGRAPHS EUT View 1 EUT View 2

EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM63901 Specifications: Text is Black in color and is left justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

EUT Housing and Board View Solder Board-Component View 1 Solder Board-Component View 2

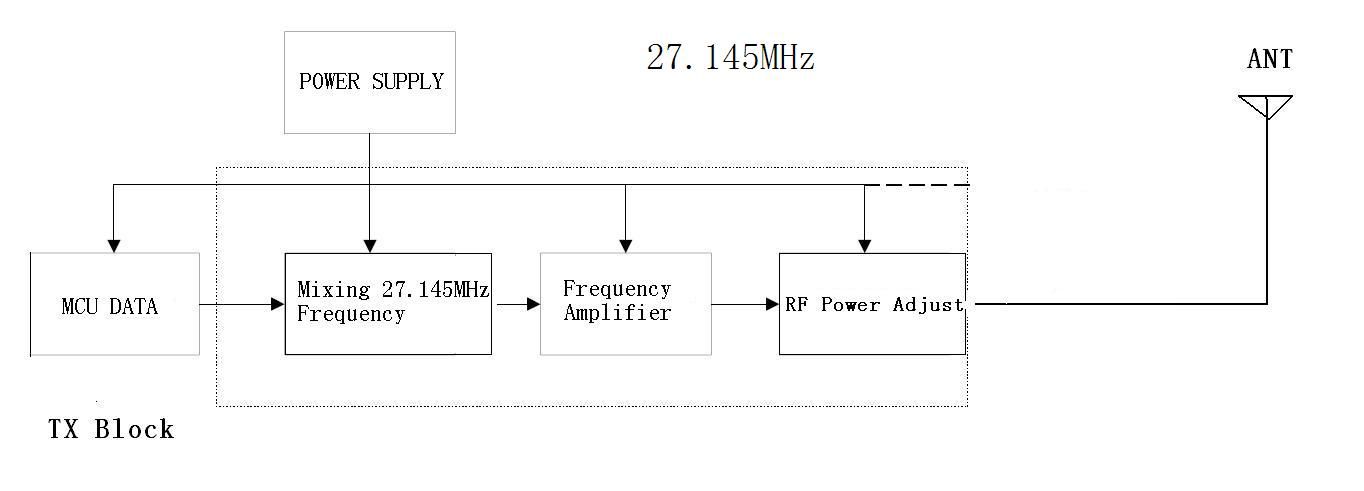

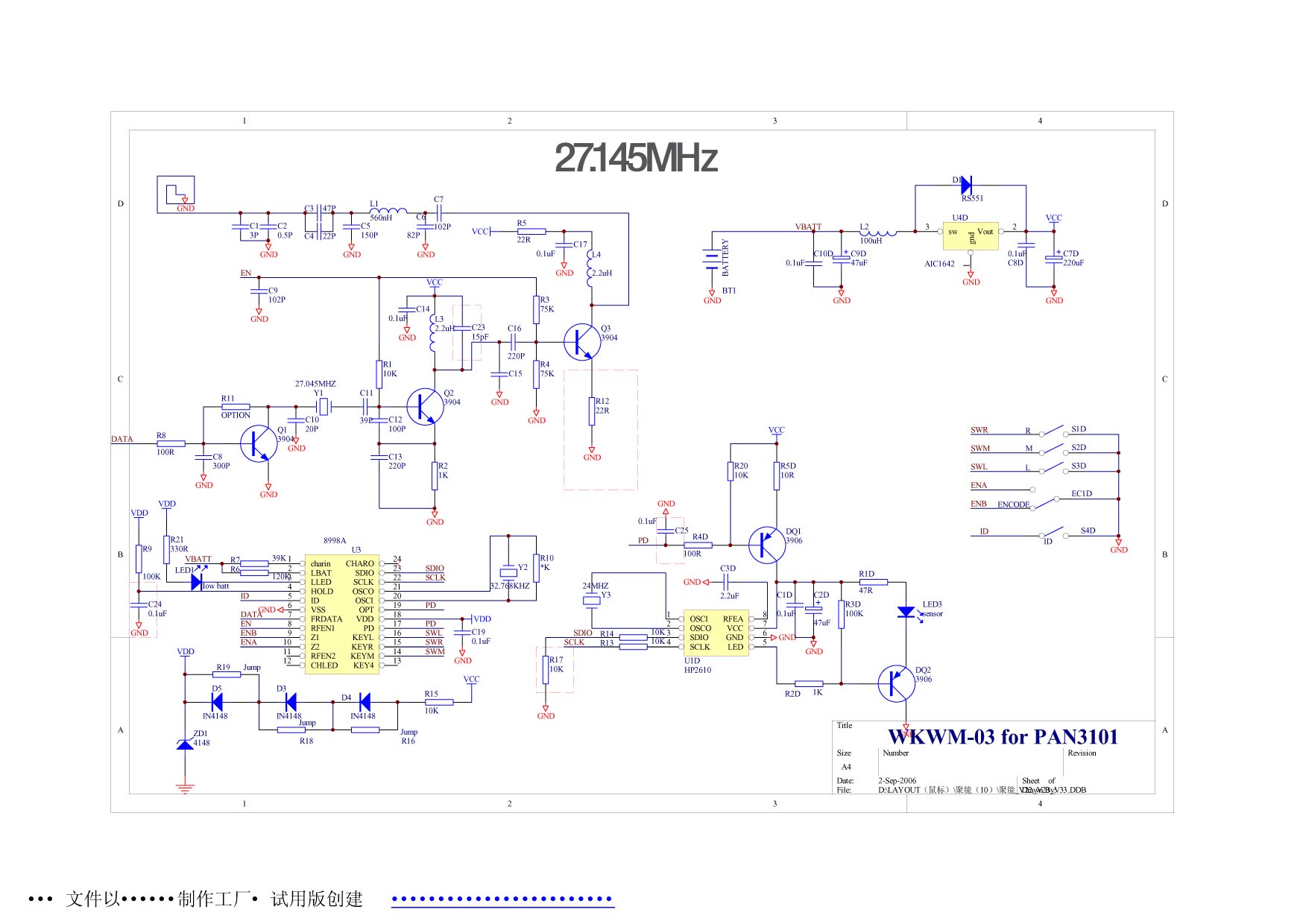

Circuit Descriptions MCU reading the signal of the keys and sensor, mixing with Crystal of Y1 (27.145MHz), together with components R8C8Q1(3904)C10, consist as a FSK modulator. Signal of the FSK modulator coupling with C12C13R1Q23904and L3C23, than transform to the Amplifier (consist of R3R4Q3 3904L4R12). With the adjust of filter, transmitting through the PCB Antenna.

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. MODEL: JM-39R REPORT NO.: STR06108002I PAGE 1 OF 12 FCC PART 15.227 FCC PART 15.227 MEASUREMENT AND TEST REPORT FOR JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China FCC ID: UM63901 Report Concerns: Original Report Equipment Type: Wireless Optical Mouse Model: JM-39R Report No.: STR06108002I Test/Witness Engineer: Innaz Lee Test Date: 2006-10-06 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd Room 609-610, Baotong Building, Baomin 1 st Road, Baoan District, Shenzhen, Guangdong, P.R.C. (518133) Approved & Authorized By: PSQ Manager / Jandy So Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . JUNENG ELECTRONICS TECHNOLOGY CO., LTD. MODEL: JM-39R REPORT NO.: STR06108002I PAGE 2 OF 12 FCC PART 15.227 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS..................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE........................................................................................................................................6 3.2 TEST RESULT.........................................................................................................................................................6 4. §15.205, §15.209, §15.227 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION.............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.227(B) OUT OF BAND EMISSIONS .............................................................................................................11 5.1 STANDARD APPLICABLE......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 EXHIBITION INCLUDING: EXHIBIT 1- FCC ID LABELING EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EXHIBIT 4 - TEST SETUP PHOTOGRAPHS EXHIBIT 5 - BLOCK DIARGRAM EXHIBIT 6 - OPERATION DESCRIPTIONS EXHIBIT 7 - USERS MANUAL JUNENG ELECTRONICS TECHNOLOGY CO., LTD. MODEL: JM-39R REPORT NO.: STR06108002I PAGE 3 OF 12 FCC PART 15.227 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of applicant: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China Manufacturer: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of manufacturer: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, GuangDong, China General Description of E.U.T Items Description EUT Description: …

Text truncated - open the document above for the full version.

EXHIBIT 3 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Below 30MHz)
