UM63902OPTICAL WIRELESS MOUSE

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

OPTICAL SENSOR

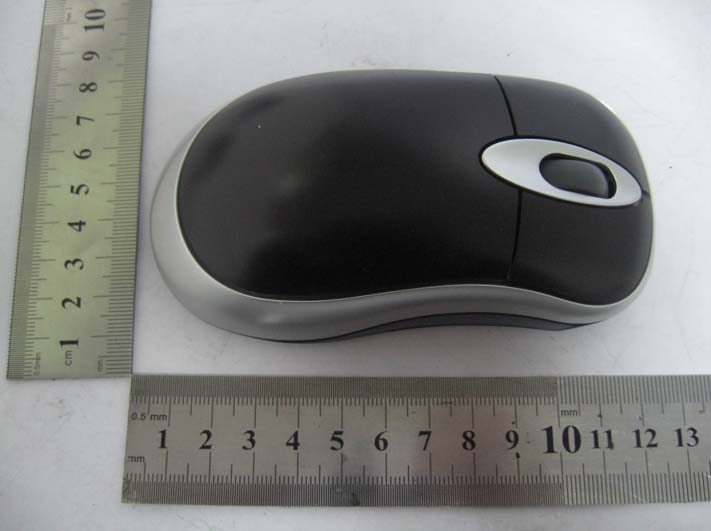

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I FCC PART 15.227 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I FCC PART 15.227 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM63902 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I FCC PART 15.227 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UM63902 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I FCC PART 15.227 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I FCC PART 15.227 Solder Board-Component View 2

Wireless Mouse Transmitter Circuit Description a. IC-OM02：IC- OM02 is the integration of wireless controlling IC and optical IC. The optical part of OM02 transform the imaging of the mouse moving to the electronic signal, and then send to the controlling IC; the signal transmit from the antenna after loaded by the external via RF at 27.045 MHZ. b. The clock signal of IC- OM02 is controlled by clock of oscillating controller. c. When the optical part of IC－OM02 is working, the MCU will output the controlling signal Q6 from the PIN 6 to control the brightness of D1. d. The operating voltage of IC- OM02 is 3.0V.

C3 104P VCC2 GND2 R2 12K C6 820P R5 390R A 11 Tit leSize Document Number Rev Date: Sheet of Y2 12MHz Y3 27.50MHz LED1 U2 VCC 1 C16 104P C15 100P VCC C17 20P 4 R3 5.1K C8 105P 3 R710R RF DATA J1CON41234 RF DATA C2 22uF/ 10V 2 C4 68P C5 1500P GND1 C12 20P C1 105P U1 EV2816 1234567 891011121314 GNDXTA LDATACHPCAFCNCSD BY 2 BY 1 VccD GNDD RF RF_ Vcc R4 330R C9 20P C40 43P VCC ev 856U51H 12345678 161514131211109 P61P62P63P70VSSVNNV3.3OSCI VP60 P64P65P71 D+/P50 D-/P51 VDD OSCO C7 8200P C11 100P C10 10P L1 2.2uH VCC2 蝗 RX 垂蛾 糷 Q7 2SC2412 C19 4.7uF/6.3V R17 Open C22open R24K7C410P SW5 5 C11 4.7uF/6.3V C9102P VCC R1368K R947K C2447uF/6.3V C16 open R44100K OMSW C747P BT13.0V 12 X1 C3104P C1056P C6104P C15 150P C31NO VCC SW3 L C13100P R433.3K Q1 NPN2SC2412 U2EV856M11H 576 12111013 94 15 3 14 218 161718 VSSP61P60 P66P65P64P67 P63/RESET OSCOTC C VDD P53P52P62 OSCI P50P51 VCC Q5 2802-38 1 3 2 G IO RFTX003 V03 Tx_GM_Mouse_OM02&OM10 A4 11 Monday , March 26, 2007 Tit leSize Document Number Rev Date: Sheet of D1LED D2 1N5819 1 2 VCC Y2 Y1 SW6 ID U1 OM-RF 12345678 910111213141516 TC LKX2X1Y1Y2XY _ L E DREFAREFB ROSCB GND ROSCA GND VDD RBIN PD TI O C14 OPEN C21104P L1 0.56uH R42 1K R62K2 R16 Open C25104P VCC2 Q6 2SC2412 Y1 13.5225MHz Data OutRF Control L2 220uH/0.5W C547P RF Control SW1 M R41 1K Y1 C1 47uF/6.3V R8 10R Q2 2SC2412 C18 104P R15 0R Q32SC2412 VCC X1 ENSW4 3 12 Y26MHz Data Out VCC SW2 R SW4 4 OM02:R15: ShortR16, R17: OpenOM10:Q7,R15: OpenR16: ShortR17: 8.2K C20 47uF/6.3V Y2 R40 1K R1130R R433KR5100K Q4 2SC3356 VCC C12333P X2 C8561P X2 OMSW R3 10K VCC

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I PAGE 1 OF 13 FCC PART 15.227 FCC PART 15.227 MEASUREMENT AND TEST REPORT FOR JUNENG ELETRONICS TECHNOLOGY CO., LTD. Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, Guangdong, China FCC ID: UM63902 Report Concerns: Original Report Equipment Type: Optical Wireless Mouse Model: JM-39R Report No.: STR10038026I Test/Witness Engineer: Test Date: 2010-03-06 to 2009-03-13 Issue Date: 2010-03-15 Prepared By: SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C. (518101) Approved & Authorized By: PSQ Manager / Jandy So Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I PAGE 2 OF 13 FCC PART 15.227 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.227- RADIATED EMISSION ..............................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................7 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. §15.227(B) OUT OF BAND EMISSIONS .............................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I PAGE 3 OF 13 FCC PART 15.227 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of applicant: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, Guangdong, China Manufacturer: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of manufacturer: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, Guangdong, China General Description of E.U.T Items Description EUT Description: Optical Wireless Mouse Trade Name: / Model No.: JM-39R Rated Voltage: DC 3V Battery Output Current: 30mA Frequency Range: 27.045MHz Antenna Type: Integral Antenna Size: 12.2X6.2X3.8 cm For more information refer to the circui…

Text truncated - open the document above for the full version.

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I PAGE 1 OF 13 FCC PART 15.227 FCC PART 15.227 MEASUREMENT AND TEST REPORT FOR JUNENG ELETRONICS TECHNOLOGY CO., LTD. Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, Guangdong, China FCC ID: UM63902 Report Concerns: Original Report Equipment Type: Optical Wireless Mouse Model: JM-39R Report No.: STR10038026I Test/Witness Engineer: Test Date: 2010-03-06 to 2010-03-13 Issue Date: 2010-03-15 Prepared By: SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C. (518101) Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I PAGE 2 OF 13 FCC PART 15.227 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.227- RADIATED EMISSION ..............................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................7 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. §15.227(B) OUT OF BAND EMISSIONS .............................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I PAGE 3 OF 13 FCC PART 15.227 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of applicant: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, Guangdong, China Manufacturer: JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Address of manufacturer: Hua Qiang Road, Xin Cheng Zone, Shi Long Town, Dong Guan City, Guangdong, China General Description of E.U.T Items Description EUT Description: Optical Wireless Mouse Trade Name: / Model No.: JM-39R Rated Voltage: DC 3V Battery Output Current: 30mA Frequency Range: 27.045MHz Antenna Type: Integral Antenna Size: 12.2X6.2X3.8 cm For more information refer to the circui…

Text truncated - open the document above for the full version.

JUNENG ELECTRONICS TECHNOLOGY CO., LTD. Model: JM-39R REPORT NO.: STR10038026I FCC PART 15.227 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz)
