SIP–DECT OM System Manual Release 3.0 SIP–DECT OM System Manual Installation, Administration, and Maintenance Release 3.0 Document ID: depl-1230 Version: 0.2 Aastra Deutschland GmbH Zeughofstr. 1 10997 Berlin, Germany  2012 - All Rights Reserved No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval system, for any purpose without the express written permission of Aastra. Aastra depl-1230/0.2 Page: 1 (238) SIP–DECT OM System Manual Release 3.0 Table of Contents Table of Contents 1 OVERVIEW ...........................................................................................................................................7 1.1 THE SIP–DECT SOLUTION............................................................................................................7 1.2 ABOUT THE RADIO FIXED PARTS (RFPS) ........................................................................................8 1.2.1 RFP Families ..................................................................................................................8 1.2.1.1 Former RFP Types (Till SIP–DECT Release 2.1) ....................................................... 8 1.2.1.2 New RFP Types (Since SIP–DECT Release 3.0) ..................................................... 10 1.2.2 RFP only Mode .............................................................................................................11 1.2.3 OpenMobility Manager (OMM) Mode ...........................................................................11 1.3 ABOUT THE OPENMOBILITY MANAGER..........................................................................................12 1.3.1 OMM Tasks ..................................................................................................................12 1.3.2 SIP–DECT Special Features and Capacities ...............................................................13 1.3.3 OMM Capacities and Features.....................................................................................14 1.4 ABOUT THE PORTABLE PARTS......................................................................................................15 2 GETTING STARTED...........................................................................................................................17 2.1 SETTING UP DHCP / TFTP..........................................................................................................17 2.2 INITIAL SETUP..............................................................................................................................22 3 ENHANCED FEATURE OVERVIEW..................................................................................................26 4 NAMING CONVENTION .....................................................................................................................32 5 LOGIN AND PASSWORDS ................................................................................................................33 6 LICENSING .........................................................................................................................................34 6.1 LICENSING MODEL.......................................................................................................................34 6.1.1 Latency Timer ...............................................................................................................35 6.1.2 License Violations and Restrictions..............................................................................36 6.1.3 G. 729 License Violations.............................................................................................36 6.2 UPLOADING AN ACTIVATION OR LICENSE FILE...............................................................................37 6.3 DEMONSTRATION MODE...............................................................................................................37 6.4 LICENSE MODES..........................................................................................................................38 6.4.1 Small System................................................................................................................38 6.4.2 Medium System ............................................................................................................38 6.4.3 Large System................................................................................................................39 7 OMM WEB SERVICE..........................................................................................................................41 7.1 LOGIN.........................................................................................................................................41 7.2 LOGOUT......................................................................................................................................42 7.3 “STATUS” MENU..........................................................................................................................42 7.4 “SYSTEM” MENU..........................................................................................................................43 7.4.1 “System settings” Menu................................................................................................43 7.4.1.1 Restarting the OMM .................................................................................................. 46 7.4.1.2 Updating the OMM .................................................................................................... 47 7.4.2 “SIP” Menu....................................................................................................................47 7.4.3 “User administration” Menu ..........................................................................................51 7.4.4 “Time zones” Menu............................................…

Text truncated - open the document above for the full version.

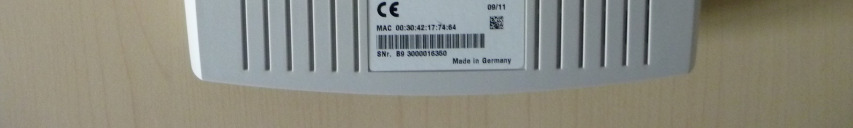

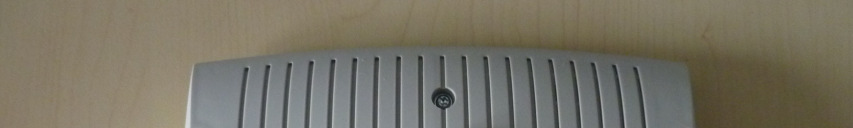

Test report no.: 1-3371/11-04-03 2012-01-25 Page 61 of 69 An ne x B: E x te rna l P ho tog ra p hs o f t he E U T Photo 1: Photo 2:

System: Adobe Illustratoredited13.12.11dscho ECO: C03144checked releasedxx.02.10dscho Label printing, RFP 35/36/43 - Type label Doc Cat. Part Cat. NumberVariantRev. Aastra Deutschland GmbH „Copyright reserved“ Sheet: 1 of 1 LB-42-001730-00 03 ERP-No. 68637.xxx 1) RFP 35 IP EAN Code 4 xxxxxx xxx xxx 2) 2) EAN Code 13 - see table (readable + barcode) 3) Symbol according to ElektroG, 5 mm high 4) PDM-No: see table and current BOM (xx) Revision (xx) - see BOM 53 28 3) PDM-No. 80-001675-80 Rev. xx 4) RFP 35 IP product name ERP-No. EAN Code RFP L35 IP RFP 36 IP RFP L36 IP RFP 43 WLAN RFP L43 WLAN 68637.xxx PDM-No. 80-001675-xx 68622.xxx80-001732-xx 68635.xxx80-001711-xx 68621.xxx80-001733-xx 68636.xxx80-001710-xx 68620.xxx80-001734-xx 7630013801825 7630013801832 7630013801849 7630013801856 7630013801863 7630013801870 Text: Logo + Product name - Arial 3 mm Other Text: - Arial 2.2 mm 1) ERP-No: see table and current BOM (xxx) + Barcode 128 (high 5mm) Revision (xx) - see BOM RFP 37 IP RFP L37 IP 80-00001AAA-A80-00001AAA-Axx 80-00002AAA-A80-00002AAA-Axx 7630013815686 7630013815693 System: Adobe Illustratoredited06.01.12DSchoof ECO: C031xxchecked releasedxx.02.10dscho Label printing, RFP 35/36/43 - ID label Doc Cat. Part Cat. NumberVariantRev. Aastra Deutschland GmbH „Copyright reserved“ Sheet: 1 of 1 LB-42-001731-00 04 1) 53 28 SNr. X3 V000000062 MAC-Adr. 12-34-56-78 02/10 Made in Germany Text: Arial 2.2 mm 1) MAC address (see table) readable + barcode datamatrix 200 (high 5 mm) 2) Serial number readable + barcode 128 3) Made in: Country of origin + manufacturing date (mm/yy) 4) FCC ID: see table - product name: see Agile BOM 5) IC Number: see table - product name: see Agile BOM 2) 3) FCC ID: UOU68637RFP35U-01 IC: 1884E-68637001 RFP 35 IP product name FCC ID RFP L35 IP RFP 36 IP RFP L36 IP RFP 43 WLAN RFP L43 WLAN UOU68637RFP35U-01 UOU68637RFP35U-01 RFP 37 IP RFP L37 IP IC Number 1884E-68637001 1884E-68637001 4) 5) UOU68635RFP36U-01 UOU68635RFP36U-01 1884E-68635001 1884E-68635001 Example print:

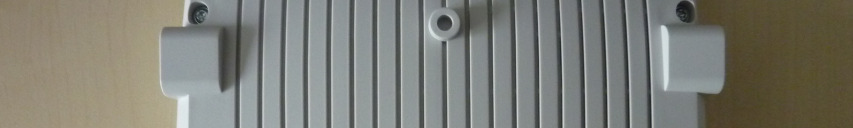

Test report no.: 1-3371/11-04-03 2012-01-25 Page 63 of 69 An ne x C: In te r na l P ho tog ra phs o f t h e E UT Photo 1: Photo 2:

Test report no.: 1-3371/11-04-03 2012-01-25 Page 68 of 69 An ne x F: S a fe t y e x pos ure le ve ls Prediction of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Prediction: P Max power input to the antenna: 18.50 dBm P Max power input to the antenna: 70.8 mW R Distance: 20 cm G Maximum antenna gain: 3.00 dBi G Maximum antenna gain: 2.0 numeric S MPE limit for uncontrolled exposure: 1 mW/cm 2 Calculated Power density: 0.0282 mW/cm 2 0.282 W/m 2 This prediction demonstrates the following: The power density levels at a distance of 20 cm are below the maximum levels allowed by FCC regulations

2012-01-25 Page 1 of 70 TEST REPORT Test Report No.: 1-3371/11-04-03 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (FCC part 15 D) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Aastra Deutschland GmbH Zeughofstr. 1 10997 Berlin Germany Phone: + 49 30 6104-0 Fax: + 49 30 6104-5157 Contact: Mr. Gerhard Hofmann e-mail: [email protected] Phone: + 49 30 6104-5329 Manufacturer Aastra Deutschland GmbH Zeughofstr. 1 10997 Berlin, Germany Test Standard/s FCC Part 15, subpart D Isochronous UPCS Device 1920 – 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communication Service Devices (LE-PCS) Test Item Kind of test item: DECT Fixed Part Model name: RFP 35 IP FCC ID: UOU68637RFP35U-01 IC: 1884E-68637001 S/N serial number: B9 3000016852 HW hardware status: 80-001675-00 SW software status: SIP-DECT 3.0RC5 Frequency [MHz]: 1920 -1930 Type of Modulation: Digital (Gaussian Frequency Shift Keying) Number of channels: 5 RF Channels, 5x12 = 60 TDMA Duplex Channels Antenna: 2 permanently attached /4 antenna Power Supply: 48 V DC Temperature Range: -20°C to 50°C Test Report authorised: Test performed: 2012-01-25 Wolf, Joachim 2012-01-25 Lenjoint, Marco Senior Consultant Testing Manager cn=Joachim Wolf, o=CETECOM ICT Services GmbH, ou=WOL-110131, [email protected] om, c=DE 2012.02.17 08:51:10 +01'00' cn=Marco Lenjoint, o=CETECOM ICT Services GmbH, ou=LEJ-100721, email=marco.lenjoint@cete com.com, c=DE 2012.02.17 11:36:50 +01'00' Test report no.: 1-3371/11-04-03 2012-01-25 Page 2 of 70 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2General information .................................................................................................................................. 4 2.1Notes and disclaimer ..................................................................................................................... 4 2.2Application details ......................................................................................................................... 4 3Test standard/s: ......................................................................................................................................... 4 4Test Environment ...................................................................................................................................... 5 5Test Item ..................................................................................................................................................... 5 6RSP100 Test report Cover Sheet/Performance Test Data ..................................................................... 6 7Summary of Measurement Results ......................................................................................................... 7 8Test Set-up ................................................................................................................................................. 8 8.1Frequency Measurements ............................................................................................................. 8 8.2Timing Measurements ................................................................................................................... 8 8.3Conducted Emission Test ............................................................................................................. 8 8.4Radiated Emission Test ................................................................................................................. 9 8.5Power Line Conducted Emissions Test ....................................................................................... 9 8.6Monitoring Tests........................................................................................................................... 10 8.7Radiated Output Power Test ....................................................................................................... 10 9Detailed Test Results .............................................................................................................................. 11 9.1Power Line Conducted Emissions ............................................................................................. 11 9.2Coordination with fixed microwave ............................................................................................ 16 9.3Digital Modulation Techniques ................................................................................................... 16 9.4Labeling Requirements ................................................................................................................ 16 9.5Antenna Requirements ................................................................................................................ 17 9.6Channel Frequencies ................................................................................................................... 17 9.7Automatic Discontinuation of Transmission ............................................................................. 18 9.8Peak Power Output ...................................................................................................................... 19 9.9E m i s s i o n B a n d w i d t h B ......................................................................................................... 24 9.10Power Spectral Density ........................................................…
