UP2AW24THAW24TH WIRELESS MODULE

AW24TH User Manual 2.4GHz 802.15.4 Radio Module Integrated LNA/PA UMAW24TH Rev 1v0 April 24, 2012 2.4GHz DSSS SPI Radio with Integrated Power Amplifier AW24TH User Manual Artaflex Inc. UMAW24TH Rev 1v0 215 Konrad Crescent April 24, 2012 Markham, Ontario, Canada L3R8T9 Page 2 of 10 http://www.artaflexmodules.com 905-479-0148 Introduction One of the bottlenecks that many product developers encounter in incorporating any radio communication device is facing the legal aspect of qualifying the products and going to market without encountering legal problems. The Telecommunication Certification Body (TCB) authorization process in the United States offers manufacturers more than one approval body. The TCB authorization process certifies devices in accordance with FCC rules and policies. The performance of the Artaflex AW24TH radio is measured according to the requirements of FCC rules. The major applicable FCC regulations are described in Section 15.247 (a) to (d). This document gives an overview of the legal issues governing the manufacture and sale of the Artaflex AW24TH wireless module intended for unlicensed operation in the United States under FCC Part 15, Industry Canada RSS-210 and European Union ETSI EN 300 328-2 (Article 3.2 of R&TTE) and ETSI EN 301 489-1 & ETSI EN 301 489-7. OEMs may need to obtain standard equipment regulatory agency certification and for end product deployment in countries where Modular Approval is not recognized. The details of standard equipment regulatory compliance are beyond the scope of this document. OEMs needing standard equipment regulatory testing or who need council for determining regional requirement should contact approved certification and test service providers accordingly. Artaflex can provide assistance in obtaining regulatory compliance when required by the OEM. 2.4GHz DSSS SPI Radio with Integrated Power Amplifier AW24TH User Manual Artaflex Inc. UMAW24TH Rev 1v0 215 Konrad Crescent April 24, 2012 Markham, Ontario, Canada L3R8T9 Page 3 of 10 http://www.artaflexmodules.com 905-479-0148 Table of Content Page 1.0 Eligibility Requirements for Regulatory Module Approval..................................... 4 2.0 User Guide Information.................................................................................... 5 3.0 United States Regulatory FCC Modular Approval (MA).......................................... 5 3.1 Antenna Regulation................................................................................. 5 3.2 Emissions Compliance Testing................................................................. 6 3.3 Working with Additional Transmitters....................................................... 6 3.4 Product Labeling Requirements................................................................ 7 4.0 Industry Canada Regulatory Approval ................................................................ 7 4.1 Product Labeling Requirements................................................................ 8 5.0 European Union Regulatory Approval................................................................. 8 5.1 Product Labeling Requirements................................................................ 8 5.2 European Countries Recognizing Modular Approval.................................... 9 6.0 FCC RF Exposure Statement....................................................... .................... 10 2.4GHz DSSS SPI Radio with Integrated Power Amplifier AW24TH User Manual Artaflex Inc. UMAW24TH Rev 1v0 215 Konrad Crescent April 24, 2012 Markham, Ontario, Canada L3R8T9 Page 4 of 10 http://www.artaflexmodules.com 905-479-0148 1.0 Eligibility Requirements for Regulatory Module Approval The Artaflex 802.15.4 Radio Module “AW24TH” is a device that transmits and receives radio signals in accordance with the spectrum regulations for the 2.4GHz unlicensed frequency range. Regional regulatory agency approval may be required to operate AW24TH throughout the world. For purposes of ease of integration, time to market, and product surety, Artaflex submitted the AW24TH to relevant agencies and obtained regulatory approvals for specific countries. The AW24TH was approved under the “Modular Approval (MA) Grant”. This certification represents a significant cost savings to the OEM. The radio certification portion of this grant is transferable to Digital Electronic Device manufacturers given adherence to specific implementation criteria noted herein. Any modification of the AW24TH will void the manufacturer’s warranty. Any alteration or deviation from the documented installation and/or use of the AW24TH will void the MA Grant as it applies to the end-product. In the event the Digital Electronic Device manufacturer alters the herein described and approved installation of the AW24TH, the end-product may require a complete recertification testing by the Digital Electronic Device manufacturer. The MA Grant provides that Digital Electronic Device manufacturers, who incorporate the AW24TH as tested and approved, can be relieved from having to perform the Radio Regulatory certification portion of the respective agency certification. While the OEM for a device into which an authorized module is installed is not required to obtain a new authorization for the module, this does not preclude the possibility that some other form of authorization or testing may be required for the device (e.g., a WLAN into which an authorized module is installed must still be authorized as a PC peripheral, subject to the appropriate equipment authorization). The MA Grant is valid only in countries that recognize the MA Grant certification process. Countries currently accepting the MA Grant include; the USA, Canada, and many European countries as noted in Section 5.2 of this document. Terms and conditions of regulatory approval for these countries are also described herein. However, this “grandfathered” radio certification does not relieve the Digital Electronic Device manufacturers from …

Text truncated - open the document above for the full version.

ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 FRM-00002 Rev. 1.0 Markham, ON L3R8T9Canada www.artaflex.com April 19, 2012 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: This is your letter of authorization to accept our appointment of Global Advantage International a consulting and testing laboratory to act as Agent for Artaflex Inc., 215 Konrad Crescent Unit #2, Markham, Ontario, L3R 8T9, to sign applications before the Commission and to make representations to you on our behalf. Global Advantage International is to receive and exchange data between our company and the Commission. This appointment is affective until otherwise notified by Artaflex Inc. It is our intention to provide the commission with a full disclosure of our product so that its merits can be evaluated. Indeed, we are pleased to provide any further information that the commission might wish to see. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Thank you for your attention. Please contact Artaflex Inc. if the Commission requires further information. Sincerely, _________________________ Kashif Ahmed RF Design Engineer Artaflex Inc.

ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 1 of 2 Markham, ON L3R8T9Canada www.artaflex.com Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 April 19, 2012 Re: Request for Full Modular Approval for Mobile Application / FCC Part15C, Section 15.247 for Digital Transceiver Model AW24TH / FCC ID: UP2AW24TH To whom it may concern: Modular Approval is being requested for this device. The following statements detail these requirements and the manner in which the device meets them. The module has its own complete RF transceiver with built in antenna and reference oscillator. The module meets all of the technical specifications applicable to the frequency band of operation. 1. RF Shielding The module contains metal shield over the transmitter section to ensure that it does not have to rely upon shielding provided by the device into which it is installed and to prevent coupling into which the device will be installed. 2. Buffered Modulation / Data Inputs Data to the modulation circuit is buffered on the module via the WirelessUSB integrated circuit. Refer to the information regarding the on-board Serdes (SPI) provided with the file “Data Sheet DSAW24TH” that details the theory of operation. 3. Power Supply Regulation Power supply regulation is provided within the integrated circuit that regulates the control voltage to the RF and data circuitry. The maximum allowable voltage that can be used in the chip is 2.7VDC – 3.7VDC. The variable input voltage is therefore a voltage regulator. 4. Antenna Requirements There are four module variants , which uses a mini coaxial connector U.FL, RPSMA, and RPSMA RA for adaptation of an external antenna. The fourth variant has a Chip Antenna Integrated on the PCB 5. The modular transmitter must be tested in a stand-alone configuration Test data contained in this application is for the device tested as a stand alone device. Radiated spurious emissions data demonstrating compliance with the requirements of Part 15 of the FCC rules for intentional radiators has been provided. Please refer to the test report for details. ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 2 of 2 Markham, ON L3R8T9Canada www.artaflex.com 6. The modular transmitter must be labeled with its own FCC ID number All four module variants itself appropriately labeled with its own FCC ID. When the module is installed inside another device or in a casing, the exterior label will make reference to the enclosed module and its FCC ID. Refer to the label location and drawings contained within this application. The UMAW24TH User Manuals contain specific references for exterior end product label requirements, including the use of the wording “Contains Transmitter Module FCC ID UP2AW24TH”. 7. Operating requirements The module has no serviceable parts. The Digital Electronic Device manufacturer has control to the module via the serial data for data transmission modes and data rates as well as predefined output power settings. This can be seen in the “UP2AW24TH-Module_DS_Rev_2_4” provided. 8. RF Exposure requirements The module meets the requirements for a portable device as per FCC RF exposure requirements and requires a separation distances of 20cm between the radiating structure and human as reflected in the module’s UMAW24TH User Manual. Sincerely, _________________________ Kashif Ahmed RF Design Engineer Artaflex Inc.

ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 FRM-00002 Rev. 1.0 Markham, ON L3R8T9Canada www.artaflex.com April 19, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Confidentiality Request regarding application for certification of FCC ID: UP2AW24TH Dear Examiner: I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Type Bill of Material (Parts List) UP2AW24TH-Parts List Schematics UP2AW24TH-Schematic Block Diagram UP2AW24TH-Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to Artaflex Inc. and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application Thank you for your attention. Please contact Artaflex Inc. if the Commission requires further information. Sincerely, _________________________ Kashif Ahmed RF Design Engineer Artaflex Inc.

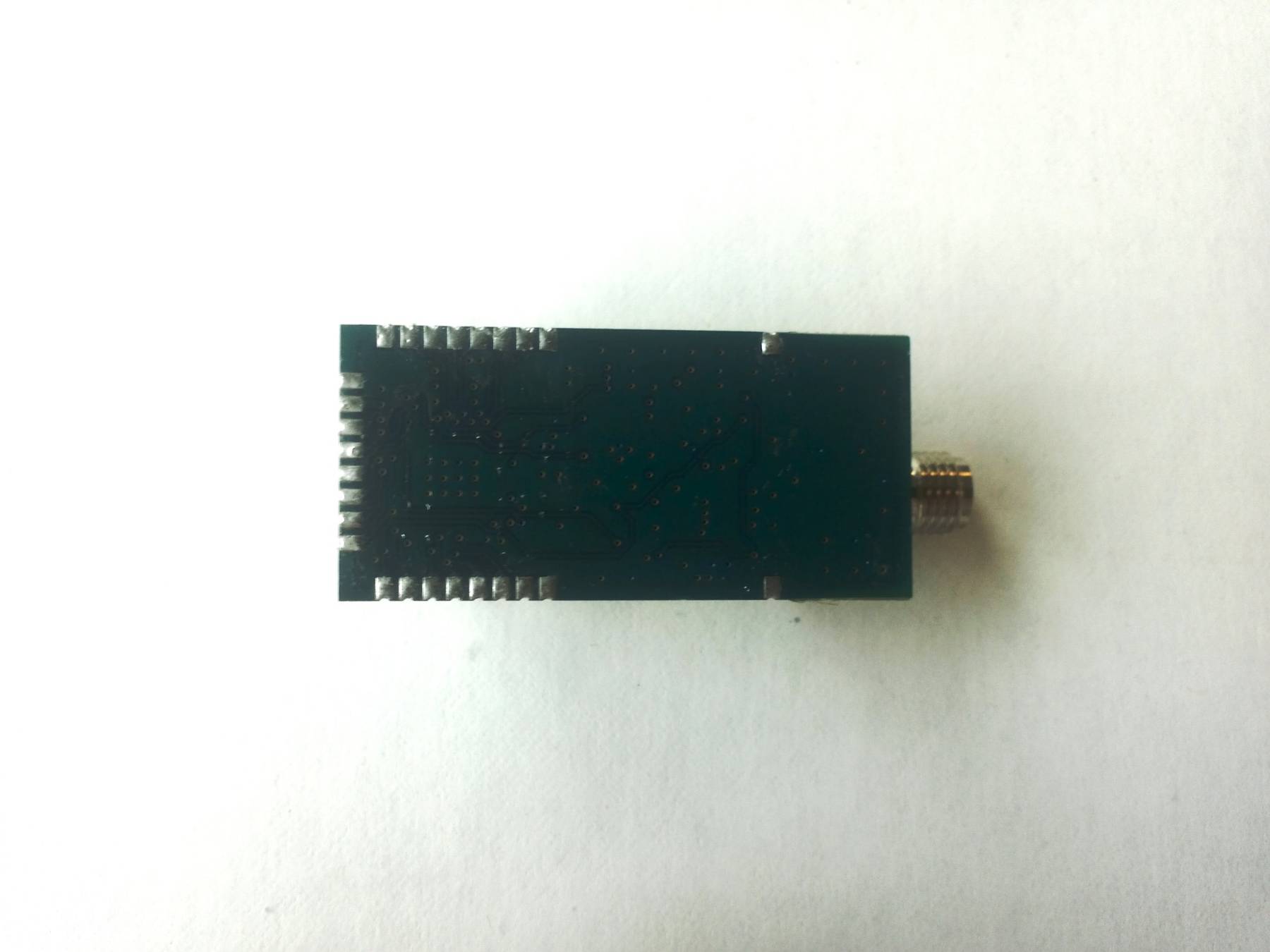

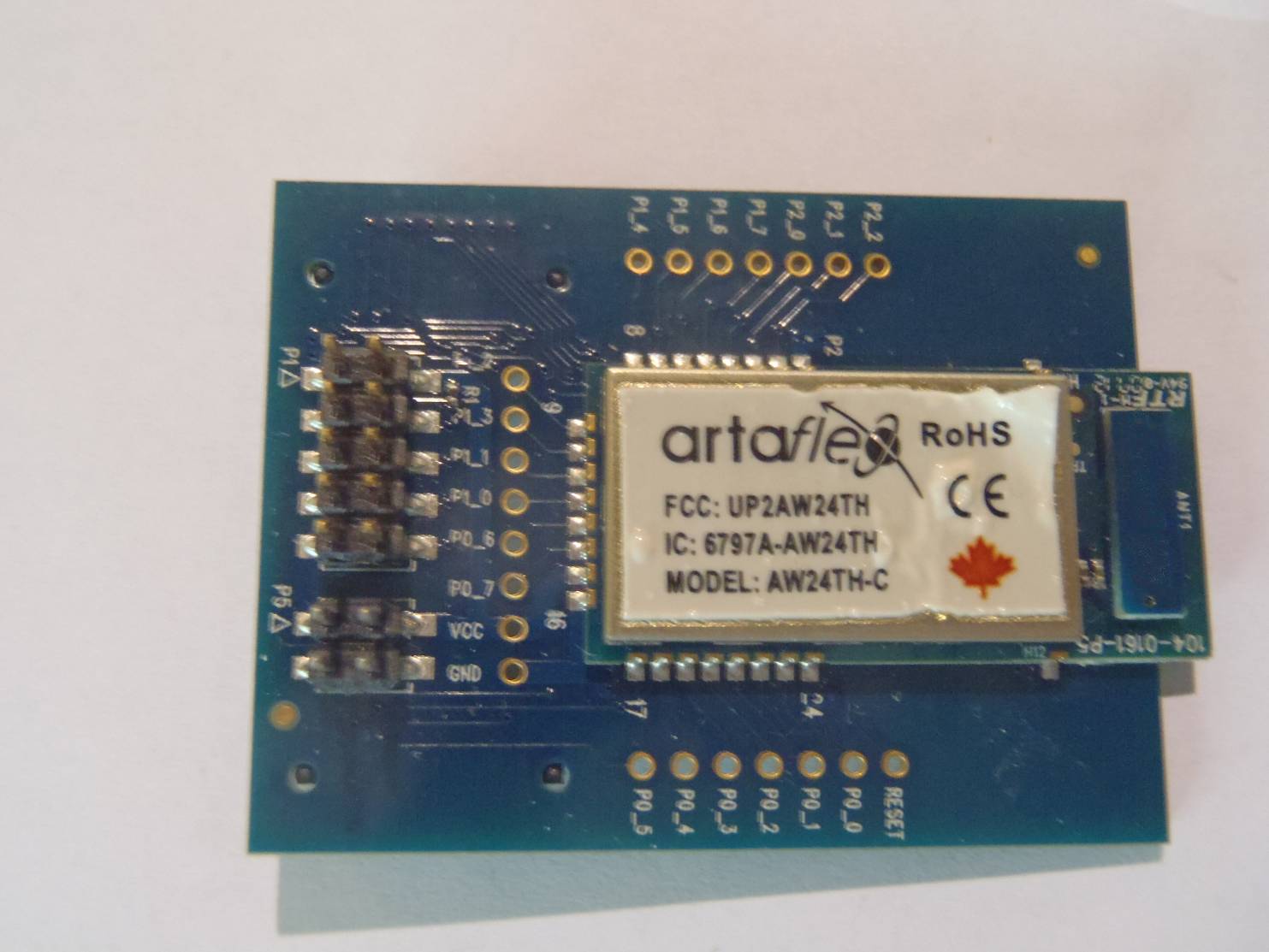

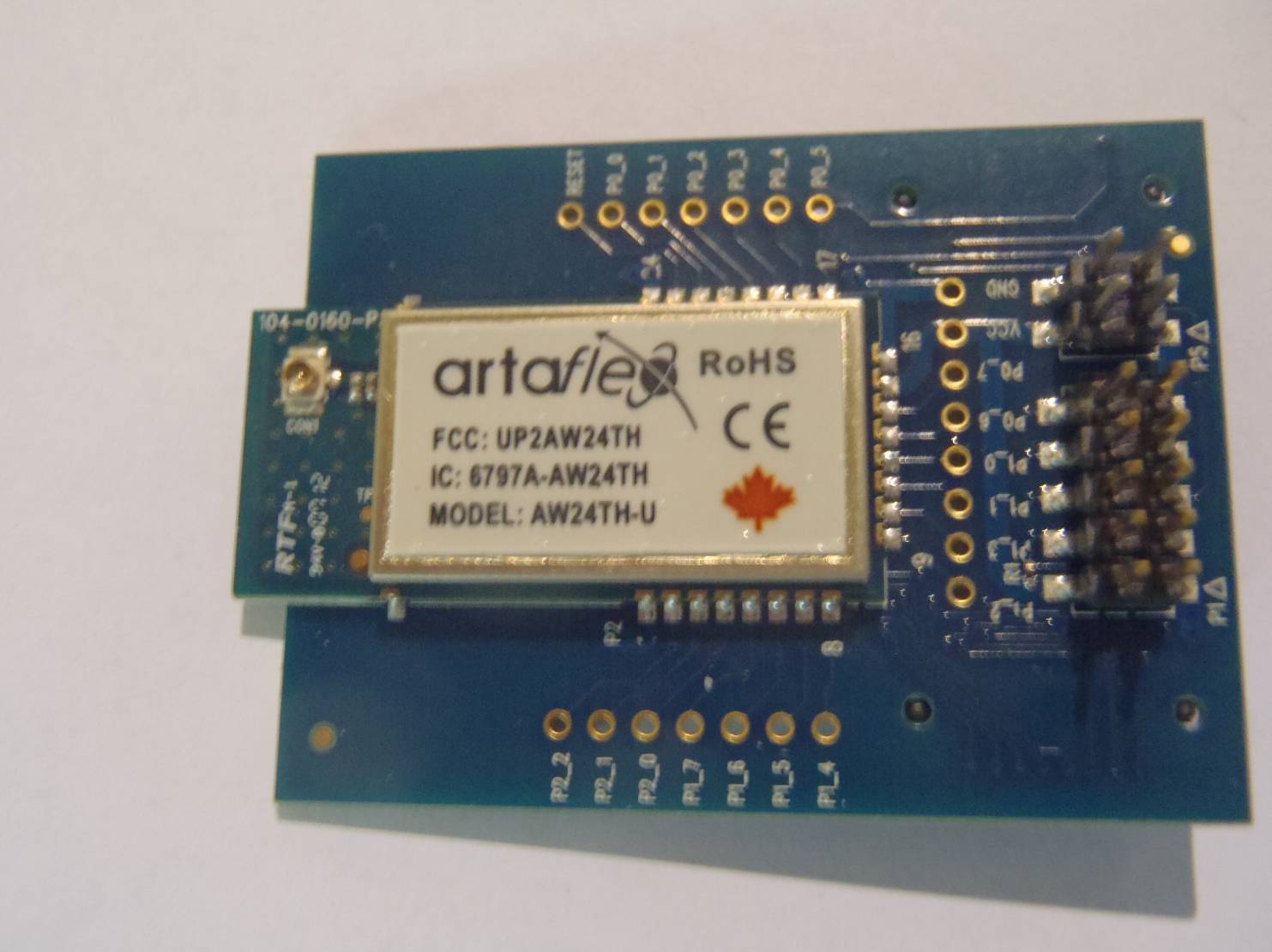

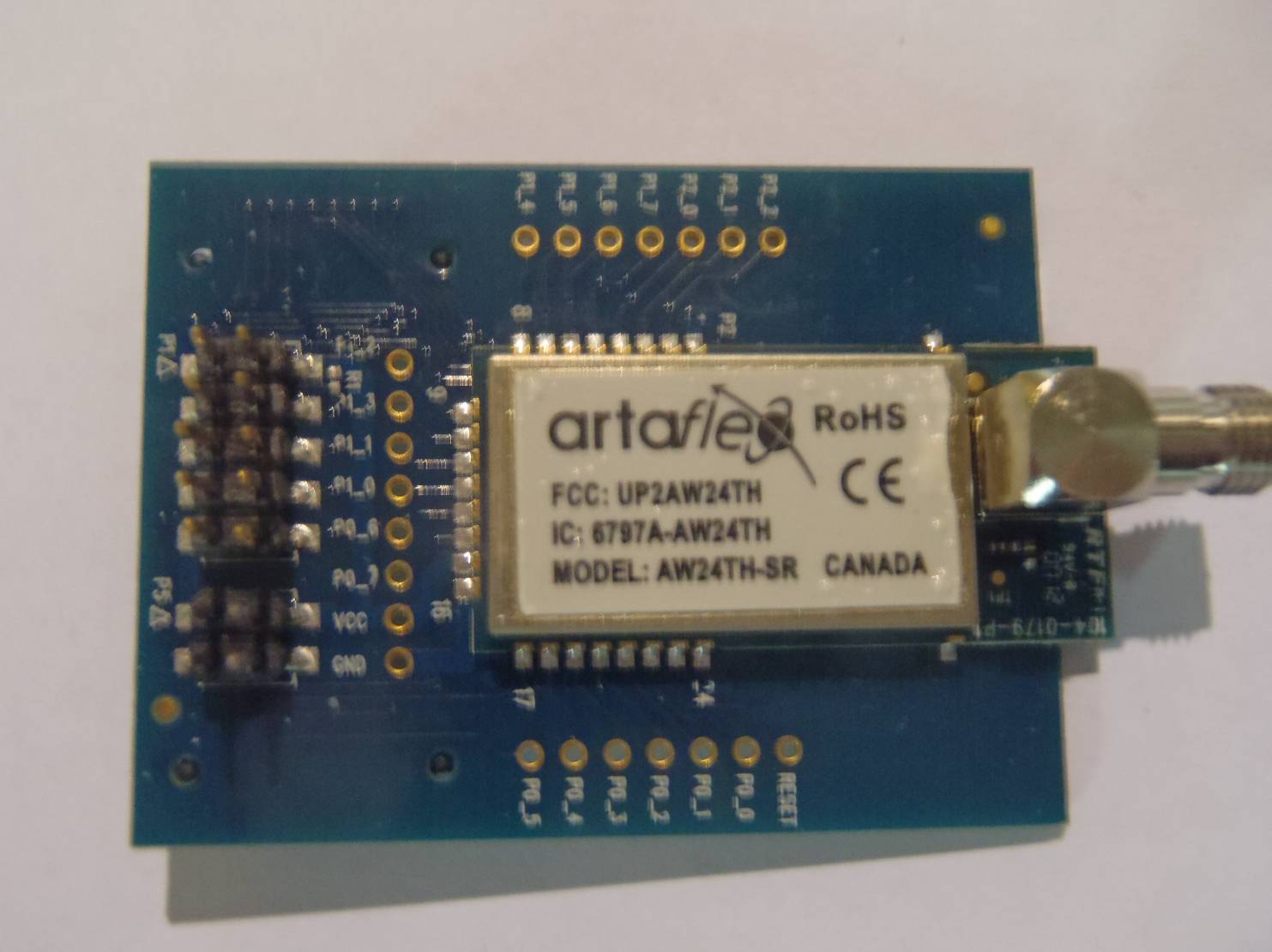

Note: Top view – Reverse Polarity SMA version shown mounted on host card. Note: Top view – Right Angle Reverse Polarity SMA version shown mounted on host card. Note: Top view – U.Fl version shown mounted on host card. Note: Top view – Chip antenna shown mounted on host card.

Label AW24TH with U.FL Connector Label AW24TH with RPSMA Connector Label AW24TH with RPSMA Right Angle Connector Label AW24TH with Integrated Chip Antenna

Artaflex Wireless Module AW24TH-X Data Sheet Artaflex Inc. DSAW24TH Rev 2.4 (120-0013) 215 Konrad Crescent http://www.artaflexmodules.com Markham, Ontario, Canada L3R8T9 Page 1 of 13 905-479-0148 1 Features – Modules based on 2.4-GHz IEEE 802.15.4 Compliant TI RF Transceiver – Support ZigBee Pro, RF4CE, WHART, and Simplicity software stacks – Highest Link Budget in Industry -138dB (with a 5dBi Antenna) – Multiple designs with different form factors, antenna interfaces, and population options – Robustness to Interference – Programmable Output Power Up to 24dBm – Compliant With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T-66 (Japan) Low Power – Active-Mode RX (CPU Idle): 24 mA – Active Mode TX at 1 dBm (CPU Idle): 29 mA – Power Mode 1 (4 ms Wake-Up): 0.2 mA – Power Mode 2 (Sleep Timer Running): 2 uA – Power Mode 3 (External Interrupts): 0.5 uA – Wide Supply-Voltage Range (2.7V–3.6 V) Microcontroller – High-Performance and Low-Power 8051 Microcontroller Core With Code Pre-fetch – 32-, 64-, 128-, or 256-KB In-System- Programmable Flash – 8-KB RAM With Retention in All Power Modes – Hardware Debug Support · Peripherals – Powerful Five-Channel DMA – IEEE 802.15.4 MAC Timer, General- Purpose Timers (One 16-Bit, Two 8-Bit) – IR Generation Circuitry – 32-kHz Sleep Timer With Capture – CSMA/CA Hardware Support Peripherals – Powerful Five-Channel DMA – IEEE 802.15.4 MAC Timer – General-Purpose Timers (One 16-Bit, Two 8-Bit) – IR Generation Circuitry – 32-kHz Sleep Timer With Capture – CSMA/CA Hardware Support 2 Applications  – PC Human Interface Devices (HID) – Wireless Keyboards and Mice – VOIP and Wireless Headsets – Wireless Game pads – Remote Control  – White Goods (Smart Appliances) – Air Conditioners – Kitchen Compactors – Dishwashers – Washers – Dryers  – Consumer – Sports and Leisure Equipment – Remote Controls – Audio Subwoofer – Presenter Tools – Locator Alarms – Toys  – Building/Home Automation – Automatic Meter Readers (AMR) – On-Site Paging Systems – Garage door opener – Alarm and Security – Lighting Control – Climate Control – Fan Control  – Industrial Control – Active RFID and asset tracking systems – Inventory Management – Point-of-sale systems – Factory Automation – Data Acquisition Formatted: Bullets and Numbering Formatted: Bullets and Numbering Formatted: Bullets and Numbering Formatted: Bullets and Numbering Formatted: Bullets and Numbering Formatted: Bullets and Numbering Artaflex Wireless Module AW24TH-X Data Sheet Artaflex Inc. DSAW24TH Rev 2.4 (120-0013) 215 Konrad Crescent http://www.artaflexmodules.com Markham, Ontario, Canada L3R8T9 Page 2 of 13 905-479-0148 23 Functional Description The Artaflex Zigbee module family is based on TI 2.4 GHz IEEE 802.15.4 RF transceiver, providing a cost- effective solution for data links and wireless networks. The module design supports peer-to-peer, star, and mesh networking. For enhanced range performance over standard IEEE 802.15.4/Zigbee implementations Artaflex Zigbee module is offered with 250mW transmitter output power option i.e the highest RF power available on any Zigbee product in the market. Additionally, each module offers a Dynamic Power Configuration capability giving the ability to bypass the power amplifier for a 1mW power output when low power operation is imperative. The Artaflex Zigbee module are available with different antenna options. AW24THC has an integrated chip antenna. The two other module types AW24THS, and AW24THU have the option to be populated with an SMA or U.FL connector for use with an external cabled antenna. The module is FCC, IC, and CE certified for fast and simple integration into end applications. These modules provide the lowest cost, best in class performance, in a compact form factor 4 ABSOLUTE MAXIMUM RATINGS RA TING VALUE UNIT Power Supply Voltage 3.6 Vdc Voltage on any Digital Pin VDD+0.3, Max 3.6 Vdc RF Input Power +10 dBm Storage Temperature Range -40 to 125 C ̊ Note : Exceeding the maximum ratings may cause permanent damage to the module of devices. 5 OPERATING CONDITIONS C HARACTERISTIC MIN TYP MAX UNIT Power Supply Voltage (Vdd) 2.7 3.3 3.6 Vdc Input Frequency 2405 2480 MHz Ambient Temperature Range -40 25 85 C ̊ Logic Input Low Voltage 0 30% Vdd Logic Input High Voltage 70% Vdd Vdd V Artaflex Wireless Module AW24TH-X Data Sheet Artaflex Inc. DSAW24TH Rev 2.4 (120-0013) 215 Konrad Crescent http://www.artaflexmodules.com Markham, Ontario, Canada L3R8T9 Page 3 of 13 905-479-0148 The CC2530 chipset building blocks can be roughly divided in to one of three categories. a) CPU-and memory related: b) Peripherals, clocks, and power management: c) Radio related blocks. In the following sub sections, a short description of important blocks is given. For more details about their usage, see the corresponding chapter in the CC253x SOC User's Guide available at http://www.ti.com. 6 CPU and Memory The 8051 CPU core is a single-cycle 8051-compatible core . It has three different memory access buses (SFR, DATA, and CODE/XDATA) with single-cycle access to SFR, DATA and the main SRAM. It also includes a debug interface and an 18-input extended interrupt unit. The interrupt controller services a total of 18 interrupt sources, divided into six interrupt groups, each of which is associated with one of four interrupt priorities. Any interrupt service request is serviced also when the device is in idle mode by going back to active mode. Some interrupts can wake up the device from sleep mode (when in sleep mode, the device is in one of the three low-power modes PM1, PM2, or PM3). The memory arbiter is at the heart of the system, as it connects the CPU and DMA controller with the physical memories and all peripherals through the SFR bus. The memory arbiter has four memory access points, access of which can map to one of three physical memories: SRAM, flash memory, and XREG/SFR registers. It is responsible for …

Text truncated - open the document above for the full version.

Global EMCScott Dry Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radi a R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:24.50(dBm) Maximum peak output power at antenna input terminal:281.8382931(mW) Antenna gain(typical):5(dBi) Maximum antenna gain:3.16227766(numeric) Time Averaging:100(%) Prediction distance:20(cm) Prediction frequency:2450(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.177309(mW/cm^2) Margin of compliance:-7.5(dB) This e quates to1.773087404W/m^2PASS 2 4R PG S π = This equates to1.773087404W/m 2PASS For informationThis equates to25.85447643 V/m 2 4R PG S π =

LAB REGISTRATION #6844A-2 FCC REGISTRATION #612361 Testing Laboratory Certificate #2555.01 Page 1 of 58 Report issue date: 5/28/2012 GEMC File #:GEMC-FCC-20767R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2010 Unlicensed Intentional Radiators on the Artaflex Wireless Radio Modules (AW24TH) Scott Drysdale, Narte Certified Technician EMC Lab Manager Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details . Client Artaflex Product Artaflex Wireless Radio Module (AW24TH) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 2 of 58 Report issue date: 5/28/2012 GEMC File #: GEMC-FCC-20676R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Radiated Emissions .......................................................................................................... 13 6dB Bandwidth of Digitally Modulated Systems ............................................................ 32 Maximum Peak Envelope Conducted Power - DM ......................................................... 36 Spurious Conducted Emissions........................................................................................ 36H42 17HPower Spectral Density - DM .......................................................................................... 37H48 18HAppendix A – EUT Summary.............................................................................................. 38H51 19HAppendix B – EUT and Test Setup Photographs................................................................. 39H53 Client Artaflex Product Artaflex Wireless Radio Module (AW24TH) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 3 of 58 Report issue date: 5/28/2012 GEMC File #: GEMC-FCC-20676R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the Artaflex Wireless Radio Module (AW24TH), herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Artaflex Product Artaflex Wireless Radio Module (AW24TH) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 4 of 58 Report issue date: 5/28/2012 GEMC File #: GEMC-FCC-20676R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: UP2AW24TH EUT Industry Canada Certification #, IC: 6797A-AW24TH EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Scott Drysdale Client Artaflex Product Artaflex Wireless Radio Module (AW24TH) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 5 of 58 Report issue date: 5/28/2012 GEMC File #: GEMC-FCC-20676R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation QuasiPeak Average Pass FCC 15.207 Power line conducted emissions QuasiPeak Average Pass See Justification FCC 15.209 RSS-210 (Table 2) Spuri…

Text truncated - open the document above for the full version.

Radiated Emissions - 9 kHz to 30 MHz Radiated Emissions – 30 MHz to 2 GHz Radiated Emissions – 2GHz to 26 GHz Antenna Conducted Measurements.
