UXS-IPM165USK-Band Transceiver

Version 1.0 IPM-165_US page 1 of 3 2007-02-22 User Manual Product Family: K-Band Transceivers K-Band Transceiver with two integrated patch antennas IPM-165_US Description: - radar-based motion detector centered @ 24.125 GHz - advanced PHEMT-oscillator with low current consumption - mono (single channel) operation - very small outline dimensions Handling Precautions: - This InnoSenT Sensor is sensitive to damage from ESD. - Normal precautions as usually applied to CMOS devices are sufficient when handling the device. Touching the signal output pins has to be avoided at any time before soldering or plugging the device into a motherboard. Absolute Maximum Ratings: Parameter Symbol Rating Units supply voltage V CC 5.25 V operating temperature (out of spec) T OP - 40 / + 85 °C storage temperature T STG + 90 °C Electrical Characteristics: Parameter Symbol min. typ. max. units comment transmit frequency f transmit 24.075 24.125 24.175 GHz output power (EIRP) P out 16 dBm temperature drift Df - 1 MHz/°C antenna pattern Tx (3dB) horizontal 80 ° azimuth vertical 32 ° elevation side lobe suppression horizontal 13 dB azimuth vertical 13 dB elevation IF output voltage offset -300 300 mV supply voltage V CC 4.75 5.0 5.25 V supply current I CC 30 40 mA operating temperature T OP - 20 + 60 °C outline dimensions ~ 25 x 25 x 7 mm Interface: The sensor provides a 2.54mm grid, single row pin header (square pin 0.635mm) Pin # Description In/Out Comment 1 V CC input supply voltage (+5 V) 2 IF1 output signal output 3 GND input analog ground Version 1.0 IPM-165_US page 2 of 3 2007-02-22 Mechanical Outlines: (all dimensions in mm) Approved pulsing conditions to fulfill the FCC requieremts: ∑ ASK modulation with 10kHz and 10% dutycycle (on-time 10μs min.) ∑ Warning: Any other pulsing condition with less than 10μs on-time may void the FCC authorization to operate this equipment. Certification and environment protection: InnoSenT GmbH has established and applies a quality system for: Development, production and sales of radar sensors for commercial and industrial sensors An audit was performed, Report No. 010350 Proof has been furnished that the requirements according to DIN EN ISO 9001:2000 are fulfilled. This InnoSenT product is compliant to the restriction of hazardous substances (RoHs – European Union directive 2002/95/EG). FCC approval ∑ This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ∑ Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may void the FCC authorization to operate this equipment. ∑ Manufacturers of mobile or fixed devices incorporating IPM-165 modules are authorized to use the FCC Grants and IC Certificates of the IPM-165 modules for their own final products according to the conditions referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or the host device shall bear a second label stating "Contains FCC ID: UXS-IPM165" and "Contains IC: 6902A- IPM165". Version 1.0 IPM-165_US page 3 of 3 2007-02-22 Contact Information: InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf Germany Phone: +49 (0) 9528-9518-0 Fax: +49 (0) 9528-9518-99 E-Mail: [email protected] Web: www.InnoSenT.de

- MODULAR APPROVAL REQUEST - CONFIDENTIAL IPM-165 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 27.04.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - Modular Approval Request - Module : IPM-165_US for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - MODULAR APPROVAL REQUEST - CONFIDENTIAL IPM-165 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 27.04.2007 The module IPM-165_US is a K-Band Transceiver working in the 24GHz frequency band. 1. It has its own RF shielding. Any additional shielding is not necessary to comply with Part 15 limits. 2. It has no modulation/data inputs. Possibility of ASK modulation by switching the power supply (on-time min. 10μs). 3. It has no internal power supply regulation. The power supply regulation has to be done on an external board by the customer using the IPM-165_US. 4. The module has been tested with one antenna. The IPM-165_US has one antenna, that is not removable. 5. The module has been tested with an additional driver circuit (ASK with 10kHz and 10% duty cycle). 6. The module will be labelled with its own FCC ID number. 7. The module is operating under the provision of section 15.245. The module fulfils all requirements. Results are shown in Test report No. 2-4565-01-02/07 8. The module complies with any applicable RF exposure requirements.

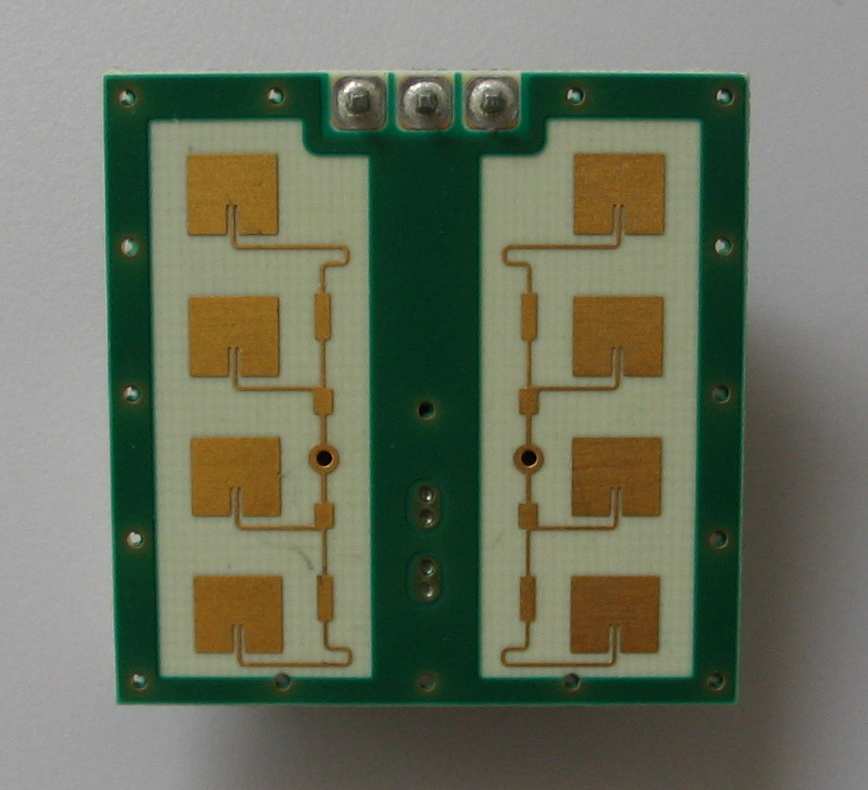

- EXTERNAL PHOTOS - CONFIDENTIAL IPM-165 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 19.02.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - External Photos - Module : IPM-165_US for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - EXTERNAL PHOTOS - CONFIDENTIAL IPM-165 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 19.02.2007 External Photos

- ID-LABEL / LOCATION INFO - CONFIDENTIAL IPM-165 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 27.04.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - ID-Label / Location Info - Module : IPM-165_US for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - ID-LABEL / LOCATION INFO - CONFIDENTIAL IPM-165 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 27.04.2007 ID-Label - Location Info

- INTERNAL PHOTOS - CONFIDENTIAL IPM-165_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 15.01.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - Internal Photos - Module : IPM-165_US for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - INTERNAL PHOTOS - CONFIDENTIAL IPM-165_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 15.01.2007 Internal Photos

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0, Fax +49 (0) 681 598 – 9075 Test report No.: 2-4478-02-02/06 This test report consists of 35 pages Page 1 of 35 Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No.: 90462 (FCC) Anechoic chamber registration No.: IC 3463A-1 TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Test report No. 2-4565-01-02/07 Applicant: InnoSenT GmbH Type: IPM-165_US Test standard: FCC Part 15.245 FCC ID: UXS-IPM165US IC: 6902A-IPM165US CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 2 of 35 Table of contents Page 1. General information............................................................................ 3 1.1 Notes.................................................................................................... 3 1.2 Testing laboratory................................................................................. 5 1.3 Details of applicant................................................................................ 5 1.4 Application details................................................................................. 5 1.5 Equipment under test (EUT)................................................................. 6 1.6 Technical data....................................................................................... 6 1.7 Test standards...................................................................................... 7 2. Technical tests.................................................................................... 8 2.1 Summary of test results........................................................................ 8 2.2 Test environment.................................................................................. 8 2.3 Measurement and test set-up............................................................... 8 2.4 Measurement uncertainty................................................... 8 2.5 Test equipment utilized and test set-up......................................... 9 - 11 2.6 Test results.................................................................................. 12 - 15 3. Plots, graphs and data sheets.................................................. 16 - 27 4. Photographs............................................................................... 28 - 35 CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 3 of 35 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester: Date Name Signature 2007-03-09 Karsten Geraldy Technical responsibility for area of testing: Date Name Signature 2007-03-09 Harro Ames CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 4 of 35 Certification Number: 6902A-IPM165US Model Number: IPM-165_US Manufacturer: InnoSenT GmbH Am Rödertor 30 97499 Donnersdorf Germany +49 (0) 9528 9518-0 +49 (0) 9528 9518-99 Tested to Radio Standards Specification (RSS) No.: RSS-210 Issue 6 Open Area Test Site Industry Canada Number: 3463A-1 Frequency Range (or fixed frequency) [MHz]: 24075 – 24175 MHz (24160 MHz carrier) RF Field strength (max): Radiated: 103.0 dBμV/m@3m Conducted: not performed Antenna Type: Patch antenna Occupied Bandwidth (99% BW) [kHz]: 1.0 Type of Modulation: N0N Emission Designator (TRC-43): 1K00N0N (single carrier) Transmitter Spurious (worst case) [μV/m in 3m]: < 500 μV/m @ 3m Receiver Spurious (worst case) [μV/m in 3m]: -/- ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: Date: 2007-03-09 Test engineer: Harro Ames CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 5 of 35 1.2 Testing laboratory CETECOM ICT Services GmbH CETECOM ICT Services GmbH Untertürkheimerstraße 6–10 P.O. Box 10 04 45 D-66117 Saarbrücken D-66004 Saarbrücken Germany Germany Telephone : + 49 (0) 681 598–0 Fax : + 49 (0) 681 598–9075 e-mail : [email protected] Internet : http://www.cetecom.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Industry Canada (IC) Authority Identification/Registration No. RegTP DAT-P-176/94-D1 FCC 90462 IC IC 3463A-1 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) 1.3 Details of applicant Name : InnoSenT GmbH Street : Am Rödertor 30 Town : 97499 Donnersdorf Country : Germany Phone : +49 (0) 9528 9518-0 Fax : +49 (0) 9528 9518-99 Contact person Name : Stefan Bäuerlein Phone : +49 (0) 9528 9518-71 Fax : +49 (0) 9528 9518-99 E–Mail : [email protected] 1.4 Application details Date of receipt of application : 2007-12-19 Date of receipt of test item : 2007-03-02 Date of test : 2007-03-07 and 2007-03-08 Person(s) who have been : -/- present during the test CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 6 of 35 1.5 Equipment under test (EUT) Description : Field disturbance sensor Type designation : …

Text truncated - open the document above for the full version.

CETECOM ICT Ser vices GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 31 of 35 Photo no.: 4 CETECOM ICT Ser vices GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 32 of 35 Photo no.: 5 CETECOM ICT Ser vices GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 33 of 35 Photo no.: 6 CETECOM ICT Ser vices GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 34 of 35 Photo no.: 7 CETECOM ICT Ser vices GmbH Test report No.: 2-4478-02-02/06 Date: 09.03.2007 Page 35 of 35 Photo no.: 12
