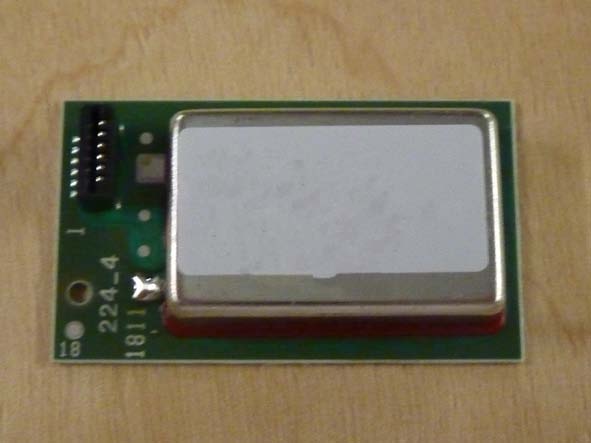

UXS-IPM224FDoppler Radar Module

InnoSenT sets standards – worldwide Page 1 Version 1.0 USER MANUAL IPM-224_F CONFIDENTIAL AND PROPRIETARY The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be disclosed by the recipient to third parties without prior consent of InnoSenT in writing. User Manual IPM-224_F Version 1.0 - 13.09.2011 The IPM-224_F is a K-Band Transceiver with a split transmit and receive antenna. This product is compliant to the restriction of hazardous substances (RoHS - European Union directive 2002/95/EG) Features: »radar-based motion detector »the IPM-224_F is designed for the US and Canadian market »advanced PHEMT-oscillator with low current consumption »IF-pre-amplifier, bandwidth limited for lowest noise performance »compact outline dimensions Product Family Applications K-Band Transceiver Lightning Applications Movement Velocity Direction Presence Distance Angle Description Certificates InnoSenT GmbH has established and applies a quality system for: development, produc- tion and sales of radar sensors for industrial and automotive sensors. and manufactured in Germany designed InnoSenT sets standards – worldwide Page 2 Version 1.0 USER MANUAL IPM-224_F Oscillator transmit frequenciesf FCC 24.07524.175GHzIPM-224_F temperature drift (frequency)Δf-1MHz/°C output power (EIRP)P out 61120dBm @ 25°C Receiver IF-outputvoltage offset1.02.24.0V IF-amplifierbandwidthDC - 10kHz gain20dB signal levelS29mV@ InnoSenT test setup noise levelR57mV@ InnoSenT test setup S/N ratioS/N6@ InnoSenT test setup ESD stability12kV according to DIN EN 6100-4-2 Antenna pattern full beam width @ -3dBhorizontal70° azimuth vertical70° elevation full beam width @ -10dBhorizontal135° azimuth vertical135° elevation side-lobe suppressionhorizontal10dB azimuth vertical10dB elevation Power supply supply voltageV CC 4.755.05.25V supply currentI CC 3540mAIF-amp included Environment operating temperatureT OP 0+23+60°C Mechanical Outlines outline dimensions height length width 6.8 40.0 23.5 mm Electrical Characteristics ParameterSymbolMin.Typ.Max.UnitsComment CONFIDENTIAL AND PROPRIETARY The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be disclosed by the recipient to third parties without prior consent of InnoSenT in writing. InnoSenT sets standards – worldwide Page 3 Version 1.0 USER MANUAL IPM-224_F Interface 1not connected 2not connected 3V CC inputsupply voltage 4GNDinputanalog ground 5IF1outputsignal 1 6not connected Pin # DescriptionIn / OutComment CONFIDENTIAL AND PROPRIETARY The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be disclosed by the recipient to third parties without prior consent of InnoSenT in writing. Mechanical Outlines azimuth 3D-View PIN 1 The sensor provides a 6 pin JST connector (06FMN-BMT-A-TF, SMD, vertical) InnoSenT sets standards – worldwide Page 4 Version 1.0 USER MANUAL IPM-224_F InnoSenT GmbH Am Rödertor 30 97499 Donnersdorf GERMANY Contact Information InnoSenT GmbH | Am Roedertor 30 | 97499 Donnersdorf | Germany Phone: +49 (0) 9528-9518-0 | Fax: +49 (0) 9528-9518-99 | E-Mail: [email protected] www.innosent.de Approval FCC approval Labeling This Data Sheet contains the technical specifications of the described product. Changes of the specification must be in written form. All previous versions of this Data Sheet are no longer valid. The technical specifications of this Data Sheet are approved by: The adhesive label on the cover of the sensor provides the following information: FCC/IC-ID serial number version (K01 / K02) last 3digits of the tramsmit frequency (e.g. 24.125GHz = 125) This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may void the FCC authorization to operate this equipment. Manufacturers of mobile or fixed devices incorporating IPM-224_F modules are authorized to use the FCC Grants and IC Certificates of the IPM-224_F modules for their own final products according to the conditions referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or the host device shall bear a second label stating contains FCC ID: UXS- IPM224F and contains IC: 6902A-IPM224F. model number

- MODULAR APPROVAL REQUEST - CONFIDENTIAL IPM-224_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties page 1 of 2 2011- 08-17 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - Modular Approval Request - Module : IPM-224_F for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - MODULAR APPROVAL REQUEST - CONFIDENTIAL IPM-224_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties page 2 of 2 2011- 08-17 The module IPM-224_F is a K-Band Transceiver working in the 24GHz frequency band. 1. It has its own RF shielding. Any additional shielding is not necessary to comply with Part 15 limits. 2. It has no modulation/data inputs. Possibility of ASK modulation by switching the power supply (on- time min. 10μs) 3. It has no internal power supply regulation. The power supply regulation has to be done on an external board by the customer using the IPM-224_F 4. The module has been tested with one antenna. The IPM-224_F has one antenna, which is not removable. 5. The module will be labelled with its own FCC ID number. 6. The module is operating under the provision of section 15.245. The module fulfils all requirements. Results are shown in Test report No. xxxx 7. The module complies with any applicable RF exposure requirements.
