UXS2Doppler Radar Module

1 von 3 DATA SHEET IPS-265_F 11-01-2011 Version 0.3 _____________________________________________________________________________________________________ User Manual Product Family: Low Cost K-Band Transceiver Range of use: Security- / Door- applications Module Number: IPS-265_F _____________________________________________________________________________________________________ Description: ♦ radar-based motion detector ♦ available in different frequency ranges: Standard; _F and _UK variants ♦ advanced PHEMT-oscillator with low current consumption ♦ split transmit and receive path for maximum gain ♦ dual (stereo channel) operation ♦ very small outline dimensions Block Diagram: Environmental Tests and Handling Precautions: ♦ This InnoSenT sensor is sensitive to damage from ESD. ♦ Normal precautions as usually applied to CMOS devices are sufficient when handling the device. Touching the signal output pins has to be avoided at any time before soldering or plugging the device into a motherboard ♦ Applying multimeters e.g. for resistance measurement between any of the connector pins may cause damage to the module. ~ Oscillator I/Q-Mixer Tx Rx S1 S2 2 von 3 DATA SHEET IPS-265_F 11-01-2011 Version 0.3 Electrical Characteristics: Parameter Symbol min. typ. max. units comment Transmitter transmit frequency f24.075 IPS-265_F 24.175 GHz temperature drift frequency ∆f -1 MHz/°C output power P out 16 dBm positive supply voltage Vcc 5 V positive supply current Icc 30 40 mA Receiver I/Q-balance amplitude 6 db phase 60 90 120 ° IF-output voltage offset -300 300 mV Environment operating temperature T-20 OP 60 °C outline dimensions ~ 25 x 25 x 7 (12.7) mm compare drawing Antenna antenna pattern (-3 dB) horizontal 80 ° azimuth vertical 32 ° elevation side lobe suppression horizontal 13 dB azimuth vertical 13 dB elevation Mechanical Outlines: 3 von 3 DATA SHEET IPS-265_F 11-01-2011 Version 0.3 Interface: The sensor provides a 2.54 mm grid, single row pin header (square pin  0.635 mm). Pin Function Description 1 NC not connected 2 VCC supply voltage 5V 3 IF1 signal 1 output 4 GND GND 5 IF2 signal 2 output Certification and environment protection: InnoSenT GmbH has established and applies a quality system for: Development, production and sales of radar sensors for commercial and industrial sensors An audit was performed, Report No. 010350 Proof has been furnished that the requirements according to DIN EN ISO 9001:2000 are fulfilled. This InnoSenT product is compliant to the restriction of hazardous substances (RoHs – European Union directive 2002/95/EG). FCC approval • This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may void the FCC authorization to operate this equipment. • Manufacturers of mobile or fixed devices incorporating IPS-265_F modules are authorized to use the FCC Grants and IC Certificates of the IPS-265_F modules for their own final products according to the conditions referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or the host device shall bear a second label stating "Contains FCC ID: UXS2" and "Contains IC: 5904A-UXS2". Contact Information: InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf Germany Phone: +49 (0) 9528-9518-0 Fax: +49 (0) 9528-9518-99 E-Mail: [email protected] Web: www.InnoSenT.de

- MODULAR APPROVAL REQUEST - CONFIDENTIAL IPS-265_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 11.01.2011 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - Modular Approval Request - Module : IPS-265_F for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - MODULAR APPROVAL REQUEST - CONFIDENTIAL IPS-265_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 11.01.2011 The module IPS-265_F is a K-Band Transceiver working in the 24GHz frequency band. 1. It has its own RF shielding. Any additional shielding is not necessary to comply with Part 15 limits. 2. It has no modulation/data inputs. Possibility of ASK modulation by switching the power supply (on-time min. 10μs) 3. It has no internal power supply regulation. The power supply regulation has to be done on an external board by the customer using the IPS-265_F 4. The module has been tested with one antenna. The IPS-265_F has one antenna, that is not removable. 5. The module has been tested with an additional driver circuit (ASK with 10kHz and 10% duty cycle). 6. The module will be labelled with its own FCC ID number. 7. The module is operating under the provision of section 15.245. The module fulfils all requirements. Results are shown in Test report No. xxxx 8. The module complies with any applicable RF exposure requirements.

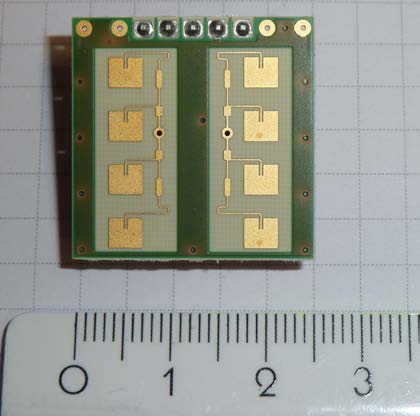

- EXTERNAL PHOTOS - CONFIDENTIAL IPS-265_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 11.01.2011 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - External Photos - Module : IPS-265_F for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - EXTERNAL PHOTOS - CONFIDENTIAL IPS-265_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 11.01.2011 External Photos

- ID-LABEL / LOCATION INFO - CONFIDENTIAL IPS-265_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 21.02.2011 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC / IC -approval - ID-Label / Location Info - Module : IPS-265_F for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf Germany - ID-LABEL / LOCATION INFO - CONFIDENTIAL IPS-265_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 21.02.2011 ID-Label / Location Info or

- INTERNAL PHOTOS - CONFIDENTIAL IPS-265_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 15.01.2011 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - Internal Photos - Module : IPS-265_F for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - INTERNAL PHOTOS - CONFIDENTIAL IPS-265_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 15.01.2011 Internal Photos

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0 , Fax +49 (0) 681 598 – 9075 Test report No.: 1-2710-01-02/10 This test report consists of 30 pages Page 1 of 30 Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No.: 90462 (FCC) Anechoic chamber registration No.: IC 3462C-1 TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number DGA-PL-176/94-D1 Test report No.: 1-2710-01-02/10 Applicant: InnoSenT GmbH Type: IPS-265_F FCC ID: UXS-UXS2 IC-ID: 5904A-UXS2 Test standard: FCC Part 15.245 CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 2 of 30 Table of contents Page 1. General information............................................................................... 3 1.1 Notes...................................................................................................... 3 1.2 Testing laboratory.................................................................................. 4 1.3 Details of applicant................................................................................ 4 1.4 Application details................................................................................. 4 1.5 Equipment under test (EUT)................................................................. 5 1.6 Technical data....................................................................................... 5 1.7 Test standards....................................................................................... 6 1.8 Test report cover sheet.......................................................................................7 2. Technical tests...................................................................................... 8 2.1 Summary of test results........................................................................ 8 2.2 Test environment.................................................................................. 8 2.3 Measurement and test set-up................................................................ 8 2.4 Test equipment utilized and test set-up.............................................. 9 - 11 2.5 Test results........................................................................................... 12 - 16 3. Plots, graphs and data sheets............................................................... 17 - 23 4. Photographs of the EUT...................................................................... 24 - 25 5. Photographs of the test setup............................................................. 26 - 30 CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 3 of 30 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester: Date Name Signature 2011-03-16 René Oelmann Technical responsibility for area of testing: Date Name Signature 2011-03-16 Karsten Geraldy CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 4 of 30 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimerstraße 6–10 D-66117 Saarbrücken Germany Telephone : + 49 (0) 681 598–0 Fax : + 49 (0) 681 598–9075 e-mail : [email protected] Internet : http://www.cetecom.com Accredited testing laboratory Accredited by : DGA Deutsche Gesellschaft für Akkreditierung mbH Listed by : Federal Communications Commission (FCC) Industry Canada (IC) Authority Identification/Registration No. DGA DGA-PL-176/94-D1 FCC 90462 IC IC 3462C-1 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) 1.3 Details of applicant Name : InnoSenT GmbH Street : Am Roedertor 30 Town : 97499 Donnersdorf Country : Germany Phone : +49-(0)9528-9518-0 Fax : +49-(0)9528-9518-99 Contact person Name : Mr. Robert Mock Phone : +49-(0) 9528-9518-0 Fax : +49-(0) 9528-9518-99 E–Mail : [email protected] 1.4 Application details Date of receipt of application : 2011-02-03 Date of receipt of test item : 2011-02-03 Date of test : 2011-02-03 to 2011-03-16 Person(s) who have been : -- present during the test CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 5 of 30 1.5 Test item (EUT) Description : K-Band Transceiver Type designation : IPS-265_F Manufacturer : InnoSenT GmbH Street : Am Roedertor 30 Town : 97499 Donnersdorf Country : Germany 1.6 Technical data Frequency range : 24.075 GHz ... 24.175 GHz Operational frequency : 24.113 GHz Field strength PEP : 113.3 dBμV/m @ 3m distance Type of modulation : N0N (unmodulated carrier) Microwave modules : TX / RX – Module with planar antenna Normal power supply (U nom) : 5V DC Extreme DC power supply : -- CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 6 of 30 1.6.1 Operation conditions Operation: : TX and RX start operating, when the EUT is connected with the power supply Purpose of operation : Motion Sensor 1.6.2 Equipment under test IPS-265_F 1.7 Test standards Code of Federal Regulations (CFR 47) Federal Communications Commission (FCC) FCC Part 15 Radio Frequency Devices SECTION 15.245 Operation within the band 24.075 GHz to 24.175 GHz SECTION 15.205 Restricted bands of operation. SECTION 15.207 Conducted limits SECTION 15.209 Radiation emission limits, general requirements RSS 210 Issue 8, Annex 7 - Field Disturbance Sensors Operating in the Bands 902-928 MHz, 2435-2465 MHz, 5785-5815 MHz, 10.5-10.55 GHz and 24.075-24.175 GHz RSS-GEN Issue 3 December 2010 SECTION 4.6.1 Occupied Band…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 26 of 30 5. Photographs of the test setup Photo no.: 3 Spurious emission measurement 1 GHz – 12 GHz CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 27 of 30 Photo no.: 4 Spurious emission measurement 1 GHz – 12 GHz CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 28 of 30 Photo no.: 5 Spurious emission measurement 9 kHz – 30 MHz (loop antenna) CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 29 of 30 Photo no.: 6 AC conducted line measurement CETECOM ICT Services GmbH Test report No.: 1-2710-01-02/10 Date : 2011-03-16 Page 30 of 30 Photo no.: 7 Spurious emission measurement 30 MHz – 1 GHz
