UXS-IPQ05Stereo K-Band Transceiver Module

Version 1.0 IPQ-05 page 1 of 3 2007-01-24 User Manual Product Family: K-Band Transceivers Stereo K-Band Transceiver with two integrated patch antennas, IF-pre-amplifier and two electronic selectable antenna patterns IPQ-05 Description: - radar-based motion detector centered @ 24.125 GHz - advanced PHEMT-oscillator with low current consumption - split transmit and receive path for maximum gain - stereo (dual channel) operation for direction of motion identification - integrated IF-pre-amplifier - enable input for oscillator shut down - small outline dimensions - two electronic selectable antenna patterns Absolute Maximum Ratings: Parameter Symbol Rating Units supply voltage V CC 5.25 V operating temperature (out of spec) T OP - 40 / + 85 °C storage temperature T STG + 90 °C Electrical Characteristics: Parameter Symbol min. typ. max. units comment transmit frequency f transmit 24.075 24.125 24.175 GHz f @room temperature 24.105 24.145 GHz output power (EIRP) P out 15 20 dBm temperature drift Df - 1 MHz/°C antenna pattern Tx (3dB) horizontal 53 ° azimuth vertical 33 ° elevation antenna pattern Tx (10dB) horizontal 130 ° azimuth vertical 60 ° elevation side lobe suppression Tx horizontal 13 dB azimuth vertical 13 dB elevation antenna pattern Rx1 (3dB) horizontal 53 ° azimuth vertical 33 ° elevation antenna pattern Rx1 (10dB) horizontal 130 ° azimuth vertical 60 ° elevation side lobe suppression Rx1 horizontal 13 dB azimuth vertical 13 dB elevation antenna pattern Rx2 (3dB) horizontal 47 ° azimuth vertical 33 ° elevation antenna pattern Rx2 (10dB) horizontal 85 ° azimuth vertical 64 ° elevation side lobe suppression Rx horizontal 13 dB azimuth vertical 13 dB elevation Version 1.0 IPQ-05 page 2 of 3 2007-01-24 Electrical Characteristics (cont’d): Parameter Symbol min. typ. max. units comment I/Q balance amplitude 6 dB phase 60 90 120 ° IF output voltage offset 1.0 2.2 4.0 V IF-amplifier gain 19 20 21 dB bandwidth DC kHz upper frequency limited by operational amplifier switching voltage high level 2 5.5 V narrow antenna pattern low level GND 0.5 V broad antenna pattern supply voltage V CC 4.75 5.0 5.25 V supply current I CC 35 50 mA operating temperature T OP - 20 + 60 °C outline dimensions ~ 40 x 25 x 24 mm Interface: Pin # Description In/Out Comment 1 enable input active low 2 V CC input supply voltage (+5 V) 3 GND input analog ground 4 IF1 output Signal I(nphase) 5 IF2 output Signal Q(uadrature) 6 not connected mates with: Molex P/N 53014, 53015 and 53025 I/Q Channel: Signal Q is leading if an object moves towards the radar transceiver. I Q Version 1.0 IPQ-05 page 3 of 3 2007-01-24 Certification and environment protection: InnoSenT GmbH has established and applies a quality system for: Development, production and sales of radar sensors for commercial and industrial sensors An audit was performed, Report No. 010350 Proof has been furnished that the requirements according to DIN EN ISO 9001:2000 are fulfilled. This InnoSenT product is compliant to the restriction of hazardous substances (RoHs – European Union directive 2002/95/EG). FCC approval ∑ This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ∑ Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may void the FCC authorization to operate this equipment. ∑ Manufacturers of mobile or fixed devices incorporating IPQ-05 modules are authorized to use the FCC Grants and IC Certificates of the IPQ-05 modules for their own final products according to the conditions referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or the host device shall bear a second label stating "Contains FCC ID: UXS-IPQ05" and "Contains IC: 6902A- IPQ05". Contact Information: InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf Germany Phone: +49 (0) 9528-9518-0 Fax: +49 (0) 9528-9518-99 E-Mail: [email protected] Web: www.InnoSenT.de

- MODULAR APPROVAL REQUEST - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 24.01.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - Modular Approval Request - Module : IPQ-05 for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - MODULAR APPROVAL REQUEST - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 24.01.2007 The module IPQ-05 is a K-Band Transceiver working in the 24GHz frequency band. 1. It has its own RF shielding. Any additional shielding is not necessary to comply with Part 15 limits. 2. It has no modulation/data inputs. 3. It has no internal power supply regulation. The power supply regulation has to be done on an external board by the customer using the IPQ-05. 4. The module has been tested with one antenna. The IPQ-05 has one antenna, that is not removable. 5. The module has been tested in a stand-alone configuration. 6. The module will be labelled with its own FCC ID number. 7. The module is operating under the provision of section 15.245. The module fulfils all requirements. Results are shown in Test report No. 2-4478-02-02/06. 8. The module complies with any applicable RF exposure requirements.

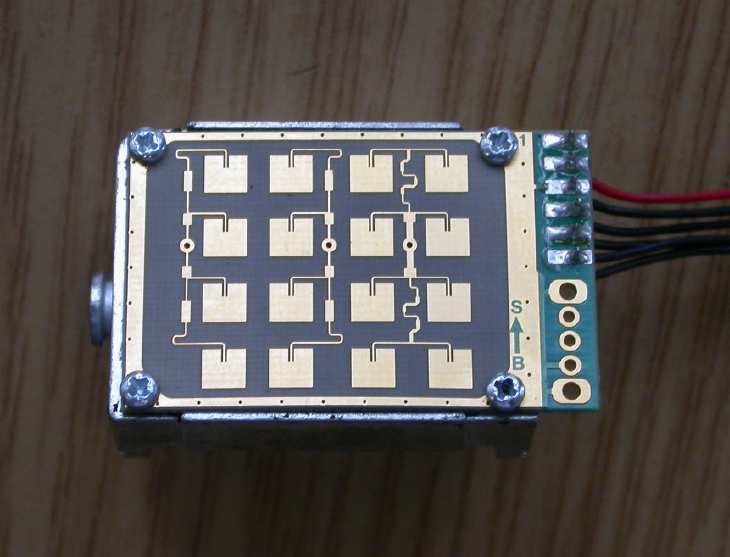

- EXTERNAL PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 15.01.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - External Photos - Module : IPQ-05 for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - EXTERNAL PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 15.01.2007 External Photos

- ID-LABEL / LOCATION INFO - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 23.01.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - ID-Label / Location Info - Module : IPQ-05 for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - ID-LABEL / LOCATION INFO - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 23.01.2007 ID-Label Location Info

- INTERNAL PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 2 15.01.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - Internal Photos - Module : IPQ-05 for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - INTERNAL PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 2 15.01.2007 Internal Photos

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0 , Fax +49 (0) 681 598 – 9075 Test report No.: 2-4478-02-02/06 This test report consists of 40 pages Page 1 of 40 Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No.: 90462 (FCC) Anechoic chamber registration No.: IC 3463A-1 TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Test report No. 2-4478-02-02/06 Applicant: InnoSenT GmbH Type: IPQ-05 Test standard: FCC Part 15.245 FCC ID: USX-IPQ05 IC: 6902A-IPQ05 CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 10.01.2007 Page 2 of 40 Table of contents Page 1. General information............................................................................ 3 1.1 Notes.................................................................................................... 3 1.2 Testing laboratory................................................................................. 4 1.3 Details of applicant................................................................................ 4 1.4 Application details................................................................................. 4 1.5 Equipment under test (EUT)................................................................. 5 1.6 Technical data....................................................................................... 5 1.7 Test standards...................................................................................... 6 2. Technical tests.................................................................................... 7 2.1 Summary of test results........................................................................ 7 2.2 Test environment.................................................................................. 7 2.3 Measurement and test set-up............................................................... 7 2.4 Measurement uncertainty................................................... 7 2.5 Test equipment utilized and test set-up......................................... 8 - 10 2.6 Test results.................................................................................. 11 - 14 3. Plots, graphs and data sheets.................................................. 15 - 26 4. Photographs............................................................................... 27 - 39 CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 10.01.2007 Page 3 of 40 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester : Date Name Signature 2007-01-10 Manfred Paschwitz Technical responsibility for area of testing: Date Name Signature 2007-01-10 Harro Ames CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 10.01.2007 Page 4 of 40 Certification Number: 6902A-IPQ05 Model Number: IPQ-05 Manufacturer: InnoSenT GmbH Am Rödertor 30 97499 Donnersdorf Germany +49 (0) 9528 9518-0 +49 (0) 9528 9518-99 Tested to Radio Standards Specification (RSS) No.: RSS-210 Issue 6 Open Area Test Site Industry Canada Number: 3463A-1 Frequency Range (or fixed frequency) [MHz]: 24075 – 24175 MHz (24122 MHz carrier) RF: Field strength (max): Rad. 104.5 dBμV/m@3m Conducted : not performed Antenna Type: Patch antenna Occupied Bandwidth (99% BW) [kHz]: 1.0 Type of Modulation: N0N Emission Designator (TRC-43): 1K00N0N (single carrier) Transmitter Spurious (worst case) [μV/m in 3m]: < 500 μV/m @ 3m Receiver Spurious (worst case) [μV/m in 3m]: ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: Date: 2007-01-10 Test engineer: Harro Ames CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 10.01.2007 Page 5 of 40 1.2 Testing laboratory CETECOM ICT Services GmbH CETECOM ICT Services GmbH Untertürkheimerstraße 6–10 P.O. Box 10 04 45 D-66117 Saarbrücken D-66004 Saarbrücken Germany Germany Telephone : + 49 (0) 681 598–0 Fax : + 49 (0) 681 598–9075 e-mail : [email protected] Internet : http://www.cetecom.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Industry Canada (IC) Authority Identification/Registration No. RegTP DAT-P-176/94-D1 FCC 90462 IC IC 3463A-1 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) 1.3 Details of applicant Name : InnoSenT GmbH Street : Am Rödertor 30 Town : 97499 Donnersdorf Country : Germany Phone : +49 (0) 9528 9518-0 Fax : +49 (0) 9528 9518-99 Contact person Name : Stefan Bäuerlein Phone : +49 (0) 9528 9518-71 Fax : +49 (0) 9528 9518-99 E–Mail : [email protected] 1.4 Application details Date of receipt of application : 2006-12-19 Date of receipt of test item : 2007-01-09 Date of test : 2007-01-09 and 2007-01-10 Person(s) who have been : Mr. Stefan Bäuerlein present during the test Mr. Thilo Lenhard CETECOM ICT Services GmbH Test report No.: 2-4478-02-02/06 Date: 10.01.2007 Page 6 of 40 1.5 Test item (EUT) Description : Field disturbance sensor Type designatio…

Text truncated - open the document above for the full version.

- TEST SETUP PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 1 von 5 15.01.2007 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: 0049-9528-9518-0 Fax.: 0049-9528-9518-99 Documentation for FCC-approval - Test Setup Photos - Module : IPQ-05 for InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY - TEST SETUP PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 2 von 5 15.01.2007 Internal Photos - TEST SETUP PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 3 von 5 15.01.2007 - TEST SETUP PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 4 von 5 15.01.2007 - TEST SETUP PHOTOS - CONFIDENTIAL IPQ-05 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY The information contained in this document is the exclusive property of InnoSenT GmbH and must not be disclosed by the recipient to third parties Seite 5 von 5 15.01.2007
