FM REMOTE SIGNAL TORQUE WRENCH FM96MCU OPERATION MANUAL 1 Precaution 1. Place the Unit apart form the metallic structure. 2. Do not place the receiver and the transmitter where the antenna contacts with metal or electric wire. 3. Do not cut or curl the antenna or the receiver. 4. Do not use the Unit where the electromagnetic noise takes place by welding machines, electrical discharge machines, PC, etc. 5. If there are any questions, place contact Tohnichi sales office or Tohnichi authorized distributor. FCC Regulatory Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for product compliance could void the user's authority to operate the equipment. Canada Regulatory Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du Canada. For Customers in Canada This device complies with RSS 210 of Industry Canada (IC). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.. 2 <INDEX> . Outline................................................................................................ 3 . Features.............................................................................................. 3 . Construction...................................................................................... 3 . Specifications..................................................................................... 4 . Transmitter-appearance and components.................................. 5 . Receiver-appearance and components......................................... 6 . Precaution.......................................................................................... 7 - Power supply.............................................................................. 7 - Placing the receiver................................................................... 7 - Connection with other apparatus.......................................... 7 . Operation........................................................................................... 8 - Precaution................................................................................... 8 - Replacing battery for transmitter.......................................... 8 - Setting the Time to avoid Double Counting.................................. 8 - Battery Check............................................................................. 9 - Changing channel...................................................................... 9 . Connection to CNA-4mk2......................................................... 10 . Applicable Frequency.................................................................... 11 . Setting the Channel of the Transmitter.................................... 12 . Setting the Channel of the Receiver.......................................... 13 . Receiver Board................................................................................ 14 . FM Board Replacement Procedure..................................................... 15 . Optional Unit.................................................................................. 17 . Troubleshooting.............................................................................. 18 3 1. Outline The FM Remote Signal Torque Wrench integrates a wireless signal generator that counts down the number of bolts or nuts after tightened. The signal transmitter can be installed onto TOHNICHI torque wrenches, such as Models QSP, CSP, PQL, PCL, SP, RSP, etc. It is easy to set the required channel on customer side. 96 channels are available for the Receiver and 16 channels for the Transmitter. The receiver can be connected to the CNA-4mk2 Count Checker to provide complete tightening assurance system to eliminate missed tightening. 2. Features This Remote Signal Type torque wrench sends the tightening completion signal to the Receiver far from the wrench through FM-wave. Tone frequency of FM-wave can be easily set. This feature reduces the number of the Remote Signal torque wrenches for spare and a few torque wrenches enable the more tightening control applications. 3. Construct…

Text truncated - open the document above for the full version.

1 Mike Kuo From: September Radecki Sent: Monday, February 26, 2007 8:29 AM To: Mike Kuo Subject: FW: TOHNICHI MFG. CO., LTD, FCC ID: UY6-FFM96MCU, Assessment NO.: AN07T6539, Notice#1 Attachments: 07J10798-1 FCC Report.Revised.pdf; 99 Percent Bandwidth.pdf 07J10798-1 FCC Report.Revised.... 99 Percent andwidth.pdf (114 . Resend. -----Original Message----- From: September Radecki Sent: Friday, February 23, 2007 4:57 PM To: Helen Zhao Cc: Thu Chan; Shizuka Kamakura; Mika Kaneko Subject: RE: TOHNICHI MFG. CO., LTD, FCC ID: UY6-FFM96MCU, Assessment NO.: AN07T6539, Notice#1 Dear Reviewer, Below are the answers to your questions regarding the above project: Question #1: Based upon the block diagram, there are 13MHz and 480kHz osc. used in this transmitter. However, in the test report, only 41.148 MHz is listed. Please explain. <Answer> The test report has been updated and is attached. Please see Section 5. Question #2: Based upon the block diagram, this device is capable of transmitting from 41.025 - 41.3 MHz, section 7.1 of test report only listed 41.148 MHz. Please explain. <Answer> The EUT tested was a sample which was at 41.148. Section 5 of the report has been modified to show the range. Question #3: Based upon the spectrum plots provided, none of frequencies listed are within 41.025-41.3 MHz, how do you verify the transmitter is actually transmitting during the tests ? Please submit a funmental frequency plots and indicate which channel was used during the tests. <Answer> Please see the attached 99% Bandwidth information derived from the IC Report for this device. Please let me know if you need any further information. Kindest regards, September -----Original Message----- From: Helen Zhao Sent: Friday, February 23, 2007 2:54 PM To: Thu Chan; September Radecki Cc: Mike Kuo Subject: TOHNICHI MFG. CO., LTD, FCC ID: UY6-FFM96MCU, Assessment NO.: AN07T6539, Notice#1 Question #1: Based upon the block diagram, there are 13MHz and 480kHz osc. used in this transmitter. However, in the test report, only 41.148 MHz is listed. Please explain. 2 Question #2: Based upon the block diagram, this device is capable of transmitting from 41.025 - 41.3 MHz, section 7.1 of test report only listed 41.148 MHz. Please explain. Question #3: Based upon the spectrum plots provided, none of frequencies listed are within 41.025-41.3 MHz, how do you verify the transmitter is actually transmitting during the tests ? Please submit a funmental frequency plots and indicate which channel was used during the tests. Best Regards Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

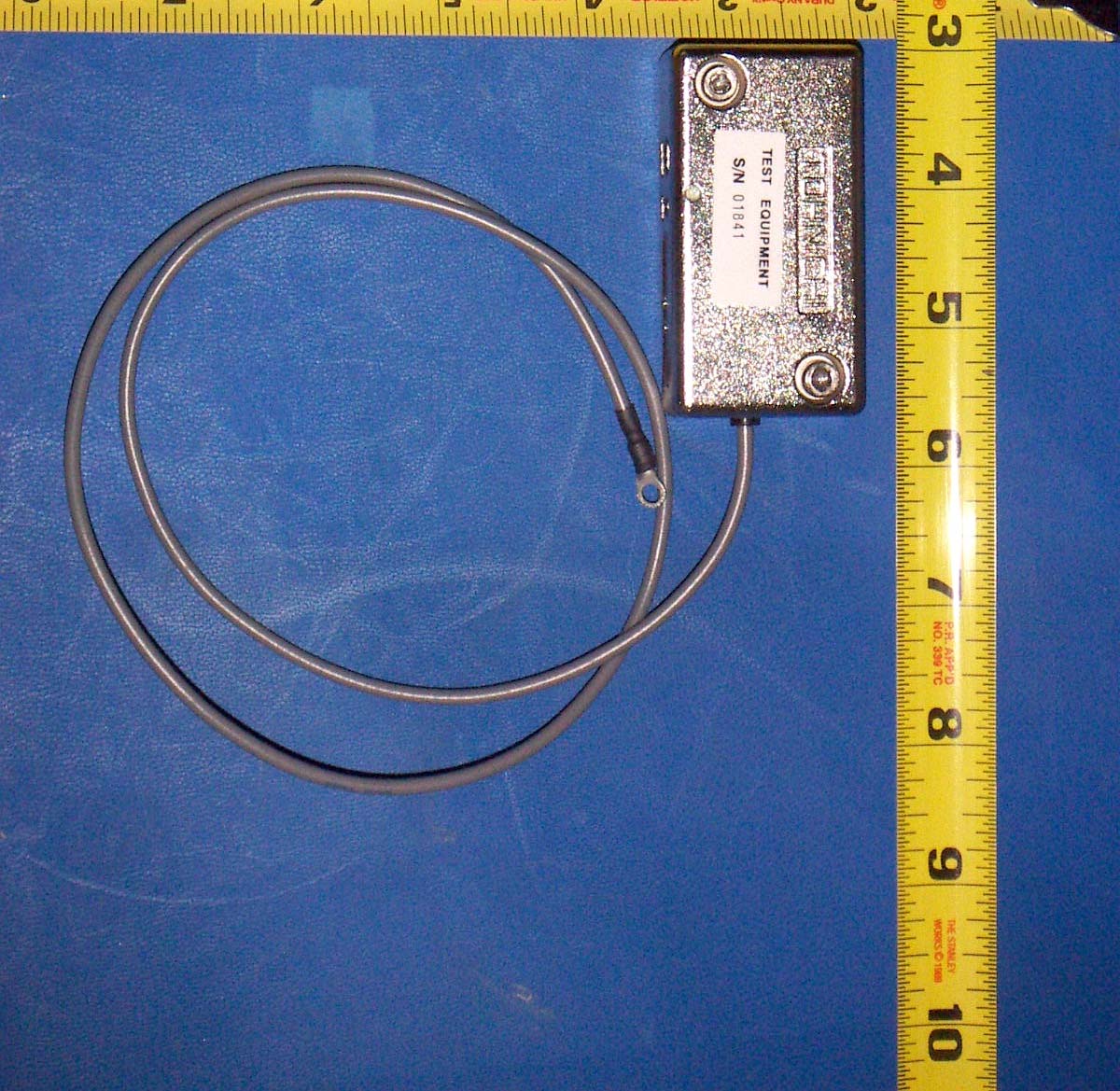

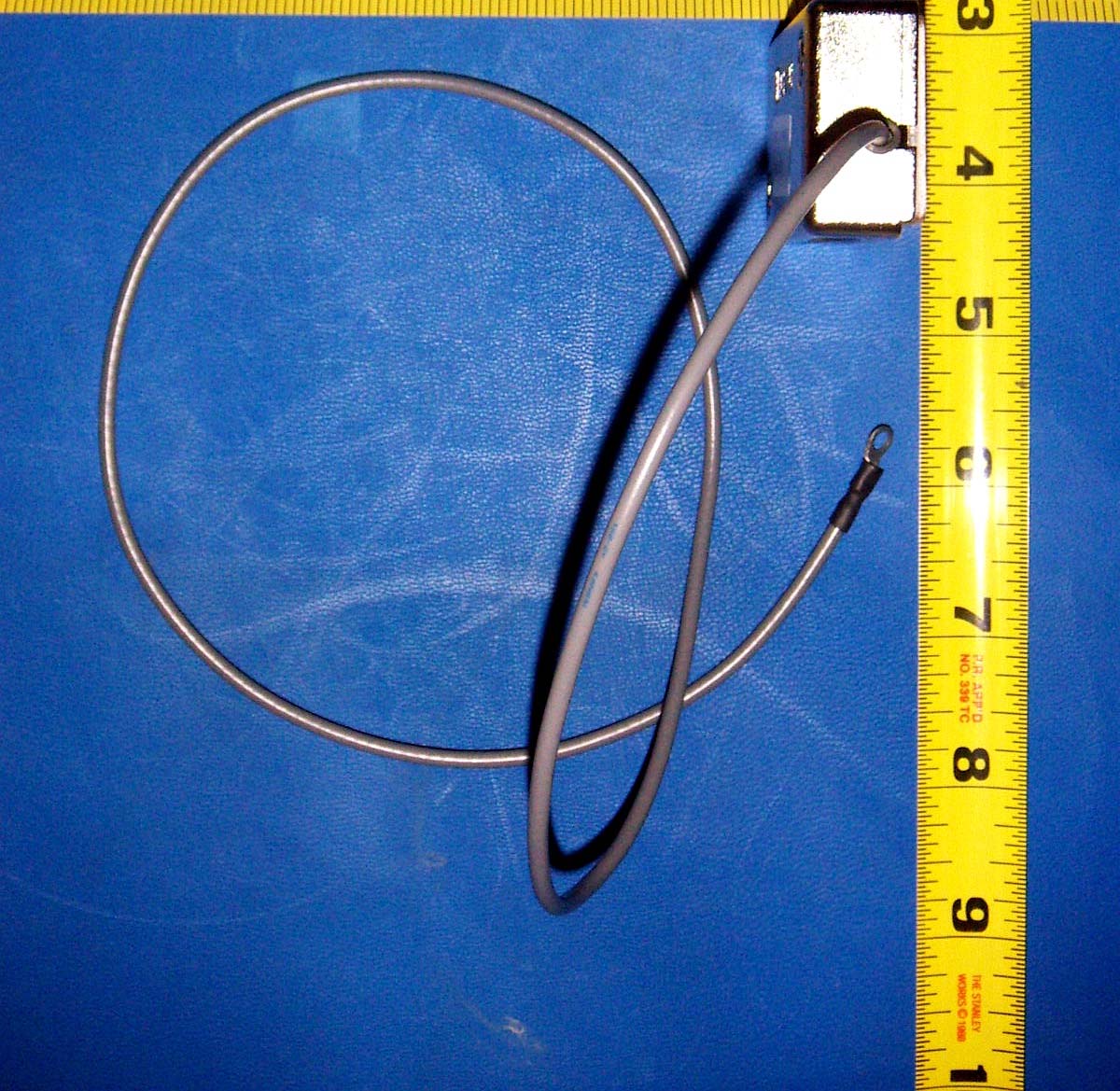

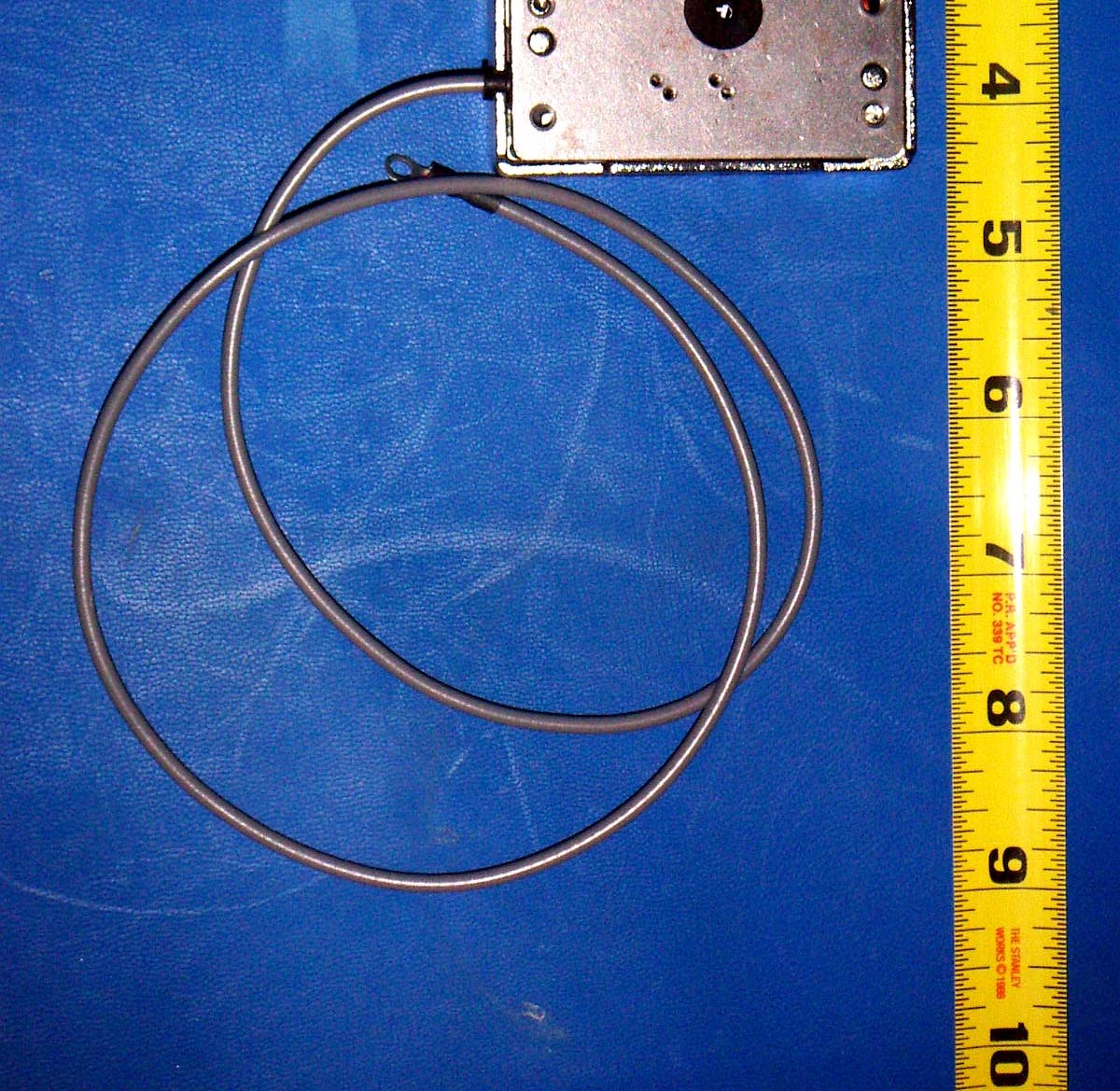

Set-up Procedure for F-FM96MCU 1．Loosen two screws by tool enclosed with EUT and remove the bottom plate. 2. To set up EUT in the transmit mode, lift the lever up and insert sponge in, then LED lights up. While LED is lighting up, the EUT transmits continuously.. 3．Put the bottom plate back to the transmitter with two screws. LED is always ON. Sponge Lever Bottom plate

PROPOSED ID LABEL LOCATION Tohnichi Mfg.Co.,Ltd Model #:F-FM96MCU IC:6561B-FFM96MCU FCC ID:UY6-FFM96MCU

REPORT NO: 06J10798-2 DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER IC: 6561B-FFM96MCU Page 9 of 9 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7. LIMITS AND RESULTS 7.1. 99% BANDWIDTH LIMIT IC RSS-210 Issue 6 A1.1.3 For the purpose of Section A1.1, the 99% bandwidth shall be no wider than 0.25% of the centre frequency for devices operating between 70-900 MHz. For devices operating above 900 MHz, the emission shall be no wider than 0.5% of the centre frequency. The test report shall indicate the measured bandwidth of the emission. TEST PROCEDURE The transmitter output is connected to the spectrum analyzer. 99% Bandwidth: The RBW is set to 1% to 3% of the 99 % bandwidth. The VBW is set to 3 times the RBW. The sweep time is coupled. The spectrum analyzer internal 99% bandwidth function is utilized. RESULTS No non-compliance noted: 99% Bandwidth Frequency99% BandwidthLimitMargin (MHz)(KHz)(KHz)(KHz) 41.1485.8944102.87-96.9756 REPORT NO: 06J10798-2 DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER IC: 6561B-FFM96MCU Page 10 of 10 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 99% BANDWIDTH 99% BANDWIDTH

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR FM TRANSMITTER MODEL NUMBER: F-FM96MCU FCC ID: UY6-FFM96MCU REPORT NUMBER: 07J10798-1, REVISION B ISSUE DATE: FEBRUARY 23, 2007 Prepared for TOHNICHI MFG. CO., LTD 2-12 OMORI-KITA 2-CHOME, OTA-KU TOKYO 143-0016, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 06J10798-1B DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER FCC ID: UY6-FFM96MCU Page 2 of 2 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 02/09/07 Initial Issue T.C. B 02/23/07 Revised Section 5.1 and 5.2 per reviewer’s comments. T.C. REPORT NO: 06J10798-1B DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER FCC ID: UY6-FFM96MCU Page 3 of 3 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. GENERAL INFORMATION ......................................................................................................... 6 5.3. PRELIMINARY TEST CONFIGURATIONS................................................................................. 7 5.4. MODE(S) OF OPERATION ......................................................................................................... 7 5.5. MODIFICATIONS ........................................................................................................................ 7 5.6. DETAILS OF TESTED SYSTEM .................................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 10 7.1. RADIATED EMISSIONS.............................................................................................................10 8. SETUP PHOTOS .............................................................................................................................. 16 REPORT NO: 06J10798-1B DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER FCC ID: UY6-FFM96MCU Page 4 of 4 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: TOHNICHI MFG. CO., LTD 2-12, OMORI-KITA 2-CHOME OTA-KU, TOKYO, 143-0016, JAPAN EUT DESCRIPTION: FM TRANSMITTER MODEL: F-FM96MCU SERIAL NUMBER: CCS01841 DATE TESTED: JANUARY 25 & FEBRUARY 08, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN MENGISTU MEKURIA EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 06J10798-1B DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER FCC ID: UY6-FFM96MCU Page 5 of 5 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003 and FCC CFR 47 Part 15. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 Benicia Street, Fremont, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.4, ANSI C63.7 and CISPR Publication 22. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” CCS is acc…

Text truncated - open the document above for the full version.

REPORT NO: 06J10798-1 DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER FCC ID: UY6-FFM96MCU Page 16 of 19 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED EMISSION (X POSITION) RADIATED EMISSIONS (FRONT) REPORT NO: 06J10798-1 DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER FCC ID: UY6-FFM96MCU Page 17 of 19 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSIONS (BACK) REPORT NO: 06J10798-1 DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER FCC ID: UY6-FFM96MCU Page 18 of 19 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION (Y POSITION) RADIATED EMISSIONS (FRONT) REPORT NO: 06J10798-1 DATE: FEBRUARY 09, 2007 EUT: FM TRANSMITTER FCC ID: UY6-FFM96MCU Page 19 of 19 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT RADIATED EMISSIONS (BACK)
