V36WL-700N-MRT2WIRELESS CARD

1 / 13 Wireless 802.11b/g/n USB Adapter Quick Installation Guide 2 / 13 I. Driver Installation Please follow the following instructions to install your new wireless USB Adapter: 1. Insert the USB wireless network card into an empty USB 2.0 port of your computer when computer is switched on. Never use force to insert the card, if you feel it’s stuck, flip the card over and try again. 2. The following message will appear on your computer, click ‘Cancel / Close’. Under Windows XP Under Windows Vista and Windows 7 3 / 13 3. Insert the driver CD into your CD-ROM. You can see autorun screen below. if not, you can double click ‘autorun.exe ’ on CD. Click ‘Install Driver ’ to start the installation procedure. 4. Installation descriptions shown. Click I accept the of the license agreement , Click ‘Next’ to continue. 4 / 13 5. Show following window, Click ‘Next’ to continue. 6. Show following window, Click ‘Next ’ to continue. 5 / 13 7. Show following window, Click ‘Install’ to continue. 8. Show following window, click ‘Finish ’ to finish the installation. 6 / 13 II. Connecting to a Wireless Network The Utility lets you connect to a wireless network, hotspot, access point (AP), or wireless router, and even lets you connect to the Internet. Follow the steps below to connect to a wireless network using the Utility. 1. Open the Utility by double-clicking on the Utility icon in the taskbar in the bottom right corner of your screen. 2. The Utility appears, by default connected to an available open wireless network. Check the name of the network to which you are connected. If this is the correct network, no further steps are required. 3. To connect to an alternative network, click the Available Networks button. 7 / 13 4. In the Available Networks window that appears, select the name of the network to which you are connecting. Then click the connect icon and wait several seconds while the Utility sets up a connection. 5. The Utility automatically detects and displays the security settings of the network to which you are connecting in the Profile Settings screens. WPA-PSK or WPA2-PSK A. If the Utility shows that WPA-PSK or WPA2-PSK security is detected, click the right arrow to save your settings. 8 / 13 B. In the screen that displays, in the 'WPA Preshared Key' field, type a security key, the same as that used by the AP or wireless router to which you are connecting. Click the right arrow to save your settings and connect to the network. WEP A. If the Utility shows that WEP security is detected, click the right arrow to save your settings. B. In the 'WEP Key' field, type the same WEP key as that configured on the AP or wireless router to which you are connecting, and ensure that 'Default Tx Key' and 'Key Format' settings are also the same. Click the right arrow to save your settings and connect to the network. 9 / 13 802.1X, WPA, or WPA2 A. If the Utility shows that 802.1x, WPA, or WPA2 security is detected, click the right arrow to save your settings. B. Select the EAP Method (Extensible Authentication Protocol) and Tunnel Authentication method, and if required, the Tunnel ID method and Tunnel Mode, and enter the user name and password, using the settings provided by your organization's network administrator. Click the right arrow to save your settings. 10 / 13 WAPI-PSK A. If the Utility shows that WAPI-PSK security is detected, click the right arrow to save your settings. B. In the 'WPA Preshared Key' field, type a security key, and select a Key Format setting, the same as that used by the AP or wireless router to which you are connecting. Click the right arrow to save your settings and connect to the network. WAPI-CA A. If the Utility shows that WAPI-CA security is detected, click the right arrow to save your settings. B. If you have a WAPI certificate already installed, in the Select 11 / 13 Mode field, select Auto and click the right arrow to save your settings and connect to the network. Otherwise, if there is no WAPI certificate in your system, go to Setting Up Enterprise Wireless Security. No Security If your network has no security (not recommended), no further settings are required. Click the right arrow to save your settings and connect to the network 6. Once you are connected the Available Networks screen shows the status of your connection. 12 / 13 7. For more settings help, click view. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the 13 / 13 limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Blupont Limited Tel: 86-755-82880659 Fax: 86-755-83302045 Tune up Procedure The max power output: 4 ±1dBm The tune up is fixed by the manufacturer. The tune-up power tolerance range is ±1dBm. BOM list

Block Diagram USB Interface Operation: The EUT is a Wireless 150M wireless usb adapter. This device is backward compatible with 802.11n and 802.11b/g standards. It uses the powerful MIMO(Multiple-In, Multiple-Out) technology which has further coverage, less dead spots and higher throughput. In addition, it supports higher data throughput than the IEEE802.11g standard (up to 150Mbps). It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wireless usb adapter Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. RT5370 MAC/BBP 2.4G Transceivers Crystal 40MHz TX BG RX BG 802.11 Band Switch Antenna

H'itH7fi^ (mril) fi^FEAFI SinTek Laboratory Co., Ltd. TEL: 0755-2760€i353: 27604866: 27 607 544FAX: 0755-27608359 'l-est Lab Attestation Letter Tlris attestationr is to confirm that the below listed dendce was tested at our Test Facitities Located at: Test Lab Name: Test Lab Address: SinTek Laboratory Co., Ltd. No.7, Xinshidai Industrial, Guantian Vittage, Shiyan Toulrr, Baoan District, Shenzhen, Guangdong, China Test l-ab Registtration Numberr:963441 Date of Test: Test Report Number: t\PPi,i63n1 Name: FCC ID: Name of Engineer(s) Perfrrrming Test: (.onrpany Name of Engi:reer(s) Ierfr:rrming 1-e:;t: BST1 20502 02Y - 1 E - 3, BSTI 2050202y - 1 E-3 -7 7012-5-17 Blup,snl Limited V36WL-7OON-MRTz SinTek Laboratory Co., Ltd. TESI'LABOMTORY: Signature of Authorized Rr:pr"e'sentative of the'Iest Laboratory: Full Contact Name: Position/Titte: aX'rlt0i7 Address: iiri JII *' a lx E ?; tHF' t | | f'l XJi $t4\l ! l.r lr

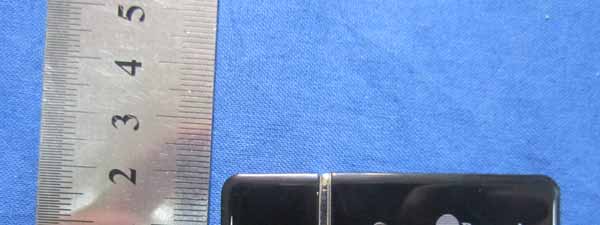

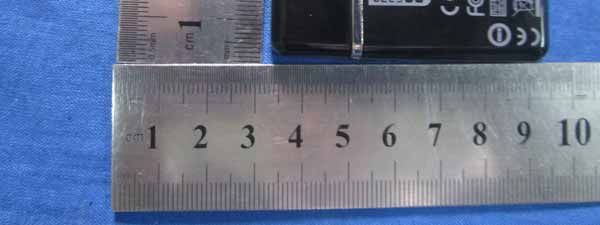

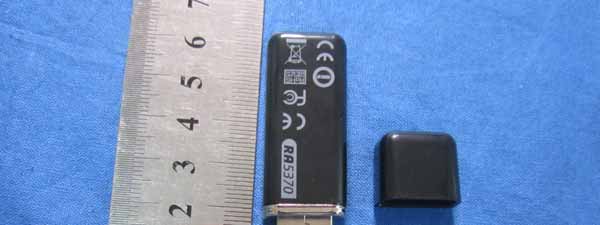

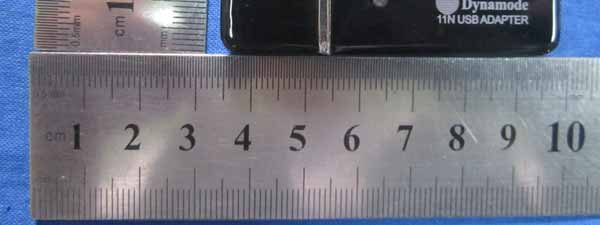

External Photo

FCC Certification Label FCC ID: V36WL-700N-MRT2 Label Location on EUT EUT View/ FCC ID Label Location

Internal Photo Antenna

Block Diagram USB Interface Operation: The EUT is a Wireless 150M wireless usb adapter. This device is backward compatible with 802.11n and 802.11b/g standards. It uses the powerful MIMO(Multiple-In, Multiple-Out) technology which has further coverage, less dead spots and higher throughput. In addition, it supports higher data throughput than the IEEE802.11g standard (up to 150Mbps). It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wireless usb adapter Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. RT5370 MAC/BBP 2.4G Transceivers Crystal 40MHz TX BG RX BG 802.11 Band Switch Antenna

55 44 33 22 11 D D C C B B A A Filename:PEN-RT5370-V20-11X25-100628.DSN PEN-RT5370-V20.SCH 2.0 2.4G USB Card - RT5370 RALINK TECHNOLOGY, CORP. B 15 Wednesday, June 30, 2010 TitleSize Document Number Rev Date: Sheet of USB I/F and Power3-USB-A UDM UDP MAC/Transceiver RT53702-RT5370-WLAN PA_OUT UDPUDM Front-end1-FrontEnd PA_OUT UDMUDP PA_OUT 55 44 33 22 11 D D C C B B A A 2-FrontEnd.SCH 2.0 Front-End RALINK TECHNOLOGY, CORP. A 25 Wednesday, June 30, 2010 TitleSize Document Number Rev Date: Sheet of GND ANTE1E PA_OUT GND GND C55.6pF/NI 12 C61pF/NI 12 L110pF 1 2 C7 NI 12 E1 USB-ANT-RA 1 2 IO G PA_OUT [3] 55 44 33 22 11 D D C C B B A A C34 close toIC EEPROM GPIO8 ext_pm_mode GPIO9 E-fuse0(Low) LED_RDYG_N Normal disable 1(High) Boot strap ping RF_BIST PIN 17 WPS Button 3-RT5370-WLAN.SCH 2.0 RT5370-WLAN RALINK TECHNOLOGY, CORP. C 35 Wednesday, June 30, 2010 TitleSize Document Number Rev Date: Sheet of UDM UDP PA_OUT+PA_OUT- 1.2VRF 3.3V 3.3VGND GND GND GND 40M_X2 1.2VA LD1P_ACT E-FUSE GND PA_RF_OUT 1.2VPLL 1.2VRF RFO-20 PLL_VC_CAP LED_RDYG#3.3V 1.2VD 1.2VPLL 1.2VD3.3V VRES GPIO9 GND 40MX1 1.2VD3.3V BG_RES_12K RFO+20 40MX2 1.2VRF 3.3VPA RST_N 1.2VRF 3.3VPA GND 1.5V 1.2VPLL 1.5V 1.2VA 1.2VRF 3.3V GND LED_LKACT# 1.2VRF1 BG_3.3A 1.2VA 1.2VD PA_OUT WPS# GND GND GND GND GND GND GND 3.3V GND GND 3.3V GND 1.5V GND GND GND GND GND 3.3V 3.3V GND 3.3V GND GND 1.2VPLL GND 1.2VRF GND 3.3V 1.2VD GND GND GND GND 1.5V GND 1.2VA GND 3.3V R8 330/NI 1 2 C460.1uF 12 C8 0.5pF 1 2 R13 4.7K 1 2 C47 0.1uF 12 R22 4.7K/NI 1 2 C44 1uF 12 L82.2nH 1 2 C241.2pF 12 R10 100K 1 2 C322.2pF 12 C281.2pF 1 2 C23 10pF 12 D2 LED 1 2 C421uF 12 L622nH 1 2 C1327pF 1 2 C41 4.7uF 12 L71.5nH 1 2 R2300R 1 2 R6 4.7K 1 2 2.5x3.2 U3 XTAL/3.2x2.5/40MHz 12 43 C37 0.1uF 12 C29 1.2pF 12 C401uF 12 C30 33pF 1 2 U4 RT5370-QFN52-7.5X5.7 123456789 101112 13 14 15 16 17 18 19 20 21 22 23 24 25 262728293031323536 38 40 41 42 43 45 44 46 47 48 49 50 51 52 53 333437 39 RF_INNRF_INPRF_V12APA_V33PPA_OUTPPA_OUTNPA_V33NPA1_V33AVDDVCCIORST_NLDO_CORE_VO12 LDO_CORE_VI15 VDDL PADP PADM VDDA VRES GPIO2 GPIO3 GPIO8 GPIO9 GPIO10/FLASH_CSN GPIO11 TEST_EN VCCIO LED_ACT_N LED_RDYG_N GPIO0GPIO1 GPIO4/EECS GPIO5/EEDI VDD PLL_AVDD_V12A ADC_V12D RF_BB2_V12A BG_RES BG_V33A LDORF_OUT LDOPLL_OUT LDORF_IN PLL_X2 PLL_X1 PLL_PRE_V12A PLL_VC_CAP VCO_LO_V12A RF_BB1_V12A RF0_LO_V12A GND GPIO6/EESK GPIO7/EEDO PLL_DVDD_V12D ADC_V12A C3410pF 12 L11 0 ohm 1 2 C26 0.1uF 12 R15 4.7K 1 2 R16 8.2K 12 C22100pF/NI 1 2 L510nH 1 2 L102.2nH 12 C39 0.1uF 12 C33 33pF 1 2 C43 1uF 12 R3 12K 1 2 L9 0 ohm 1 2 C35 0.1uF 1 2 C271.2pF 12 C450.1uF 12 R9 330 1 2 C2122nF 12 C540.1uF 12 C20 0.1uF 12 C311.2pF/NI 12 C491uF 12 C36 1pF 12 S1 SW TACT-TS11M/NI 1 3 2 4 R12 4.7K/NI 1 2 C48 0.1uF 12 UDP [4] UDM [4] PA_OUT [2] 55 44 33 22 11 D D C C B B A A Vo=0.6 * ( 1 + R1/R2) R2 R1 4-USB-A.SCH 2.0 PEN USB Interface and Power RALINK TECHNOLOGY, CORP. A 45 Friday, May 07, 2010 TitleSize Document Number Rev Date: Sheet of GND SSW1 FB1 UV+ UDM GND UDP 3.3V1.5V FB2 GND GND UV+ SSW2 1.5V 3.3V UV+ UV+ GND GND GND GND GND GND R21 300K 1 2 C53 3.3nF 1 2 R18 68K 1 2 R19 300K 1 2 C51 4.7uF 12 C574.7uF 12 C524.7uF 12 L14 VLS2520-4R7M 1 2 C56 10nF 1 2 L12 VLS2520-4R7M 1 2 1234 G +-V GNC NC J1 USB_A-PLUG 2341 U7 IT77117 109 13 8 5 11 24 67 SW1 GND1 EN1VIN2 VIN1 SW2 GND FB1GND2 EN2 FB2 R20 200K 1 2 UDP [3] UDM [3] 55 44 33 22 11 D D C C B B A A USB Interface 3.3V 5V Interface Signals RT5370 Switch Regulator 2.4G TX/RX Antenna 1.5V BLOCK-1X1-24G.SCH 2.0 Block Diagram - 2.4GHz USB 1T1R RALINK TECHNOLOGY, CORP. C 55 Friday, May 07, 2010 TitleSize Document Number Rev Date: Sheet of

FCC PART 15 CLASS B EMI MEASUREMENT AND TEST REPORT For Blupont Limited 713 RM, 206 East, Tairan 4 Road, CheGongMiao Industrial Park, Futian District, ShenZhen, China FCC ID: V36WL-700N-MRT2 May 18, 2012 This Report Concerns: Original Report Equipment Type: Wireless Card Test Engineer: Steven Report No.: BST12050202Y-1E-3-2 Receive EUT Date/Test Date: May 10, 2012/ May 11-17, 2012 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road,Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. Blupont Limited FCC ID: V36WL-700N-MRT2 BST FCC ID REPORT: BST12050202Y-1E-3-2 Page 2/15 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1. Report information............................................................................................................ 3 1.2. Measurement Uncertainty................................................................................................. 3 2. PRODUCT DESCRIPTION ...................................................................................................... 4 2.1. EUT Description ............................................................................................................... 4 2.2. Block Diagram of EUT Configuration ............................................................................. 4 2.3. Support Equipment List .................................................................................................... 4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL........................................................................................................................... 5 4. TEST RESULTS SUMMARY ................................................................................................... 6 Modifications ................................................................................................................................ 6 5. TEST EQUIPMENT USED ....................................................................................................... 7 6. CONDUCTED EMISSION TEST............................................................................................. 8 6.1. Block Diagram of Test Setup............................................................................................ 8 6.2. Test Standard .................................................................................................................... 8 6.3. Conducted Emission Limit(Class B) ................................................................................ 9 6.4. EUT Configuration on Test .............................................................................................. 9 6.5. Operating Condition of EUT ............................................................................................ 9 6.6. Test Procedure ..................................................................................................................9 6.7. Test Result ........................................................................................................................ 9 7. RADIATED EMISSION MEASUREMENT ......................................................................... 12 7.1. Block Diagram of EUT Configuration ........................................................................... 12 7.2. Test Standard ..................................................................................................................12 7.3. Radiated Emission Limit(Class B) ................................................................................. 13 7.4. EUT Configuration on Test ............................................................................................ 13 7.5. Operating Condition of EUT .......................................................................................... 13 7.6. Test Procedure ................................................................................................................ 13 7.7. Test Result ...................................................................................................................... 14 Blupont Limited FCC ID: V36WL-700N-MRT2 BST FCC ID REPORT: BST12050202Y-1E-3-2 Page 3/15 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BST approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BST in any way guarantees the later performance of the product/equipment. 1.1.2.The sample/s mentioned in this report is/are supplied by Applicant, BST therefore assumes no responsibility for the accuracy of information on the brand name, model number, origin of manufacture or any information supplied. Additional copies of the report are available to the Applicant at an additional fee. No third part can obtain a copy of this report through BST, unless the applicant has authorized BST in writing to do so. Test Facility - The test site used to collect the radiated data is located on the address of SinTek Laboratory Co.,Ltd. (FCC Registered Test Site Number: 963441) on No.7, Xinshidai Industrial, Guantian Village, Shiyan Town, Baoan District, Shenzhen, Guan…

Text truncated - open the document above for the full version.

Radiated emissions test Conducted emissions test
