V36WL-700N-RXSNano 150Mbps(1T1R) Realtek8188 Wireless USB Adapter

Quick Installation Guide Nano 150Mbps(1T1R) Realtek8188 Wireless USB Adapter Model:WL-700N-RXS Manufacturer: Blupont Limited Driver Installation Please follow the following instructions to install your new wireless USB Adapter: 1. Insert the USB wireless network card into an empty USB 2.0 port of your computer when computer is switched on. Never use force to insert the card, if you feel it’s stuck, flip the card over and try again. 2. The following message will appear on your computer, click ‘Cancel / Close’. Under Windows XP Under Windows Vista and Windows 7 3. Insert the driver CD into your CD-ROM. You can see autorun screen below. if not, you can double click ‘autorun.exe ’ on CD. Click ‘Install Driver ’ to start the installation procedure 4. Installation descriptions shown. Click ‘Next ’ to continue 5. Once the installation is finished the computer will be asked to reboot. you can click ‘Finish ’ and reboot the computer to finish the installation of driver files 6. Insert the USB wireless network card into an USB 2.0 port of your computer, the system will find the new hardware and will install the drivers automatically. 7. After finishing driver installation, click adapter utility from your taskbar or programs folder. Click “available networks ”, s el ec t t he wireless access point you would like to connect and press “Add to Profile” button. 8. fill in the security information if any requirement, and then click “OK” to connect the wireless network. 9. Connected successfully. It will show the status screen. FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment .

Blupont Limited Add: #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Tel: 86-755-83562279 2014-05-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD We, Blupont Limited, declare that this EUT (FCC ID: V36WL-700N-RXS) doesn’t have Ad Hoc mode function on“non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Client’s name / title : Katrina Lu / Manager Contact information / address : #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Tel: 86-755-83562279

Blupont Limited Add: #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Tel: 86-755-83562279 2014-05-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: V36WL-700N-RXS We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description - Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Katrina Lu / Manager Contact information / address : #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Tel: 86-755-83562279

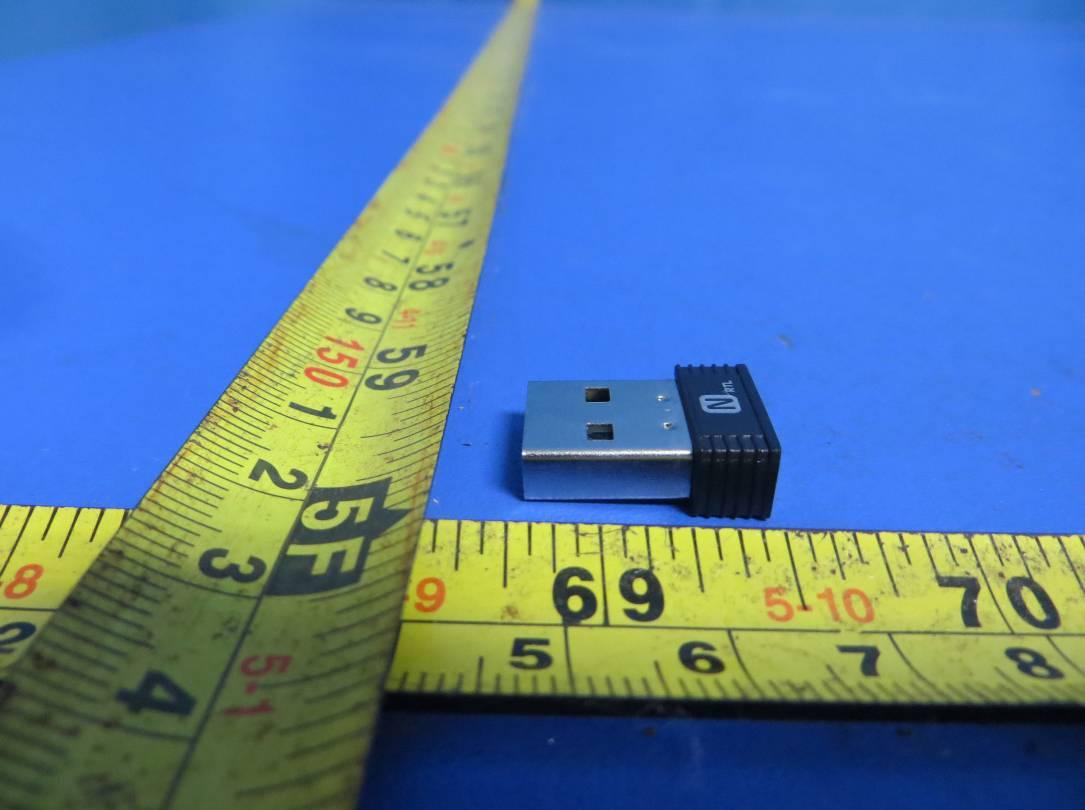

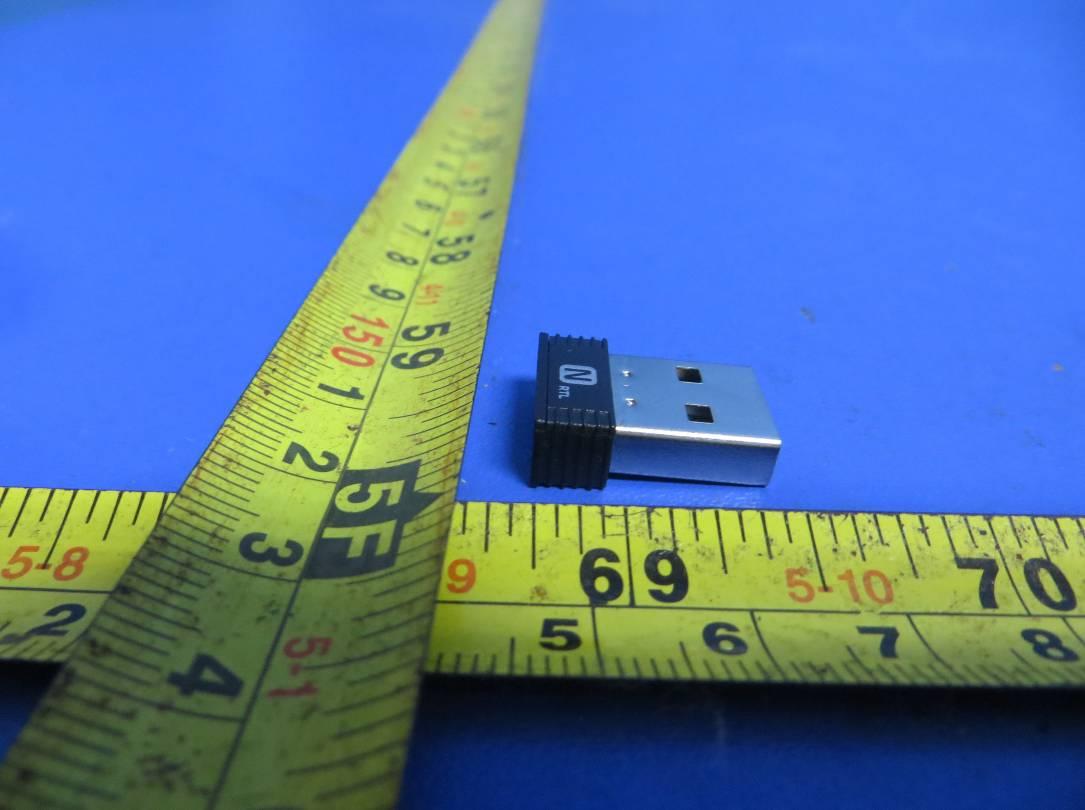

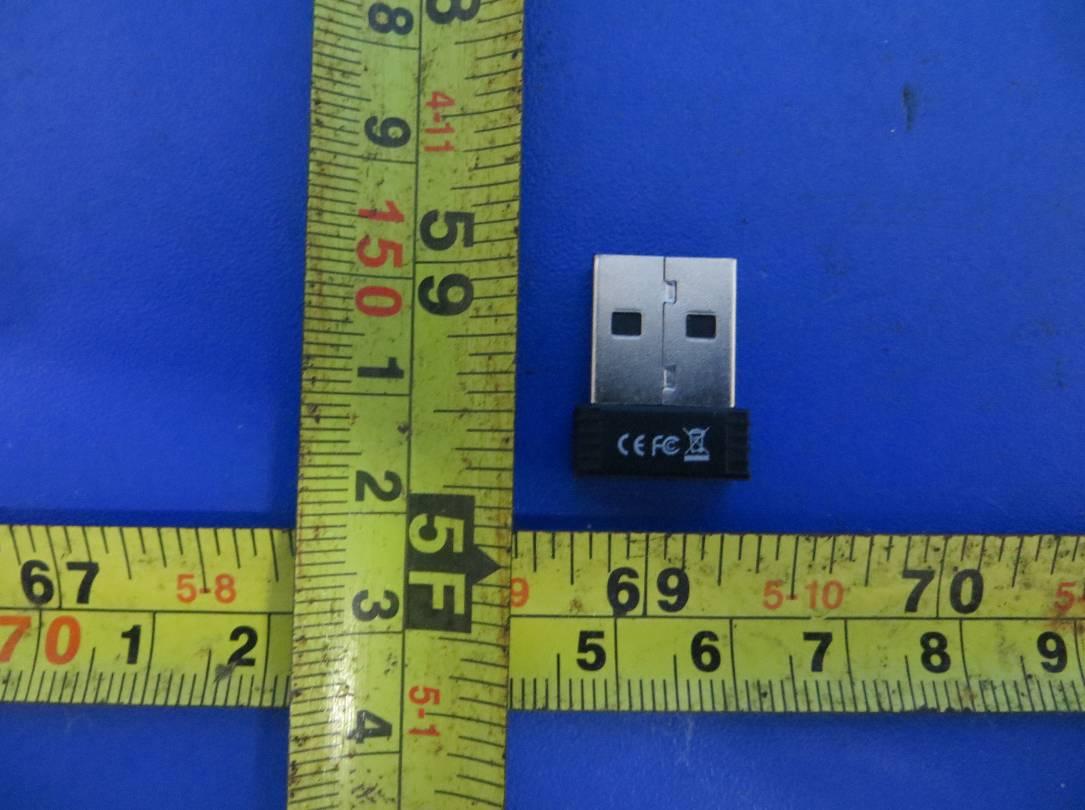

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L1.0cm*W0.5cm Size: L1.2cm*W0.35cm Size: L0.2cm*W0.2cm Label 1 Location FCC ID:V36WL-700N-RXS Blupont Limited Model: WL-700N-RXS Label 1 Label 2 Label 3 Label 3 Location SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 1 Note: Mark Label 1&Label 2 by Laser Label 2 Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 8. RF Exposure Report 8.1. Limit According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See KDB 447498 D01 General RF Exposure Guidance V05. According to section 2.5.1 of RSS-102, above 2.2 GHz and up to 3 GHz inclusively, and with output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) that is less than or equal to 20mW for general public use and 100 mW for controlled use, SAR evaluation is not required. 8.2. EUT Specification Frequency Bands Max technically possible PK Conducted Power(dBm) Max. Antenna Gain (dBi) Max. EIRP (mW) 2.412~2.462GHz Band 7.5 2.0 8.91 Maximum measured transmitter power: 802.11b PK Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 7.48 2.0 8.87 10mW Maximum measured transmitter power: 802.11g PK Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 7.37 2.0 8.65 10mW Maximum measured transmitter power: 802.11n HT20 PK Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 6.16 2.0 6.55 10mW Maximum measured transmitter power: 802.11n HT40 PK Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 5.87 2.0 6.12 10mW 8.3. Test Results Threshold at which no SAR required Maximum Tx Output power for 2.4GHz Band(2.412~2.462GHz) is 8.87mW EIRP. The max. technically possible output power is 8.91mW(EIRP). Conclusion: No SAR is required.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 66 FCC TEST REPORT For Blupont Limited Nano 150Mbps(1T1R) Realtek8188 Wireless USB Adapter Model No.: WL-700N-RXS Prepared for : Blupont Limited Address : #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : May 07, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : May 07, 2014 - May 15, 2014 Date of Report : May 15, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 66 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2013 Report Reference No. .............. : LCS1405070217E Date of Issue ................................ : May 15, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Blupont Limited Address ........................................ : #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247): 2013 / RSS-210 Issue 8/ RSS-Gen Issue 3 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Nano 150Mbps(1T1R) Realtek8188 Wireless USB Adapter Trade Mark .................................. : N/A Model/ Type reference ................. : WL-700N-RXS Ratings ......................................... : DC 5V Result ......................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 66 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1405070217E May 15, 2014 Date of issue Type / Model........................... : WL-700N-RXS EUT......................................... : Nano 150Mbps(1T1R) Realtek8188 Wireless USB Adapter Applicant............................... : Blupont Limited Address.................................. : #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Blupont Limited Address................................... : #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : ` Address................................... : #Room 705, Yongfeng Building, Xinhu Road and labor Road Interchange,•Xixiang, Bao’an, ShenZhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 66 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................................ 5 1.1. DESCRIPTION OF DEVICE (EUT) ..................................................................................................................................... 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ....................................................................................................... 6 1.3. EXTERNAL I/O ................................................................................................................................................................ 6 1.4. DESCRIPTION OF TEST FACILITY ..................................................................................................................................... 7 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY ...................................................................................................... 7 1.6. MEASUREMENT UNCERTAINTY ..........…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement (X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V36WL-700N-RXS Report No.: LCS1405070217E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 1.2. Photo of Line Conducted Emissions Measurement
