V7TCP3P13MP Security Pan/Tilt Camera

CP7 is used for illustrations here unless otherwise specified. The actual product prevails. - Ensure that the router is connected to the internet. - The camera supports 2.4 GHz Wi-Fi only. Connect your phone to a 2.4 GHz Wi-Fi when adding the camera. - Do not hide the router’s Wi-Fi when adding the camera (You may hide it after the camera is added.). - Before adding the camera, make sure the indicator is blinking blue quickly. If not, reset the camera and try again. For more FAQs, please scan the QR code in the Video and More Info section. Q1. What should I do if I failed to add the camera to the TDSEE App - Ensure that the router’s Wi-Fi is smooth. - Take the router closer to the camera. - When previewing video over cellular data, ensure the smartphone has a stable internet connection. - Video preview supports Fluent and HD. Adjust the video quality based on network conditions: open the TDSEE App, select the camera, and tap the image-quality switch in the upper-right corner of the live view. Q2. What should I do when the video preview is not smooth Method 1: Install a Micro SD card in the camera. Recording modes include Alarm Recording and All-Day Recording (default: Alarm Recording). You can change the mode as required. When installing a Micro SD card for the first time, format it as prompted by the app. Method 2: Subscribe to the Cloud Storage Service in TDSEE App. Open the app, select the camera on the homepage, and tap Cloud Storage in the lower-left corner. Method 3: Connect the camera to an NVR for recording. The camera supports ONVIF and can be added to the NVR via a wired or wireless connection. The default username is admin, and the default password is printed on the label; if not available, the universal default password is admin123456, and the password can be changed on the web UI. Refer to the NVR manufacturer’s instructions for configuration. Q3. How to store the videos Copyright @ 2026 Shenzhen TendaTechnology Co., Ltd, All rights reserved. CP7: 5MP Security Pan/Tilt Camera CP3 Pro: 3MP Security Pan/Tilt Camera Scan the QR code or visit www.tendacn.com for installation videos, technical specifications, user guides, Symbols on Products and Materials, and more information. You can see the product name and model on the product label. The label can be found on the device body. https://www.tendacn.com/service/default.html Or Scan for TDSEE Manage the Camera 1. After the camera connects to the router via Wi-Fi, connect your computer to the router with an Ethernet cable or via Wi-Fi. 2. Set the computer's IP address to the same subnet as the camera (but not identical). Usually, the computer is set to Obtain an IP address automatically, which allows it to acquire an IP address in the same subnet without manual configuration. The camera’s default login IP address is 192.168.1.203, and the Obtain an IP address automatically function is enabled by default. After adding the camera to the TDSEE App, tap the top-right settings icon ( ) of the App, and go to Device Info > IP Address to view its IP. You can also download the Tenda Security Search Tool from www.tendacn.com, and use it to discover the device and obtain the camera’s IP address. 3. Start a browser and enter the camera's IP address in the address bar to access the login page. The default username is admin, and the default password is printed on the label; if not available, the universal default password is admin123456. Technical Support Shenzhen Tenda Technology Co., Ltd. Floors 6-8, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Website: www.tendacn.com E-mail: [email protected] [email protected] (North America) [email protected] (United Kingdom) Safety Precautions CE Mark Warning Operating Frequency/Max Output Power FCC Statement RECYCLING Before operating, read and follow these precautions to prevent accidents. − For desktop mounting, the camera must be horizontally mounted for safe use. − For ceiling mounting, the camera is suitable for mounting at heights >2m. − Do not use the device in a place where wireless devices are not allowed. − Use the included power adapter and power cord. − The mains plug is used as the disconnect device, and shall remain readily operable. − The power socket shall be installed near the device and easily accessible. − Operating temperature: -10°C - +45°C (14°F to 113°F). − Keep the device away from water, fire, water, high electric field, high magnetic field, and inflammable and explosive items. − Keep this device out of reach of children to prevent children from using it as a toy and causing personal injury. − Unplug this device and disconnect all cables during lightning storms or when the device is unused for long periods. − Do not use the power adapter if its plug or cord is damaged. − If such phenomena as smoke, abnormal sound or smell appear when you use the device, immediately stop using it and disconnect its power supply, unplug all connected cables, and contact the after-sales service personnel. − Disassembling or modifying the device or its accessories without authorization voids the warranty, and might cause safety hazards. − Refer all servicing to qualified service personnel. − Disconnect the power source during servicing. For the latest safety precautions, see Safety and Regulatory Information on www.tendacn.com. This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This equipment should be installed and operated with a minimum distance 20cm between the device and your body. NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable. Declaration of Conformity Hereby, SHENZHEN TENDA TECHNOLOGY CO., LTD. declares that the device (Camera) is in compliance with Direc…

Text truncated - open the document above for the full version.

Ver: X.X MAC: XXXXXXXXXX S/N: XXXXXXXXXXXXXXX UUID: XXXXXXXXXX 3MP Security Pan/Tilt Camera Model: CP3 ProV2 Power: 5V 1A Pixels: 3MP FCC ID: V7TCP3P1 Shenzhen Tenda Technology Co., Ltd. 6-8 Floor, Tower E3, No.1001, Zhongshanyuan Road,Nanshan District, Shenzhen, China. 518052 Made in China Scan to add device

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-TSP Page 1 of 3 TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-TSP Page 2 of 3 Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-TSP Page 3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 127 of 135 Version 4.1 802.11ax20_RU_Full_2412MHz 802.11ax20_RU_Full_2437MHz 802.11ax20_RU_Full_2462MHz 802.11ax40_RU_Full_2422MHz 802.11ax40_RU_Full_2437MHz 802.11ax40_RU_Full _2452MHz Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 128 of 135 Version 4.1 Power Spectral Density Test Information: Serial No.:3KLD-2Test Date:2026/05/25 Test Site:RFTest Mode:Transmitting Tester:Ethan BuTest Result:Pass Environmental Conditions: Temperature: (°C) 26.4 Relative Humidity: (%) 63 ATM Pressure: (kPa) 100.3 Mode Test Frequency (MHz) Result (dBm/3kHz) Limit (dBm/3kHz) Verdict 2412-10.428Pass 2437-11.068Pass 802.11b 2462-10.908Pass 2412-14.568Pass 2437-15.258Pass 802.11g 2462-15.638Pass 2412-13.148Pass 2437-15.348Pass 802.11n20 2462-15.768Pass 2422-17.458Pass 2437-18.248Pass 802.11n40 2452-18.208Pass 2412-15.648Pass 2437-15.718Pass 802.11ax20_RU_Full 2462-16.458Pass 2422-18.828Pass 2437-18.788Pass 802.11ax40_RU_Full 2452-19.468Pass Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 129 of 135 Version 4.1 802.11b_2412MHz 802.11b_2437MHz 802.11b_2462MHz 802.11g_2412MHz 802.11g_2437MHz 802.11g_2462MHz Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 130 of 135 Version 4.1 802.11n20_2412MHz 802.11n20_2437MHz 802.11n20_2462MHz 802.11n40_2422MHz 802.11n40_2437MHz 802.11n40_2452MHz Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 131 of 135 Version 4.1 802.11ax20_2412MHz_RU_Full 802.11ax20_2437MHz_RU_Full 802.11ax20_2462MHz_RU_Full 802.11ax40_2422MHz_RU_Full 802.11ax40_2437MHz_RU_Full 802.11ax40_2452MHz_RU_Full Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 132 of 135 Version 4.1 Duty Cycle Test Information: Serial No.: 3KLD-2 Test Date:2026/05/25 Test Site:RFTest Mode:Transmitting Tester:Ethan BuTest Result: PASS Environmental Conditions: Temperature: (°C) 26.4 Relative Humidity: (%) 63 ATM Pressure: (kPa) 100.3 Mode Test Frequency (MHz) Ton (ms) Ton+Toff (ms) Duty Cycle (%) Duty Cycle Factor(dB) 1/Ton (Hz) VBW Setting (kHz) 802.11b24378.4068.70696.550.151190.2 802.11g24371.3961.69082.600.837161 802.11n2024375.0845.57191.260.401970.2 802.11n4024374.8915.37890.940.412040.3 802.11ax20_RU_Full24373.8754.35788.940.512580.3 802.11ax40_RU_Full24373.8664.35388.810.522590.3 Duty Cycle = Ton/(Ton+Toff)*100% Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 133 of 135 Version 4.1 802.11b_2437MHz 802.11g_2437MHz 802.11n20_2437MHz 802.11n40_2437MHz 802.11ax20_2437MHz_RU_Full 802.11ax40_2437MHz_RU_Full Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 134 of 135 Version 4.1 EUT PHOTOGRAPHS Please refer to the attachment 2601S08560E-RF-EXP External photo and 2601S08560E-RF-INP Internal photo. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 135 of 135 Version 4.1 TEST SETUP PHOTOGRAPHS Please refer to the attachment 2601S08560E-RF-TSP Test Setup photo. ***** END OF REPORT *****

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF004 Page 1 of 135 Version 4.1 TEST REPORT Applicant Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address:6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Report Number:2601S08560E-RF-00A FCC ID:V7TCP3P1 Test Standard (s) FCC PART 15.247 Sample Description Product Type:3MP Security Pan/Tilt Camera Model No.:CP3 Pro Multiple Model(s) No.:CP3 ProV2 Trade Mark:Tenda Date Received:2026-04-23 Issue Date:2026-06-23 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Wills YuNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 2 of 135 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................12 AC LINE CONDUCTED EMISSIONS...............................................................................................................................12 SPURIOUS EMISSIONS ..................................................................................................................................................14 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................................................................17 MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................................................19 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................20 CONDUCTED SPURIOUS EMISSION...............................................................................................................................21 POWER SPECTRAL DENSITY ........................................................................................................................................22 DUTY CYCLE ...............................................................................................................................................................25 RF EXPOSURE EVALUATION ................................................................................................................................26 ANTENNA REQUIREMENT .....................................................................................................................................28 TEST DATA AND RESULTS .....................................................................................................................................29 AC LINE CONDUCTED EMISSIONS...............................................................................................................................29 SPURIOUS EMISSIONS ..................................................................................................................................................32 6DB EMISSION BANDWIDTH......................................................................................................................................112 99% OCCUPIED BANDWIDTH ....................................................................................................................................116 MAXIMUM CONDUCTED OUTPUT POWER ................…

Text truncated - open the document above for the full version.

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF003 Page 1 of 134 Version 4.1 TEST REPORT Applicant Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address:6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Report Number:2601S08560E-RF-00B FCC ID:V7TCP3P1 Test Standard (s) FCC PART 15.247 Sample Description Product Type:3MP Security Pan/Tilt Camera Model No.:CP3 Pro Multiple Model(s) No.:CP3 ProV2 Trade Mark:Tenda Date Received:2026-04-23 Issue Date:2026-06-23 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Wills YuNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00B TR-EM-RF003 Page 2 of 134 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................12 AC LINE CONDUCTED EMISSIONS...............................................................................................................................12 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................14 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH....................................................................................17 PEAK OUTPUT POWER MEASUREMENT .......................................................................................................................19 POWER SPECTRAL DENSITY ........................................................................................................................................20 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................21 CONDUCTED SPURIOUS EMISSION...............................................................................................................................22 DUTY CYCLE ...............................................................................................................................................................23 RF EXPOSURE EVALUATION ................................................................................................................................24 ANTENNA REQUIREMENT .....................................................................................................................................26 TEST DATA AND RESULTS .....................................................................................................................................27 AC LINE CONDUCTED EMISSIONS...............................................................................................................................27 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................30 6DB EMISSION BANDWIDTH......................................................................................................................................109 99% OCCUPIED BANDWIDTH ....................................................................................................................................113 MAXIMUM CONDUCTED OUTPUT POWER ................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN TENDA TECHNOLOGY CO.,LTD. Measurement of Antenna for CP3 Pro Project Manufacture：SHENZHEN TENDA TECHNOLOGY CO., LTD. 6-8 Floor, Tower E3, No.1001,Zhongshanyuan Road, Nanshan District, Shenzhen, China.518052 Model: CP3 Pro PCB Antenna 1. Antenna Appearance: 2. Electrical performance test results at normal temperature SHENZHEN TENDA TECHNOLOGY CO.,LTD. a)2.4G Antenna No Test Item Unit Demand PerformanceTest Result Judgement 1 Frequency Range MHz 240 0-2490 2400-2490 OK 2 Gain dBi 2 2410 1.94 OK 2450 1.71 OK 2483 1.88 OK 3 Return loss dB ≤-10 2412 -27 OK 2450 -25 OK 2483 -26 OK Directional diagram EUT Remark Frequency E Total. dB(dBi) Efficiency( ) 2400MHz 1.98 65% 2410MHz 1.94 65% 2420MHz 1.64 64% 2430MHz 1.53 64% 2440MHz 1.76 64% 2450MHz 1.71 64% 2460MHz 1.72 64% 2470MHz 1.85 65% 2480MHz 1.88 67% H PLANE V PLANE 2D Radiation patterns(2412MHz) 2.4G Return loss test 2490MHz 1.82 65% SHENZHEN TENDA TECHNOLOGY CO.,LTD.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 26 of 135 Version 4.1 RF EXPOSURE EVALUATION MPE-Based Exemption Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 v01 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(3)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. Ris the minimum separation distance in meters f = frequency in MHz For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation: Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-00A TR-EM-RF004 Page 27 of 135 Version 4.1 Result Antenna Gain#ERP Mode Frequency (MHz) Tune up conducted power # (dBm) (dBi)(dBd)(dBm)(W) Evaluation Distance (m) ERP Limit (W) BLE2402-248071.98-0.176.830.0050.20.768 2.4G Wi-Fi2412~2462211.98-0.1720.830.1210.20.768 Note: The tune up conducted power and antenna gain was declared by the applicant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 1 of 9 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 2 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 3 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 4 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 5 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 6 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 7 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 8 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-INP Page 9 of 9 ANT

Ver: X.X MAC: XXXXXXXXXX S/N: XXXXXXXXXXXXXXX UUID: XXXXXXXXXX 3MP Security Pan/Tilt Camera Model: CP3 Pro Power: 5V 1A Pixels: 3MP FCC ID: V7TCP3P1 Shenzhen Tenda Technology Co., Ltd. 6-8 Floor, Tower E3, No.1001, Zhongshanyuan Road,Nanshan District, Shenzhen, China. 518052 Made in China Scan to add device

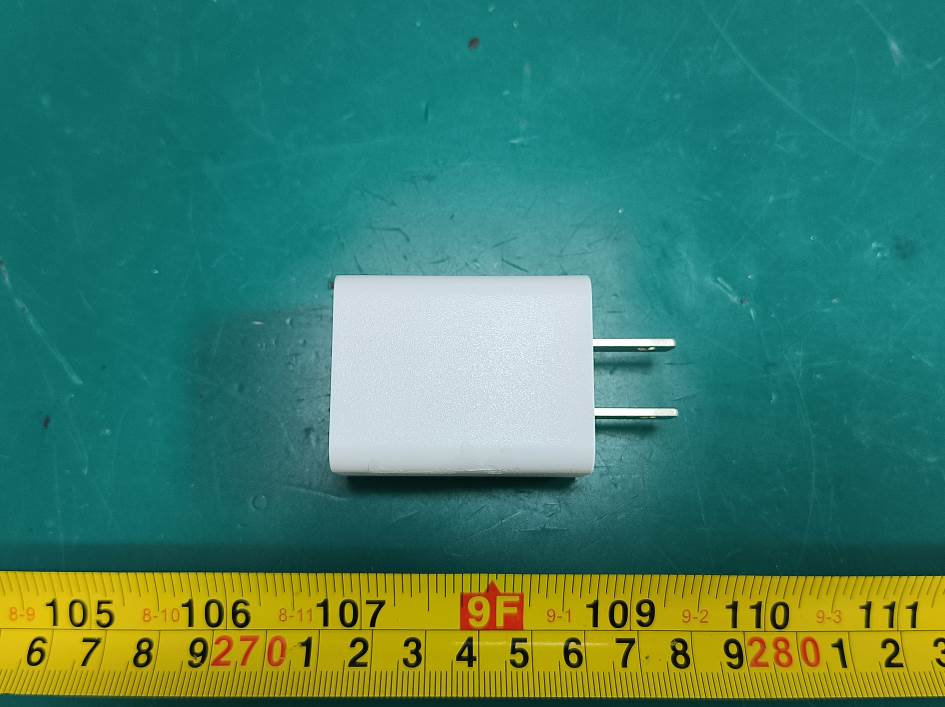

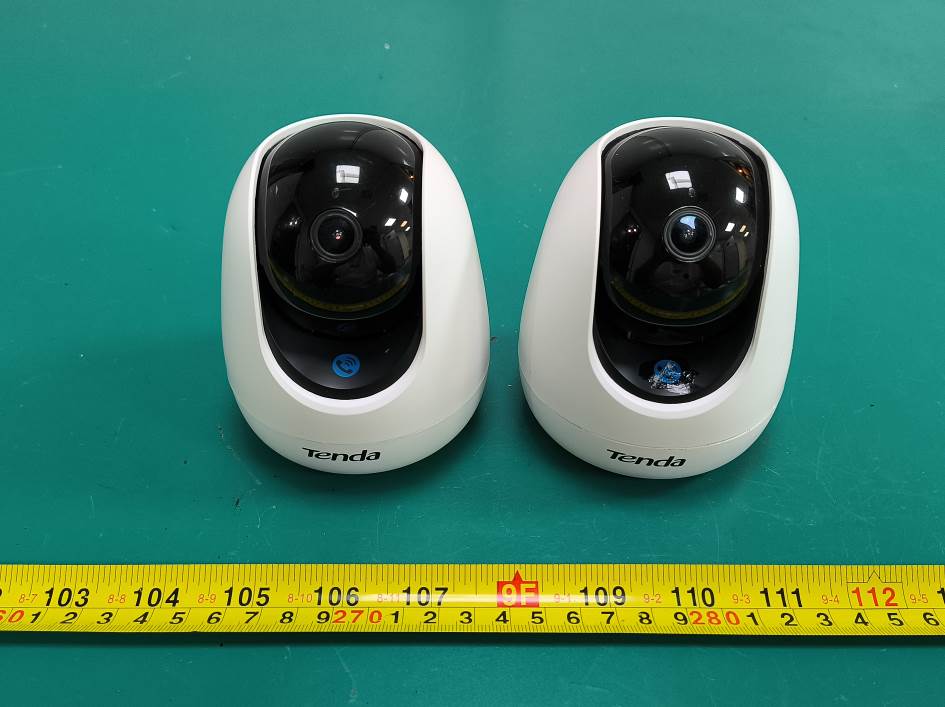

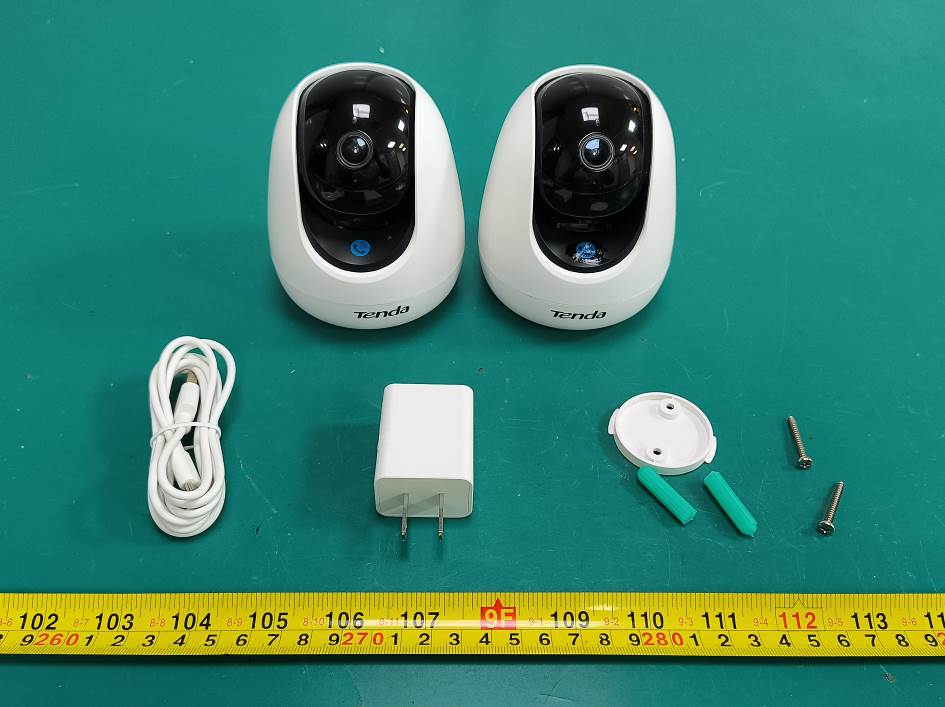

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-EXP Page 1 of 6 EUT EXTERNAL PHOTOGRAPHS CP3 Pro CP3 ProV2 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-EXP Page 2 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-EXP Page 3 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-EXP Page 4 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-EXP Page 5 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S08560E-RF-EXP Page 6 of 6
