V7TCH9V26MP Dual-lens Linkage Wi-Fi Pan/Tilt Camera

Appearance CH9-WCA/CH9-WCAV2 6MP Dual-lens Linkage Wi-Fi Pan/Tilt Camera Quick Installation Guide CH9-WCA is used for illustrations here unless otherwise specified. The actual product prevails. Configure Dual-lens Smart Linkage Function After the camera works properly, you can configure the dual-lens smart linkage function through TDSEE App or web UI (some models supported). (Please scan the QR code of Video and More Info in this guide to obtain the related user guide.) Run the TDSEE App, tap ... on the right side of the camera in the homepage, and go to Device Settings > Alarm > Linkage Tracking Calibration, and then follow the on-screen instructions. After successful calibration, go back to the Alarm page, tap the detection event (Motion Detection, Line Crossing Detectionor Intrusion Detection), and select theLinkage Tracking Calibration. The dual-lens smart linkage function can be used normally. TDSEE Scan for TDSEE Or For TDSEE App: 1. Connect the computer to the router or switch that is connected to the camera using an Ethernet cable, or connect the computer to the router's Wi-Fi that is connected to the camera. 2. Set the IP address of the computer to be on the same network segment as the camera's IP address, but different from the camera's IP address. 3. Start a browser and enter the camera’s IP address of the camera in the address bar to access the login page. The default username is admin, and the default password is printed on the label; if not available, the universal default password is admin123456, then click Login. 4. Go to Configuration > Alarm > Linkage Tracking Calibration to configure the Calibration function. 5. After successful calibration, go back to the Alarm page, go to the detection event (Motion Detection, Line Crossing Detection or Intrusion Detection) > Linkage Tracking Mode, then select the Linkage Tracking Calibration. The dual-lens smart linkage function can be used normally. The default login IP address of the camera is 192.168.1.203, and the DHCP function is enabled. If there is a DHCP server on the network, the camera's IP address may change. Refer to the actual IP address assigned to the camera by the DHCP server. You can also download the Tenda Security Search Tool fromwww.tendacn.com, and use it to discover the device and obtain the camera’s IP address. For web UI: Please adjust the depression angle of the fixed lens to the desired position before configuring the dual-lens linkage function. Tips To ensure your privacy and security, change your login password promptly after logging in to the web UI. Tips FAQ Q1. What should I do if I failed to add the camera A1. − Ensure that the router is connected to the internet successfully. − The camera only supports 2.4 GHz Wi-Fi network. When adding the camera, you need to connect the smartphone to a 2.4 GHz Wi-Fi network. − Do not hide the Wi-Fi network of the router when adding the camera (After adding the camera successfully, you can hide the Wi-Fi network). − Confirm whether the indicator of the camera blinks blue quickly. If not, reset the camera and configure it again. Reset method: Hold down the Reset button for about 5 seconds and release it after the indicator blinks blue quickly or you hear a prompt tone. The camera is reset to factory settings. Before operating, read and follow these precautions to prevent accidents. - For ceiling/wall/pole mounting, the camera is suitable for mounting at heights >2m. - Do not use the device in a place where wireless devices are not allowed. - Please use the included power adapter. - The mains plug is used as the disconnect device, and shall remain readily operable. - The power socket shall be installed near the device and easily accessible. - - Devic e operating environment: Temperature: -30°C - +45°C (-22°F - 113°F); Humidity: (10% - 95%) RH, non-condensing; Power adapter operating environment: Temperature: 0°C - 40°C (32°F - 104°F); Humidity: (5% - 9 5%) RH, non-condensing. Keep the device away from fire, high electric field, high magnetic field, and inflammable and explosive items. - Unplug this device and disconnect all cables during lightning storms or when the device is unused for long periods. - Do not use the power adapter if its plug or cord is damaged. - If such phenomena as smoke, abnormal sound or smell appear when you use the device, immediately stop using it and disconnect its power supply, unplug all connected cables, and contact the after-sales service personnel. - Disassembling or modifying the device or its accessories without authorization voids the warranty, and might cause safety hazards. - Refer all servicing to qualified service personnel. - Disconnect the power source during servicing. - Keep this device out of reach of children to prevent children from using it as a toy and causing personal injury. - The device’s marking information can be found on its surface. For the latest safety precautions, see Safety and Regulatory Information on www.tendacn.com. − Check if the Wi-Fi network of the router is smooth. − Take the router closer to the camera. − When previewing the video with cellular mobile data, make sure that the internet connection of the smartphone is smooth. − Fluent and HD are supported for video preview. You can adjust the video clarity according to the internet status. − Tap the Calibrate Location on the preview page of the corresponding camera in TDSEE APP. − Ensure that the center of the PT lens and the fixed lens have been aligned at the same position before tapping Start to calibrate. If not, please re-calibrate. Q2. What should I do when the video preview is not smooth A2. Method 1: Install the Micro SD card on the camera. The recording mode of the Micro SD card includes Alarm Recording and All Day Recording. By default, the recording mode is Alarm Recording. You can modify the recording mode according to the actual conditions. Method 2: Subscribe to the Cloud Storage Service on TDSEE App. Procedure: Run the TDSEE App, choose …

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 1 of 10 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 2 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 3 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 4 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 5 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 6 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 7 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 8 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 9 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-INP Page 10 of 10 ANT

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00B-TSP Page 1 of 5 TEST SETUP PHOTOGRAPHS For Adapter Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00B-TSP Page 2 of 5 For POE Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00B-TSP Page 3 of 5 For Adapter Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00B-TSP Page 4 of 5 For POE Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00B-TSP Page 5 of 5 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A-TSP Page 1 of 3 TEST SETUP PHOTOGRAPHS For POE Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A-TSP Page 2 of 3 For POE Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A-TSP Page 3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 137 of 145 Version 4.1 802.11ax20_2412MHz_RU_Full 802.11ax20_2437MHz_RU_Full 802.11ax20_2462MHz_RU_Full 802.11ax40_2422MHz_RU_Full 802.11ax40_2437MHz_RU_Full 802.11ax40_2452MHz_RU_Full Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 138 of 145 Version 4.1 Power Spectral Density Mode Test Frequency (MHz) Result (dBm/3kHz) Limit (dBm/3kHz) Verdict 2412-10.178Pass 2437-9.028Pass 802.11b 2462-7.508Pass 2412-13.288Pass 2437-13.108Pass 802.11g 2462-13.358Pass 2412-13.388Pass 2437-13.368Pass 802.11n20 2462-13.628Pass 2422-16.768Pass 2437-16.708Pass 802.11n40 2452-16.408Pass 2412-14.878Pass 2437-14.808Pass 802.11ax20_RU_Full 2462-14.298Pass 2422-17.008Pass 2437-16.768Pass 802.11ax40_RU_Full 2452-17.428Pass Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 139 of 145 Version 4.1 802.11b_2412MHz 802.11b_2437MHz 802.11b_2462MHz 802.11g_2412MHz 802.11g_2437MHz 802.11g_2462MHz Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 140 of 145 Version 4.1 802.11n20_2412MHz 802.11n20_2437MHz 802.11n20_2462MHz 802.11n40_2422MHz 802.11n40_2437MHz 802.11n40_2452MHz Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 141 of 145 Version 4.1 802.11ax20_2412MHz_RU_Full 802.11ax20_2437MHz_RU_Full 802.11ax20_2462MHz_RU_Full 802.11ax40_2422MHz_RU_Full 802.11ax40_2437MHz_RU_Full 802.11ax40_2452MHz_RU_Full Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 142 of 145 Version 4.1 Duty Cycle Mode Test Frequency (MHz) Ton (ms) Ton+Toff (ms) Duty Cycle (%) Duty Cycle Factor(dB) 1/Ton (Hz) VBW Setting (kHz) 802.11b24378.4068.70696.550.151190.2 802.11g24371.3951.69082.540.837171 802.11n2024375.0845.57191.260.401970.2 802.11n4024374.8915.37890.940.412040.3 802.11ax20_RU_Full24373.8704.35788.820.512580.3 802.11ax40_RU_Full24373.8664.35388.810.522590.3 Duty Cycle = Ton/(Ton+Toff)*100% Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 143 of 145 Version 4.1 802.11b_2437MHz 802.11g_2437MHz 802.11n20_2437MHz 802.11n40_2437MHz 802.11ax20_2437MHz_RU_Full 802.11ax40_2437MHz_RU_Full Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 144 of 145 Version 4.1 EUT PHOTOGRAPHS Please refer to the attachment 2601S56424E-RF-EXP External photo and 2601S56424E-RF-INP Internal photo. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 145 of 145 Version 4.1 TEST SETUP PHOTOGRAPHS Please refer to the attachment 2601S56424E-RF-00A-TSP Test Setup photo. ***** END OF REPORT *****

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF004 Page 1 of 145 Version 4.1 TEST REPORT Applicant Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address:6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Report Number:2601S56424E-RF-00A FCC ID:V7TCH9V2 Test Standard (s) FCC PART 15.247 Sample Description Product Type:6MP Dual-lens Linkage Wi-Fi Pan/Tilt Camera Model No.:CH9-WCA Multiple Model(s) No.:CH9-WCAV2 Trade Mark:Tenda Date Received:2026/05/06 Issue Date:2026/07/08 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Wills YuNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 2 of 145 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................12 AC LINE CONDUCTED EMISSIONS...............................................................................................................................12 SPURIOUS EMISSIONS ..................................................................................................................................................14 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................................................................17 MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................................................19 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................20 CONDUCTED SPURIOUS EMISSION...............................................................................................................................21 POWER SPECTRAL DENSITY ........................................................................................................................................22 DUTY CYCLE ...............................................................................................................................................................25 RF EXPOSURE EVALUATION ................................................................................................................................26 ANTENNA REQUIREMENT .....................................................................................................................................28 TEST DATA AND RESULTS .....................................................................................................................................29 AC LINE CONDUCTED EMISSIONS...............................................................................................................................29 SPURIOUS EMISSIONS ..................................................................................................................................................32 RF CONDUCTED DATA ..............................................................................................................................................123 6dB Emission Bandwidth.....................................................................................................................................124 99% Occupied Bandwidth .....…

Text truncated - open the document above for the full version.

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF003 Page 1 of 136 Version 4.1 TEST REPORT Applicant Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address:6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Report Number:2601S56424E-RF-00B FCC ID:V7TCH9V2 Test Standard (s) FCC PART 15.247 Sample Description Product Type:6MP Dual-lens Linkage Wi-Fi Pan/Tilt Camera Model No.:CH9-WCA Multiple Model(s) No.:CH9-WCAV2 Trade Mark:Tenda Date Received:2026/05/06 Issue Date:2026/07/08 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Wills YuNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00B TR-EM-RF003 Page 2 of 136 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ..............................................................................................................................10 TEST EQUIPMENT LIST ..........................................................................................................................................11 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................13 AC LINE CONDUCTED EMISSIONS...............................................................................................................................13 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................15 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH....................................................................................18 PEAK OUTPUT POWER MEASUREMENT .......................................................................................................................20 POWER SPECTRAL DENSITY ........................................................................................................................................21 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................22 CONDUCTED SPURIOUS EMISSION...............................................................................................................................23 DUTY CYCLE ...............................................................................................................................................................24 RF EXPOSURE EVALUATION ................................................................................................................................25 ANTENNA REQUIREMENT .....................................................................................................................................27 TEST DATA AND RESULTS .....................................................................................................................................28 AC LINE CONDUCTED EMISSIONS...............................................................................................................................28 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................33 RF CONDUCTED DATA ..............................................................................................................................................116 6dB Emission Bandwidth.....................................................................................................................................117 99% Occupied Bandwidth ......................................................................…

Text truncated - open the document above for the full version.

SHENZHEN TENDA TECHNOLOGY CO.,LTD. Measurement of Antenna for CP3 Pro Project Manufacture：SHENZHEN TENDA TECHNOLOGY CO., LTD. 6-8 Floor, Tower E3, No.1001,Zhongshanyuan Road, Nanshan District, Shenzhen, China.518052 Model: CP3 Pro PCB Antenna 1. Antenna Appearance: 2. Electrical performance test results at normal temperature SHENZHEN TENDA TECHNOLOGY CO.,LTD. a)2.4G Antenna No Test Item Unit Demand PerformanceTest Result Judgement 1 Frequency Range MHz 2400-2490 2400-2490 OK 2 Gain dBi 2 2410 1.94 OK 2450 1.71 OK 2483 1.88 OK 3 Return loss dB ≤-10 2412 -27 OK 2450 -25 OK 2483 -26 OK Directional diagram EUT Remark Frequency E Total. dB(dBi) Efficiency( ) 2400MHz 1.98 65% 2410MHz 1.94 65% 2420MHz 1.64 64% 2430MHz 1.53 64% 2440MHz 1.76 64% 2450MHz 1.71 64% 2460MHz 1.72 64% 2470MHz 1.85 65% 2480MHz 1.88 67% H PLANE V PLANE 2D Radiation patterns(2412MHz) 2.4G Return loss test 2490MHz 1.82 65% Red line: Co-Polarization Blue line: Cross-Polarization Green line: Total Field SHENZHEN TENDA TECHNOLOGY CO.,LTD.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 26 of 145 Version 4.1 RF EXPOSURE EVALUATION MPE-Based Exemption Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 v01 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(3)(i)(C)] to support an exemptionfrom further evaluation from 300 kHz through 100 GHz. Ris the minimum separation distance in meters f = frequency in MHz For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation: Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-00A TR-EM-RF004 Page 27 of 145 Version 4.1 Result Antenna Gain#ERP Mode Frequency (MHz) Tune up conducted power # (dBm) (dBi)(dBd)(dBm)(W) Evaluation Distance (m) ERP Limit (W) BLE2402-2480 71.98 -0.17 6.830.0050.2 0.768 2.4G WIFI2412-2462 231.98 -0.1722.830.1920.20.768 Note: The tune up conducted power and antenna gain was declared by the applicant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant

SHENZHEN TENDA TECHNOLOGY CO., LTD. Add: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Tel: 86-755-27657098 Fax: 866-755-27657178 E-mail: [email protected] Attestation Letter Date: 2026-07-06 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: Our product 6MP Dual-lens Linkage Wi-Fi Pan/Tilt Camera, Model: CH9-WCA, CH9-WCAV2, FCC ID:V7TCH9V2, for marketing purpose, this product only supports BLE 1M&2M,BLE 125K(LE S8), BLE 500K(LE S2), 2.4G Wi-Fi (2412-2462MHz, 802.11b/g/n20/ax20 modes, 2422-2452MHz, 802.11n40/ax40 modes), 802.11ax mode only supports full RU and doesn't support partial RU. The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Printed Name: Shen Yue Title: Engineer

Made in China Model: CH9-WCAV2 Power: 12V 1A/PoE FCC ID: V7TCH9V2Spec: 3MP+3MP/4mm+6mm/IP65 Scan to add device S/N:XXXXXXXXXXXXXXXXXUUID: XXXXXXXXXXMAC:XXXXXXXXXXXX 6MP Dual-lens Linkage Wi-Fi Pan/Tilt Camera Ver: X.X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Shenzhen Tenda Technology Co., Ltd. 6-8 Floor, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Made in China Model: CH9-WCA Power: 12V 1A/PoE FCC ID: V7TCH9V2Spec: 3MP+3MP/4mm+6mm/IP65 Scan to add device S/N:XXXXXXXXXXXXXXXXXUUID: XXXXXXXXXXMAC:XXXXXXXXXXXX 6MP Dual-lens Linkage Wi-Fi Pan/Tilt Camera Ver: X.X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Shenzhen Tenda Technology Co., Ltd. 6-8 Floor, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052

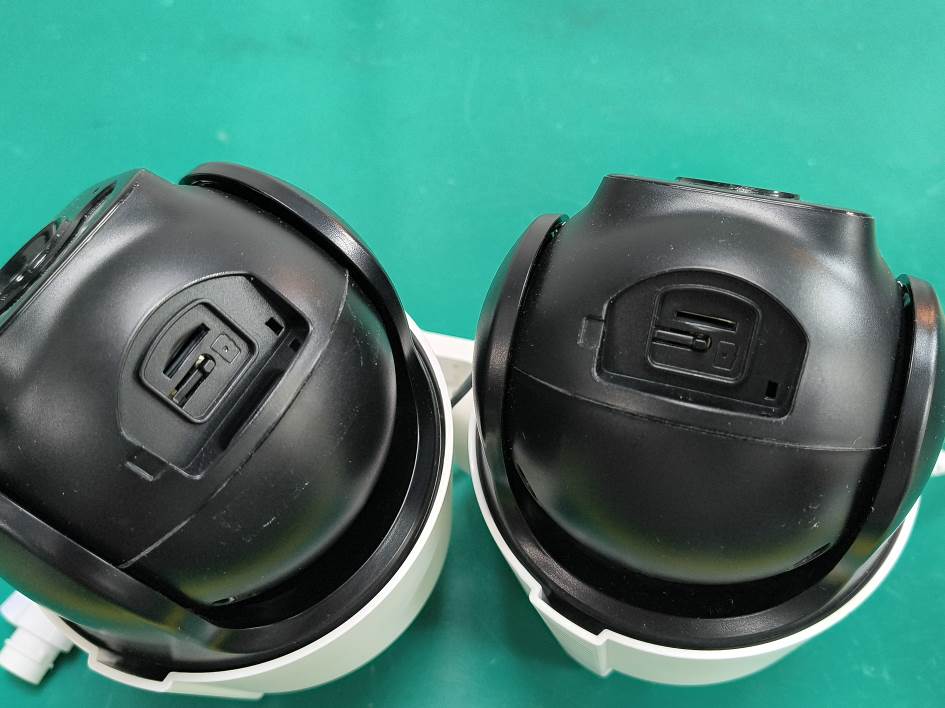

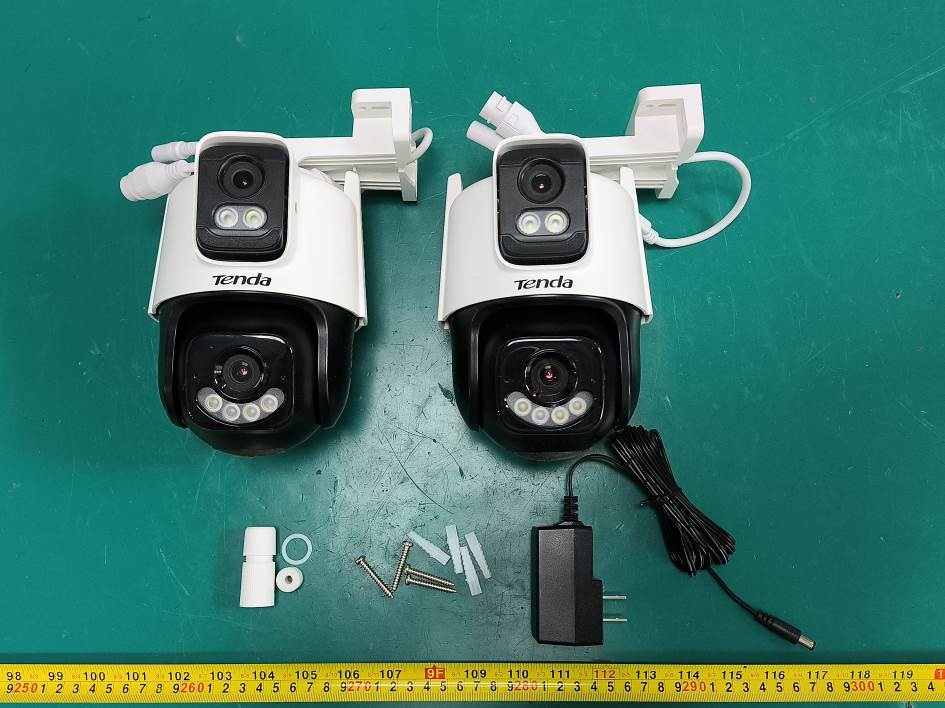

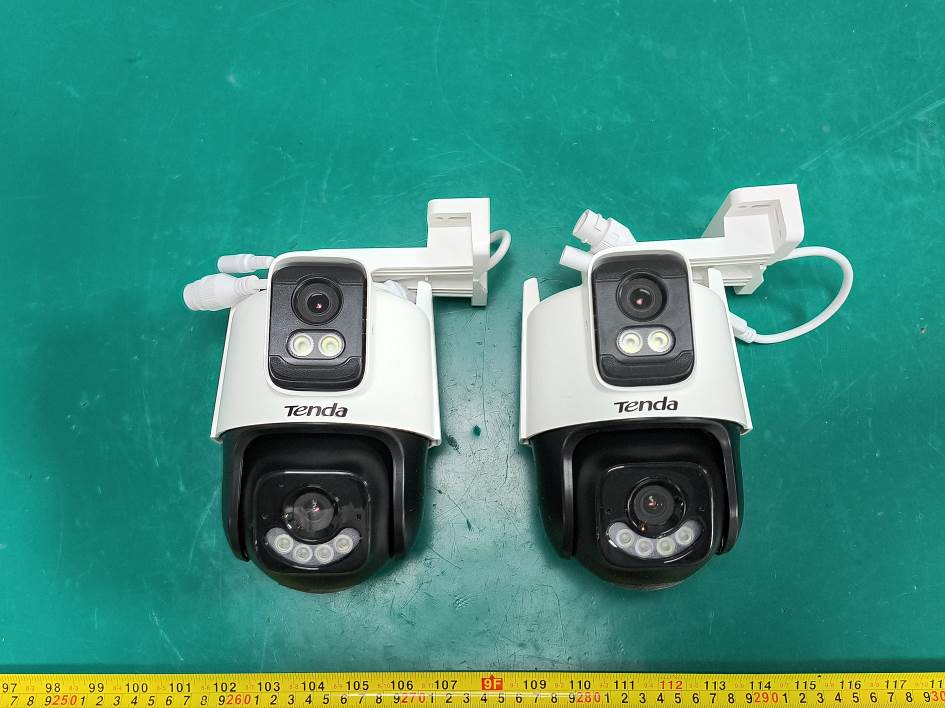

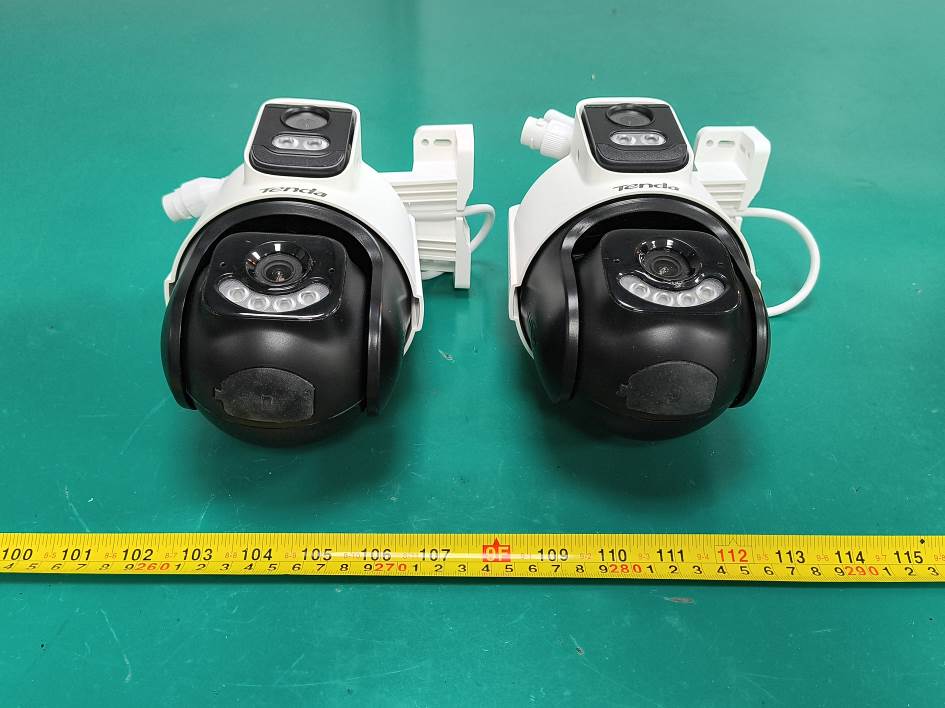

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-EXP Page 1 of 5 EUT EXTERNAL PHOTOGRAPHS CH9-WCA CH9-WCAV2 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-EXP Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-EXP Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-EXP Page 4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S56424E-RF-EXP Page 5 of 5

SHENZHEN TENDA TECHNOLOGY CO., LTD. Add: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Tel: 86-755-27657098 Fax: 866-755-27657178 E- mail: [email protected] DECLARATION OF SIMILARITY Date: 2026-04-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, SHENZHEN TENDA TECHNOLOGY CO., LTD., hereby declare that the product: 6MP Dual-lens Linkage Wi-Fi Pan/Tilt Camera, FCC ID:V7TCH9V2, model: CH9-WCAV2 is electrically identical with the model: CH9-WCA which was tested by Bay Area Compliance Laboratories Corp.(Shenzhen). A description of the differences between those models and that are declared similar are as follows: They are just the different model name various distribution channels, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: P rinted Name: Shen Yue Title: Engineer
