V7TCH3V213MP Wi-Fi Pan/Tilt Camera

Appearance CH3-WCA/CH3-WCAV2: 3MP Wi-Fi Pan/Tilt Camera CH7-WCA/CH7-WCAV2: 5MP Wi-Fi Pan/Tilt Camera Quick Installation Guide Use a Web Browser to Access the Camera 1. Connect the computer to the router that is connected to the camera. 2. Set the IP address of the computer to an unused one belonging to the same network segment as the IP address of the camera but different from the IP address of the camera. TDSEE Scan for TDSEE By default, the login IP address of the camera is 192.168.1.203, and the DHCP function is enabled. If there is a DHCP server in the network, the IP address of the camera may be changed. Refer to the actual IP address assigned to the camera by the DHCP server. 3. Start a browser and enter the IP address of the camera in the address bar to access the login page. The default user name and password are admin and admin123456. For initial setup or after a reset, set new login password for privacy and security (The longer the password, the stronger the protection). The character limit and composition rules for passwords are subject to software user interface prompts. Tips FAQ Q1. What should I do if I failed to add the camera A1. - Ensure that the router is connected to the internet successfully. - The camera only supports 2.4 GHz Wi-Fi network. When adding the camera, you need to connect the smartphone to a 2.4 GHz Wi-Fi network. - Do not hide the Wi-Fi network of the router when adding the camera (After adding the camera successfully, you can hide the Wi-Fi network). - Confirm whether the indicator of the camera blinks blue quickly. If not, reset the camera and configure it again. Reset method: Hold down the Reset button for about 5 seconds and release it after the indicator blinks blue quickly or you hear a prompt tone. The camera is reset. Before operating, read and follow these precautions to prevent accidents. - For ceiling/wall/pole mounting, the camera is suitable for mounting at heights >2m. - The camera is used outdoors. The power adapter is used indoors. - Do not use the device in a place where wireless devices are not allowed. - Please use the included power adapter. - The mains plug is used as the disconnect device, and shall remain readily operable. - The power socket shall be installed near the device and easily accessible. - Device operating environment: Temperature: -30°C - +60°C (-22°F - 140°F); Humidity: (10% - 95%) RH, non-condensing; Power adapter operating environment: Temperature: 0°C - 40°C (32°F - 104°F); Humidity: (5% - 95%) RH, non-condensing. - Keep the device away from fire, high electric field, high magnetic field, and inflammable and explosive items. - Unplug this device and disconnect all cables during lightning storms or when the device is unused for long periods. - Do not use the power adapter if its plug or cord is damaged. - If such phenomena as smoke, abnormal sound or smell appear when you use the device, immediately stop using it and disconnect its power supply, unplug all connected cables, and contact the after-sales service personnel. - Disassembling or modifying the device or its accessories without authorization voids the warranty, and might cause safety hazards. - Refer all servicing to qualified service personnel. - Disconnect the power source during servicing. For the latest safety precautions, see Safety and Regulatory Information on www.tendacn.com. - Check if the Wi-Fi network of the router is smooth. - Take the router closer to the camera. - When previewing the video with cellular mobile data, make sure that the internet connection of the smartphone is smooth. - Fluent and HD are supported for video preview. You can adjust the video clarity according to the internet status. If you remove the Micro SD card installed in the camera and view the videos from your computer, it is recommended to use VLC media player or Potplayer to play the videos. Q2. What should I do when the video preview is not smooth A2. Method 1: Install the Micro SD card on the camera. The recording mode of the Micro SD card includes Alarm Recording and All Day Recording. By default, the recording mode is Alarm Recording. You can modify the recording mode according to the actual conditions. Method 2: Subscribe to the Cloud Storage Service on TDSEE App. Procedure: Run the TDSEE App, choose the camera on the homepage, and then tap Cloud Storage in the lower left corner. Method 3: Connect the camera to the NVR. The camera supports the ONVIF protocol and can be added to the NVR either wired or wireless method for recording storage. The default user name and password of the camera are admin and admin123456 respectively, and the password can be changed on the web UI. The specific configuration method of the NVR is subject to the manufacturer's instructions. Q4. How to store the videos A4. Q3. How to view the videos stored in the Micro SD card of the camera on the computer A3. Safety Precautions CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This equipment should be installed and operated with minimum distance 20cm between the device and your body. NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable. Declaration of Conformity Hereby, SHENZHEN TENDA TECHNOLOGY CO., LTD. declares that the device (camera) is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://www.tendacn.com/download/list-9.html This product bears the selective sorting symbol for Waste Electrical and Electronic Equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. Use…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-INP Page 1 of 7 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-INP Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-INP Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-INP Page 4 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-INP Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-INP Page 6 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-INP Page 7 of 7 Antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-TSPA Page 1 of 3 TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-TSPA Page 2 of 3 Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-TSPA Page 3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-TSPB Page 1 of 5 TEST SETUP PHOTOGRAPHS For Adapter Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-TSPB Page 2 of 5 For POE Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-TSPB Page 3 of 5 For Adapter Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-TSPB Page 4 of 5 For POE Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-TSPB Page 5 of 5 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF003 Page 1 of 141 Version 4.1 TEST REPORT Applicant Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address:6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Report Number:2601S05040E-RF-00B FCC ID:V7TCH3V21 Test Standard (s) FCC PART 15.247 Sample Description Product Type:3MP Wi-Fi Pan/Tilt Camera Model No.:CH3-WCA Multiple Model(s) No.:CH3-WCAV2 Trade Mark:Tenda Date Received:2026/05/06 Issue Date:2026/07/07 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Wills YuNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00B TR-EM-RF003 Page 2 of 141 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ..............................................................................................................................10 TEST EQUIPMENT LIST ..........................................................................................................................................11 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................13 AC LINE CONDUCTED EMISSIONS...............................................................................................................................13 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................15 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH....................................................................................18 PEAK OUTPUT POWER MEASUREMENT .......................................................................................................................20 POWER SPECTRAL DENSITY ........................................................................................................................................21 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................22 CONDUCTED SPURIOUS EMISSION...............................................................................................................................23 DUTY CYCLE ...............................................................................................................................................................24 RF EXPOSURE EVALUATION ................................................................................................................................25 ANTENNA REQUIREMENT .....................................................................................................................................26 TEST DATA AND RESULTS .....................................................................................................................................27 AC LINE CONDUCTED EMISSIONS...............................................................................................................................27 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................32 6DB EMISSION BANDWIDTH......................................................................................................................................115 99% OCCUPIED BANDWIDTH ....................................................................................................................................119 MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 132 of 142 Version 4.1 802.11ax20_2412MHz_RU_Full 802.11ax20_2437MHz_RU_Full 802.11ax20_2462MHz_RU_Full 802.11ax40_2422MHz_RU_Full 802.11ax40_2437MHz_RU_Full 802.11ax40_2452MHz_RU_Full Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 133 of 142 Version 4.1 Power Spectral Density Test Information: Serial No.:3L9M-1Test Date:2026/06/06~2026/07/02 Test Site:RFTest Mode:Transmitting Tester:Ethan BuTest Result:Pass Environmental Conditions: Temperature: (°C) 26.4-26.6 Relative Humidity: (%) 64-66 ATM Pressure: (kPa) 100 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 134 of 142 Version 4.1 Mode Test Frequency (MHz) Result (dBm/3kHz) Limit (dBm/3kHz) Verdict 2412-10.608Pass 2437-10.378Pass 802.11b 2462-9.068Pass 2412-13.218Pass 2437-13.678Pass 802.11g 2462-13.698Pass 2412-13.078Pass 2437-14.138Pass 802.11n20 2462-12.818Pass 2422-15.958Pass 2437-16.488Pass 802.11n40 2452-16.218Pass 2412-13.958Pass 2437-14.148Pass 802.11ax20_RU_Full 2462-14.218Pass 2422-16.248Pass 2437-17.158Pass 802.11ax40_RU_Full 2452-17.098Pass Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 135 of 142 Version 4.1 802.11b_2412MHz 802.11b_2437MHz 802.11b_2462MHz 802.11g_2412MHz 802.11g_2437MHz 802.11g_2462MHz Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 136 of 142 Version 4.1 802.11n20_2412MHz 802.11n20_2437MHz 802.11n20_2462MHz 802.11n40_2422MHz 802.11n40_2437MHz 802.11n40_2452MHz Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 137 of 142 Version 4.1 802.11ax20_2412MHz_RU_Full 802.11ax20_2437MHz_RU_Full 802.11ax20_2462MHz_RU_Full 802.11ax40_2422MHz_RU_Full 802.11ax40_2437MHz_RU_Full 802.11ax40_2452MHz_RU_Full Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 138 of 142 Version 4.1 Duty Cycle Test Information: Serial No.:3L9M-1Test Date:2026/06/06 Test Site:RFTest Mode:Transmitting Tester:Ethan BuTest Result:N/A Environmental Conditions: Temperature: (°C) 26.4 Relative Humidity: (%) 64 ATM Pressure: (kPa) 100 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 139 of 142 Version 4.1 Mode Test Frequency (MHz) Ton (ms) Ton+Toff (ms) Duty Cycle (%) Duty Cycle Factor(dB) 1/Ton (Hz) VBW Setting (kHz) 802.11b24378.4068.69796.650.151190.200 802.11g24371.3951.68182.990.817171 802.11n2024375.0845.54491.700.381970.200 802.11n4024374.8915.35191.400.392040.300 802.11ax20_RU_Full24373.8754.33389.430.492580.300 802.11ax40_RU_Full24373.8674.32989.330.492590.300 Duty Cycle = Ton/(Ton+Toff)*100% Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 140 of 142 Version 4.1 802.11b_2437MHz 802.11g_2437MHz 802.11n20_2437MHz 802.11n40_2437MHz 802.11ax20_2437MHz_RU_Full 802.11ax40_2437MHz_RU_Full Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 141 of 142 Version 4.1 EUT PHOTOGRAPHS Please refer to the attachment 2601S05040E-RF-EXP External photo and 2601S05040E-RF-INP Internal photo. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 142 of 142 Version 4.1 TEST SETUP PHOTOGRAPHS Please refer to the attachment 2601S05040E-RF-TSPA Test Setup photo. ***** END OF REPORT *****

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF004 Page 1 of 142 Version 4.1 TEST REPORT Applicant Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address:6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Report Number:2601S05040E-RF-00A FCC ID:V7TCH3V21 Test Standard (s) FCC PART 15.247 Sample Description Product Type:3MP Wi-Fi Pan/Tilt Camera Model No.:CH3-WCA Multiple Model(s) No.:CH3-WCAV2 Trade Mark:Tenda Date Received:2026/05/06 Issue Date:2026/07/07 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Wills YuNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 2 of 142 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................12 AC LINE CONDUCTED EMISSIONS...............................................................................................................................12 SPURIOUS EMISSIONS ..................................................................................................................................................14 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................................................................17 MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................................................19 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................20 CONDUCTED SPURIOUS EMISSION...............................................................................................................................21 POWER SPECTRAL DENSITY ........................................................................................................................................22 DUTY CYCLE ...............................................................................................................................................................23 RF EXPOSURE EVALUATION ................................................................................................................................24 ANTENNA REQUIREMENT .....................................................................................................................................25 TEST DATA AND RESULTS .....................................................................................................................................26 AC LINE CONDUCTED EMISSIONS...............................................................................................................................26 SPURIOUS EMISSIONS ..................................................................................................................................................29 6DB EMISSION BANDWIDTH......................................................................................................................................114 99% OCCUPIED BANDWIDTH ....................................................................................................................................119 MAXIMUM CONDUCTED OUTPUT POWER ..................…

Text truncated - open the document above for the full version.

SHENZHEN TENDA TECHNOLOGY CO.,LTD. Measurement of Antenna for CP3 Pro Project Manufacture：SHENZHEN TENDA TECHNOLOGY CO., LTD. 6-8 Floor, Tower E3, No.1001,Zhongshanyuan Road, Nanshan District, Shenzhen, China.518052 Model: CP3 Pro PCB Antenna 1. Antenna Appearance: 2. Electrical performance test results at normal temperature SHENZHEN TENDA TECHNOLOGY CO.,LTD. a)2.4G Antenna No Test Item Unit Demand PerformanceTest Result Judgement 1 Frequency Range MHz 240 0-2490 2400-2490 OK 2 Gain dBi 2 2410 1.94 OK 2450 1.71 OK 2483 1.88 OK 3 Return loss dB ≤-10 2412 -27 OK 2450 -25 OK 2483 -26 OK Directional diagram EUT Remark Frequency E Total. dB(dBi) Efficiency( ) 2400MHz 1.98 65% 2410MHz 1.94 65% 2420MHz 1.64 64% 2430MHz 1.53 64% 2440MHz 1.76 64% 2450MHz 1.71 64% 2460MHz 1.72 64% 2470MHz 1.85 65% 2480MHz 1.88 67% H PLANE V PLANE 2D Radiation patterns(2412MHz) 2.4G Return loss test 2490MHz 1.82 65% SHENZHEN TENDA TECHNOLOGY CO.,LTD.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-00A TR-EM-RF004 Page 24 of 142 Version 4.1 RF EXPOSURE EVALUATION MPE-Based Exemption Applicable Standard According to subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 v01 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(3)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. R is the minimum separation distance in meters f = frequency in MHz Result Antenna Gain # ERP Mode Frequency (MHz) Tune up conducted power # (dBm) (dBi)(dBd)(dBm)(mW) Evaluation Distance (m) ERP Limit (mW) BLE 2402-24806.01.98-0.17 5.83 3.83 0.2768 2.4G Wi-Fi2412-246223.01.98-0.17 22.83 191.87 0.2768 Note 1: The tune up conducted power and antenna gain was declared by the applicant. Note 2: The BLE and Wi-Fi cannot transmit at same time. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant

Scan to add device MAC:XXXXXXXXXXXXS/N:XXXXXXXXXXXXXXXXXUUID: XXXXXXXXXX VX.X 6-8 Floor, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Shenzhen Tenda Technology Co., Ltd. Made in China 3MP Wi-Fi Pan/Tilt Camera Model: CH3-WCAV2 Power: 12V 1A/PoE FCC ID: V7TCH3V21 Spec: 3MP/Full Color/4mm Scan to add device MAC:XXXXXXXXXXXXS/N:XXXXXXXXXXXXXXXXXUUID: XXXXXXXXXX VX.X 6-8 Floor, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Shenzhen Tenda Technology Co., Ltd. Made in China 3MP Wi-Fi Pan/Tilt Camera Model: CH3-WCA Power: 12V 1A/PoE FCC ID: V7TCH3V21 Spec: 3MP/Full Color/4mm

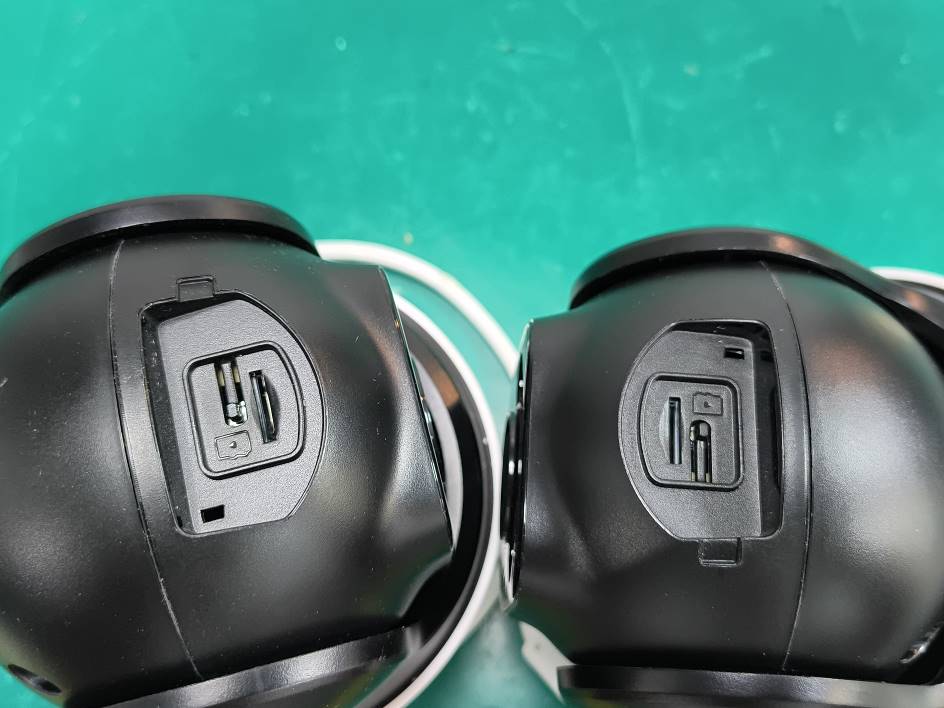

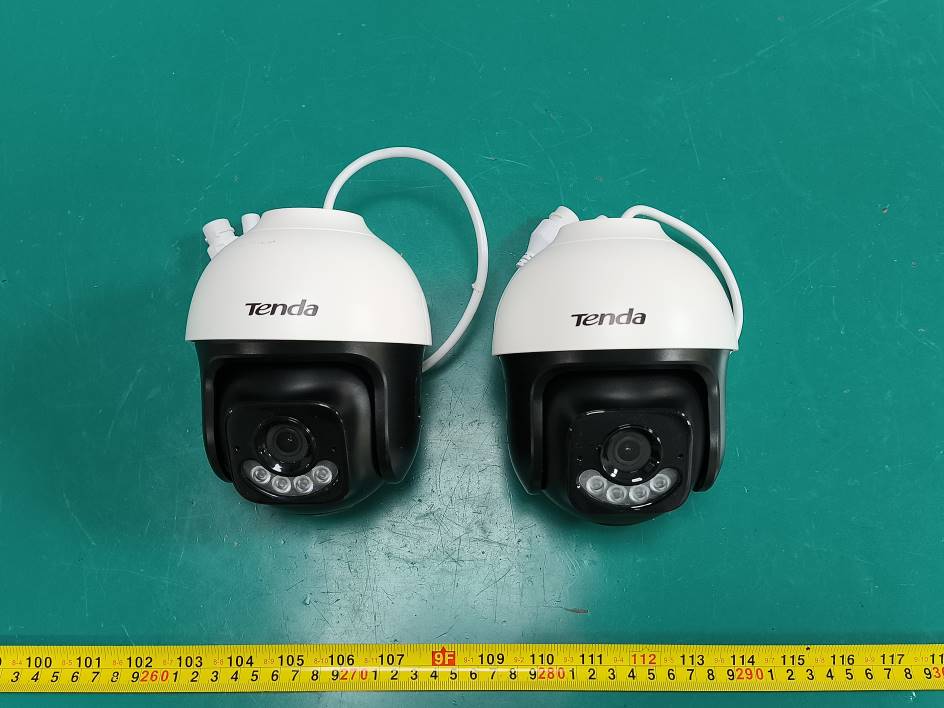

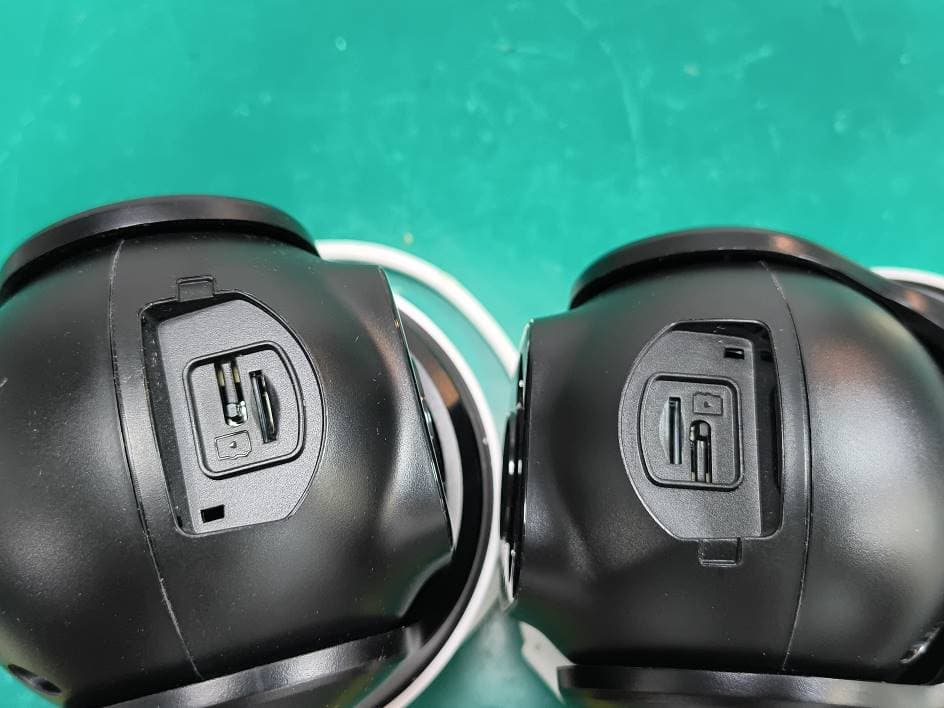

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-EXP Page 1 of 5 EUT EXTERNAL PHOTOGRAPHS CH3-WCA CH3-WCAV2 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-EXP Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-EXP Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-EXP Page 4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601S05040E-RF-EXP Page 5 of 5
