V7TI27V3AX3000 Wi-Fi 6 Ceiling Access Point

User Guide Ceiling AP Series www.tendacn.com Features available in the AP may vary by model and software version. All images, steps, and descriptions in this guide are only examples and may not reflect your actual AP experience. i Document Version: V2.0 Copyright statement ©2024-2026 Shenzhen Tenda Technology Co., Ltd. All rights reserved. is a registered trademark legally held by Shenzhen Tenda Technology Co., Ltd. Other brand and product names mentioned herein are trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. No part of this publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the prior written permission of Shenzhen Tenda Technology Co., Ltd. Disclaimer Pictures, images and product specifications herein are for references only. To improve internal design, operational function, and/or reliability, Tenda reserves the right to make changes to the products without obligation to notify any person or organization of such revisions or changes. Tenda does not assume any liability that may occur due to the use or application of the product described herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information and recommendations in this document do not constitute a warranty of any kind, express or implied. ii Document Version: V2.0 Preface This guide describes how to configure each feature of the following Tenda ceiling APs. − i23 − i24 − i26 − i27 − i29 − i33 − i36 Features available in the AP may vary by model and software version. All images, steps, and descriptions in this guide are only examples and may not reflect your actual AP experience. In this guide, unless otherwise specified, all screenshots are taken from i36 V1.0. Conventions The typographical elements that may be found in this document are defined as follows. Item Presentation Example Cascading menus > Navigate to System > Live Users. UI control Bold On the Policy page, click the OK button. Parameter and value Bold Set User Name to Tom. Variable Italic Format: XX:XX:XX:XX:XX:XX The symbols that may be found in this document are defined as follows. Symbol Meaning This format is used to highlight information of importance or special interest. Ignoring this type of note may result in ineffective configurations, loss of data or damage to device. This format is used to highlight a procedure that will save time or resources. iii Document Version: V2.0 More information and support Visit www.tendacn.com and search for the product model to get your questions answered and get the latest documents. Revision history Tenda is constantly searching for ways to improve its products and documentation. The following table indicates any changes that might have been made since the user guide was first published. Version Date Description V2.0 2026.01.10 Adjusted the document structure and optimized sentence expression. V1.0 – V1.3 2024.04 – 2025.05 Historical versions. iv Document Version: V2.0 Contents Getting started with AP 1 1.1 Perform quick setup wizard 1 1.2 Set the working mode of the AP 2 Login and logout 9 2.1 Log in to the web UI 9 2.2 Log out of the web UI 10 2.3 View the layout of the web UI 11 2.4 Use common buttons 12 Manage internet settings 13 3.1 Configure LAN settings 13 3.2 Configure management IP 16 3.3 Use the AP as a DHCP server 17 Manage wireless settings 20 4.1 Configure SSID settings 20 4.2 Configure radio frequency 39 4.3 Optimize radio frequency 43 4.4 Configure load balancing 48 4.5 Configure frequency analysis 51 4.6 Configure roaming settings 53 4.7 Enable client type identification function 54 4.8 Configure broadcast and multicast packet control 55 4.9 Use the AP as a virtual controller 55 Control internet access 57 5.1 Add devices to the blocklist 57 5.2 Add devices to the whitelist 59 5.3 Remove devices from the blocklist/whitelist 60 5.4 Control internet access speed 60 5.5 Control internet usage time 62 Maintain and monitor network 65 6.1 View system status 65 6.2 View wireless status 67 6.3 View traffic statistics 68 6.4 View client list 69 v Document Version: V2.0 6.5 View system log 70 6.6 Diagnose the network 71 6.7 Configure uplink detection 72 6.8 Control LED indicator 74 6.9 Configure system time 76 6.10 Configure login timeout interval 77 6.11 Change login password 78 6.12 Reboot the AP 79 6.13 Backup and restore 81 6.14 Reset the AP 83 6.15 Upgrade system software 84 6.16 Configure remote web management 86 6.17 Configure cloud maintenance 88 Configure QVLAN 92 Appendixes 96 A.1 Factory default settings 96 A.2 Acronyms & Abbreviations 97 1 Document Version: V2.0 1 Getting started with AP Features available in the AP may vary by model and software version. All images, steps, and descriptions in this guide are only examples and may not reflect your actual AP experience. If you are using the AP for the first time or have restored it to factory settings, and the AP is not managed by any network device or cloud platform, refer to the following instructions to use the AP web quick setup wizard to quickly access the internet via Wi-Fi. For more configuration options through the AP web UI, refer to other chapters of this guide. 1.1 Perform quick setup wizard 1. Log in to the quick setup page of the AP. 1) Connect a Wi-Fi-enabled device (such as a smartphone and a laptop) to the AP’s Wi-Fi network. − Ensure that the internet where the AP is deployed is connected. − If the AP is not managed by any network device or cloud platform, the AP’s Wi-Fi network only has default Wi-Fi names Tenda_XXXXXX and Tenda_XXXXXX_5G (XXXXXX is the last six digits of the MAC address on the bottom label of the AP). − If Unsecured Network prompts on the page, ignore it. 2) After a successful connection, the Wi…

Text truncated - open the document above for the full version.

AX3000 Wi-Fi 6 Ceiling Access Point

       !"# $%# &## "# '"(')( *  ' # ++, -++,-+-.#/-++,-+-- 0#')(1( #)   23345363789:4334;  #(,,,<  &  ==>? ?  == ??  %('*#(' # @#%#(' '@'"'  -<+ #A# ='"&# %0B'#=,<  #'=##0  %C%)( DE'' '' ! ))""F' (0',- ?G-?,-GH0#A(' ! C%C"('"C%)( $"%CC(",< E''I,<,,<,=*,BJ!J ,J#/,0" ,<,,,<+,=*, <J#/<0"K+ E''I+++,+=*+,+++=* +-,+++=*,#J ,J#),J <J#)<J#)J#)J#/,J#/<J#/J#/0"K,#/  $"%CC(H%&>(H% )(' "B# "# 0"#"'"#B(%"B$0# %H#)(%'  ("H(#(  %"#" )#C#B''($(#)('@#('(  ' )$  F' (#0  % '( !'

       !"# $%# &## "#  '"(')( *  ' #++, -++,-+-.#/-++,-+-- 0#')(1( #)  &2-3,.454+54'54''5 (("(#('  ((    677897:7;<=>8778?  #(,,,2 &  @@AB B  @@ BB  %('*#(' # C#%#(' 'C'"'  -2+ #D# @'"&# %0E'#@,2  &F (("(#(' (#(0 (" &2-3,.454+54'54''5'' !   BG-B,-G        4H(#II')# (J5)('F'"(#((K%'I0 ( F')#%('*#(' '""%!(;9=<7H)CJK%'I0 (I'E'(F0)'C' !#  K%'I0 (#%('*#(' I%"%# ((")(' ,.F( %"       4H(#II')# (J5)('F'"(#(#"F(#( F(F'' ! F(#II')#(' (#II')# ('" (' ('F' ( C '"(#"#  ('($ I%)' !H)CJK%'I0 (       )('F'"(#((K%'I0 (" (%" L#"I"D$M""F(#' F0#('   ' )$   '! #(%  (#)(N"   % '( !'

              ! "   #$%&#'$()'$ ' '$&#'$ *&+*,+ #!$-#!$ #*$' ../ ! ../.0 '1 ../. 2'* ,!+3+!$',$ 455 6789:;<=>8<:? '+! //"/@    AABCC AA C C )+#*-'+*$ '$ D')'+*$ *D*&*$ @". 'E'$ A*& ' )2F*' A /@ )FG!,+ %!$+ )+#*-'+*$  #2 *+ 2'( ,$,!$ H!          #!!F( ')+#*-!& '( !' 2I*'$ ,! 'F'+*!& IJ #!$-#!$K + ',+ $ *+& F!#'L *$ ' 2'++!& !'+*$% + 'II*,'+*$ L M)*I2!$+ ')+#*-'+*$ *$,)*$% +#! &*%$*$% L ' ,)2!$+& !'+*$% + +#!&! 2'++!&  ',+& ,'*! )+ F( '( !' 2I*'$,! 'F'+*!& IJ #!$-#!$K $ ) F! #'L &#' #'D! +#! &'2! !LL!,+ '& )  $ ',+*$ H! +#! )$!&*%$! #!!F( ,!+*L( +#'+ ! '! $+ &)FG!,+ + ' !$*' L L!!' F!$!L*+& +#'+ *$,) !&  F!$!L*+& I)&)'$+ + !,+*$ ." L +#! $+*)% F)&! ,+ L 0 / B  / #*& ')+#*-'+*$ *& D'* )$+* L)+#! *++!$ $+*,! L2 +#! 'II*,'$+ *$,!!( )& *!$+N& &*%$'+)! O*$+! '2! #!$ )! *+! $%*$!!

        !! "#$%"&#'(&#& &#%"&#)%*)+* "#,"#")#&-!-. --.-!/&0--.- 1&)+*2*#&+# 344456789:6;8<=>?;@5A8B<;856 &*.!. .C   DDE FF DD F F (*"),&*)#&# G&(&*)#)G)%)# C -&H&#D)%& (1I)&D.!C (IJ+*#K)#*)&)*'L(%*$&)#$&MM)+&*)#K+*)K)+&*)#KFNF.N F#&++&#+ )*" +*)#%!C-&#!C-/K*"11)%%)#O%(%     "I'L(%*%#$*1+#K)#*)&*&*1#*K)#K1&*)# &++1M&#')#$*")%&MM)+&*)#&%(*)#I PQ+H)&$&1 P +"1&*)+% PM&*)#%+)M*)# PE FFG)+ +()*'+&&*)# "&IG1&*)&%+#*&)#MM)*&'&#+#K)#*)&)#K1&*)##*+(%*1&)'&%**" M(I)+"M(I )+)%+%(K*"%1&*)&%MG)%(#J(%*)K)I#K)*%*)*%+1M*)*%)#*" 1&H* )#+' )$#&*( R)#* &1 "#( )* #$)#

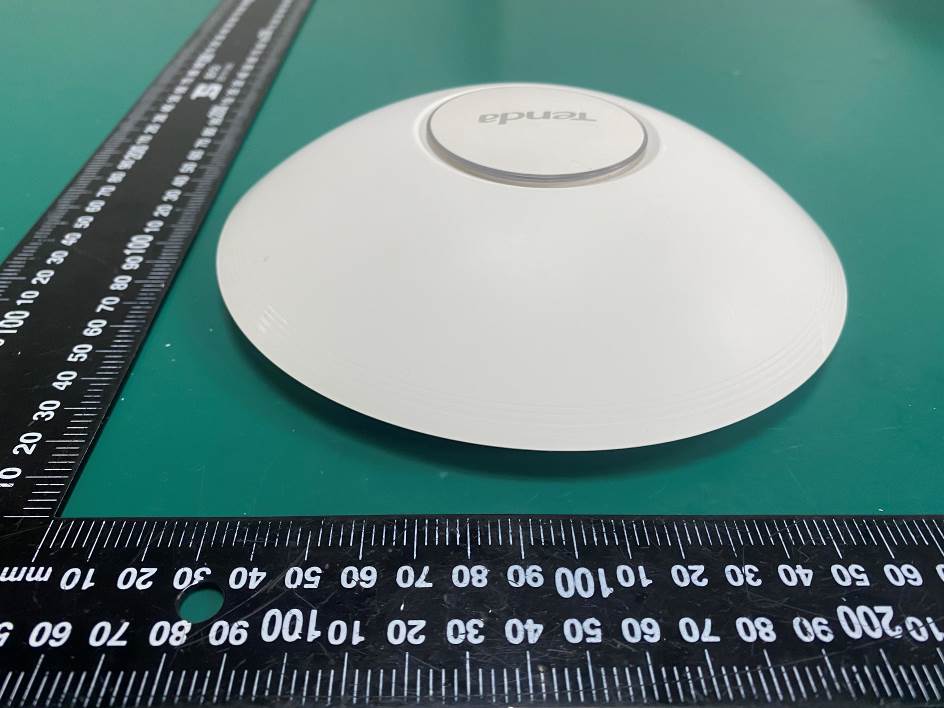

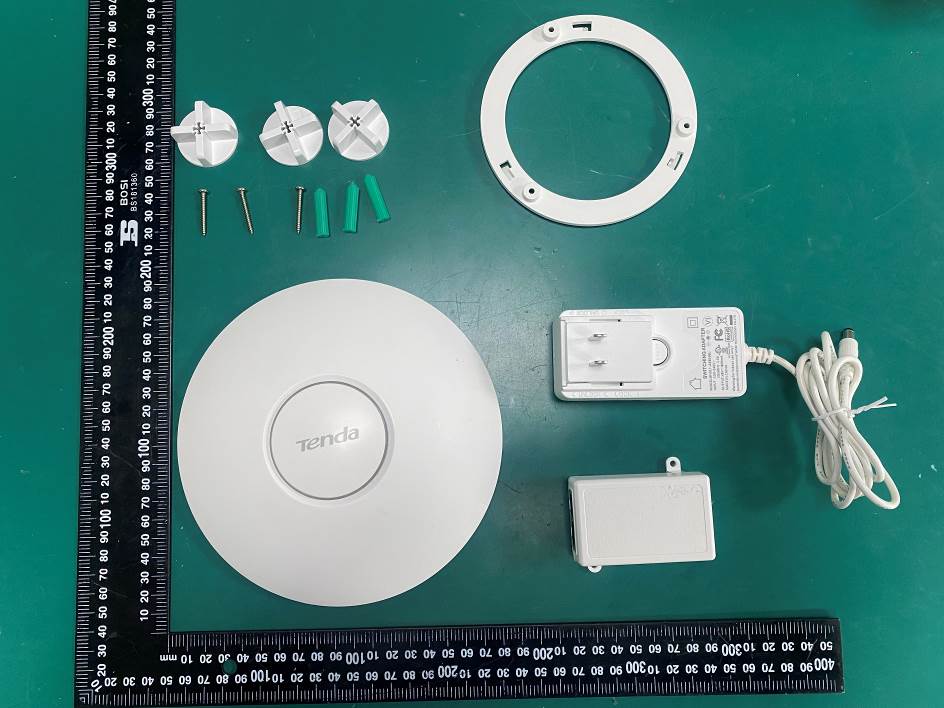

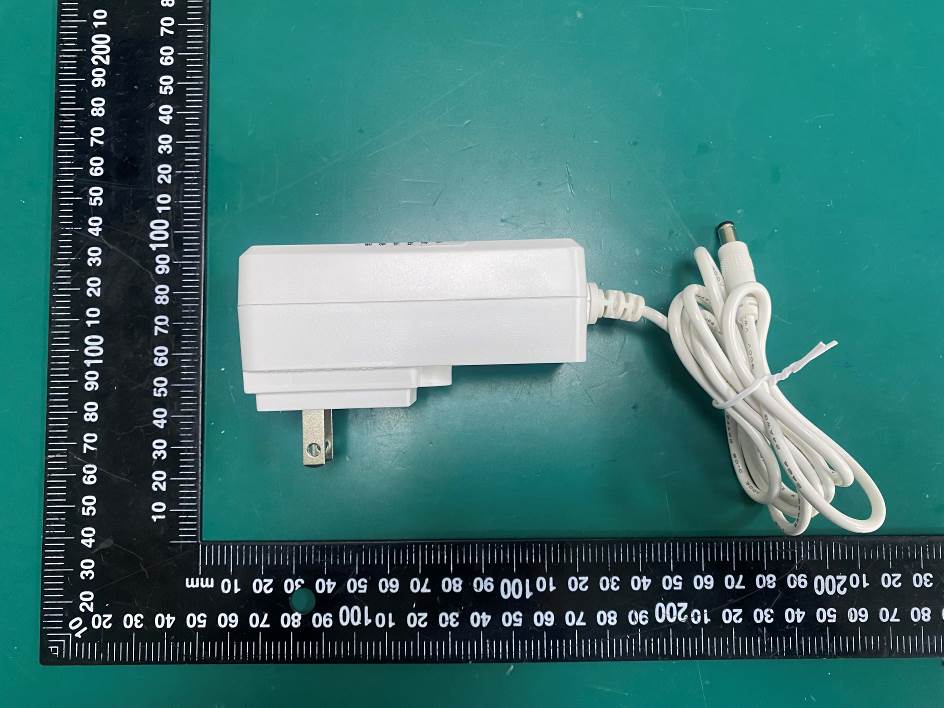

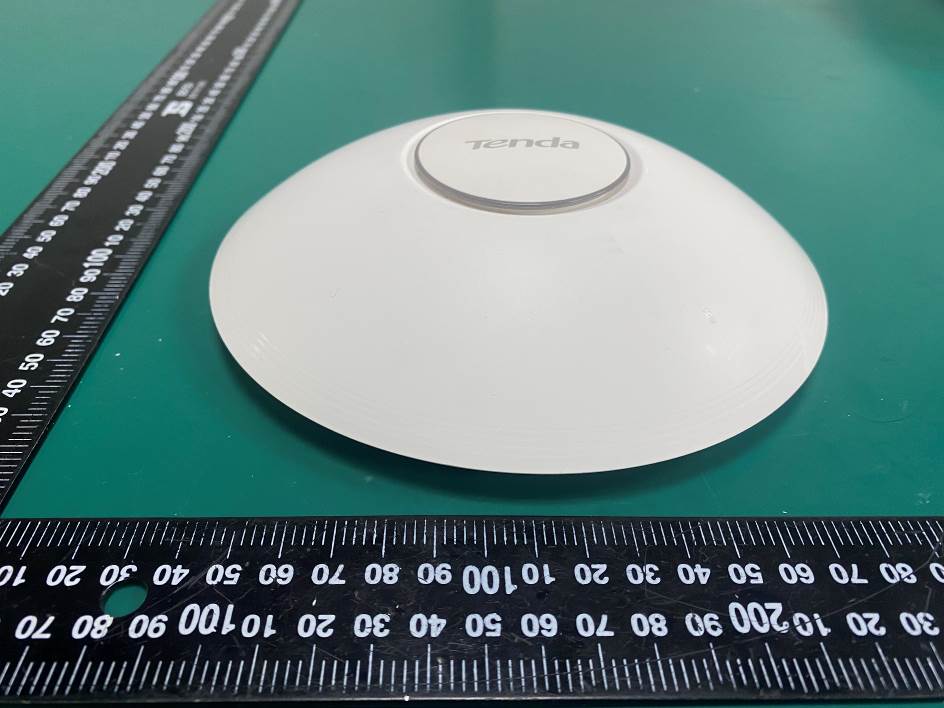

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-EXP Page 1 of 8 EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-EXP Page 2 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-EXP Page 3 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-EXP Page 4 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-EXP Page 5 of 8 POE Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-EXP Page 6 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-EXP Page 7 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-EXP Page 8 of 8

AX3000 Wi-Fi 6 Ceiling Access Point Model: i27 Address: tendawifi.com Power: 48V 0.8A802.3at www.tendacn.com Made in China Shenzhen Tenda Technology Co., Ltd. 6-8 Floor, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N：XXXXXXXXXXXX Ver: X.X MAC：XXXXXXXXXXXX FCC ID: V7TI27V3

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-INP Page 1 of 8 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-INP Page 2 of 8 2.4G/5G Wi-Fi ANT0 2.4G/5G Wi-Fi ANT1 5G Wi-Fi ANT2 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-INP Page 3 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-INP Page 4 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-INP Page 5 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-INP Page 6 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-INP Page 7 of 8 POE Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-INP Page 8 of 8

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 193 of 196 Version 4.1 RF EXPOSURE EVALUATION MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f²)30 30–30027.50.0730.230 300–1500//f/150030 1500–100,000//1.030 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Result Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 194 of 196 Version 4.1 Calculated Data: For worst case: Antenna Gain # Max Tune-up Power # Mode Frequency (MHz) (dBi)(numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 2.4G Wi-Fi2412-2462 7.816.0428.0 630.96 300.3370 1.0 5150-52509.669.2526.5446.68 300.3653 1.0 5250-53509.669.2520.0 100.00 300.0818 1.0 5G Wi-Fi 5725-58509.839.6224.0251.19 300.2137 1.0 Note: 1) The tune up conducted power and antenna gain was declared by the applicant. 2) For the Wi-Fi mode, the antenna gain should be the directional gain. 3) The 2.4G and 5G Wi-Fi can simultaneous transmitting. Simultaneous transmitting consideration (worst case): The ratio= MPE 2.4G Wi-Fi /limit+MPE 5G Wi-Fi /limit = 0.3370/1.0+0.3653/1.0 =0.702<1.0 So simultaneous exposure is compliant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 30cm from nearby persons. Result: Compliant.

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF004 Page 1 of 196 Version 4.1 TEST REPORT Applicant Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address:6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Report Number:2501A12615E-RF-00A FCC ID:V7TI27V3 Test Standard (s) FCC PART 15.247 Sample Description Product Type:AX3000 Wi-Fi 6 Ceiling Access Point Model No.:i27 Multiple Model(s) No.:N/A Trade Mark:Tenda Date Received:2026-02-02 Issue Date:2026-04-16 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Allen BaiNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 2 of 196 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................12 AC LINE CONDUCTED EMISSIONS...............................................................................................................................12 SPURIOUS EMISSIONS ..................................................................................................................................................14 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................................................................17 MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................................................19 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................20 CONDUCTED SPURIOUS EMISSION...............................................................................................................................21 POWER SPECTRAL DENSITY ........................................................................................................................................22 DUTY CYCLE ...............................................................................................................................................................23 ANTENNA REQUIREMENT .....................................................................................................................................24 TEST DATA AND RESULTS .....................................................................................................................................25 AC LINE CONDUCTED EMISSIONS...............................................................................................................................25 SPURIOUS EMISSIONS ..................................................................................................................................................28 6DB EMISSION BANDWIDTH......................................................................................................................................150 99% OCCUPIED BANDWIDTH ....................................................................................................................................158 MAXIMUM CONDUCTED OUTPUT POWER .................................................................................................................166 POWER SPECTRAL DENSITY ................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 164 of 196 Version 4.1 Chain 0 802.11ax20_2412MHz_RU_FULL_Chain 0 802.11ax20_2437MHz_RU_FULL_Chain 0 Chain 1 802.11ax20_2462MHz_RU_FULL_Chain 0 802.11ax20_2412MHz_RU_FULL_Chain 1 802.11ax20_2437MHz_RU_FULL_Chain 1 802.11ax20_2462MHz_RU_FULL_Chain 1 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 165 of 196 Version 4.1 Chain 0 802.11ax40_2422MHz_RU_FULL_Chain 0 802.11ax40_2437MHz_RU_FULL_Chain 0 Chain 1 802.11ax40_2452MHz_RU_FULL_Chain 0 802.11ax40_2422MHz_RU_FULL_Chain 1 802.11ax40_2437MHz_RU_FULL_Chain 1 802.11ax40_2452MHz_RU_FULL_Chain 1 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 166 of 196 Version 4.1 Maximum Conducted Output Power Test Information: Sample No.:3F25-1Test Date:2026/03/12 Test Site:RFTest Mode:Transmitting Tester:Ciel JiangTest Result:Pass Environmental Conditions: Temperature: (°C) 24.1 Relative Humidity: (%) 47 ATM Pressure: (kPa) 100.9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 167 of 196 Version 4.1 Test Data: ModeAntenna Test Frequency (MHz) Peak Output Power(dBm) Average Output Power(dBm) Limit (dBm) Verdict 241223.4820.4230.00Pass 243723.6920.5830.00Pass Chain 0 246223.9020.7630.00Pass 241219.8616.7930.00Pass 243720.1217.0830.00Pass 802.11b Chain 1 246219.9416.8430.00Pass 241227.1419.8330.00Pass 243727.2520.0430.00Pass Chain 0 246227.5820.2130.00Pass 241226.2719.0330.00Pass 243726.6419.3730.00Pass 802.11g Chain 1 246226.5519.3130.00Pass 241223.8016.4630.00Pass 243723.9916.6030.00Pass Chain 0 246224.3716.9230.00Pass 241223.2215.5730.00Pass 243723.8016.0830.00Pass Chain 1 246223.6615.9230.00Pass 241226.5319.0528.19Pass 243726.9119.3628.19Pass 802.11n20 Total 246227.0419.4628.19Pass 242222.2414.5630.00Pass 243722.6114.9630.00Pass Chain 0 245222.4814.7830.00Pass 242221.3413.3830.00Pass 243721.9613.9730.00Pass Chain 1 245221.8813.9330.00Pass 242224.8217.0228.19Pass 243725.3117.5028.19Pass 802.11n40 Total 245225.2017.3928.19Pass Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 168 of 196 Version 4.1 ModeAntenna Test Frequency (MHz) Peak Output Power(dBm) Average Output Power(dBm) Limit (dBm) Verdict 241223.8215.8830.00Pass 243724.1416.1430.00Pass Chain 0 246224.6616.6130.00Pass 241223.0014.8630.00Pass 243723.4315.4130.00Pass Chain 1 246223.4115.3230.00Pass 241226.4418.4128.19Pass 243726.8118.8028.19Pass 802.11ax20_ RU_FULL Total 246227.0919.0228.19Pass 242223.3815.1730.00Pass 243723.7115.4830.00Pass Chain 0 245223.6215.3330.00Pass 242222.5614.1730.00Pass 243723.1014.7230.00Pass Chain 1 245222.8714.6430.00Pass 242226.0017.7128.19Pass 243726.4318.1328.19Pass 802.11ax40_ RU_FULL Total 245226.2718.0128.19Pass Note: For 802.11n/ax modes, the device support beam-forming function, per KDB 662911 D01 Multiple Transmitter Output v02r01, for power measurements on the devices: Array Gain = 10 log (N ANT /N SS ) dB = 10* log (2/1) = 3.01dB Directional gain = G ANT MAX + Array Gain = 4.80dBi+3.01dB=7.81dBi Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 169 of 196 Version 4.1 Power Spectral Density Test Information: Sample No.:3F25-1Test Date:2026/03/12~2026/04/15 Test Site:RFTest Mode:Transmitting Tester:Ciel JiangTest Result:Pass Environmental Conditions: Temperature: (°C) 22.3-24.1 Relative Humidity: (%) 47-55 ATM Pressure: (kPa) 100.9-101.6 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 170 of 196 Version 4.1 Test Data: ModeAntenna Test Frequency (MHz) Result (dBm/3kHz) Limit (dBm/3kHz) Verdict 2412-0.888.00Pass 2437-1.048.00Pass Chain 0 24620.448.00Pass 2412-4.508.00Pass 2437-4.068.00Pass 802.11b Chain 1 2462-4.948.00Pass 2412-4.038.00Pass 2437-3.998.00Pass Chain 0 2462-3.318.00Pass 2412-4.548.00Pass 2437-4.168.00Pass 802.11g Chain 1 2462-4.428.00Pass 2412-7.708.00Pass 2437-7.318.00Pass Chain 0 2462-5.578.00Pass 2412-6.738.00Pass 2437-6.038.00Pass Chain 1 2462-7.548.00Pass 2412-4.186.19Pass 2437-3.616.19Pass 802.11n20 Total 2462-3.436.19Pass 2422-12.468.00Pass 2437-11.498.00Pass Chain 0 2452-11.268.00Pass 2422-11.108.00Pass 2437-11.978.00Pass Chain 1 2452-11.658.00Pass 2422-8.726.19Pass 2437-8.716.19Pass 802.11n40 Total 2452-8.446.19Pass Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 171 of 196 Version 4.1 ModeAntenna Test Frequency (MHz) Result (dBm/3kHz) Limit (dBm/3kHz) Verdict 2412-7.688.00Pass 2437-7.798.00Pass Chain 0 2462-7.698.00Pass 2412-9.238.00Pass 2437-9.108.00Pass Chain 1 2462-9.148.00Pass 2412-5.386.19Pass 2437-5.396.19Pass 802.11ax20_RU_FULL Total 2462-5.346.19Pass 2422-12.038.00Pass 2437-12.068.00Pass Chain 0 2452-10.968.00Pass 2422-11.178.00Pass 2437-11.838.00Pass Chain 1 2452-11.418.00Pass 2422-8.576.19Pass 2437-8.936.19Pass 802.11ax40_RU_FULL Total 2452-8.176.19Pass Note: For 802.11n/ax modes, the device support beam-forming function, per KDB 662911 D01 Multiple Transmitter Output v02r01, for power spectral density (PSD) measurements on the devices: Array Gain = 10 log (N ANT /N SS ) dB = 10* log (2/1) = 3.01dB Directional gain = G ANT MAX + Array Gain = 4.80dBi+3.01dB=7.81dBi Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 172 of 196 Version 4.1 Chain 0 802.11b_2412MHz_Chain 0 802.11b_2437MHz_Chain 0 Chain 1 802.11b_2462MHz_Chain 0 802.11b_2412MHz_Chain 1 802.11b_2437MHz_Chain 1 802.11b_2462MHz_Chain 1 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A TR-EM-RF004 Page 173 of 196 Version 4.1 Chain 0 802.11g_2412MHz_Chain 0 802.11g_2437MHz_Chain 0 Chain 1 802.11g_2462MHz_Chain 0 802.11g_2412MHz_Chain 1 802.11g_2437MHz_Chain 1 802.11g_2462MHz_Chain 1 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A …

Text truncated - open the document above for the full version.

SHENZHEN TENDA TECHNOLOGY CO.,LTD. Measurement of Antenna for i27 Project Manufacture ：SHENZHEN TENDA TECHNOLOGY CO., LTD. ADD: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Model: i27 Antenna 1. Antenna Appearance: 2. Electrical performance test results at normal temperature 2.4G/5G Wi-Fi ANT0 2.4G/5G Wi-Fi ANT1 5G Wi-Fi ANT2 SHENZHEN TENDA TECHNOLOGY CO.,LTD. a) Antenna 0 No Test Item Unit Demand Performance Test Result Judgement 1 Frequency Range MHz 2400-2500/5150-5850 2400-2500/5150-5850 OK 2 Gain dBi 4 2410 4.45 OK 2450 4.80 OK 2490 4.71 OK 5150 4.63 OK 5500 5.11 OK 5850 5.06 OK 3 Isolation dB ≤-15 2400 -23 OK 2450 -22 OK 2500 -21 OK 5150 -22 OK 5500 -25 OK 5850 -26 OK 4 Return loss dB ≤-10 2400 -12 OK 2450 -15 OK 2500 -15 OK 5150 -11 OK 5500 -17 OK 5850 -12 OK b) Antenna 1 No Test Item Unit Demand Performance Test Result Judgement 1 Frequency Range MHz 2400-2500/5150-5850 2400-2500/5150-5850 OK 2 Gain dBi 4 2410 4.31 OK 2450 4.34 OK 2500 4.17 OK 5150 4.89 OK 5500 4.88 OK 5850 4.58 OK 3 Isolation dB ≤-15 2400 -24 OK 2450 -23 OK 2500 -22 OK 5150 -22 OK 5500 -25 OK SHENZHEN TENDA TECHNOLOGY CO.,LTD. 5850 -26 OK 4 Return loss dB ≤-10 2400 -13 OK 2450 -15 OK 2500 -14 OK 5150 -11 OK 5500 -15 OK 5850 -13 OK c) Antenna 2 No Test Item Unit Demand Performance Test Result Judgement 1 Frequency Range MHz 5150-5850 5150-5850 OK 2 Gain dBi 4 5150 4.76 OK 5500 5.26 OK 5850 4.49 OK 3 Isolation dB ≤-15 5150 -22 OK 5500 -25 OK 5850 -26 OK 4 Return loss dB ≤-10 5150 -11 OK 5500 -17 OK 5850 -12 OK 3. Radiation parameter test Antenna 0: SHENZHEN TENDA TECHNOLOGY CO.,LTD. Frequency E Total. dB(dBi) Efficiency( ) 2410MHz 4.45 78% 2450MHz 4.80 81% 2490MHz 4.71 79% 5150MHz 4.63 65% 5500MHz 5.11 76% 5850MHz 5.06 69% 3D Radiation patterns 2.4G 5G 2D Radiation patterns 2.4G Phi=0 Phi=0 2.4G Phi=90 2.4G Theta=90 5G Phi=0 Phi=0 5G Phi=90 5G Theta=90 SHENZHEN TENDA TECHNOLOGY CO.,LTD. Antenna 1 Frequency E Total. dB(dBi) Efficiency( ) 24 10MHz 4.31 80% 2450MHz 4.34 74% 2500MHz 4.17 70% 5150MHz 4.89 65% 5500MHz 4.88 74% 5850MHz 4.58 67% 3D Radiation patterns 2.4G 5G 2D Radiation patterns 2.4G Phi=0 Phi=0 2.4G Phi=90 2.4G Theta=90 5G Phi=0 Phi=0 5G Phi=90 5G Theta=90 SHENZHEN TENDA TECHNOLOGY CO.,LTD. Antenna 2: Frequency E Total. dB(dBi) Efficiency( ) 5150MHz 4.76 72% 5500MHz 5.26 69% 5850MHz 4.49 70% 3D Radiation patterns 5G 2D Radiation patterns 5G Phi=0 Phi=0 5G Phi=90 5G Theta=90

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A-TSP Page 1 of 3 TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A-TSP Page 2 of 3 Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501A12615E-RF-00A-TSP Page 3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)
