VEPGL-GUARDIANGuardian

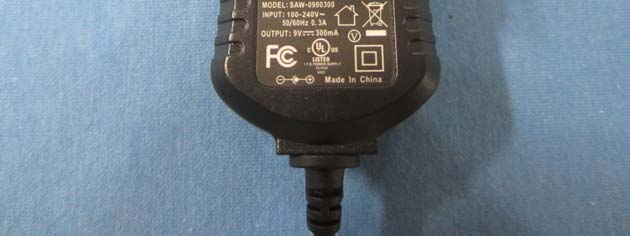

The Guardian™ Instruction Manual Included In Your Package Before We Get Started Sold Separately The Guardian™ Control Panel Cover Battery Cover AC Adapter Remote control Strobe Light SELECT-A-PEST Dial 3 The SELECT-A-PEST dial sets the ultrasonic sound frequency and has four main groups. These groups are labeled with pest names to provide a starting point to target your specific pest. Each group has more than one setting to help you dial in The Guardian™ to your needs. Please keep in mind that, just like humans, all animals have different hearing ranges. Different animals are affected by different sounds - or settings. Most importantly, make sure you are giving The Guardian™ at least one week on a specific setting before making changes. Power Mode 1 Start by selecting one of two options: CONSTANT or MOTION DETECTOR. CONSTANT mode sends out a continuous stream of unpleasant sounds or wild cat calls. MOTION DETECTOR will only send out sounds when The Guardian™ detects movement. Predator Sounds 2 Moving the PREDATOR SOUNDS switch to YES disables the SELECT-A-PEST mode, using predator sounds only. The volume of the predator sounds can be easily adjusted using the PREDATOR VOLUME dial. What is ultrasonic sound? Ultrasonic sounds are frequencies which are higher than the range of human hearing. However, these sounds are very irritating to nuisance pests, causing them to flee. Will I be able to hear it? The range of sounds produced by The Guardian™ include both audible and inaudible sounds. Many people can hear sounds from both settings 1 and 2, on the SELECT-A-PEST dial. How long before they’re gone? Although some customers report positive results in a few days, we do recommend giving The Guardian™ two to three weeks for best results. How does the infrared motion sensor work? The Guardian™ uses an infrared sensor which detects the movement of a heat source, such as an animal. The Guardian™ will detect movement up to 100 ft. in front of the unit, with a clear line of sight. Why should I use predator sounds? The Guardian™ uses pre-recorded mountain lion calls which creates a “danger” zone large pests will not want to enter. What is the coverage area? The Guardian™ will detect movement and send sounds up to 100 ft. in front of the unit in a clear line of sight. OFF NO MINMAX BIRDS, DEER OPOSSUMSCHIPMUNKS RACCOONS, YES CONSTANT POWER MODEPREDATOR SOUNDS PREDATOR VOLUMESELECT-A-PEST MOTION DETECTOR SQUIRRELS, CATS, 3 2 1 4 BATS, MICE, RATS, DOGS 12 3 The Control Panel 100ft The Guardian™ Instruction Manual Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac- cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. We’re Here to Help Toll Free: 1-800-657-8214 Outside US: 1-541-245-4488 Caution Changes or Modifications not expressly approved by the party responsible could void the user’s authority to operate this device. Warning Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. This product needs power supplied by an adapter that can meet LPS. The maximum operating temperature is 45°C. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Website: www.pestrepellerultimate.com Email: [email protected] This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en comprom- ettre le fonctionnement. ©2014 Good Life, Inc. DESIGNED IN OREGON MADE IN CHINA Power OptionsOptional Accessories (Sold Separately) The Guardian™ can be powered by 6 C size batteries or by an AC adapter. To install batteries, remove the two screws that hold the cover in place and remove the cover. Install the batter- ies as shown and replace the cover. When using the optional AC adapter, plug the adapter into the wall. Lift the rubber flap on The Guardian™ and attach the cord. Remote Control Use the remote control to activate The Guardian™ if the pest is outside the motion detector range or too small to trigger the unit automatically. Strobe Light The Strobe Light connects via a small 2-pin plug and twists on top of The Guardian™. This optional accessory produces regular flashes of light that are irritating to nocturnal animals and can be used indoors or out. Installing The Guardian™ 1) Identify where y…

Text truncated - open the document above for the full version.

K-mark Industrial Limited. Flat A, 7/F., Mai On Ind. Bldg., 17-21 Kung Yip Street, Kwai Chung, Hong Kong. DATE :2014-10-17 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hank Yan of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with K-mark Industrial Limited. and Flat A, 7/F., Mai On Ind. Bldg., 17-21 Kung Yip Street, Kwai Chung, Hong Kong. Dated this / Day of 10/17/2014 / Agency agreement expiration date: 10/17/2015 By: Richard Tam Signature Printed Title: Project Manager On behalf of : K-mark Industrial Limited. Telephone: 852 2741 3165

Differences Declaration To whom concern, We company K-mark Industrial Limited. hereby declares: The product model(s) PRU-GD1-ACC-S1 is identical in the same PCB layout, interior structure and electrical circuits with the model PRU-GD1 which tested in Global Unit Technology Co., Ltd., the only difference is the model name for commercial purpose. Authorized signature: Date:2014-10-17

K-mark Industrial Limited. Flat A, 7/F., Mai On Ind. Bldg., 17-21 Kung Yip Street, Kwai Chung, Hong Kong. 2014-10-17 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: VEPGL-GUARDIAN Product Name: Guardian Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 10/172014 By: Richard Tam Signature Printed Title: Project Manager On behalf of : K-mark Industrial Limited. Telephone: 852 2741 3165

DC 9V “C” SIZE 1.5V “C” SIZE 1.5V “C” SIZE 1.5V “C” SIZE 1.5V “C” SIZE 1.5V“C” SIZE 1.5V 0700 MODEL: PRU-GD1 MADE IN CHINA FCC ID: VEPGL-GUARDIAN CAN RSS-Gen/CNR-Gen 1304

Global United Technology Services Co., Ltd. Report No.: GTSE14020101201 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. TEST REPORT Applicant: K-mark Industrial Limited. Address of Applicant: Flat A, 7/F., Mai On Ind. Bldg., 17-21 Kung Yip Street, Kwai Chung, Hong Kong. Equipment Under Test (EUT) Product Name: Guardian Model No.: PRU-GD1, PRU-GD1-ACC-S1 Trade Mark: FCC ID: VEPGL-GUARDIAN Applicable standards: FCC CFR Title 47 Part 15 Subpart B:2013 Date of sample receipt: June 18, 2014 Date of Test: June 18-24, 2014 Date of report issue: June 24, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14020101201 Global United Technology Services Co., Ltd. Project No.: GTSE140201012RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 28 2 Version Version No. Date Description 00 June 24, 2014 Original Prepared By: Date: April 03, 2014 Project Engineer Check By: Date: April 03, 2014 Reviewer Report No.: GTSE14020101201 Global United Technology Services Co., Ltd. Project No.: GTSE140201012RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 28 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ....................................................................................................................................... 5 5.4 TEST FACILITY ................................................................................................................................... 6 5.5 TEST LOCATION ................................................................................................................................. 6 5.6 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.7 DEVIATION FROM STANDARDS ............................................................................................................ 6 5.8 ABNORMALITIES FROM STANDARD CONDITIONS................................................................................... 6 5.9 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 6 6 TEST INSTRUMENTS LIST ..................................................................................................................... 7 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 8 7.1 RADIATED EMISSION ........................................................................................................................... 8 7.2 CONDUCTED EMISSIONS ................................................................................................................... 14 8 TEST SETUP PHOTO ............................................................................................................................ 17 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 19 Report No.: GTSE14020101201 Global United Technology Services Co., Ltd. Project No.: GTSE140201012RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 28 4 Test Summary Test Item Section in CFR 47 Result Radiated Emissions Part15.109 PASS Conducted Emission Part15.107 PASS PASS: The EUT complies with the essential requirements in the standard. Report No.: GTSE14020101201 Global United Technology Services Co., Ltd. Projec…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emissions
