VEPGL-SILENCTXRemote Control

Dog Silencer™ Instruction Manual Included In Your Package I WANT TO USE BATTERIES Sold Separately I’D RATHER PLUG IT IN AC ADAPTERDOG SILENCER60’ EXTENSIONREMOTE CONTROL Before We Get Started WHAT IS ULTRASONIC SOUND? Ultrasonic sounds are frequencies that are higher than the range of human hearing. However, they can be very irritating to dogs. Ultrasonic sound has been used for over a century to successfully train dogs. HOW LONG WILL TRAINING TAKE? Some dogs take longer to train than others and bad habits are sometimes hard to break. Allow 2-3 weeks to see results. WHERE CAN I USE IT? You can stop barking from anywhere that you have a clear line of sight. Hang your Dog Silencer on a tree, set it on top of a fence... the list goes on. Plug it in or Use Batteries It’s Time to Stop Barking. Ready? Use 6 AA batteries for areas that don’t have an AC outlet nearby. This is an ideal option for large yards and dogs that are far away from a power source. Important! Remove the batteries when using AC power. Use the AC adapter when close enough to a power source. You can also use the optional extension (sold separately) for longer distances. Ideal for indoors, smaller yards, and close to your home. AA SIZE L R6 1 .5V AA SIZE L R6 1 .5V AA SIZE L R6 1 .5V AA SIZE L R6 1 .5V AA SIZE L R6 1 .5V AA SIZE L R6 1 .5V DC 9V OPTIONAL EXTENSION 1 Dog Silencer™ Instruction Manual How Far Away is the Dog? Installing Your Dog Silencer 2A Lift the rubber grommet on the side of the Dog Silencer and slide the Power Switch to ‘Ultra’. 2B Place the Dog Silencer in a location where it has a clear line of sight to the dog. From there, adjust the Bark Sensitivity Dial as shown below: AUDIO ULTRA OFF AUDIO ULTRA OFF 25 ft75 ft 300 ft AUDIO ULTRA OFF AUDIO ULTRA OFF 50 ft WHERE DOES IT GO? You have several options. Set the Dog Silencer on a flat surface, or for extra stability, pull out the sliding mounts on the bottom and fasten it down. You can also hang the Dog Silencer anywhere you can put a screw or nail by using the keyholes on the back of the device. DO I NEED A CLEAR LINE OF SIGHT? Yes, ensure that you have a clear line of sight between the Dog Silencer and the dog you are trying to train. Ultrasonic sound will not travel through solid objects like walls or fences. Turn Dial Almost All the Way Down BARK DETECTION WORKS UP TO 75 FEET Turn Dial Almost All the Way Up Turn Dial Halfway Up To silence dogs farther than 75’ use the remote 2 3 Use the remote when you want to activate the Dog Silencer manually or when the dog is outside the 75 foot automatic bark detection range. It will work up to about 100 feet from the unit, and silence dogs up to 300 feet away. Want the Dog Silencer to activate only when you use the remote? Simply turn the Bark Sensitivity Dial all the way down so that the unit won’t activate when the dog barks. More About The Remote: The Dog Silencer must be turned on (set to either ‘Audio’ or ‘Ultra’) in order for the remote to work. The remote, which uses a 12V 23A battery, will not turn the unit on or off. Since there is no door on the remote to access the battery, we recommend calling Customer Care rather than trying to change it yourself. WHEN DO I USE THE REMOTE? Success 4 Congratulations! You’re all set. In the unlikely event you run into any issues, please see the “Troubleshooting” section on the next page or contact us using the information under “We’re Here to Help”. Dog Silencer™ Instruction Manual Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. We’re Here to Help Toll Free: 1-800-657-8214 Outside US: 1-541-245-4488 Caution Changes or Modications not expressly approved by the party responsible could void the user’s authority to operate this device. Warning Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. This product need power supply by adapter that can meet LPS. The maximum operating temperature is 60°. IS THIS DEVICE LEGAL TO USE ON A NEIGHBOR’S DOG? Because the Dog Silencer relies on ultrasonic sound as a training method, it is outside the human hearing range and is not typically covered under noise ordinances. Also, due to the way noise is measured (A-weighting), the Dog Silencer can normally be used in environments where OSHA regulates ultrasonic sound levels. We don’t recommend using the Audio setting for neighbor’s dogs. THE DEVICE ACTIVATES EVEN WHEN THE DOG DOESN’T BARK! You might have the bark sensor set too high, which means it may be activating to noises unrelated to barking. Try turning the bark sensor down slightly so that noise or loud sounds do not trigger it. ARE THERE ANY DOGS THIS WON’T WORK ON? We don’t recommend the Dog Silencer for dogs younger than 1 year as their ears are still developing and may be very sensitive. Older dogs may have high-frequency hearing loss that could prevent the ultrasonic sound from SHOULD I USE THE ‘AUDIO’ SETTING? You have two options - the ‘Ultra’ setting emits ultrasonic sound while ‘Audio’ emits both ultrasonic and audible sounds at the same time. We’ve found customers have the most success using the ‘Ultra’ setting, but if you have an es…

Text truncated - open the document above for the full version.

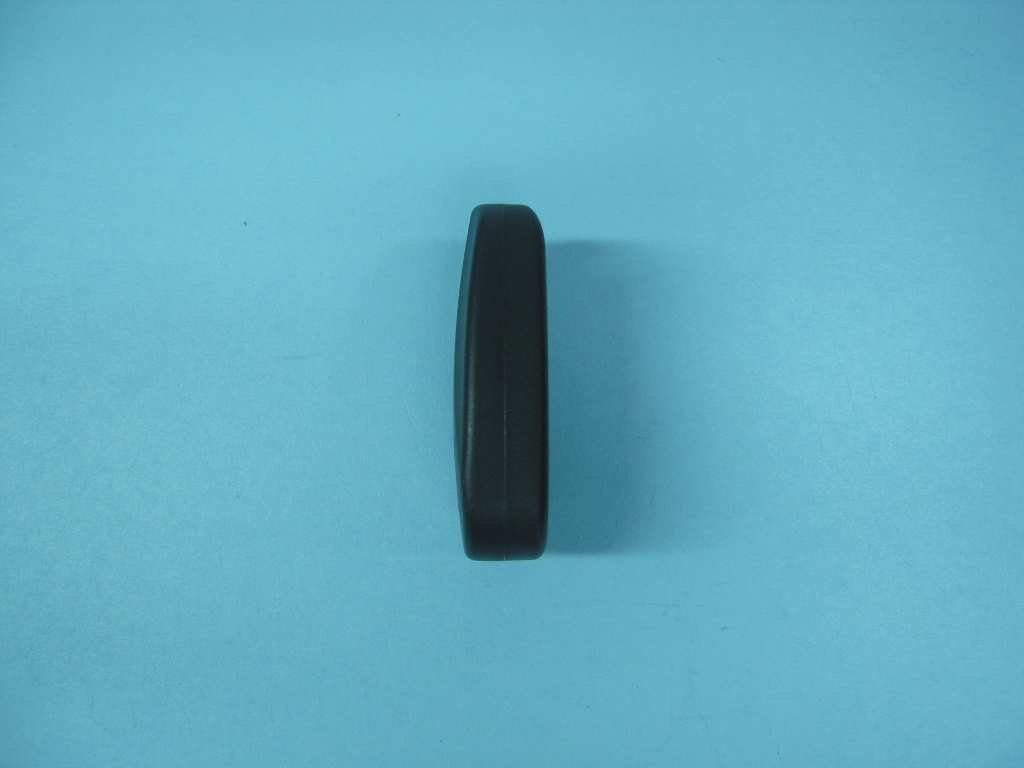

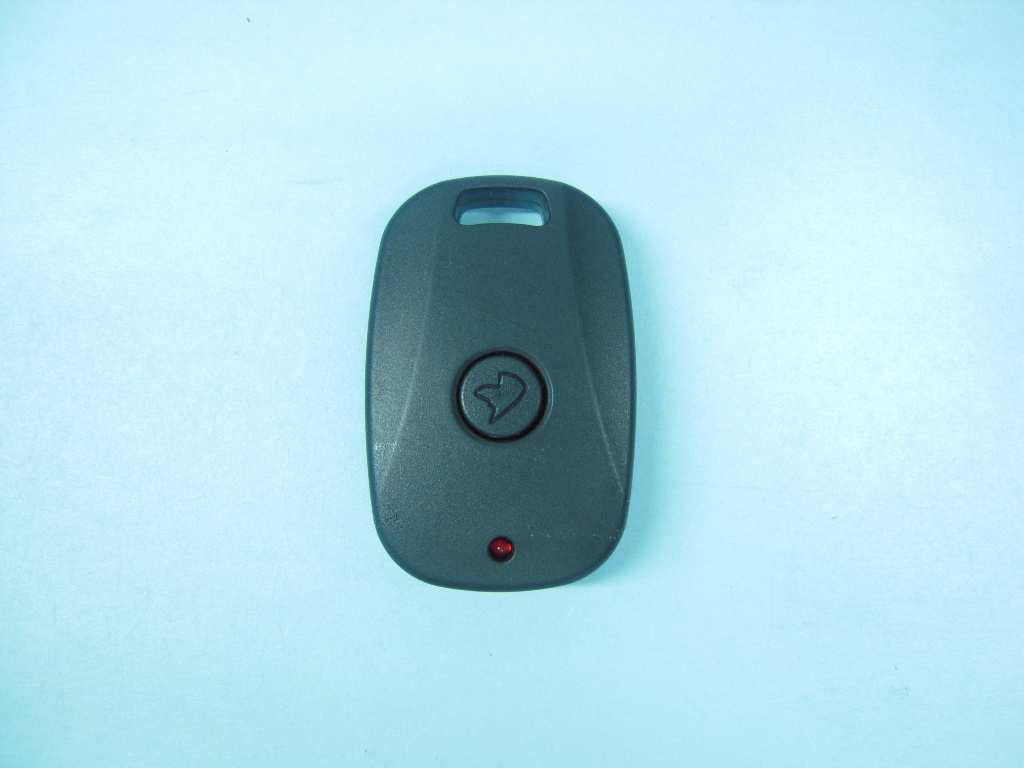

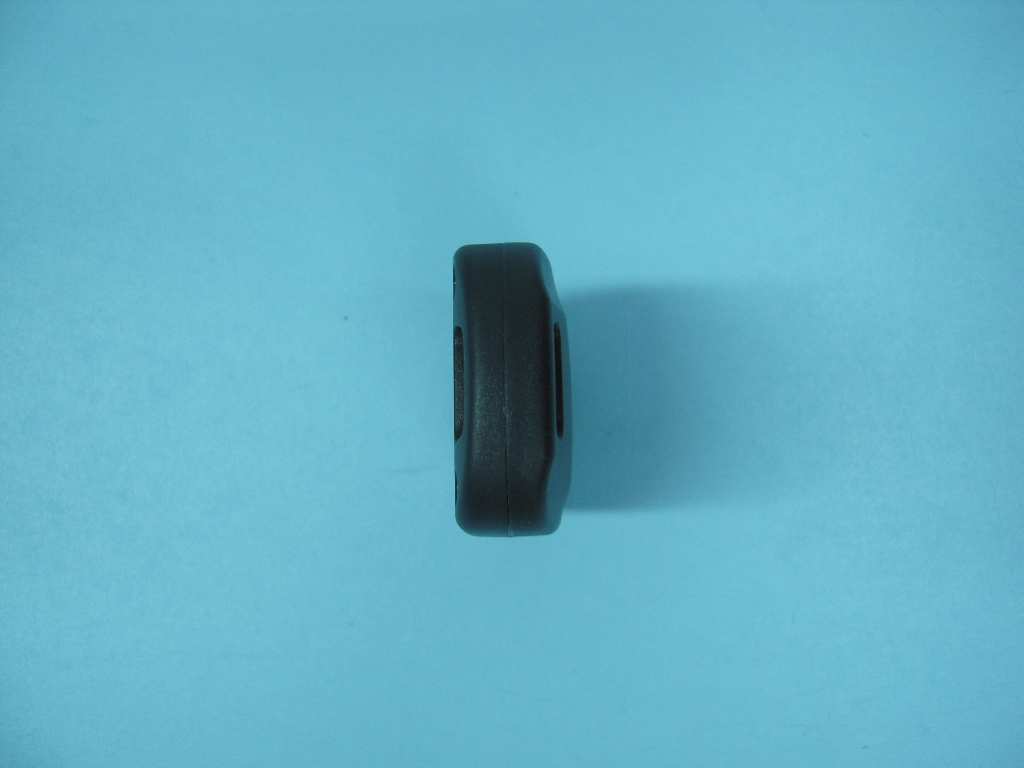

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

FCC ID: VEPGL-SILENCTX MADE IN CHINA IC: 11708A-SILENCER MODEL: DS_TX

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2014-02-25 Page 1 of 23 No. : HM168872 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (KMA001): K-MARK INDUSTRIAL LIMITED. FLAT A, 7/F, MAI ON IND. BLDG., 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG. Manufacturer: K-MARK INDUSTRIAL LIMITED. FLAT A, 7/F, MAI ON IND. BLDG., 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG. Description of Sample(s): Submitted sample(s) said to be Product: Dog Silencer Brand Name: Good Life LLC Model Number: DS_TX FCC ID: VEPGL-SILENCTX Date Sample(s) Received: 2013-12-27, 2014-01-10, 2014-01-20 Date Tested: 2014-01-08 to 2014-02-24 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2013 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date: 2014-02-25 Page 2 of 23 No. : HM168872 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 23 Content Page 2-3 of 23 1.0 General Details 1.1 Test Laboratory Page 4 of 23 1.2 Applicant Details Page 4 of 23 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 23 Description of EUT operation 1.4 Date of Order Page 5 of 23 1.5 Submitted Sample(s) Page 5 of 23 1.6 Test Duration Page 5 of 23 1.7 Country of Origin Page 5 of 23 2.0 Technical Details 2.1 Investigations Requested Page 6 of 23 2.2 Test Standards and Results Summary Page 6 of 23 3.0 Test Results 3.1 Emission Page 7-12 of 23 3.2 Bandwidth Measurement Page 13-14 of 23 STC Test Report Date: 2014-02-25 Page 3 of 23 No. : HM168872 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 15 of 23 Appendix B Duty Cycle Correction During 100 msec Page 16-20 of 23 Appendix C Manual Operation Page 21 of 23 Appendix D Photographs Page 22-23 of 23 STC Test Report Date: 2014-02-25 Page 4 of 23 No. : HM168872 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant K-MARK INDUSTRIAL LIMITED. FLAT A, 7/F, MAI ON IND. BLDG., 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG. Manufacturer K-MARK INDUSTRIAL LIMITED. FLAT A, 7/F, MAI ON IND. BLDG., 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG. STC Test Report Date: 2014-02-25 Page 5 of 23 No. : HM168872 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Submitted sample(s) said to be Product: Dog Silencer Manufacturer: K-MARK INDUSTRIAL LIMITED. FLAT A, 7/F, MAI ON IND. BLDG., 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG. Brand Name: Good Life LLC Model Number: DS_TX Rating: 12Vd.c. (“23A” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a K-MARK INDUSTRIAL LIMITED., Dog Silencer. The EUT is a 433MHz transmitter, when the buttons of EUT are pressed, a RF signal will be transmitted to Receiver. 1.4 Date of Order 2013-12-27, 2014-01-10, 2014-01-20 1.5 Submitted Sample(s): 6 Samples 1.6 Test Duration 2014-01-08 to 2014-02-24 1.7 Country of Origin Hong Kong STC Test Report Date: 2014-02-25 Page 6 of 23 No. : HM168872 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standard…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
