VEPIDF-LYRICRFID Reader IdentiFlyer Lyric

210mm 148mm Brief Features: ● Play bird songs from a sound card inserted into the unit ● Each card can play up to 20 bird songs. 10 songs are on each side of the card ● The unit can either play the bird song or play the mnemonics by using the switch on the side of the unit ● Press the button next to the bird picture to play the corresponding bird song ● Each unit comes with 2 different sound cards ● Operating temperature: 0 o C to 50 o C / 32 o F to 122 o F ● Batteries: Alkaline AAA-cells x 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Identiflyer Lyric Identiflyer Lyric Quick Guide Model # IF04 NOTE: Changes or Modifications not expressly approved by the party responsible could void the user’s authority to operate this device.

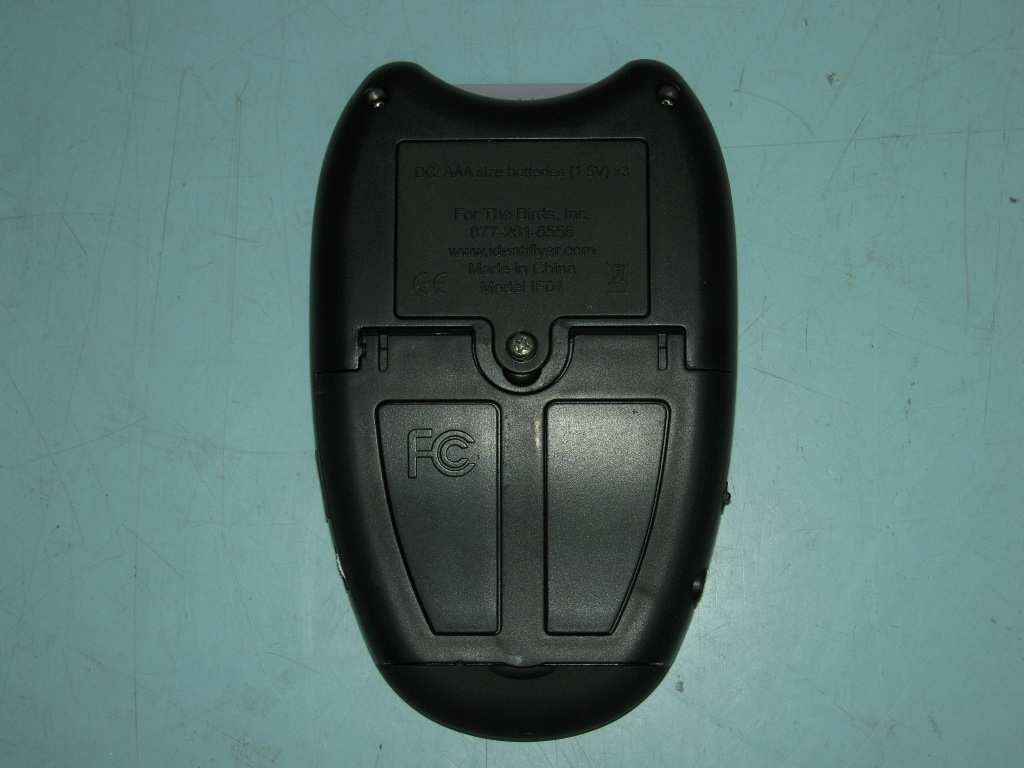

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

For The Birds, Inc. 877-261-6556 www.identiflyer.com Made in China Model IF04 DC: AAA size batteries (1.5V) x3 VOLUME Songs / OFF / L yrics FCC ID: MODEL IF04 VEPIDF-L YRIC 0700 0700 5mm 2 . 2 m m FCC ID: VEPIDF-L YRIC

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2013-05-27 Page 1 of 14 No. : HM168429 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (KMA001): K-MARK INDUSTRIAL LIMITED FLAT A, 7/F., MAI ON IND. BLDG., 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG Manufacturer: K-MARK INDUSTRIAL LIMITED FLAT A, 7/F., MAI ON IND. BLDG., 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG Description of Sample(s): Submitted sample(s) said to be Product: IdentiFlyer Lyric Brand Name: Identiflyer Model Number: IF04 FCC ID: VEPIDF-LYRIC Date Sample(s) Received: 2013-05-02 Date Tested: 2013-05-13 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2013-05-27 Page 2 of 14 No. : HM168429 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 14 Content Page 2-3 of 14 1.0 General Details 1.1 Equipment Under Test [EUT] Page 4 of 14 1.2 Description of EUT Operation Page 4 of 14 1.3 Date of Order Page 4 of 14 1.4 Submitted Sample Page 4 of 14 1.5 Test Duration Page 4 of 14 1.6 Country of Origin Page 4 of 14 2.0 Technical Details 2.1 Investigations Requested Page 5 of 14 2.2 Test Standards and Results Summary Page 5 of 14 3.0 Test Results 3.1 Emission Page 6-11 of 14 STC Test Report Date : 2013-05-27 Page 3 of 14 No. : HM168429 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 12 of 14 Appendix B Photographs Page 13-14 of 14 STC Test Report Date : 2013-05-27 Page 4 of 14 No. : HM168429 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Submitted sample(s) said to be Product: IdentiFlyer Lyric Manufacturer: K-MARK INDUSTRIAL LIMITED FLAT A, 7/F., MAI ON IND. BLDG., 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG Brand Name: Identiflyer Model Number: IF04 Input Voltage: 4.5Vd.c. (“AAA” size battery x 3) 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a K-MARK INDUSTRIAL LIMITED. IdentiFlyer Lyric is radio equipment with a contactless card interface (13.56MHz with an internal antenna). 1.3 Date of Order 2013-05-02 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2013-05-13 1.6 Country of Origin China STC Test Report Date : 2013-05-27 Page 5 of 14 No. : HM168429 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 Regulations and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.225(a) ANSI C63.4:2009 N/A Frequency Tolerance FCC 47CFR 15.225(e) ANSI C63.4:2009 N/A Radiated Emissions FCC 47CFR 15.225 (d) FCC 47CFR 15.209 ANSI C63.4:2009 N/A In-band spurious field strength FCC 47CFR 15.225 (a)(b)(c) ANSI C63.4:2009 N/A Note: N/A - Not Applicable STC Test Report Date : 2013-05-27 Page 6 of 14 No. : HM168429 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Iss…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
