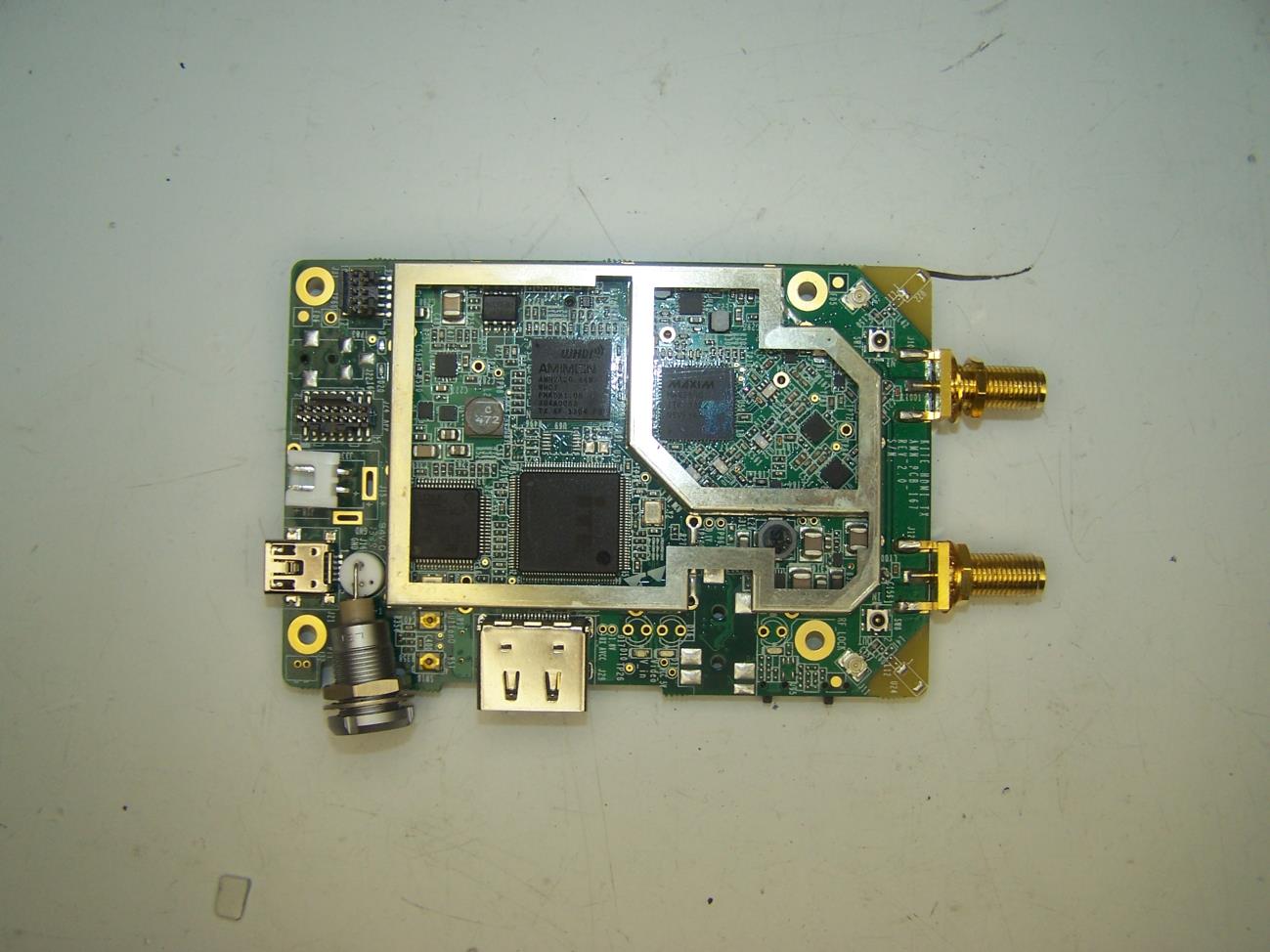

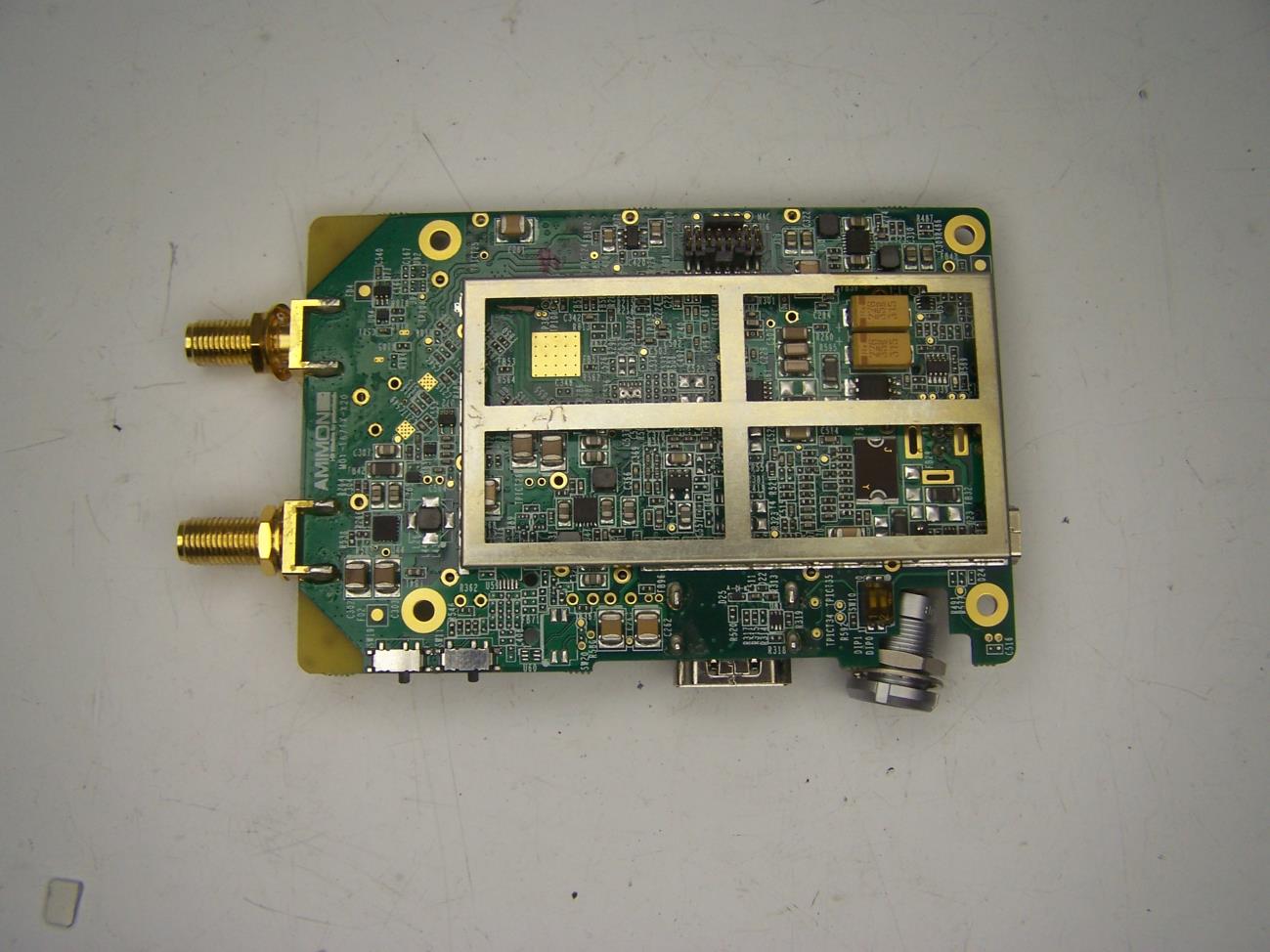

VQSAMNKHIN1HD-SDI wireless transmitter module

Sky Link Indoor User Manual AMN0504PBLR Tx - AMN35223_PM & Rx - AMN36254_PM Tx without enclosure www.amimon.comm mmmmm c m צ Rx without enclosure An AMIMON Inc. Document Copyright 2013 Version 1.9 Important Notice AMIMON Ltd. reserves the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to AMIMON's terms and conditions of sale supplied at the time of order acknowledgment. AMIMON warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with AMIMON's standard warranty. Testing and other quality control techniques are used to the extent AMIMON deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed. AMIMON assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using AMIMON components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards. AMIMON does not warrant or represent that any license, either express or implied, is granted under any AMIMON patent right, copyright, mask work right, or other AMIMON intellectual property right relating to any combination, machine, or process in which AMIMON products or services are used. Information published by AMIMON regarding third-party products or services does not constitute a license from AMIMON to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from AMIMON under the patents or other intellectual property of AMIMON. Reproduction of information in AMIMON data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. AMIMON is not responsible or liable for such altered documentation. Resale of AMIMON products or services with statements different from or beyond the parameters stated by AMIMON for that product or service voids all express and any implied warranties for the associated AMIMON product or service and is an unfair and deceptive business practice. AMIMON is not responsible or liable for any such statements. All company and brand products and service names are trademarks or registered trademarks of their respective holders. Avis Important AMIMON Ltd. se réserve le droit d'apporter des corrections, modifications, améliorations et autres changements à ses produits et services à tout moment, et de mettre fin à tout produit ou service sans préavis. Les clients doivent obtenir les dernières informations pertinentes avant de passer commande et doivent vérifier que ces informations sont à jour et complètes. Tous les produits sont vendus selon les termes et conditions de vente d'AMIMON fournis au moment de la confirmation de commande. AMIMON garantit la conformité de ses produits manufacturés avec les spécifications en vigueur au moment de la vente, conformément à la garantie standard AMIMON. Des tests et autres techniques de contrôle de qualité sont effectués dans la mesure où AMIMON le juge nécessaire pour assurer cette garantie. Les tests de tous les paramètres de chaque produit ne sont pas nécessairement effectués, sauf s'il s'agit de se conformer aux exigences du gouvernement. AMIMON n'assume aucune responsabilité pour l'assistance aux applications ou aux produits conçus par sa clientèle. Les clients sont responsables de leurs produits et des applications utilisant des composants AMIMON. Afin de minimiser les risques associés aux produits et aux applications des clients, les clients doivent fournir une conception adéquate et des garanties d'exploitation. AMIMON ne garantit ni ne déclare que toute licence, explicite ou implicite, soit accordée en vertu d'un brevet AMIMON, de droits d'auteur, masque droit de travail ou autre droit AMIMON de la propriété intellectuelle relatif à toute combinaison, machine ou processus dans lesquels les produits ou services AMIMON sont utilisés. Les informations publiées par AMIMON sur les produits ou services de tiers ne constituent pas une licence de AMIMON d'utiliser de tels produits ou services, ni une garantie ou une approbation de cette utilisation. L'utilisation de tels renseignements peut exiger une licence d'un tiers en vertu des brevets ou autre propriété intellectuelle de tiers, ou une licence de AMIMON en vertu des brevets ou autre propriété intellectuelle de AMIMON. La reproduction d'informations dans les livres de données AMIMON ou les fiches de données n'est autorisée que si celle-ci est faite sans modification et est accompagnée par toutes les garanties associées, conditions, restrictions et avis. La reproduction de ces informations avec une modification est une pratique commerciale déloyale et trompeuse. AMIMON n'est pas responsable d'une telle documentation modifiée. La revente de produits ou services AMIMON avec des déclarations différentes ou au-delà des paramètres énoncés par AMIMON pour ce produit ou service annule toute garantie implicite ou explicite pour le produit AMIMON ou service associé, et constitue une pratique commerciale déloyale et trompeuse. AMIMON n'est pas responsable de, ni engagé par ces déclarations. Tous les noms de produit ou de service d'une compagnie ou d'une marque sont des marques commerciales ou des marques déposées par leurs détenteurs respectifs. FCC Warning Changes or m…

Text truncated - open the document above for the full version.

Search|RSS |Updates |E-Filing |Initiatives |Consumers |Find People Office of Engineering and Technology FCC>FCC E-filing>> Attachment Upload Confirmation Attachment Upload Results Current filing: Form 731 Confirmation Number: TC792111 FCC ID: VQSAMNKHIN1 Line Item Upload Status DescriptionExhibit TypeFile Name File Size (in bytes) Lo n Con 1Success Antenna Datasheet - RD2458-5 RF Exposure Info Antenna Datasheet - RD2458-5_DataSheet-v2.pdf492693 2Success Antenna Datasheet - SJ1WFI0006A RF Exposure Info Antenna Datasheet - SJ1WFI0006A WSS002 Dual Band Antenna with RP-SMA(M)(Black)(SMA套) (1).pdf 1000270 3Success Block Diagram Block Diagram Block Diagram - Kite block_diagram.pdf362929 4SuccessBOM Parts List/Tune Up Info BOM - AMN35223_PB_KITE_TX_HDMI_Broadcast_BOM_V2.9_r1.pdf 82482 5Success Confidentiality Request Letter Cover Letter (s) Confidentiality Request Letter - doc20140224085727.pdf151024 6Success Test Report UNII 1 Test ReportEMC39997A-FCC407 Rev. 2 (UNII 1) (Indoor).pdf2730395 7Success Test Report UNII 2 Test ReportEMC39997B-FCC407 Rev. 2 (UNII 2) (Indoor).pdf3876254 8Success Test Report UNII 3 Test ReportEMC39997C-FCC407 Rev. 2 (UNII 3) (Indoor).pdf2645777 9Success Internal External Photos External Photos Internal External Photos.pdf388263 10Success Internal External Photos Internal Photos Internal External Photos.pdf388263 11Success operational description Operational Description Kite - AMN35223 indoor operational description.pdf431461 12Success Label and Location ID Label/Location Info Label and Location - kite indoor.pdf61037 13Success Modular Approval Letter Cover Letter (s) Modular Approval Letter - doc20140224085812.pdf271060 The following exhibits are on file with this application: Exhibit TypeDescriptionDate Submitted Search|RSS |Updates |E-Filing |Initiatives |Consumers |Find People Office of Engineering and Technology FCC>FCC E-filing>> Attachment Upload Confirmation Attachment Upload Results Current filing: Form 731 Confirmation Number: TC792111 FCC ID: VQSAMNKHIN1 Line Item Upload Status Description Exhibit Type File Name File Size (in bytes) Long-Term Confidential Short-Term Confidential Upl o Da 1Success MPE UNII 1 RF Exposure Info MPE UNII 1.pdf90284NoNo M a 20 11: 2Success MPE UNII 2 RF Exposure Info MPE UNII 2.pdf90384NoNo M a 20 11: 3Success MPE UNII 3 RF Exposure Info MPE UNII 3.pdf105197NoNo M a 20 11: 4Success Schematics Schematics Schematics - AMN35223_PB_KITE_REV2.9_r1.pdf 696904YesNo M a 20 11: 5Success Test Setup Photos Test Setup Photos Test Setup Photos.pdf452555NoNo M a 20 11: 6Success Uncorrelated Antenna Letter Cover Letter(s) Uncorrelated Antenna Letter.pdf127194NoNo M a 20 11: 7Success User Manual Users Manual User Manual - Sky link Indoor- AMN0504PBLR - Ver 1.91.pdf 1886122NoNo M a 20 11: The following exhibits are on file with this application: Exhibit TypeDescriptionDate Submitted Block DiagramBlock Diagram2014-03-20 11:39:16.363 Cover Letter(s)Confidentiality Request Letter2014-03-20 11:39:16.62 Cover Letter(s)Modular Approval Letter2014-03-20 11:39:24.313 Cover Letter(s)Uncorrelated Antenna Letter2014-03-20 11:42:39.066 External PhotosInternal External Photos2014-03-20 11:39:23.376 ID Label/Location InfoLabel and Location2014-03-20 11:39:24.07 Internal PhotosInternal External Photos2014-03-20 11:39:23.67 Operational Descriptionoperational description2014-03-20 11:39:24.0 Parts List/Tune Up InfoBOM2014-03-20 11:39:16.476 RF Exposure InfoAntenna Datasheet - RD2458-52014-03-20 11:39:15.29 RF Exposure InfoAntenna Datasheet - SJ1WFI0006A 2014-03-20 11:39:16.023 RF Exposure InfoMPE UNII 12014-03-20 11:42:38.193 RF Exposure InfoMPE UNII 22014-03-20 11:42:38.256 RF Exposure InfoMPE UNII 32014-03-20 11:42:38.326 SchematicsSchematics2014-03-20 11:42:38.686 Exhibit TypeDescriptionDate Submitted Test ReportTest Report UNII 12014-03-20 11:39:18.29 Test ReportTest Report UNII 2 2014-03-20 11:39:21.276 Test ReportTest Report UNII 32014-03-20 11:39:23.1 Test Setup PhotosTest Setup Photos 2014-03-20 11:42:38.976 Users ManualUser Manual 2014-03-20 11:42:40.113 Submit Additional Atachments Proceed to Section III Last Reviewed/Updated on 01/05/2005 Please use the Submit Inquiry link at www.fcc.gov/labhelp to send any comments or suggestions for this site Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail:[email protected] -Privacy Policy -Web Policies & Notices -Customer Service Standards -Freedom of Information Act

global solutions : local support TM TriBand 2.4, 5.3, 5.8GHz Antenna 2400 to 5800 MHz Operation The TriBand RD2458-5 series antennas are high gain (3dB @ 2.4GHz and 5dBi@5GHz) omnidirectional antennas designed for indoor use. They are rugged and reliable. The heavy duty knuckle gives angular detents at 0, 45 and 90 degrees. The antenna features a 360 degree horizontal transmission pattern and a 90 degree vertical transmission pattern. These antennas offer a choice of connector options for maximum design flexibility (SMA, RPSMA, RPTNC and N male). Features and Benefits: • Tri-Band operation: 2.4GHz, 5.3GHz, 5.8GHz • 0, 45 and 90 degrees knuckle detents (N male not applicable) • Extends range of wireless access points or wireless bridges • Available in SMA, RPSMA, RPTNC and N male connector versions Applications • 802.11a/b/g wireless equipment • OEM equipment RD2458 www.pacwireless.com or visit: www.pacwireless.com For sales information: Telephone 801-572-3024 E-Mail [email protected] jljljlj global solutions : local support TM ANT-SPEC-RD2458-0408 Any information furnished by Laird Technologies and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies materials rests with the end user since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability, or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies domestic terms and conditions of sale in effect from time to time, a copy of which will be furnished upon request. Specifications subject to change without notice. Specifications Notes: • All shipments F.O.B. Schaumburg, IL 60173 • All antennas carry a 2 Year Warranty Antenna Patterns System Ordering: RD2458-5-SMA TriBand 2.4/5.3/5.8GHz Omndirectional – SMA male connector RD2458-5-RSMA TriBand 2.4/5.3/5.8GHz Omndirectional – RPSMA male connector RD2458-5-RTNC TriBand 2.4/5.3/5.8GHzOmndirectional – RPTNC male connector RD2458-5-NM TriBand 2.4/5.3/5.8GHz Omndirectional – N male connector ParameterMinTypMaxUnits Frequency Range24002483MHz Gain (RD2458-5)2400 MHz 5150 MHz 5400 MHz 5725 Mhz 3 5 5 5 dBi Gain (RD2458-5-NM)2400 MHz 5150 MHz 5725 Mhz 2.2 4 5 dBi VSWR1.5:1 Impedance50 ΩOHM Input Power10W Operating Temperature-10+70Deg C Weight (RD2458-5).8 (22.7)oz (g) Weight (RD2458-5-NM)1.6 (45.4)oz (g) Dimension (Dia x Height) - RD2458-56.1 x 0.5D (155 x 12.7D)In (mm) Dimension (Dia x Height) - RD2458-5-NM7.6 x 0.5D (193 x 12.7D)In (mm) RD2458 2450MHz Elevation Pattern5150MHz Elevation Pattern 5750MHz Elevation Pattern

承 認 書 SPECIFICATION FOR APPROVAL 客 戶 CUSTOMER 日 期 DATE 品 名 DESCRIPTION 客 戶 料 號 CUSTOMER P/N 成 品 編 號 Part No. 萬旭電業股份有限公司 Wanshih Electronic Co., Ltd. 新北市五股區新北產業園區五工六路72號4樓 4F 72 Wu Kong 6th Rd., Wugu Dist., New Taipei Industrial Park, New Taipei City 24891, Taiwan(R.O.C.) TEL：886-2-2298-8066 FAX：886-2-2298-1102 友旺科技股份有限公司 2013/10/24 WSS002 Dual Band Antenna with RP-SMA(M)(Black)(SMA套) SJ1WFI0006A 1 Table of Contents Table of Contents ......... 1 Specification ......... 2 Antenna Drawing ......... 3 Electrical Properties Return Loss ......... 4 V. S . W. R ......... 4 Radiation Pattern ......... 5-6 Material Data Sheet Coaxial Cable ......... 7-9 Housing ......... 10 Hinge/小護套 ......... 11-12 2 SPECIFICATION 1. Description ：WSS002 Dual Band Antenna 2. Customer ：友旺科技股份有限公司 3. Model No. ：WSS002 4. Part No. ：SJ1WFI0006A 5. Standard ：IEEE 802.11a+b/g Wireless LAN 6. Antenna Profile ：108.5 mm length (see Drawing) 7. Color ：Black 8. Electrical Characteristics Operating Frequency ：2.4~2.5 / 5.15~5.35 / 5.725~5.85GHz Antenna Type ：Dipole Sleeve Polarization Type ：Linear Type of Radiation ：Toroidal Peak Gain ：2.0 dBi Typical Impedance ：50 Ohm nominal V.S.W.R. ：2.0:1 Max. 9. Mechanical Characteristics Action ：Swivel Type Connector ：RP-SMA (M) Core ：N/A 10. Raw Material Coaxial Cable ：RG-178 Housing ：TPU Hinge/小護套 ：PC+ALLOY/POM 3 郭雅珍 WSS002 Dual Band Antenna with RP-SMA(M)(Black)(SMA套) 3 3 齊誌凱 葉士敦 易姿岑 SJ1WFI0006A 11 Reverse SMA φ10 本體 ν SM3033-A 本體 SMA CONNECTOR φ10 W/P 黑黑/銀1 或同級品 10 Reverse SMA φ 10 PIN絕緣 ν 028922003 SMA CONNECTOR 10φ母1 或同級品 9 Reverse SMA ψ10 連接軸 ν L=8.7 φ4.7連接軸 鍍錫銀1 或同級品 8外套ν IY072BK100 9.3φ*75L(67L) 外套<黑> 黑1 或同級品 7熱縮套管ν H-2(CB) φ5.0 黑黑 20 1 或同級品 6銅管ν 4.8φ*24L 銅管<平頭>銀1 或同級品 5銅管ν 5.2φ*22L FOR 178 銅管<平頭>銀1 或同級品 4固定鉚釘ν028922001-4 3.80*1.90φ固定鉚釘<小>(黑鋅)黑2 或同級品 3下座ν 9.3φ下座(6.6φ扁孔凹槽)黑黑1 或同級品 2上座ν IY214BK100 9.5φ*20.0L 上座 <黑> 黑1 或同級品 1 RG-178 Coaxial Cable ν RG-178 CABLE 105SV 橙橙 59 1 或同級品 NO材料名稱環材零件規格顏色 切斷尺寸 用量 備註 4 Electrical Properties Return Loss V. S . W. R 5 Electrical Properties Radiation Pattern – H Plane 6 Electrical Properties Radiation Pattern – E Plane 7 Coaxial Cable Data Sheet RG-178 Coaxial Cable 8 9 10 Housing Material Data Sheet Housing - TPU 11 Hinge(Base/Holder/小護套) - PC+ALLOY/POM 12

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5180-5240MHz; highest conducted power = 16.58 dBm (Avg) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (<1 mW/cm 2 ) P = Power Input to antenna (45.49mW) G = Antenna Gain (3.16 numeric) R = Minimum Distance between User and Antenna (20 cm) S = (45.49 *3.16 )/(4*3.14*20 2 ) = 0.028 mW/cm 2 Since S < 1 mW/cm 2 , the minimum distance (R) is 20cm

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5180-5240MHz; highest conducted power = 22.29 dBm (Avg) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (<1 mW/cm 2 ) P = Power Input to antenna (169.43 mW) G = Antenna Gain (3.16 numeric) R = Minimum Distance between User and Antenna (20 cm) S = (169.43*3.16)/ (4*3.14*20 2 ) = 0.106 mW/cm 2 Since S < 1 mW/cm 2 , the minimum distance (R) is 20cm

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5745-5805 MHz; highest conducted power = 25.03 dBm (Avg) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (<1 mW/cm 2 ) P = Power Input to antenna (318.41 mW) G = Antenna Gain (3.16 numeric) R = Minimum Distance between User and Antenna (20 cm) S = (318.41 *3.16)/ (4*3.14*20 2 ) = 0.2 mW/cm 2 Since S < 1 mW/cm 2 , the minimum distance (R) is 20cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS ● AUSTIN, TX 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory March 11, 2014 Amimon 2 Maskit St. Building D, 2nd Floor Herzelia, Israel 46733 Dear Tal Keren-Zvi, Enclosed is the EMC Wireless test report for compliance testing of the Amimon, Kite - TX Module as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Title 47 of the CFR, Part 15, Subpart B for Unintentional Radiators and Part 15.407 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Amimon\EMC39997A-FCC407 Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS ● AUSTIN, TX 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 MET Report: EMCS37062A-FCC407 © 2014, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Amimon Kite - TX Module Tested under the Certification Rules contained in Title 47 of the CFR, Part 15, Subpart B for Unintentional Radiators and Title 47 of the CFR, Part 15.407 for Intentional Radiators MET Report: EMC39997A-FCC407 Rev. 2 March 11, 2014 Prepared For: Amimon 2 Maskit St. Building D, 2 nd Floor Herzelia, Israel 46733 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave Baltimore, MD 21230 Electromagnetic Compatibility Amimon Equipment Configuration Kite - TX Module CFR Title 47, Part 15B & 15E MET Report: EMC39997A-FCC407 Rev. 2 © 2014, MET Laboratories, Inc. Page ii of viii Electromagnetic Compatibility Criteria Test Report for the Amimon Model Kite - TX Module Tested under the Certification Rules contained in Title 47 of the CFR, Part 15, Subpart B for Unintentional Radiators and Title 47 of the CFR, Part 15.407 for Intentional Radiators Djed Mouada, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15B, 15.407, of the FCC Rules under normal use and maintenance. Asad Bajwa, Director Electromagnetic Compatibility Lab Electromagnetic Compatibility Amimon Equipment Configuration Kite - TX Module CFR Title 47, Part 15B & 15E MET Report: EMC39997A-FCC407 Rev. 2 © 2014, MET Laboratories, Inc. Page iii of viii Report Status Sheet Revision Report Date Reason for Revision  January 30, 2014 Initial Issue. 1 February 20, 2014 Revised to reflect engineer corrections. 2 March 11, 2014 Revised to reflect engineer corrections. Electromagnetic Compatibility Amimon Equipment Configuration Kite - TX Module CFR Title 47, Part 15B & 15E MET Report: EMC39997A-FCC407 Rev. 2 © 2014, MET Laboratories, Inc. Page iv of viii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................5 E. Equipment Configuration ....................................................................................................................................6 F. Support Equipment .............................................................................................................................................7 G. Ports and Cabling Information ............................................................................................................................7 H. Mode of Operation ........…

Text truncated - open the document above for the full version.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS ● AUSTIN, TX 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory March 11, 2014 Amimon 2 Maskit St. Building D, 2nd Floor Herzelia, Israel 46733 Dear Tal Keren-Zvi, Enclosed is the EMC Wireless test report for compliance testing of the Amimon, Kite Tx as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Title 47 of the CFR, Part 15, Subpart B and ICES- 003, Issue 5, August 2012 for Unintentional Radiators and Part 15.407 and RSS-210, Issue 8, December 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Amimon\EMC39997B-FCC407 Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS ● AUSTIN, TX 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 MET Report: EMCS37062A-FCC407 © 2014, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Amimon Kite Tx Tested under the Certification Rules contained in Title 47 of the CFR, Part 15, Subpart B & ICES-003 for Unintentional Radiators and Title 47 of the CFR, Part 15.407 & RSS-210 for Intentional Radiators MET Report: EMC39997B-FCC407 Rev. 2 March 11, 2014 Prepared For: Amimon 2 Maskit St. Building D, 2 nd Floor Herzelia, Israel 46733 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave Baltimore, MD 21230 Electromagnetic Compatibility Amimon Equipment Configuration Kite Tx CFR Title 47, Part 15B & 15E; ICES-003 & RSS-210 MET Report: EMC39997B-FCC407 Rev. 2 © 2014, MET Laboratories, Inc. Page ii of xi Electromagnetic Compatibility Criteria Test Report for the Amimon Kite Tx the Certification Rules contained in Title 47 of the CFR, Part 15, Subpart B & ICES-003 for Unintentional Radiators and Title 47 of the CFR, Part 15.407 & RSS-210 for Intentional Radiators Djed Mouada, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15B, 15.407, of the FCC Rules and Industry Canada standards ICES-003, Issue 5, August 2012 and RSS-210, Issue 8, December 2010 under normal use and maintenance. Asad Bajwa, Director Electromagnetic Compatibility Lab Electromagnetic Compatibility Amimon Equipment Configuration Kite Tx CFR Title 47, Part 15B & 15E; ICES-003 & RSS-210 MET Report: EMC39997B-FCC407 Rev. 2 © 2014, MET Laboratories, Inc. Page iii of xi Report Status Sheet Revision Report Date Reason for Revision  January 30, 2014 Initial Issue. 1 March 11, 2014 Revised to reflect engineer corrections. Electromagnetic Compatibility Amimon Equipment Configuration Kite Tx CFR Title 47, Part 15B & 15E; ICES-003 & RSS-210 MET Report: EMC39997B-FCC407 Rev. 2 © 2014, MET Laboratories, Inc. Page iv of xi Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration ......................................…

Text truncated - open the document above for the full version.
