VQSAMNMGIN01wireless video receiver module

AMN39203 (Maglan) User/Installer Manual An AMIMON Inc. Document Copyright 2014 Version 1.0 www.amimon.com Important Notice AMIMON Ltd. reserves the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to AMIMON's terms and conditions of sale supplied at the time of order acknowledgment. AMIMON warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with AMIMON's standard warranty. Testing and other quality control techniques are used to the extent AMIMON deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed. AMIMON assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using AMIMON components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards. AMIMON does not warrant or represent that any license, either express or implied, is granted under any AMIMON patent right, copyright, mask work right, or other AMIMON intellectual property right relating to any combination, machine, or process in which AMIMON products or services are used. Information published by AMIMON regarding third-party products or services does not constitute a license from AMIMON to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from AMIMON under the patents or other intellectual property of AMIMON. Reproduction of information in AMIMON data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. AMIMON is not responsible or liable for such altered documentation. Resale of AMIMON products or services with statements different from or beyond the parameters stated by AMIMON for that product or service voids all express and any implied warranties for the associated AMIMON product or service and is an unfair and deceptive business practice. AMIMON is not responsible or liable for any such statements. All company and brand products and service names are trademarks or registered trademarks of their respective holders. Revision History Version Date Description 1.0 June 29,2014 Initial Release Table of Contents Important Notice ........................................................ 2 Revision History ......................................................... 3 Table of Contents........................................................ 4 Safety Instructions ...................................................... 5 Introduction ............................................................... 6 1.1 Front view ..............................................................................................................7 1.2 Back view ...............................................................................................................7 LED behaviors ....................................................................................... 8 Interface Connector (J32) ...................................................................... 9 FCC Caution.............................................................. 12 S Y Z 0 1 0 M Safety Instructions  When operating this equipment, read and follow all the instructions in this manual.  Do not open unit.  Do not block the air ventilation openings.  Use only accessories specified or recommended by Amimon.  When devices are switched on keep away at least 20 cm from your body.  Do not expose to moisture or excessive heat.  Keep away from water  Use the mains plug to disconnect the apparatus.  Clean with a dry cloth only.  Unplug this apparatus during lightning storms or when unused for long periods of time.  To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.  Keep these instructions in a safe and accessible place for future use. Explanation of graphical symbols: High Voltage Sign: warns the user of the presence of uninsulated "dangerous voltage" within the product enclosure, which may be of sufficient magnitude to constitute a risk. General Warning Sign: warns the user of the presence of important operating and maintenance (servicing) instructions in the product manual. Introduction The AMN39203 is wireless A/V receiver board, which works at the 5GHz unlicensed band. It is are based on AMIMON's WHDI Professional chipset that consist of the AMN2220 baseband receiver and the MAXIM 2851 ICs, presents the ultimate solution for HDMI receiver of the WHDI system. The perfect HDMI video, audio quality, the high robustness and the invisible latency of the wireless system are unmatched by any other wireless technology and presents a true alternative to cable. The WHDI system transmits uncompressed video and audio streams wirelessly and thus simplifies and eliminates system issues, such as: lip-sync, large buffers and other burdens like retransmissions or error propagation. System Technical Specifications: Table 1: Technical Specifications Transmitter AMN35253 Video Interface: Y-Cb-Cr Audio: Over I2S interface Frequency Control: Non-DFS Frequencies : 5.170~ 5.250 GHz for EU 5.170 ~ 5.250 GHz and 5.735~5.825 GHz for US DFS Frequencies (used only in Aerial mode): 5.250-5.330 GHz and 5.490 ~ 5.710 GHz for EU 5.250-5.330 GHz and 5.490 ~ 5.590 GHz and …

Text truncated - open the document above for the full version.

22.12.13 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: LONG TERM CONFIDENTIALITY REQUEST FOR FCC ID VQSAMNMGIN01 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the following items required to be submitted with this application be permanently withheld from public review:  Detailed circuit schematics of EUT --- long term  Block diagram --- long term  Technical description --- long term  Bill Of Material --- long term The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grand for this application. Please contact me if there is any information you may need. Sincerely, Signature: ______________________ Tal Keren-Zvi VP R&D

15 June 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: SHORT TERM CONFIDENTIALITY REQUEST FOR FCC ID VQSAMNMGIN01 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, AMIMON. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which AMIMON considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, AMIMON feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Sincerely, Signature: ______________________ Tal Keren-Zvi VP R&D

03.07.2014 Request for Modular Approval for FCC ID: VQSAMNMGIN01 Dear Application Examiner, Applicant – Amimon Ltd. Module name –Wireless Video Receiver Module FCC ID – VQSAMNMGIN01 With respect to Amimon Wireless Video Receiver Module AMN39203, AMIMON would like to have your authorization as a single modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. The radio portion of this transmitter module has been shielded, as seen in module photos. 2. The modular transmitter has buffered modulation/data inputs, Buffered data inputs stage has been integrated in baseband chip (Model: AMN2220) 3. The module has its own power supply regulation. Please refer to the Block Diagram. 4. The module complies with the antenna requirements of Section 15.203 and 15.204(c), the module has 5 RP-SMA connector antennas with 5.0dBi antenna gain. The module was tested with the following unique antenna connectors: RP SMA 5. The module was tested in a standalone configuration. 6. The modular transmitter is labeled with its own FCC ID number. The FCC ID is shown on the label and permanently affixed to this module, please refer to label location. 7. The modular transmitter complies with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The necessary explanation to be complied with this requirement is contained in the user manual, and please refers to the User Manual. 8. The modular transmitter complies with any applicable RF exposure requirements in its final configuration. Please contact me if there is any information you may need. Sincerely, Signature: ______________________ Tal Keren-Zvi VP R&D

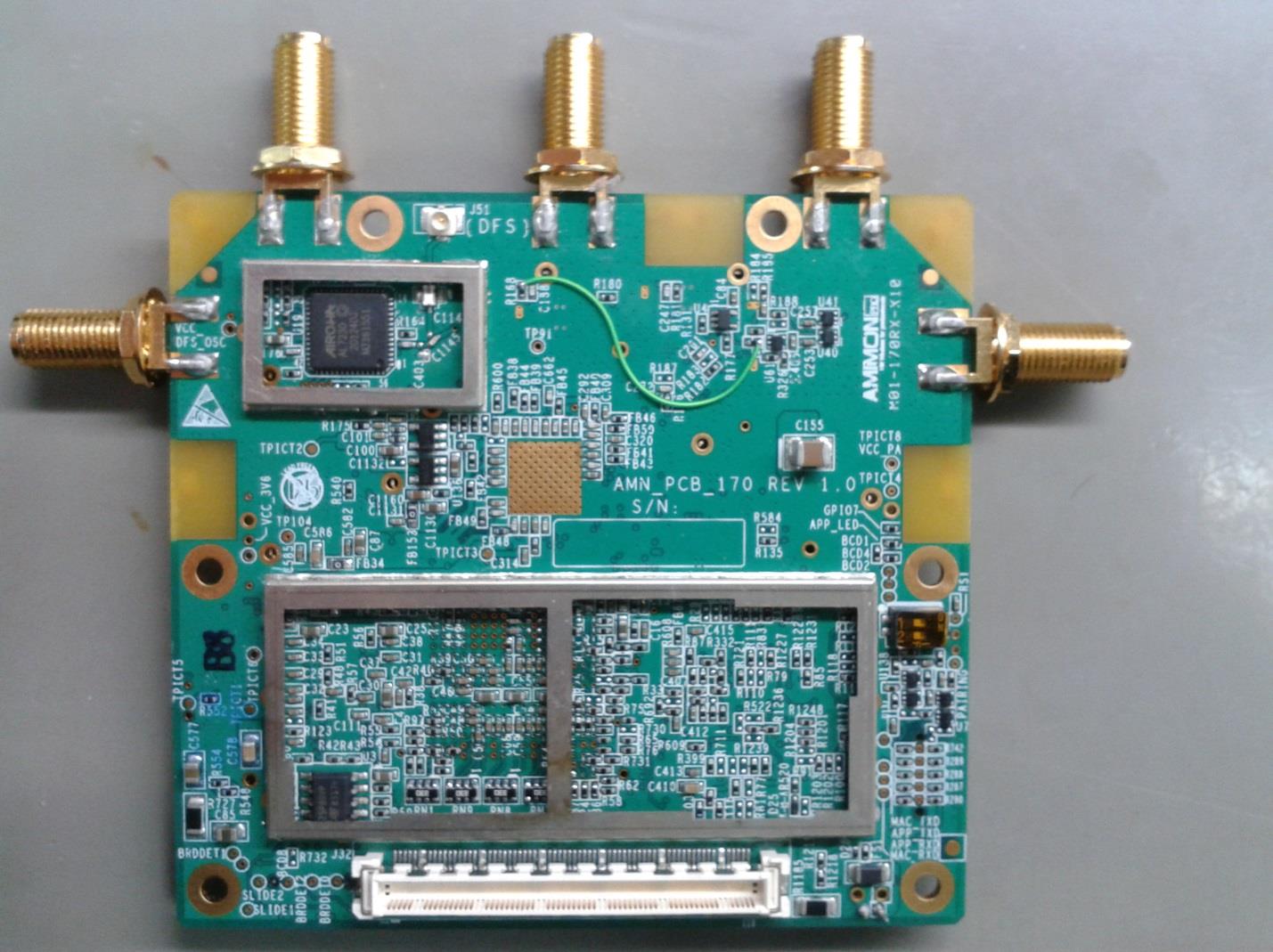

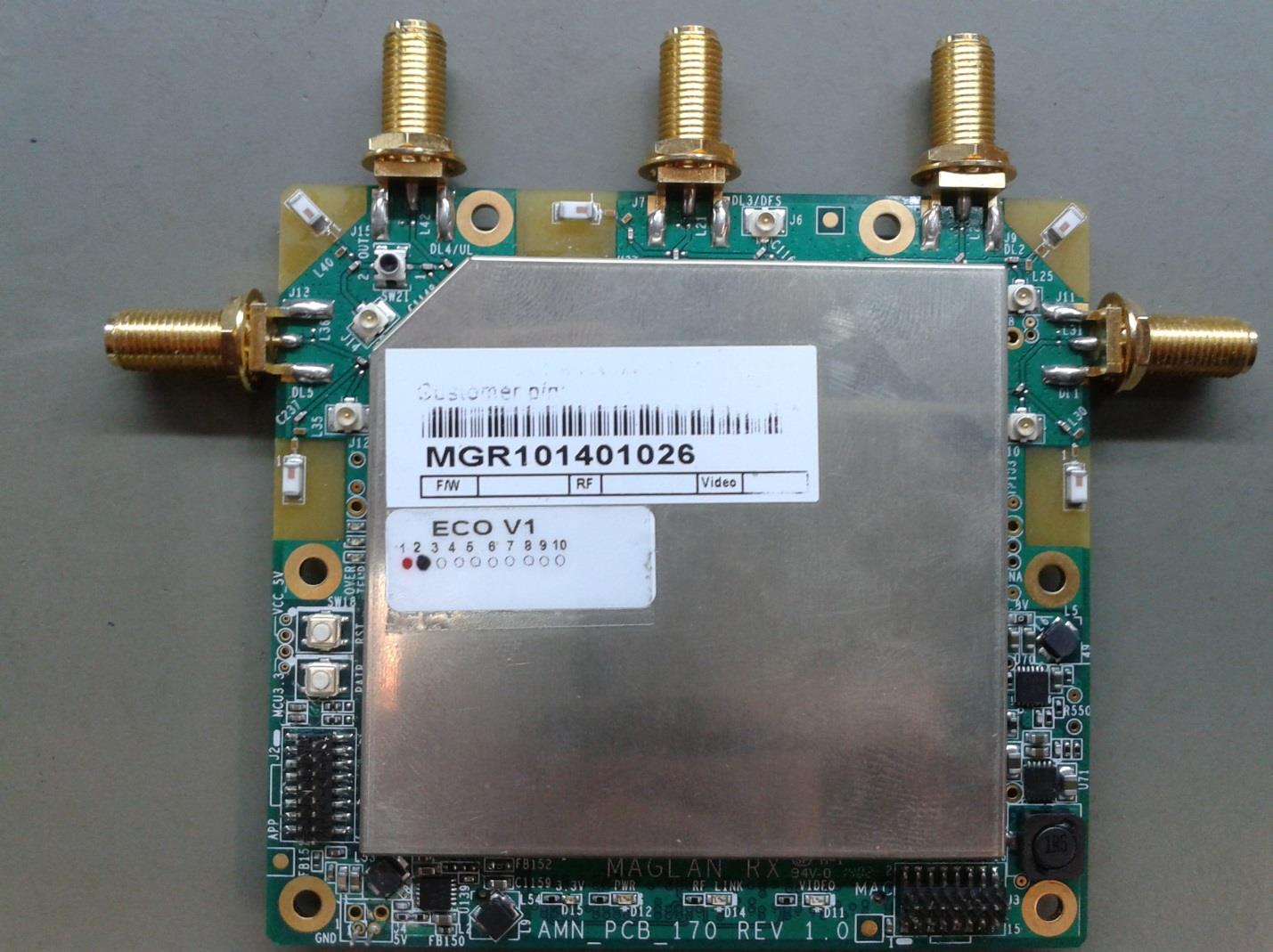

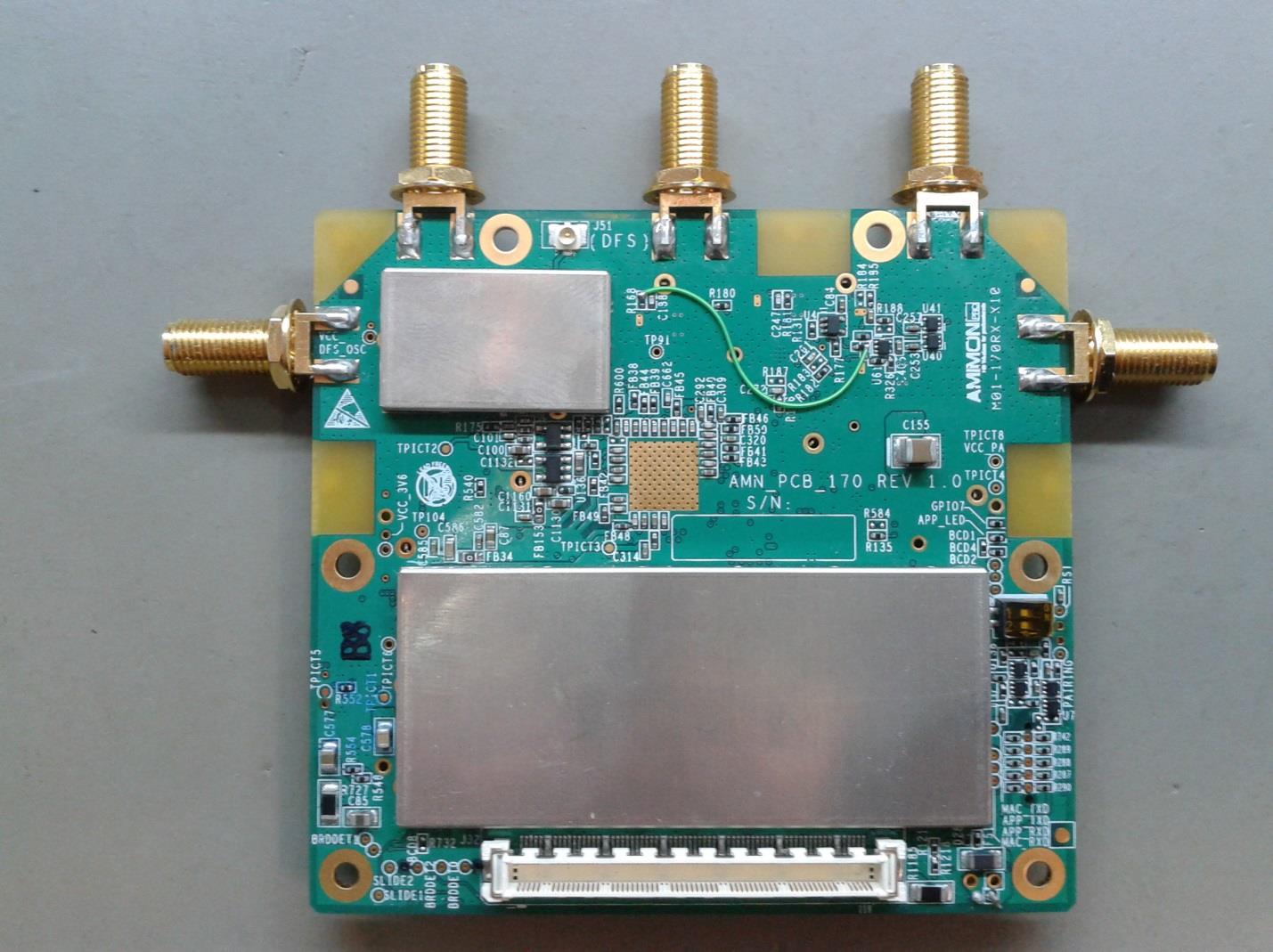

Photograph 1. Maglan Bottom, Sheilded Photograph 2. Maglan Bottom Photograph 3. Maglan Top Shielded Photograph 4. Maglan Top

Photograph 1. Maglan Bottom, Sheilded Photograph 2. Maglan Bottom Photograph 3. Maglan Top Shielded Photograph 4. Maglan Top

5.4 GHz Wideband AntennaP/N 5400AT18A1000 Detail Specification: 01/27/2011 Page 1 of 3 General Specifications Part NumberOperating Temperature Frequency RangeReel Quanity Peak Gain Average Gain Return Loss Input PowerNo.FunctionTerminal Configuration Impedance1Feeding Point 2NC Mechanical Dimensions Inmm L±± W±± T a±± Mounting Considerations Mount these devices with brown mark facing up. Units: mm *Line width should be designed to provide 50Ω impedance matching characteristics. a) Without Matching Circuits b) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2011 Johanson Technology, Inc. All Rights Reserved Storage Temperature +5 to +35°C, Humidity:45- 75%RH, 18 mos. Max 500mW max. 50 Ω 5400AT18A1000 3,000 -40 to +85°C 8.5 dB min. -2.5 dBi typ. (XZ-V) 2.0 dBi typ. (XZ-V) 4900 - 5900 Mhz 0.20 0.500.30 +0.1/-0.2 0.063 0.051 1.60 +.004/-.008 0.008 "High Frequency Ceramic Solutions" 0.0080.1263.200.20 1.30 0.0200.012 12 L W a T * 2.6 4.2 1.6 1.9 0.4 6.8 pF 1.0 nH 2.2nH JTI P/N for Matching Circuit: Cap (6.8pF): 500R07S6R8BV4T Inductor (1.0nH): L-07C1N0SV6T Inductor (2.2nH): L-07C2N2SV6T * 2.6 4.2 1.6 1.90.4 0.8 0.8 0.8 1.7 0Ω 0Ω 5.4 GHz Wideband AntennaP/N 5400AT18A1000 Detail Specification: 01/27/2011 Page 2 of 3 Typical Electrical Characteristics (T=25 o C) Test Board: Return Loss a) Without Matching Circuitsb) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2011 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) 33.5mm 6.5 19mm Matching Circuit Antenna No Ground Ground 50Ω Feed Line 39.5mm 6.5mm 6.5 4.0 5.4 GHz Wideband AntennaP/N 5400AT18A1000 Detail Specification: 01/27/2011 Page 3 of 3 Typical Radiation Patterns Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2011 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) XY-V/XY-H 180° 270° 0° 90° X Z Y XY-cut scanning direction XY cut @5.5GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H 180° 270° 0° 90° X Z Y XZ-cut scanning direction 180° 270° 0° 90° X Z Y YZ-cut scanning direction XZ cut @5.5GHz Vertical Horizontal YZ cut @5.5GHz Vertical Horizontal

SPECIFICATION 1. Description ：WSS002 Dual Band Antenna with RP-SMA(M)(Black) 2. Model No. ：WSS002 3. Standard ：IEEE 802.11a+b/g Wireless LAN 4. Antenna Profile ：108.5 mm (see Drawing) 5. Color ：Black 6. Electrical Characteristics Operating Frequency ：2.4~2.5 & 5.15~5.35 & 5.725~5.85GHz Antenna Type ：Dipole Polarization Type ：Linear Type of Radiation ：Toroidal Peak Gain ：2.0 dBi Typical Impedance ：50 Ohm nominal V.S.W.R. ：2.0:1 Max. 7. Mechanical Characteristics Action ：Swivel Type Connector ：RP-SMA(M) Core ：N/A 8. Raw Material Coaxial Cable ：RG-178 Housing ：TPU Hinge ：PC+ALLOY

RD2458-5 RD2458-5 Electrical Data RD2458-5 VSWR Elevation Pattern 2450MHz RD2458-5 Elevation Pattern 5150MHz RD2458-5 Elevation Pattern 5725MHz RD2458-5

global solutions : local support TM TriBand 2.4, 5.3, 5.8GHz Antenna 2400 to 5800 MHz Operation The TriBand RD2458-5 series antennas are high gain (3dB @ 2.4GHz and 5dBi@5GHz) omnidirectional antennas designed for indoor use. They are rugged and reliable. The heavy duty knuckle gives angular detents at 0, 45 and 90 degrees. The antenna features a 360 degree horizontal transmission pattern and a 90 degree vertical transmission pattern. These antennas offer a choice of connector options for maximum design flexibility (SMA, RPSMA, RPTNC and N male). Features and Benefits: • Tri-Band operation: 2.4GHz, 5.3GHz, 5.8GHz • 0, 45 and 90 degrees knuckle detents (N male not applicable) • Extends range of wireless access points or wireless bridges • Available in SMA, RPSMA, RPTNC and N male connector versions Applications • 802.11a/b/g wireless equipment • OEM equipment RD2458 www.pacwireless.com or visit: www.pacwireless.com For sales information: Telephone 801-572-3024 E-Mail [email protected] jljljlj global solutions : local support TM ANT-SPEC-RD2458-0408 Any information furnished by Laird Technologies and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies materials rests with the end user since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability, or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies domestic terms and conditions of sale in effect from time to time, a copy of which will be furnished upon request. Specifications subject to change without notice. Specifications Notes: • All shipments F.O.B. Schaumburg, IL 60173 • All antennas carry a 2 Year Warranty Antenna Patterns System Ordering: RD2458-5-SMA TriBand 2.4/5.3/5.8GHz Omndirectional – SMA male connector RD2458-5-RSMA TriBand 2.4/5.3/5.8GHz Omndirectional – RPSMA male connector RD2458-5-RTNC TriBand 2.4/5.3/5.8GHzOmndirectional – RPTNC male connector RD2458-5-NM TriBand 2.4/5.3/5.8GHz Omndirectional – N male connector ParameterMinTypMaxUnits Frequency Range24002483MHz Gain (RD2458-5)2400 MHz 5150 MHz 5400 MHz 5725 Mhz 3 5 5 5 dBi Gain (RD2458-5-NM)2400 MHz 5150 MHz 5725 Mhz 2.2 4 5 dBi VSWR1.5:1 Impedance50 ΩOHM Input Power10W Operating Temperature-10+70Deg C Weight (RD2458-5).8 (22.7)oz (g) Weight (RD2458-5-NM)1.6 (45.4)oz (g) Dimension (Dia x Height) - RD2458-56.1 x 0.5D (155 x 12.7D)In (mm) Dimension (Dia x Height) - RD2458-5-NM7.6 x 0.5D (193 x 12.7D)In (mm) RD2458 2450MHz Elevation Pattern5150MHz Elevation Pattern 5750MHz Elevation Pattern

Mars Antennas & RF Systems proprietary information MARS reserves the right to make technical changes or modifications to any of its products and specifications without prior notice and without implementing such changes to prior supplied products. Product images are representative and indicative only. Warranty terms and general conditions of sale are applicable on any purchase of any product, available on MARS website. 3 Hamanor st. Holon 58861, P.O.Box 5 AZOR 58008, Israel Tel: +972-3-5599661 • Fax: +972-3-5599677 • e-mail: [email protected] • web: www.mars-antennas.com MA-WA56-2DSV13AM with Enclosure & MK-EL30/31 5.1 – 5.9 GHz Subscriber Antenna 5MIMO Specifications Electrical Frequency range 5.1 – 5.9 GHz GAIN, typ. 5 x 13.5 dBi VSWR, max. 1.7 : 1 Polarization 2 x Dual Slant ( ±45 o ) & Linear, Vertical 3dB Beam-Width, H-Plane, typ. 35 o 3dB Beam-Width, E-Plane, typ. 35 o Side Lobes, min. -10 dB Cross Polarization, typ. -15 dB Front to Back Ratio, min. -20 dB Port to Port Isolation, min. -25 dB Input power, max. 10 Watt Input Impedance 50 Ohm Lightning Protection DC Grounded Mechanical Dimensions (HxWxD) 305 x 305 x 15 mm Connector 5 x Right Angle SMA ,Female Weight 840gr. (Without Enclosure) Mounting MNT-22 Radome UV Protected Polycarbonate Eclosure-Large 287 x287 x 68 mm (External dimension) Back Plane Aluminum protected through chemical passivation. Environmental Operating Temperature Range -55 o C to +65 o C Vibration According to IEC 60721-3-4 Wind Load 200 Km/h (Survival) Flammability UL-94 Water Proofing IP-67 Humidity ETS 300 019-1-4,EN 302 085 (Annex A.1.1) Salt Fog According to IEC 68-2-11

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequency is 5180 MHz and 5240 MHz;. Highest conducted power = 186.64 mW (i.e. 22.71 dBm). Therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 . Equation from page 18 of OET 65, Edition 97-01 S = P G/ 4R 2 where, S = Power Density mW/m 2 P = Power (mW) R = Distance to the center of radiation of the antenna G = Maximum antenna gain Maximum antenna gain for EUT = 13.5 dBi = 22.34 P = 186.64 mW R = 20 cm G = 22.34 S = 186.64*22.34 / 4(3.1416)(20) 2 S = 0.82992mW/cm 2 Therefore, EUT meets the Uncontrolled Exposure limit at 20cm.

§ 15.407(f) RF Exposure Test RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequency is 5260 MHz and 5700 MHz; Limit for Uncontrolled exposure: 1 mW/cm 2 . Equation from page 18 of OET 65, Edition 97-01 S = P G/ 4R 2 where, S = Power Density mW/m 2 P = Power (mW) R = Distance to the center of radiation of the antenna G = Maximum antenna gain 1. When Maximum antenna gain for EUT = 13.5 dBi = 22.387 P = 44.055 mW R = 20 cm G = 22.387 S = 44.055*22.387 / 4(3.1416)(20) 2 S = 0.1962mW/cm 2 2. When Maximum antenna gain for EUT = 5 dBi = 3.16 P = 247.17 mW R = 20 cm G = 3.16 S = 247.17*3.16 / 4(3.1416)(20) 2 S = 0.1553mW/cm 2 Therefore, EUT meets the Uncontrolled Exposure limit at 20cm.

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. 5dBi Antenna Configuration: MPE Limit Calculation: EUT’s operating frequency is 5745 MHz and 5825 MHz;. Highest conducted power = 374.11 mW (i.e. 25.73 dBm). Therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 . Equation from page 18 of OET 65, Edition 97-01 S = P G/ 4R 2 where, S = Power Density mW/m 2 P = Power (mW) R = Distance to the center of radiation of the antenna G = Maximum antenna gain Maximum antenna gain for EUT = 5 dBi = 3.16 P = 374.11 mW R = 20 cm G = 3.16 S = 374.11*3.16 / 4(3.1416)(20) 2 S = 0.2351mW/cm 2 Therefore, EUT meets the Uncontrolled Exposure limit at 20cm. 13.5dBi Antenna Configuration: MPE Limit Calculation: EUT’s operating frequency is 5745 MHz and 5825 MHz;. Highest conducted power = 157.39 mW (i.e. 21.97 dBm). Therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 . Equation from page 18 of OET 65, Edition 97-01 S = P G/ 4R 2 where, S = Power Density mW/m 2 P = Power (mW) R = Distance to the center of radiation of the antenna G = Maximum antenna gain Maximum antenna gain for EUT = 13.5 dBi = 22.39 P = 157.39 mW R = 20 cm G = 22.39 S = 157.39*22.39 / 4(3.1416)(20) 2 S = 0.701425mW/cm 2 Therefore, EUT meets the Uncontrolled Exposure limit at 20cm.
