VTV0481201Printer

i USER’S MANUAL Alpha-3R series Direct Thermal Portable Printer ii Copyright Information © 2012 TSC Auto ID Technology Co., Ltd, The copyright in this manual, the software and firmware in the printer described therein are owned by TSC Auto ID Technology Co., Ltd, All rights reserved. CG Triumvirate is a trademark of Agfa Corporation. CG Triumvirate Bold Condensed font is under license from the Monotype Corporation. Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners. Information in this document is subject to change without notice and does not represent a commitment on the part of TSC Auto ID Technology Co. No part of this manual may be reproduced or transmitted in any form or by any means, for any purpose other than the purchaser’s personal use, without the expressed written permission of TSC Auto ID Technology Co. iii Agency Compliance and Approvals CE CLASS B EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-4 SERIES REQULATIONS FCC CFR Title 47 Part 15 Subpart B:2011 Class B ICES-003 Issue 4:2004 Class B Wichtige Sicherheits-Hinweise 1. Bitte lesen Sie diese Hinweis sorgfältig durch. 2. Heben Sie diese Anleitung fűr den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromentz zu trennen. Verwenden Sie keine Flüssig-oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. 4. Die Netzanschluß -Steckdose soll nahe dem Gerät angebracht und leicht zugänglich sein. 5. Das Gerät ist vor Feuchtigkeit zu schűtzen. 6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen könnte Beschädigungen hervorrufen. 7. Beachten Sie beim Anschluß ans Stromnetz die Anschluß werte. 8. Dieses Gerät kann bis zu einer Auß entemperatur von maximal 40°C betrieben werden. Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery. DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. iv Class B: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. v This device has also been evaluated and shown compliant with the IC RF Exposure limits under portable exposure conditions. (antennas are less than 20 cm of a person's body). (For Bluetooth) Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils portables. (les antennes sont moins de 20 cm du corps d'une personne). (For Bluetooth) vi Contents 1. Introduction ................................................. 1 1.1 Product Introduction ......................................................................................... 1 1.2 Product Features ............................................................................................... 2 1.2.1 Printer Standard Features ...................................................................... 2 1.2.2 Printer Optional Features ....................................................................... 3 1.3 General Specifications ...................................................................................... 3 1.4 Print Specifications ........................................................................................... 4 1.5 Media Specifications .......................................................................................…

Text truncated - open the document above for the full version.

i USER’S MANUAL PR30/ GR30/ 3300 series Direct Thermal Portable Printer ii Copyright Information © 2012 TSC Auto ID Technology Co., Ltd, The copyright in this manual, the software and firmware in the printer described therein are owned by TSC Auto ID Technology Co., Ltd, All rights reserved. CG Triumvirate is a trademark of Agfa Corporation. CG Triumvirate Bold Condensed font is under license from the Monotype Corporation. Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners. Information in this document is subject to change without notice and does not represent a commitment on the part of TSC Auto ID Technology Co. No part of this manual may be reproduced or transmitted in any form or by any means, for any purpose other than the purchaser’s personal use, without the expressed written permission of TSC Auto ID Technology Co. iii Agency Compliance and Approvals CE CLASS B EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-4 SERIES REQULATIONS FCC CFR Title 47 Part 15 Subpart B:2011 Class B ICES-003 Issue 4:2004 Class B Wichtige Sicherheits-Hinweise 1. Bitte lesen Sie diese Hinweis sorgfältig durch. 2. Heben Sie diese Anleitung fűr den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromentz zu trennen. Verwenden Sie keine Flüssig-oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. 4. Die Netzanschluß -Steckdose soll nahe dem Gerät angebracht und leicht zugänglich sein. 5. Das Gerät ist vor Feuchtigkeit zu schűtzen. 6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen könnte Beschädigungen hervorrufen. 7. Beachten Sie beim Anschluß ans Stromnetz die Anschluß werte. 8. Dieses Gerät kann bis zu einer Auß entemperatur von maximal 40°C betrieben werden. Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery. DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. iv Class B: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. v This device has also been evaluated and shown compliant with the IC RF Exposure limits under portable exposure conditions. (antennas are less than 20 cm of a person's body). (For Bluetooth) Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils portables. (les antennes sont moins de 20 cm du corps d'une personne). (For Bluetooth) vi Contents 1. Introduction ................................................. 1 1.1 Product Introduction ......................................................................................... 1 1.2 Product Features ............................................................................................... 2 1.2.1 Printer Standard Features ...................................................................... 2 1.2.2 Printer Optional Features ....................................................................... 3 1.3 General Specifications ...................................................................................... 3 1.4 Print Specifications ........................................................................................... 4 1.5 Media Specifications ...............................................................................…

Text truncated - open the document above for the full version.

i USER’S MANUAL TSC-30/ CN-30/ BP-30 series Direct Thermal Portable Printer ii Copyright Information © 2012 TSC Auto ID Technology Co., Ltd, The copyright in this manual, the software and firmware in the printer described therein are owned by TSC Auto ID Technology Co., Ltd, All rights reserved. CG Triumvirate is a trademark of Agfa Corporation. CG Triumvirate Bold Condensed font is under license from the Monotype Corporation. Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners. Information in this document is subject to change without notice and does not represent a commitment on the part of TSC Auto ID Technology Co. No part of this manual may be reproduced or transmitted in any form or by any means, for any purpose other than the purchaser’s personal use, without the expressed written permission of TSC Auto ID Technology Co. iii Agency Compliance and Approvals CE CLASS B EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-4 SERIES REQULATIONS FCC CFR Title 47 Part 15 Subpart B:2011 Class B ICES-003 Issue 4:2004 Class B Wichtige Sicherheits-Hinweise 1. Bitte lesen Sie diese Hinweis sorgfältig durch. 2. Heben Sie diese Anleitung fűr den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromentz zu trennen. Verwenden Sie keine Flüssig-oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. 4. Die Netzanschluß -Steckdose soll nahe dem Gerät angebracht und leicht zugänglich sein. 5. Das Gerät ist vor Feuchtigkeit zu schűtzen. 6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen könnte Beschädigungen hervorrufen. 7. Beachten Sie beim Anschluß ans Stromnetz die Anschluß werte. 8. Dieses Gerät kann bis zu einer Auß entemperatur von maximal 40°C betrieben werden. Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery. DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. iv Class B: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. v This device has also been evaluated and shown compliant with the IC RF Exposure limits under portable exposure conditions. (antennas are less than 20 cm of a person's body). (For Bluetooth) Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils portables. (les antennes sont moins de 20 cm du corps d'une personne). (For Bluetooth) vi Contents 1. Introduction ................................................. 1 1.1 Product Introduction ......................................................................................... 1 1.2 Product Features ............................................................................................... 2 1.2.1 Printer Standard Features ...................................................................... 2 1.2.2 Printer Optional Features ....................................................................... 3 1.3 General Specifications ...................................................................................... 3 1.4 Print Specifications ........................................................................................... 4 1.5 Media Specifications ...........................................................................…

Text truncated - open the document above for the full version.

TSC Auto ID Technology Co., Ltd. FCC ID.: VTV0481201 9F., No. 95, Minquan Rd. Xindian Dist. New Taipei City 23141, Taiwan (R.O.C.)Tel : +886-2-2218-6789 Federal Communications Commission Aug. 07., 2012 Authorization and Evaluation Division ATTESTATION FCC ID: VTV0481201 Product: Printer Model: TSC-30B, CN-30B, BP-30B, PR30B, GR30B, 3300B, TSC-30RB, CN-30RB, BP- 30RB, PR30RB, GR30RB, 3300RB, Alpha-3RB We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ---------------------------------------------------- Lion Ho / Senior Engineer TSC Auto ID Technology Co., Ltd.

Declaration Letter We, the undersigned TSC Auto ID Technology Co., Ltd. hereby declare. The device IC ID: 10524A-0481201 & FCC ID:VTV0481201 complete below list. The different of each model is shown as below: Control Method Shipment Control Firmware Control Model No. Cable Print Speed (Unit：ips) Alpha-3RB USB, RS-232 1.5, 2, 2.5, 3, 3.5, 4 TSC-30B USB 1.5, 2, 3, 4 CN-30B USB 2, 3, 3.5, 4 BP-30B USB 2, 2.5, 3, 3.5, 4 PR30B USB 2, 2.5, 3, 4 GR30B USB 2, 3, 4 3300B USB 1.5, 2, 3, 3.5, 4 TSC-30RB RS-232 1.5, 2, 3, 4 CN-30RB RS-232 2, 3, 3.5, 4 BP-30RB RS-232 2, 2.5, 3, 3.5, 4 PR30RB RS-232 2, 2.5, 3, 4 GR30RB RS-232 2, 3, 4 3300RB RS-232 1.5, 2, 3, 3.5, 4 (1)The different models of the system where the module is identical. (2)The different model with different Cable, but electrical characteristic and I/O Port are the same. (3) The print speed is firmware control Sincerely, Lion Ho / Senior Engineer TSC Auto ID Technology Co., Ltd. 9F., No. 95, Minquan Rd. Xindian Dist. New Taipei City 23141, Taiwan (R.O.C.) [email protected]

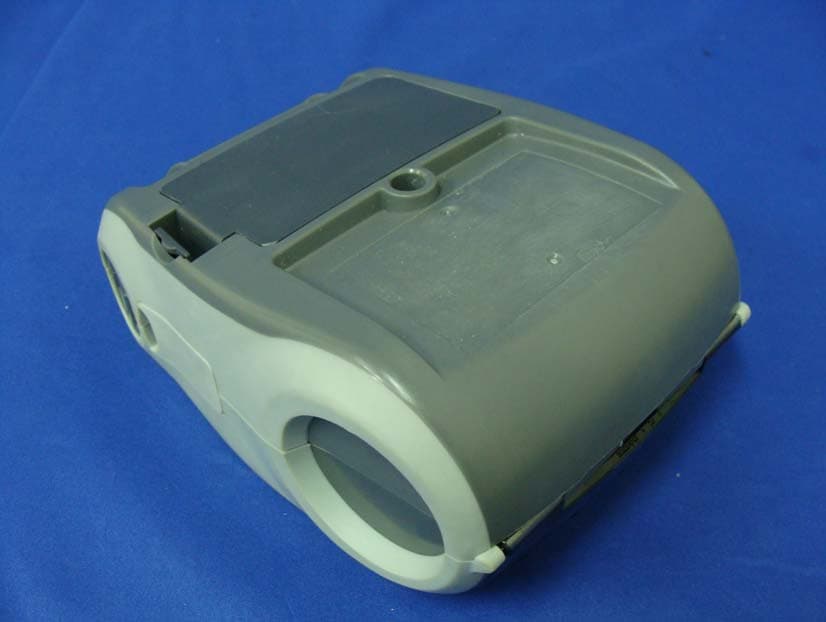

Report No.: 124450R-RFUSP29V01 Page : 1 of 18 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

TSC Auto ID Technology Co., Ltd. FCC ID.: VTV0481201 9F., No. 95, Minquan Rd. Xindian Dist. New Taipei City 23141, Taiwan (R.O.C.)Tel : +886-2-2218-6789 FCC ID Label

Report No.: 124450R-RFUSP29V01 Page : 2 of 18 (3) EUT Photo (4) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 3 of 18 (5) EUT Photo (6) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 4 of 18 (7) EUT Photo (8) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 5 of 18 (9) EUT Photo (10) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 6 of 18 (11) EUT Photo (12) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 7 of 18 (13) EUT Photo (14) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 8 of 18 (15) EUT Photo (16) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 9 of 18 (17) EUT Photo (18) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 10 of 18 (19) EUT Photo (20) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 11 of 18 (21) EUT Photo (22) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 12 of 18 (23) EUT Photo (24) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 13 of 18 (25) EUT Photo (26) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 14 of 18 (27) EUT Photo (28) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 15 of 18 (29) EUT Photo (30) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 16 of 18 (31) EUT Photo (32) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 17 of 18 (33) EUT Photo (34) EUT Photo Report No.: 124450R-RFUSP29V01 Page : 18 of 18 (35) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Measurement Result: This is a portable device and the max peak output power (EIRP) is –0.55dBm, which is equal to 0.88 mW, Lower than low threshold (60/f GHz) mW = 25 mW (f=2.4GHz), d <20 cm general population category. The SAR/MPE measurement is not necessary.

Report No. 124450R-RFUSP29V01 Page: 1 of 86 Test Report Product Name Printer Model No. TSC-30B, CN-30B, BP-30B, PR30B, GR30B, 3300B, TSC-30RB, CN-30RB, BP-30RB, PR30RB, GR30RB, 3300RB, Alpha-3RB FCC ID. VTV0481201 Applicant TSC Auto ID Technology Co., Ltd. Address 9F., No. 95, Minquan Rd. Xindian Dist. New Taipei City 23141, Taiwan (R.O.C.) Date of Receipt Apr. 23, 2012 Issued Date Jul. 18, 2012 Report No. 124450R-RFUSP29V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 124450R-RFUSP29V01 Page: 2 of 86 Test Report Certification Issued Date: Jul. 18, 2012 Report No.: 124450R-RFUSP29V01 Product Name Printer Applicant TSC Auto ID Technology Co., Ltd. Address 9F., No. 95, Minquan Rd. Xindian Dist. New Taipei City 23141, Taiwan (R.O.C.) Manufacturer TSC Auto ID Technology Co., Ltd. Model No. TSC-30B, CN-30B, BP-30B, PR30B, GR30B, 3300B, TSC-30RB, CN-30RB, BP-30RB, PR30RB, GR30RB, 3300RB, Alpha-3RB FCC ID. VTV0481201 EUT Rated Voltage DC 7.4V (Power by Battery), DC 12V(Power by Adapter) EUT Test Voltage AC 120V/ 60Hz Trade Name TSC Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Assistant Engineer / Jack Hsu ) Approved By : (Manager / Vincent Lin ) Report No. 124450R-RFUSP29V01 Page: 3 of 86 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................8 1.3. Tested System Details..............................................................................................................................9 1.4. Configuration of Tested System ..............................................................................................................9 1.5. EUT Exercise Software .........................................................................................................................10 1.6. Test Facility ...........................................................................................................................................11 2. CONDUCTED EMISSION ................................................................................................................12 2.1. Test Equipment ......................................................................................................................................12 2.2. Test Setup ..............................................................................................................................................12 2.3. Limits.....................................................................................................................................................13 2.4. Test Procedure .......................................................................................................................................13 2.5. Uncertainty ............................................................................................................................................13 2.6. Test Result of Conducted Emission .......................................................................................................14 3. PEAK POWER OUTPUT ..................................................................................................................20 3.1. Test Equipment ......................................................................................................................................20 3.2. Test Setup ..............................................................................................................................................20 3.3. Limit .....................................................................................................................................................20 3.4. Test Procedure .......................................................................................................................................20 3.5. Uncertainty ............................................................................................................................................20 3.6. Test Result of Peak Power Output .........................................................................................................21 4. RADIATED EMISSION .....................................................................................................................23 4.1. Test Equipment ......................................................................................................................................23 4.2. Test Setup ..............................................................................................................................................23 4.3. Limits.....................................................................................................................................................24 4.4. Test Procedure .......................................................................................................................................25 4.5. Uncertainty .................................................................................................................…

Text truncated - open the document above for the full version.

Report No. 124450R-RFUSP29V01 Page: 67 of 86 8. Channel Separation 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments mark by “X” are used to measure the final test results. 8.2. Test Setup 8.3. Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. 8.4. Test Procedure The EUT was setup to ANSI C63.4, 2003; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 8.5. Uncertainty ± 150Hz SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 124450R-RFUSP29V01 Page: 68 of 86 8.6. Test Result of Channel Separation Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 746.7 Pass 39 2441 1000 >25 kHz 753.3 Pass 78 2480 1000 >25 kHz 753.3 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Product : Printer Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) +Adapter#2 Report No. 124450R-RFUSP29V01 Page: 69 of 86 Channel 39 2441MHz Channel 78 2480 MHz Report No. 124450R-RFUSP29V01 Page: 70 of 86 Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 920.0 Pass 39 2441 1000 >25 kHz 926.7 Pass 78 2480 1000 >25 kHz 926.7 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Product : Printer Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) +Adapter#2 Report No. 124450R-RFUSP29V01 Page: 71 of 86 Channel 39 2441MHz Channel 78 2480 MHz Report No. 124450R-RFUSP29V01 Page: 72 of 86 9. Dwell Time 9.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectr…

Text truncated - open the document above for the full version.
