VTV2012002Bluetooth Module

BLUETOOTH MODULE INSTALLATION GUIDE BT-EM01, BT-EM101 Bluetooth wireless technology is a low-power consuming way to communicate between devices. It has a maximum range of 30 feet (10m). The Bluetooth device connects to your printer’s serial port and confirms to V2.0 + EDR of the Bluetooth specification. Installing the Bluetooth Device to the Printer Please follow the steps below to install the Bluetooth device. 1. Turn off the printer power. 2. Plug in the Bluetooth device into the RS-232 port. 3. Fasten the device by two screws. Setting the Communication Settings For industrial printer, the RS-232 communication parameters can be configured from the LCD control panel by the following procedures. 1. Turn on the printer power. 2. Enter the main menu. 3. Select Serial Comm. Option. 4. Make sure the communication parameters are set to 115200 bps baud rate, None parity, 8 data bits, 1 stop bit. For desktop printer models, the RS-232 communication parameters can be setup following command Syntax: SET COM1 115, N, 8, 1 P/N: 39-0000-00LF Baud Rate -- Parity --Data Bite --Stop Bits --Exit Serial Comm. Bluetooth device Screw LED indicator Note: This RS-232 interface of Bluetooth device is used with the printer only. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and must not be co- located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

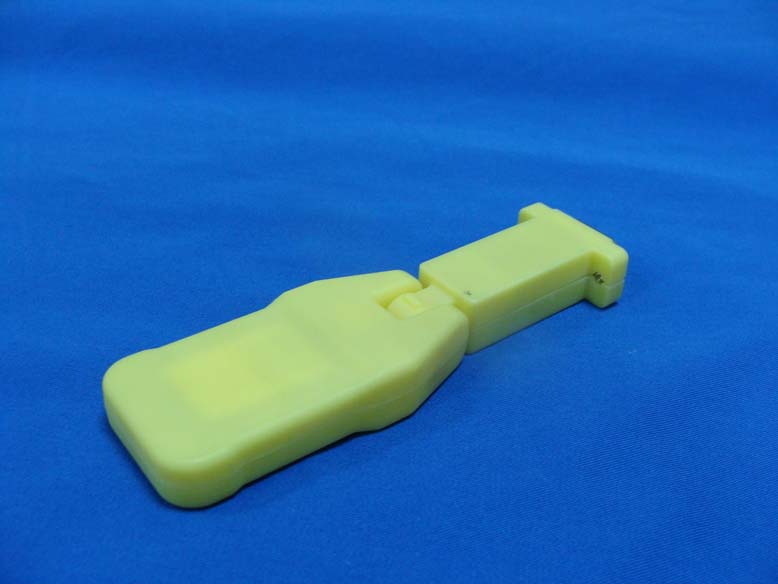

Report No.: 124408R-RFUSP43V01 Page : 1 of 10 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

TSC Auto ID Technology Co., Ltd. FCC ID.: VTV2012002 No. 35, Sec. 2, Ligong 1st Rd., Wujie Town (Li Tse Industrial Park), I-lan County 268, Taiwan R.O.C..Tel : 886-3-990-6677 FCC ID Label

TSC Auto ID Technology Co., Ltd. FCC ID.: VTV2012002 No. 35, Sec. 2, Ligong 1st Rd., Wujie Town (Li Tse Industrial Park), I-lan County 268, Taiwan R.O.C..Tel : 886-3-990-6677 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 124408R-RFUSP43V01 Page : 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 124408R-RFUSP43V01 Page : 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 124408R-RFUSP43V01 Page : 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 124408R-RFUSP43V01 Page : 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 124408R-RFUSP43V01 Page : 6 of 10 (11) EUT Photo (12) EUT Photo Antenna Report No.: 124408R-RFUSP43V01 Page : 7 of 10 (13) EUT Photo (14) EUT Photo Report No.: 124408R-RFUSP43V01 Page : 8 of 10 (15) EUT Photo (16) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This a portable device and the max peak output power is 3.58 dBm = (2.28 mW). Lower that low threshold 60/f GHz mW = (24.19 mW), d <2.5 cm general population category. The SAR/MPE measurement is not necessary.

Report No. 124408R-RFUSP43V01 Page: 53 of 73 7. Channel Number 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limit Frequency hopping systems operating in the 2400-2483.5 MHz bands shall use at least 75 hopping frequencies. 7.4. Test Procedure The EUT was setup to ANSI C63.4, 2003; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 7.5. Uncertainty N/A SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 124408R-RFUSP43V01 Page: 54 of 73 7.6. Test Result of Channel Number Product : Bluetooth Module Test Item : Channel Number Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) Frequency Range (MHz) Measurement (Hopping Channel) Required Limit (Hopping Channel) Result 2402 ~ 2480 79 >75 Pass 2402-2421MHz 2422-2441MHz 2442-2461MHz 2462-2480MHz Report No. 124408R-RFUSP43V01 Page: 55 of 73 Product : Bluetooth Module Test Item : Channel Number Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) Frequency Range (MHz) Measurement (Hopping Channel) Required Limit (Hopping Channel) Result 2402 ~ 2480 79 >75 Pass 2402-2421MHz 2422-2441MHz 2442-2461MHz 2462-2480MHz Report No. 124408R-RFUSP43V01 Page: 56 of 73 8. Channel Separation 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments mark by “X” are used to measure the final test results. 8.2. Test Setup 8.3. Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. 8.4. Test Procedure The EUT was setup to ANSI C63.4, 2003; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 8.5. Uncertainty ± 150Hz SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 124408R-RFUSP43V01 Page: 57 of 73 8.6. Test Result of Channel Separation Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 753.3 Pass 39 2441 1000 >25 kHz 753.3 Pass 78 2480 1000 >25 kHz 746.7 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Product : Bluetooth Module Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) Report No. 124408R-RFUSP43V01 Page: 58 of 73 Channel 39 2441MHz Channel 78 2480 MHz Report No. 124408R-RFUSP43V01 Page: 59 of 73 Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 920.0 Pass 39 2441 1000 >25 kHz 920.0 Pass 78 2480 1000 >25 kHz 920.0 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Product : Bluetooth Module Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) Report No. 124408R-RFUSP43V01 Page: 60 of 73 Channel 39 2441MHz Channel 78 2480 MHz Report No. 124408R-RFUSP43V01 Page: 61 of 73 9. Dwell Time 9.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. 9.2. Test Setup 9.3. Limit The dwell time shall be the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 30 second period. 9.4. Test Procedure The EUT was setup to ANSI C63.4, 2003; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 9.5. Uncertainty ± 25msec SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 124408R-RFUSP43V01 Page: 62 of 73 9.6. Test Result of Dwell Time Product : Bluetooth Module Test Item : Dwell Time Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) (Channel 00,39,78 –DH5) Frequency (MHz) Time slot length (ms) Hopping of Number Sweep time (ms) Duty cycle Dwell Time (Sec) Limit (Sec) Result 2402 2.900 13 50 0.75 0.302 0.4 Pass 2441 2.900 14 50 0.81 0.325 0.4 Pass 2480 2.900 13 50 0.75 0.302 0.4 Pass Duty cycle =((Time slot length(ms)*Hopping of Number) / Sweep time (ms) Dwell time = (Duty cycle /79) * (79*0.4) CH 00 Time Interval between hops CH 00 Transmission Time CH39 Time Interval between hops CH 39Transmission Time Report No. 124408R-RFUSP43V01 Page: 63 of 73 CH 78 Time Interval between hops CH 78 Transmission Time Note: The dwell times of the packet type of DH1, DH3, and DH5 are tested. Only the worst case is shown on the report. Report No. 124408R-RFUSP43V01 Page: 64 of 73 Product : Bluetooth Module Test Item : Dwell Time Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) (Channel 00,39,78 –DH5) Frequency (MHz) Time slot length (ms) Hopping of Number Sweep time (ms) Duty cycle Dwell Time (Sec) Limit (Sec) Result 2402 2.890 13 50 0.75 0.301 0.4 Pass 2441 2.910 14 50 0.81 0.326 0.4 Pass 2480 2.900 14 50 0.81 0.325 0.4 Pass Duty cycle =((Time slot length(ms)*Hopping of Number) / Sweep time (ms) Dwell time = (Duty cycle /79) * (79*0.4) CH 00 Time Interval between hops CH 00 Transmission Time CH39 Time Interval between hops CH 39Transmission Time Report No. 124408R-RFUSP43V01 Page: 65 of 73 CH 78 Time Interval between hops CH 78 Transmission Time Note: The dwell times of the packet type of DH1, DH3, an…
