VVJ-AN2640SA-BBLE module

BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 1 of 5 AN2640SA-B Module Datasheet V1.0 Description AN2640SA-B Module is designed based on CC2640F128 Bluetooth Smart (BLE4.1) System-on-Chip, fully supports the single mode Bluetooth Low Energy operation. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice. Features 1. Bluetooth4.1, Single mode compliant-Supports master and slave modes 2. Build in CC2640F128 Bluetooth Smart System-On-Chip 3. RF Performance – TX Power：+5dBm – RX Sensitivity：-87dBm ~ -96dBm 4. Ultra low current consumption – Transmit current(0dBm)：6.1mA – Receiving current：5.9mA 5. Size: 15 mm×22 mm×2.0mm Mechanical Drawing 15mm 22mm 2mm BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 2 of 5 Terminal Description Pad Number Name Description Pin Type 1 DIO0 GPIO, Sensor Controller Digital I/O 2 DIO1 GPIO, Sensor Controller Digital I/O 3 DIO2 GPIO, Sensor Controller Digital I/O 4 DIO3 GPIO, Sensor Controller Digital I/O 5 DIO4 GPIO, Sensor Controller Digital I/O 6 DIO5 GPIO, Sensor Controller, High drive capacity Digital I/O 7 DIO6 GPIO, Sensor Controller, High drive capacity Digital I/O 8 DIO7 GPIO, Sensor Controller, High drive capacity Digital I/O 9 GND Connect to GND Ground pin 10 VDD 1.8V to 3.8V main chip supply Power 11 DIO8 GPIO Digital I/O 12 DIO9 GPIO Digital I/O 13 DIO10 GPIO Digital I/O 14 DIO11 GPIO Digital I/O 15 DIO12 GPIO Digital I/O 16 DIO13 GPIO Digital I/O 17 DIO14 GPIO Digital I/O 18 DIO15 GPIO Digital I/O 19 JTAG-TMSC JTAG TMSC, High drive capability Digital I/O 20 JTAG-TCKC JTAG TCKC Digital I/O BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 3 of 5 21 DIO16 GPIO,High drive capability, JTAG_TDODigital I/O 22 DIO17 GPIO, High drive capability, JTAG_TDIDigital I/O 23 DIO18 GPIO Digital I/O 24 DIO19 GPIO Digital I/O 25 DIO20 GPIO Digital I/O 26 DIO21 GPIO Digital I/O 27 DIO22 GPIO Digital I/O 28 RESET_N Reset, active-low. No internal pullup Digital input 29 DIO23 GPIO, Sensor Controller, Analog Digital/Analog I/O 30 DIO24 GPIO, Sensor Controller, Analog Digital/Analog I/O 31 DIO25 GPIO, Sensor Controller, Analog Digital/Analog I/O 32 DIO26 GPIO, Sensor Controller, Analog Digital/Analog I/O 33 DIO27 GPIO, Sensor Controller, Analog Digital/Analog I/O 34 DIO28 GPIO, Sensor Controller, Analog Digital/Analog I/O 35 DIO29 GPIO, Sensor Controller, Analog Digital/Analog I/O 36 DIO30 GPIO, Sensor Controller, Analog Digital/Analog I/O Specifications Parameter Min Max Unit Operating Voltage 1.8 3.8 V Operating Temperature -40 85 °C Current Consumption BLE Advertising （Interval 100mS） 0.23 - mA BLE Connection Interval 30mS 0.35 - mA Interval 50mS 0.22 - mA Interval 100mS0.12 - mA Interval 500mS0.02 - mA Sleep mode - 1 μA TX Power -21 +5 dBm RX Sensitivity -87 -96 dBm Storage Temperature -40 150 °C BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 4 of 5 Recommended PCB Layout for Package Soldering Recommendations 11.43mm 16mm 23mm 5mm 1.77mm 0.4mm 1.27mm 0.7mm 1.6mm 15.2mm BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 5 of 5 The AN2640SA-B module is designed to comply with the FCC statement. FCC ID is VVJ-AN264 0SA-B. The host system using AN2640SA-B, should have label indicated FCC ID VVJ-AN2640S A-B. This radio should NOT be installed and operating simultaneously with other radio FCC STATEMENT § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance co uld void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital dev ice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecti on against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inte rference will not occur in a particular installation. If this equipment does cause harmful interferenc e to radio or television reception, which can be determined by turning the equipment off and on, th e user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is conn ected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ ment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Beijing Jia An Electronic Technology Co,. Ltd ______________________________________________ 2015.11.26 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Beijing Jia An Electronic Technology Co,. Ltd ____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: BLE module model name: AN2640SA-B FCC ID: VVJ-AN2640SA-B Sincerely, Client’s signature : Client’s name & title : Helen Ban/ General Manager Contact information / address: Beijing Jia An Electronics Technology Co,.Ltd No.19 GuCheng West Street,Shi Jing Shan District,Beijing 100043,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 5.0 Beijing Jia An Electronic Technology Co,. Ltd ______________________________________________ 2015.11.26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: VVJ-AN2640SA-B Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Helen Ban/ General Manager Contact information / address: Beijing Jia An Electronic Technology Co,.Ltd No.19 GuCheng West Street,Shi Jing Shan District,Beijing 100043, China

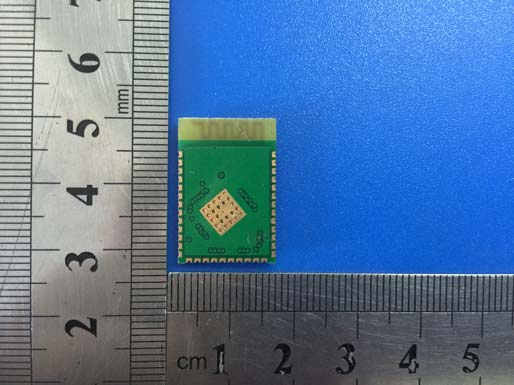

Test Report No. 15020952-FCC-R1 Page 26 of 32 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External/Internal Photo Front View of EUT Rear View of EUT BLE Antenna

AN2640SA-B FCC ID: VVJ-AN2640SA-B Beijing Jia An Electronic Technology Co.,Ltd. 1548

Test Report No. 15020952-FCC-R1 Page 26 of 32 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External/Internal Photo Front View of EUT Rear View of EUT BLE Antenna

RF EXPOSURE REPORT Report No.: 15020952-FCC-H1 Supersede Report No.: N/A Applicant Beijing Jia An Electronic Technology Co,. Ltd Product Name BLE module Model No. AN2640SA-B Test Standard FCC 2.1091 Test Date November 17 to November 23, 2015 Issue Date November 24,2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Deon Dai Test Engineer Herve Idoko Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (Nanjing-China) Laboratories 2-1 Longcang Avenue Yuhua Economic and Technology Development Park, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email: [email protected] Test Report No. 15020952-FCC-H1 Page 2 of 8 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report No. 15020952-FCC-H1 Page 3 of 8 This page has been left blank intentionally. Test Report No. 15020952-FCC-H1 Page 4 of 8 CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 5 2 CUSTOMER INFORMATION ......................................................................................................................................... 5 3 TEST SITE INFORMATION ............................................................................................................................................ 5 4 EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................................... 6 5 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) .......................................................................................... 7 Test Report No. 15020952-FCC-H1 Page 5 of 8 1 Report Revision History Report No. Report Version Description Issue Date 15020952-FCC-H1 NONE Original November 24,2015 2 Customer information Applicant Name Beijing Jia An Electronic Technology Co,. Ltd Applicant Add No.19 GuCheng West Street, Shi Jing Shan District, Beijing 100043,CHINA Manufacturer Beijing Jia An Electronic Technology Co,. Ltd Manufacturer Add No.19 GuCheng West Street, Shi Jing Shan District, Beijing 100043,CHINA 3 Test site information Lab performing tests SIEMIC (Nanjing-China) Laboratories Lab Address 2-1 Longcang Avenue Yuhua Economic and Technology Development Park, Nanjing, China FCC Test Site No. 986914 IC Test Site No. 4842B-1 Test Software Labview of SIEMIC version 1.0 Test Report No. 15020952-FCC-H1 Page 6 of 8 4 Equipment under Test (EUT) Information Description of EUT: BLE module Main Model: AN2640SA-B Serial Model: N/A Date EUT received: November 05, 2015 Test Date(s): November 17 to November 23, 2015 Output power 4.789 dBm (3.01mW) Antenna Gain: BLE: 0dBi Type of Modulation: BLE:GFSK RF Operating Frequency (ies): BLE: 2402-2480 MHz(TX/RX) Number of Channels: BLE: 40CH Port: N/A Input Power: DC 1.8V-3.8V Trade Name : N/A FCC ID: VVJ-AN2640SA-B Test Report No. 15020952-FCC-H1 Page 7 of 8 5 FCC §2.1091 - MaximuM Permissible exposure (MPE) Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Test Report No. 15020952-FCC-H1 Page 8 of 8 Type Test mode CH Freq (MHz) Conducted Power (dBm) Tune Up Power (dBm) Output power BLE Low 2402 4.789 4.0±1 Mid 2440 3.824 High 2480 3.765 For the antenna manufacturer provide only used limited to ERP/EIRP or radiated spurious emission test. The MPE evaluation as below: BLE Mode： The maximum peak output power (turn-up power) in low channel of BLE is 5.0 dBm Maximum peak output power (turn-up power) at antenna input terminal: 3.16 (mW) Prediction distance: >20 (cm) Predication frequency: 2402(MHz) lowest frequency Antenna Gain (typical): 0 (dBi) Antenna Gain (typical): 1 (numeric) The worst case is power density at predication frequency at 20 cm: 0.0006(mW/cm 2 ) MPE limit for general p…
