VVJ-KF4ASmart Key Finder

Smart Key Finder Quick Start Guide Box Content: Pally Smart Key Finder key fob: one with 2xAAAA batteries installed Metal key ring: one Setup： 1. Download and install the free Pally Smart Finder app from Apple App store (scan QR code for fast access or visit http://PallyTech.com/KF-4A. Alternative, you can search for Smart Finder in App Store. 2. Launch the Smart Finder app. If the Bluetooth is turned off on your iOS device, please follow the on-screen display to enable Bluetooth. After that, launch the Smart Finder app again. 3. Follow the following three steps to pair up your key fob and iOS device. a. On the key fob, press “P” button once to activate the device. b. In Smart Finder app, tap the “+” to add a new device. Follow the instruction on the iOS device screen. c. Once the key fob is discovered, press and hold the “P” button for 3 seconds to pair them up. Customer Support： If you have any question, please contact our support team at http://PallyTech.com/support FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Beijing Jia An Electronic Technology Co,. Ltd ________________________________________________ 2013.09.26 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ____ Beijing Jia An Electronic Technology Co,. Ltd _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name,：Smart Key Finder Model name: KF-4A FCC ID: VVJ-KF4A We affirm that between SIEMIC and ____ Beijing Jia An Electronic Technology Co,. Ltd ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Helen Ban/ General Manager Contact information / address : Beijing Jia An Electronic Technology Co,. Ltd/ No.19 Gu Cheng West Street, Shi Jing Shan District Beijing 100043, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Beijing Jia An Electronic Technology Co,. Ltd ________________________________________________ 2013.09.26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: VVJ-KF4A We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Helen Ban/ General Manager Contact information / address : Beijing Jia An Electronic Technology Co,. Ltd/ No.19 Gu Cheng West Street, Shi Jing Shan District Beijing 100043, China

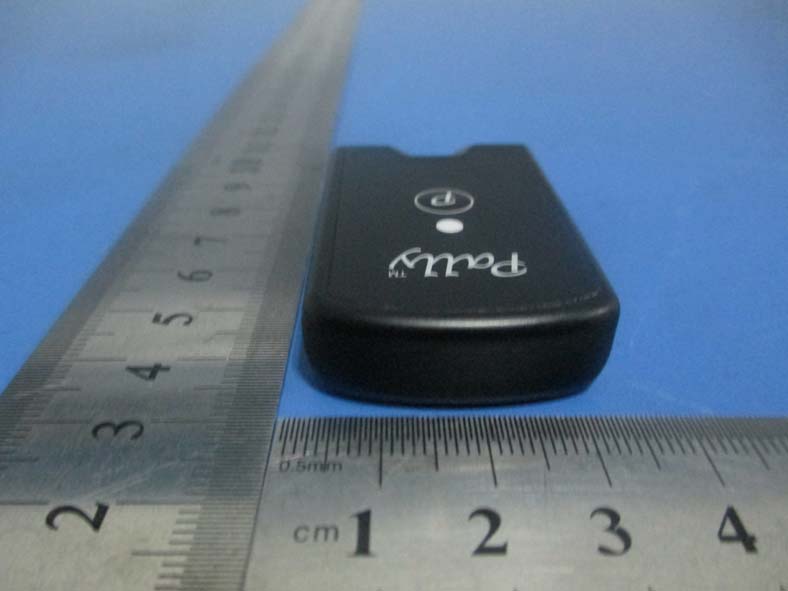

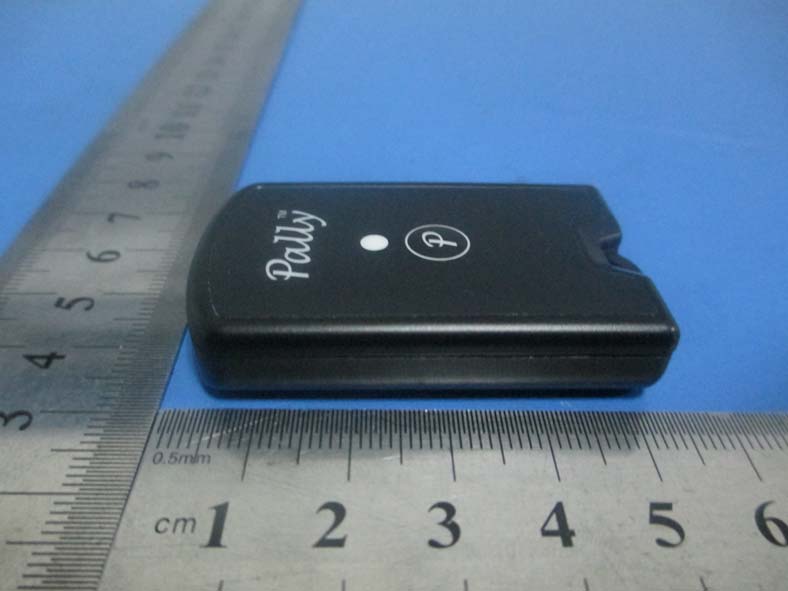

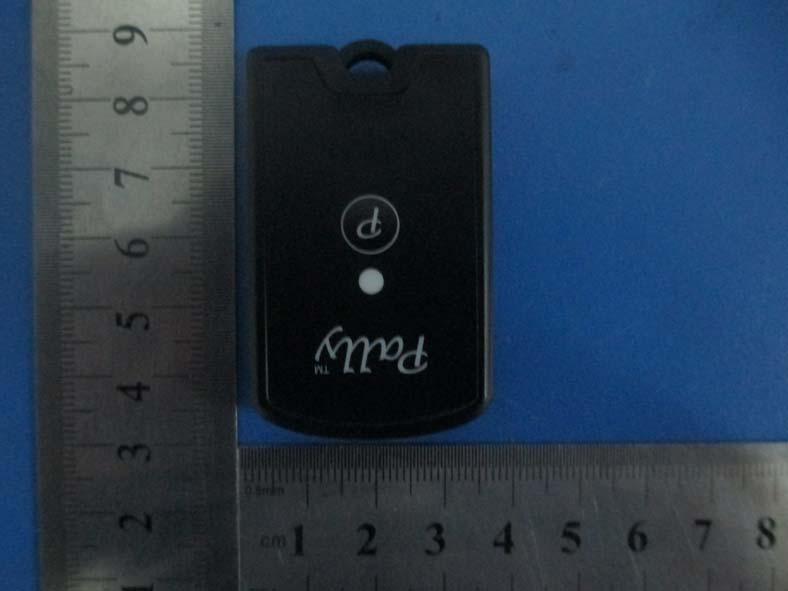

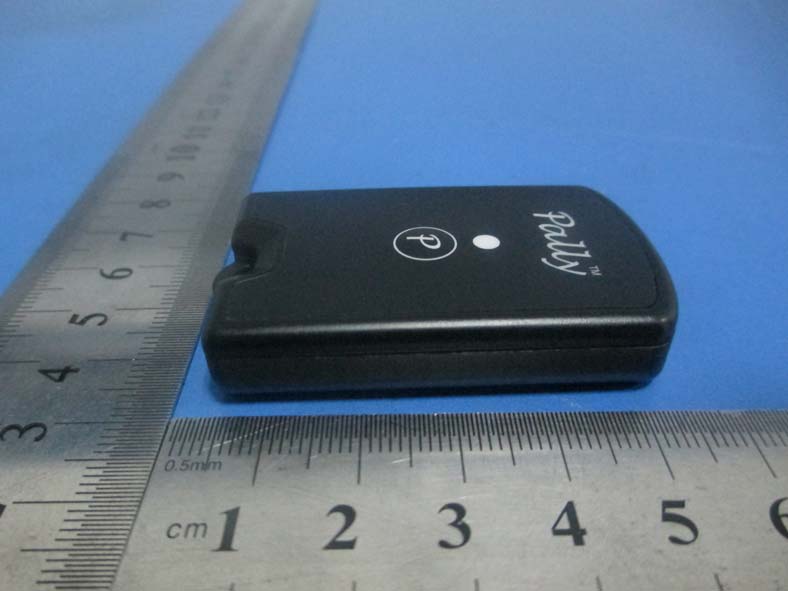

Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 32 of 43 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo EUT - Front View EUT - Rear View Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 33 of 43 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 34 of 43 www.siemic.com.cn EUT - Left View EUT - Right View

Label Location FCC ID: VVJ-KF4A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Beijing Jia An Electronics Technology Co., Ltd Smart Key Finder Main Model: KF-4A Serial Model: N/A September 24, 2013 Report No.: 13020804-FCC-H (This report supersedes none) Modifications made to the product : None This Test Report is Issued Under the Authority of: William Long Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Evaluation Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, Part 2.1093 Report No.: 13020804-FCC-H Issue Date: September 24, 2013 Page: 2 of 9 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Exposure Evaluation Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, Part 2.1093 Report No.: 13020804-FCC-H Issue Date: September 24, 2013 Page: 3 of 9 www.siemic.com.cn This page has been left blank intentionally. Title: RF Exposure Evaluation Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, Part 2.1093 Report No.: 13020804-FCC-H Issue Date: September 24, 2013 Page: 4 of 9 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 Title: RF Exposure Evaluation Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, Part 2.1093 Report No.: 13020804-FCC-H Issue Date: September 24, 2013 Page: 5 of 9 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Beijing Jia An Electronics Technology Co., Ltd, Smart Key Finder and model: KF-4A against the current Stipulated Standards. The Smart Key Finder has demonstrated compliance with the FCC Part 15.247: 2012, Part 2.1093. EUT Information EUT Description : Smart Key Finder Main Model : KF-4A Serial Model : N/A Antenna Gain : BLE: -1dBi Input Power : 2*1.5V Battery Operated Classification Per Stipulated Test Standard : FCC Part 15.247: 2012, Part 2.1093 Title: RF Exposure Evaluation Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, Part 2.1093 Report No.: 13020804-FCC-H Issue Date: September 24, 2013 Page: 6 of 9 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Smart Key Finder with stipulated standard Applicant / Client Beijing Jia An Electronics Technology Co., Ltd No.19 GuCheng West Street, Shi Jing Shan District, Beijing 100043,CHINA Manufacturer Beijing Jia An Electronics Technology Co., Ltd No.19 GuCheng West Street, Shi Jing Shan District, Beijing 100043,CHINA Laboratory performing the tests SIEMIC (Nanjing-China) Laboratories} NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel: +86(25)86730128/86730129 Fax: +86(25)86730127 Email: [email protected]} Test report reference number 13020804-FCC-H Date EUT received September 11, 2013 Standard applied FCC Part 15.247: 2012, Part 2.1093 No of Units : #1 Equipment Category : Spread Spectrum System/Device Trade Name : N/A RF Operating Frequency (ies) BLE: 2402-2480 MHz Number of Channels BLE: 40CH Modulation BLE: GFSK FCC ID VVJ-KF4A Title: RF Exposure Evaluation Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, Part 2.1093 Report No.: 13020804-FCC-H Issue Date: September 24, 2013 Page: 7 of 9 www.siemic.com.cn 3 MODIFICATION NONE Title: RF Exposure Evaluation Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, Part 2.1093 Report No.: 13020804-FCC-H Issue Date: September 24, 2013 Page: 8 of 9 www.siemic.com.cn 4 TEST SUMMARY The product was tested in accordance with the following specifications. All testing has been performed according to below product classification: Test Results Summary FCC Rules Description of Test Result §15.247 (…

Text truncated - open the document above for the full version.

Beijing Jia An Electronics Technology Co., Ltd. Smart Key Finder Main Model: KF-4A Serial Model: N/A September 23, 2013 Report No.: 13020804-FCC-R1 (This report supersedes none) Modifications made to the product : None This Test Report is Issued Under the Authority of: William Long Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 2 of 43 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 3 of 43 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 4 of 43 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 27 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 32 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 38 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 42 ANNEX E. DECLARATION OF SI ............................................................................................................................. 43 Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 5 of 43 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Beijing Jia An Electronics Technology Co., Ltd., Smart Key Finder and model: KF-4A against the current Stipulated Standards. The Smart Key Finder has demonstrated compliance with the FCC Part 15.247: 2012, ANSI C63.4: 2009. EUT Information EUT Description : Smart Key Finder Main Model : KF-4A Serial Model : N/A Antenna Gain : BlE: -1 dBi Input Power : 2*1.5V Battery Operated Classification Per Stipulated Test Standard : FCC Part 15.247: 2012, ANSI C63.4: 2009 Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 6 of 43 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Smart Key Finder with stipulated standard Applicant / Client Beijing Jia An Electronics Technology Co., Ltd. No.19 GuCheng West Street, Shi Jing Shan District, Beijing 100043,CHINA Manufacturer Beijing Jia An Electronics Technology Co., Ltd. No.19 GuCheng West Street, Shi Jing Shan District, Beijing 100043,CHINA Laboratory performing the tests SIEMIC (Nanjing-China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel: +86(25)86730128/86730129 Fax: +86(25)86730127 Email: [email protected] Test report reference number 13020804-FCC-R1 Date EUT received September 11, 2013 Standard applied FCC Part 15.247: 2012, ANSI C63.4: 2009 Dates of test (from – to) September 22, 2013 No of Units : #1 Equipment Category : Spread Spectrum System/Device Trade Name : N/A RF Operating Frequency (ies) BLE: 2402-2480 MHz Number of Channels BLE: 40CH Modulation BLE: GFSK FCC ID VVJ-…

Text truncated - open the document above for the full version.

Title: RF Test Report for Smart Key Finder Main Model: KF-4A Serial Model: N/A To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No.: 13020804-FCC-R1 Issue Date: September 23, 2013 Page: 37 of 43 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
