VWZT1000EFTPOS

T1000 EFT-POS Installation Guide Version 1.0 SPECTRA Technologies ISO9001 : 2008 20002812 QM08 SPECTRA Technologies ISO14001 : 2004 20002812 UM 1 Installation Guide 1. T1000 .............................................................................................. Layout & Function Descriptions of T1000 1.1 Main Unit & Accessories........................................................................................... 1.2 Features at a Glance................................................................................................. 1.3 SIM、SAM Micro-SD Installation of SIM, SAM & Micro-SD Card...................... 1.4 Battery Installation..................................................................................................... 1.5 Paper Feeding Procedure.......................................................................................... 2. How to Operate................................................................................6 2.1 Turn On/ Off Procedure............................................................................................. 2.2 Swipe Card & Insert Card.......................................................................................... 3. .........................................7 3.1 Prohibition.................................................................................................................. 3.2 .................................................................... 3.3 3.4 3.5 . Safety & Maintenance.....................................................................9 4.1 Basic Safety Practice.................................................................................................. 4.2 Safety Warning.......................................................................................................... 4.3 Location for Installation............................................................................................ 4.4 Maintenance............................................................................................................ 4.5 Trouble Shooting....................................................................................... ............. . Other Information..........................................................................13 Rechargeable Battery Safety Guideline Battery Operation & Charging Guideline Terminal and Battery Storage Guideline..................................................................... Accident Handling...................................................................................................... Battery Disposal........................................................................................................ 4 5 Table of Content 2 3 4 4 5 6 6 7 8 8 8 8 9 9 10 10 11 2 T1000 T1000 2 Installation Guide Layout & Function Descriptions of T1000 1 1.1 Main Unit & Accessories Terminal - for transaction processing, PIN entry, printing, communication and other peripheral interfaces such as ECR integration 7.4V Rechargeable Battery (Optional) Power Adaptor (Optional) - provides 9V DC for terminal operation LAN Port Cable (Optional) 3 Installation Guide 1.2 Features at a Glance Magnetic Card Reader Slot LCD Display Keys Paper Outlet IC Card Reader Slot Battery Compartment LAN/ Modem or RS232 communication port Charging Contact - for charging by cradle T1000 Power Port Jack for Handfree Earpiece Paper Tray Cover Paper Tray Lever USB Port (Slave) Reset Button for Contactless Card Reader option only Status Displaying LED Card Reading Area 4 Installation Guide 1 1.4 Battery Installation for version equipped with battery pack only 1.3 Installation of SIM, SAM & Micro-SD Card 1 2 3 1 2 4 T1000 SIM Card Micro-SD Card SAM Card (Optional) (Optional) 5 Installation Guide 1.5 Paper Feeding Procedure T1000 1 Lift up the Paper Tray Lever 2 Pull the Paper Tray Lever backward Place the paper roll into the tray as shown 3 Close the Paper Tray Cover 4 57mm (2 ") 1 4 40mm Max. Paper roll size 6 Installation Guide How to Operate 2 2.1 Turn On/ Off Procedure On - Power is on whenever plugged. If the terminal is unplugged, press the key for several seconds to turn on the terminal. When the terminal displays the application idle screen, it is ready for operation. 2.2 Swipe Card & Insert Card Off - Disconnect the power adaptor. Keep on pressing the key for several seconds to turn off the terminal. If the terminal is equipped with charging battery during first time use, please connect the power adaptor and charge the battery for 3 hours. Magnetic Card IC Card T1000 Rechargeable Battery Safety Guideline 3 3.1 Prohibition: Improper handling of the Li-Polymer battery is hazardous, the following forbidden activities must be avoided: DO NOT use NON-SPECTRA provided battery in SPECTRA POS Terminal 7 Installation Guide DO NOT use a charger that is not specifically designed to charge Lithium Polymer Battery DO NOT operate the terminal, charge up or store the battery under high temperature (under direct sunlight or inside a roasting vehicle) or close to heat source (fire, heater) DO NOT store the battery in the external charger. After charging up, the battery should be removed, even though power is disconnected DO NOT use damaged battery, e.g. Swelled, case broken, strange odor and chemical leakage DO NOT knock, crash or press the battery DO NOT submerge the battery into water DO NOT heat the battery or dispose in fire DO NOT solder the battery DO NOT disassemble the battery DO NOT short or puncture the battery 3.2 Battery Operation & Charging Guideline The best temperature for battery operation is 0 C ~ 45 C. DO NOT place the terminal in hot space or poor ventilated space. Ensure good ventilation for cooling DO NOT leave battery un-attended when charging. You should closely monitor the charging process & react to potential problem should they occur Do always check that batteries are physically and electrically undamaged before charge or discharge Battery charging must be kept aw…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 SPECTRA Technologies Holdings Co. Ltd/ SPECTRA 2012-06-13 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPECTRA Technologies Holdings Co. Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) Product Name: EFTPOS Model NO.: SPECTRA T1000 We affirm that between SIEMIC and SPECTRA Technologies Holdings Co. Ltd , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title R & D Director Contact information / address Unit 1301-09, 19-20, TowerII, Grand Century Place, 193 Prince Edward Road West, Kowloon, Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SPECTRA Technologies Holdings Co. Ltd 2012-06-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: VWZT1000 We h ereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - part list - Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Timothy / R & D Director Contact information / address: Unit 1301-09, 19-20, TowerII, Grand Century Place, 193 Prince Edward Road West, Kowloon, Hong Kong

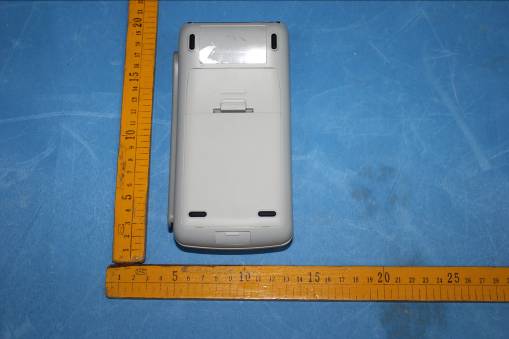

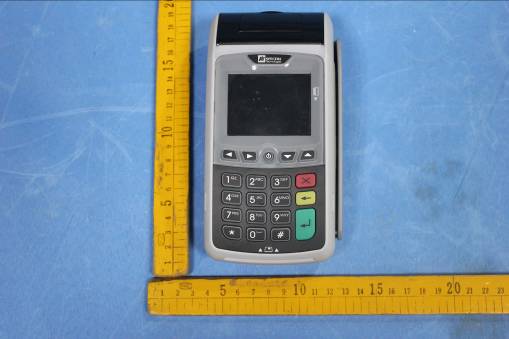

Page 21 o f 26 Anbotek Compliance Laboratory Limited Report No. 201109701F-1 Figure 1 The EUT-Overall View Figure 2 The EUT-Front View Page 22 o f 26 Anbotek Compliance Laboratory Limited Report No. 201109701F-1 Figure 3 The EUT-Back View Figure 4 The EUT-Side View Page 23 o f 26 Anbotek Compliance Laboratory Limited Report No. 201109701F-1 Figure 5 The EUT-Side View Figure 6 The EUT-Side View

FCC ID Label Sample for FCC ID: VWZT1000 FCC ID: VWZT1000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

The proposed Label Location on EUT Proposed FCC ID Label Location Proposed Label Location on EUT The EUT-Back View/Proposed FCC ID Label Location

Page 24 o f 26 Anbotek Compliance Laboratory Limited Report No. 201109701F-1 Figure 7 The EUT-Inside View Figure 8 The EUT-Inside View Page 25 o f 26 Anbotek Compliance Laboratory Limited Report No. 201109701F-1 Figure 9 The EUT-Inside View Figure 10 PCB of the EUT-Front View Page 26 o f 26 Anbotek Compliance Laboratory Limited Report No. 201109701F-1 Figure 11 PCB of the EUT-Back View

SPECTRA Technologies Holdings Co. Ltd EFTPOS Model: SPECTRA T1000 May 21th, 2012 Report No.: 11021209-FCC-H-V2.1 (This report supersedes NONE) This Test Report is Issued Under the Authority of: Chris You Test Engineer Alex Liu Technical Manager Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: RF Test Report of EFTPOS Model : SPECTRA T1000 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 11021209-FCC-H-V2.1 Issue Date May 21th 2012 Page 2 of 88 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB, NIST EMC,RF,Safety,Telecom Title: RF Test Report of EFTPOS Model : SPECTRA T1000 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 11021209-FCC-H-V2.1 Issue Date May 21th 2012 Page 3 of 88 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of EFTPOS Model : SPECTRA T1000 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 11021209-FCC-H-V2.1 Issue Date May 21th 2012 Page 4 of 88 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .............................................................................................................. 6 2 TECHNICAL DETAILS ................................................................................................................................................... 7 3 INTRODUCTION ........................................................................................................................................................... 8 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 9 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 20 6 SYSTEM AND LIQUID VALIDATION ............................................................................................................................ 21 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 26 8 OUTPUT POWER VERIFICATION ................................................................................................................................ 28 9 SAR TEST RESULTS .................................................................................................................................................. 30 10 SAR MEASUREMENT REFERENCES .......................................................................................................................... 32 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................................ 45 ANNEX B CALIBRATION REPORTS .................................................................................................................................. 47 ANNEX C SAR SYSTEM PHOTOGRAPHS .......................................................................................................................... 86 ANNEX D EUT&SETUP PHOTOGRAPHS ........................................................................................................................... 87 Title: RF Test Report of EFTPOS Model : SPECTRA T1000 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 11021209-FCC-H-V2.1 Issue Date May 21th 2012 Page 5 of 88 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of EFTPOS Model : SPECTRA T1000 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 11021209-FCC-H-V2.1 Issue Date May 21th 2012 Page 6 of 88 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the SPECTRA Technologies Holdings Co. Ltd. Model: SPECTRA T1000 against the current Stipulated Standards. The EFTPOS have demonstrated compliance with the C95.1, IEEE 1528, OET Bulletin 65 Supplement C , IEC62209-2, RSS-102 Issue 4 and Safety Code 6. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description : EFTPOS Model No : SPECTRA T1000 Input Power : Li- Polymer Battery Rating: 1750mAh Nominal Voltage 7.4V Maximum Output Power to Antenna GPRS850(Multi-slot Class 8) : 1.972 W (32.95dBm) GPRS850(Multi-slot Clas…

Text truncated - open the document above for the full version.

FCC ID: VWZT1000 - 1 - FCC TEST REPORT For SPECTRA Technologies Holdings Co. Ltd EFTPOS Model No. : SPECTRA T1000 Prepared for : SPECTRA Technologies Holdings Co. Ltd Address Unit1301-1309,19-20,Tower11,Grand Century Place,193 Prince Edward Road West,Kowloon,Hong Kong Tel: (86) 0755-83782872 Fax: (86) 0755-83782852 Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1/Build, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26014771 Fax: (86) 755-26014772 Report Number : 201109701F Date of Test : May 03~18, 2012 Date of Report : May 19, 2012 FCC ID: VWZT1000 - 2 - TABLE OF CHONTENTS DescriptionTest Report Verification 1.0 General Details 1.1 Test Lab Details 1.2 Applicant Details 1.3 Description of EUT 1.4 Submitted Sample 1.5 Test Duration 1.6 Test Uncertainty 2.0 List of Measurement Equipment 3.0 Technical Details 3.1 Summary of Test Results 3.2 Test Standards 4.0 EUT Modification 5.0 RF EXPOSURE 5.1 Applicable standards 5.2 Test Data 6.0 MODULATION CHARACTERISTIC 6.1 Applicable standards 7.0 RF OUTPUT POWER 7.1 Applicable standards 7.2 Test procedure 7.3 Test Data 8.0 Occupied Bandwidth 8.1 Applicable standards 8.2 Test procedure 8.3 Test Data 9.0 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 9.1 Applicable standards 9.2 Test procedure 9.3 Test Data 10.0 SPURIOUS RADIATED EMISSIONS 10.1 Applicable standards 10.2 Test procedure 10.3 Test Data 11.0 BAND EDGES 11.1 Applicable standards 11.2 Test procedure. 11.3 Test Data 12.0 FREQUENCY STABILITY 12.1 Applicable standards 12.2 Test procedure 12.3 Test Data 13.0 Peak-to-average ratio FCC ID: VWZT1000 - 3 - TEST REPORT Applicant : SPECTRA Technologies Holdings Co.Ltd Manufacture SPECTRA Technologies Holdings Co.Ltd EUT EFTPOS Model No. : SPECTRA T1000 Rating : DC 9V Via Adapter DC 7.4V Via Battery Trade Mark : SPECTRA Measurement Procedure Used: TIA/EIA 603-C, ANSI C63.4-2003. FCC Rules and Regulations FCC part 22H & FCC part 24E The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC part 22H & FCC part 24E requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : May 03~18, 2012 Prepared by : (Engineer/ Andy Chen) Reviewer : (Project Manager/ Jerry Du) Approved & Authorized Signer : (Manager/ Tom Chen) FCC ID: VWZT1000 - 4 - 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Product: EFTPOS Manufacturer: SPECTRA Technologies Holdings Co. Ltd Brand Name: SPECTRA Model Number: SPECTRA T1000 Additional Model Name N.A. Emission Designator: 252KGXW 250KGXW Power Supply DC 9V Via Adapter DC 7.4V Via Battery Type of Modulation GMS/GPRS Frequency range 824.2-848.8MHz 1850.2-1909.8MHz Antenna type Internal Submitted Sample: 2 Sample FCC ID: VWZT1000 - 5 - 1.2. Description of Test Facility The test facility is recognized, certified, or accredited by the following organizations: CNAS - LAB Code: L3503 Anbotek Compliance Laboratory Limited., Laboratory has been assessed and in compliance with CNAS/CL01: 2006 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of Testing Laboratories. FCC-Registration No.: 752021 Anbotek Compliance Laboratory Limited, EMC Laboratory has been registed and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 752021, August 20, 2010 IC-Registration No.: 8058A-1 Anbotek Compliance Laboratory Limited., EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration 8058A-1, August 30, 2010 Test Location All Emissions tests were performed Anbotek Compliance Laboratory Limited. at 1/F, 1 /Build, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China 1.3. Measurement Uncertainty Radiation Uncertainty : Ur = 4.3dB Conduction Uncertainty : Uc = 3.4dB FCC ID: VWZT1000 - 6 - Test Equipments Instrument Type Manufacturer Model Serial No. Date of Cal. Due Date ESPI Test Receiver ROHDE&SCHWARZ ESPI 3 100379 2012-04-25 2013-04-25 Absorbing Clamp ROHDE&SCHWARZ MDS-21 100126 2012-04-25 2013-04-25 TWO Line-V-NETW ROHDE&SCHWARZ EZH3-Z5 100294 2012-04-25 2013-04-25 TWO Line-V-NETW ROHDE&SCHWARZ EZH3-Z5 100253 2012-04-25 2013-04-25 Ultra Broadband ANT ROHDE&SCHWARZ HL562 100157 2012-04-25 2013-04-25 ESDV Test Receiver ROHDE&SCHWARZ ESDV 100008 2012-04-25 2013-04-25 4-WIRE ISN ROHDE&SCHWARZ ENY 41 830663/044 2012-04-25 2013-04-25 GG ENY22 Double 2-Wire ISN ROHDE&SCHWARZ ENY22 83066/016 2012-04-25 2013-04-25 Impuls-Begrenzer ROHDE&SCHWARZ ESH3-Z2 100281 2012-04-25 2013-04-25 System Controller CT SC100 - 2012-04-25 2013-04-25 Printer EPSON PHOTO EX3CFNH234850 2012-04-25 2013-04-25 FM-AM Signal Generator JUNG.JIN SG-150M 389911177 2012-04-25 2013-04-25 Color TV Pattern Generator PHILIPS PM5418 LO621747 2012-04-25 2013-04-25 Computer IBM 8434 1S8434KCE99BLX LO* - - Oscillator KENWOOD AG-203D 3070002 2012-04-25 2013-04-25 Power meter Anritsu ML2487A 6K00003613 2012-04-25 2013-04-25 Power sensor Anritsu MA2491A 32263 2012-04-25 2013-04-25 Spectrum Analyzer HAMEG HM5012 - 2012-04-25 2013-04-25 Power Supply LW APS1502 - - - 5K VA AC Power Source California Instruments 5001iX 56060 2012-04-25 2013-04-25 CDN EM TEST CDN M2/M3- 2012-04-25 2013-04-25 Attenuation EM TEST ATT6/75 - 2012-04-25 2013-04-25 Resistance EM TEST R100 - …

Text truncated - open the document above for the full version.

Page 18 o f 25 Anbotek Compliance Laboratory Limited Report No. 201109701F-1 4. PHOTOGRAPH 4.1. Photo of Power Line Conducted Emission Test 4.2. Photo of Radiated Emission Test EUT SEMI-ANECHOICCHAMBER RECEIVER ANTENNA MAST 3 METRES
