VWZTA10VAndroid POS

Installation Guide Version 1.0 SPECTRA Technologies ISO9001 : 2015 20002812 QM15 SPECTRA Technologies ISO14001 : 2015 20002812 UM15 Android POS 1 安裝指南 Installation Guide 目錄 Table of Content 1. APOLLO Android POS 設計及功能介..............................................................2 Layout & Function Descriptions of APOLLO Android POS 1.1 Main Unit & Accessories....................................................................... 1.2 Features at a Glance................................................................................ 1.3 SIMSAMMicro‐SD Installation of SIM, SAM & Micro‐SD Card.............. 1.4 Installation of Battery Pack....................................................................... 1.5 Paper Feeding Procedure........................................................................ 2. 如何操作...............................................................................................7 How to Operate Turn On/ Off Procedure.............................................................................. Swipe Card & Insert Card...................................................................... 3. 充電電池安全使用指引.........................................................................8 Rechargeable Battery Safety Guideline Prohibition................................................................................................. Battery Operation & Charging Guideline................................. Terminal and Battery Storage Guideline................................. Accident Handling.............................................................................. Battery Disposal........................................................................................ 4. 安全及維修..........................................................................................10 Safety & Maintenance Basic Safety Practice....................................................................... Safety Warning........................................................................................ Location for Installation........................................................................... Maintenance............................................................................................ Trouble Shooting..................................................................................... 5. .............................................................................................14 Other Information 2 3 4 5 6 7 7 8 8 9 9 9 10 10 11 11 12 2 安裝指南 Installation Guide 1 APOLLO Android POS 設計及功能介紹 Layout & Function Descriptions of APOLLO Android POS 1.1 Main Unit & Accessories APOLLO 智慧終端機‐ 處理交易流程、密碼輸入、打印、處理通訊 及其他用戶介面，如電子收銀機連線等。 APOLLO Android POS Terminal ‐ for transaction processing, PIN entry, printing, communication and other peripheral interfaces such as ECR integration 電源適配器 Power Adaptor 7.2V 充電電池 7.2V Rechargeable Battery USB C‐ 線 USB C‐ Cable 3 安裝指南 Installation Guide 1.2 Features at a Glance 前置相機 Front Camera 液晶顯示屏 LCD Display 終端機 Terminal IC卡閱讀槽 IC Card Slot 打印機 Printer 非接觸式讀卡 NFC 紙盤開啟桿 Paper Tray Lever 紙盤蓋 Paper Tray Cover 音量調節 Volume 手帶 Hand Strip 電源開關 Power On/Off USBC 線接口 USBC Port 耳機插孔 Jack for Handfree Earpiece 功能鍵 Function Key 磁卡閱讀槽 Magnetic Card Reader Slot 狀況顯示燈 LED 4 安裝指南 Installation Guide 1.3 SIM、SAM Micro‐SD Installation of SIM, SAM & MicroSD Card 相機 Camera 手帶 Hand Strip 電池蓋 Battery Door SAM 卡 SAM Card Micro-SD 卡 Micro-SD Card 電池蓋釋放按鈕 Door Release Knob 重置按鈕 Reset Button SIM 卡 (可選配) SIM Card (Optional) 按電池蓋釋放按鈕及 打開電池蓋 Press Door Release Knob & Open Battery Door 12 2 1 5 安裝指南 Installation Guide 1.4 Battery Installation 6 安裝指南 Installation Guide 紙卷大小 Paper Roll Size 1.5 Paper Feeding Procedure 57mm (2 ") 1 4 40mm Max. 1 Lift up the Paper Tray Lever 2 Pull the Paper Tray Lever backward Place the paper roll into the tray as shown 3 Close the Paper Tray Cover 4 升高紙盤開啟桿 把紙盤開啟桿往後拉 將紙卷如圖放入紙盤 關上紙盤蓋 7 安裝指南 Installation Guide 2 如何操作 How to Operate 2.1 Turn On/ Off Procedure 2.2 Swipe Card & Insert Card 終端機如裝備有充電電池及首次使用，請 先將電源接上，充電三小時。 開機 - 將電源接上，終端機會自行啟動。 如沒接上電源，請按 鍵數秒開機。啟動 後，屏幕顯示應用程式預備畫面，此時閣 下可進行各類型交易操作。 關機 - 將電源供應器拔去，按 鍵數秒 關機。 If the terminal is equipped with charging battery during first time use, please connect the power adaptor and charge the battery for 3 hours. On - Power is on whenever plugged. If the terminal is unplugged, press the key for several seconds to turn on the terminal. When the terminal displays the application idle screen, it is ready for operation. Off - Disconnect the power adaptor. Keep on pressing the key for several seconds to turn off the terminal. 磁卡 Magnetic Card IC 卡 IC Card 8 安裝指南 Installation Guide 3 充電電池安全使用指引 Rechargeable Battery Safety Guideline 3.1 禁止:為防止電池受損而引致危險後果，必須遵守下列嚴禁守則: Prohibition: Improper handling of the Li-Polymer battery is hazardous, the following forbidden activities must be avoided: 3.2 電池使用及充電指引 Battery Operation & Charging Guideline 禁止於瑞柏產品內使用非瑞柏提供的 專用電池 禁止使用非聚合物鋰離子電池使用的 充電器 禁止於高溫環境(如陽光下或炙熱汽車 中)或熱源旁(如火、加熱器等)使用機 器、充電、或放置電池，這會破壞電池 並造成危險後果 禁止將電池長期留在獨立充電器上；以 獨立充電座為電池充滿電後，不論是否 已切斷充電器電源，仍須移除電池 禁止使用已損壞的電池，如電池鼓脹、 塑膠封邊破裂、外殼破損、有異味、化學 液體泄漏等 禁止撞擊及擠壓電池 禁止將電池浸入水中，請避免電池受潮 禁止直接焊接電池 禁止拆卸電池 禁止短路或刺穿電池 禁止將電池放入微波爐或高壓容器內 DO NOT use NON-SPECTRA provided battery in SPECTRA POS Terminal DO NOT use a charger that is not specifically designed to charge Lithium Polymer Battery DO NOT operate the terminal, charge up or store the battery under high temperature (under direct sunlight or inside a roasting vehicle) or close to heat source (fire, heater) DO NOT store the battery in the external charger. After charging up, the battery should be removed, even though power is disconnected DO NOT use damaged battery, e.g. Swelled, case broken, strange odor and chemical leakage DO NOT knock, crash or press the battery DO NOT submerge the battery into water DO NOT heat the battery or dispose in fire DO NOT solder the battery DO NOT disassemble the battery DO NOT short or puncture the battery 充電電池之理想操作溫度是0°C至45°C， 勿將機器置於高溫或空氣不流通之處， 要確保良好的空氣對流予以散熱 禁止在充電時不理會電…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1.docx SPECTRA Technologies Holdings Co. Ltd. FCC Software Configuration Control Declaration Date: November 3, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Regarding FCC Country Code Selection guidelines identified in KDB 594280 v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Patrick Ang Date: 2020-10-23 Signature of applicant

SPECTRA Technologies Holdings Co. Ltd. Agent Authorization Company: SPECTRA Technologies Holdings Co. Ltd. Address: Unit 1301-09, 19-20, Tower II, Grand Century Place, Kowloon, HONG KONG Product Name: Android POS Model Number(s): APOLLO Product Description: Android POS We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-10-22 Name: Patrick Ang Company: SPECTRA Technologies Holdings Co. Ltd.

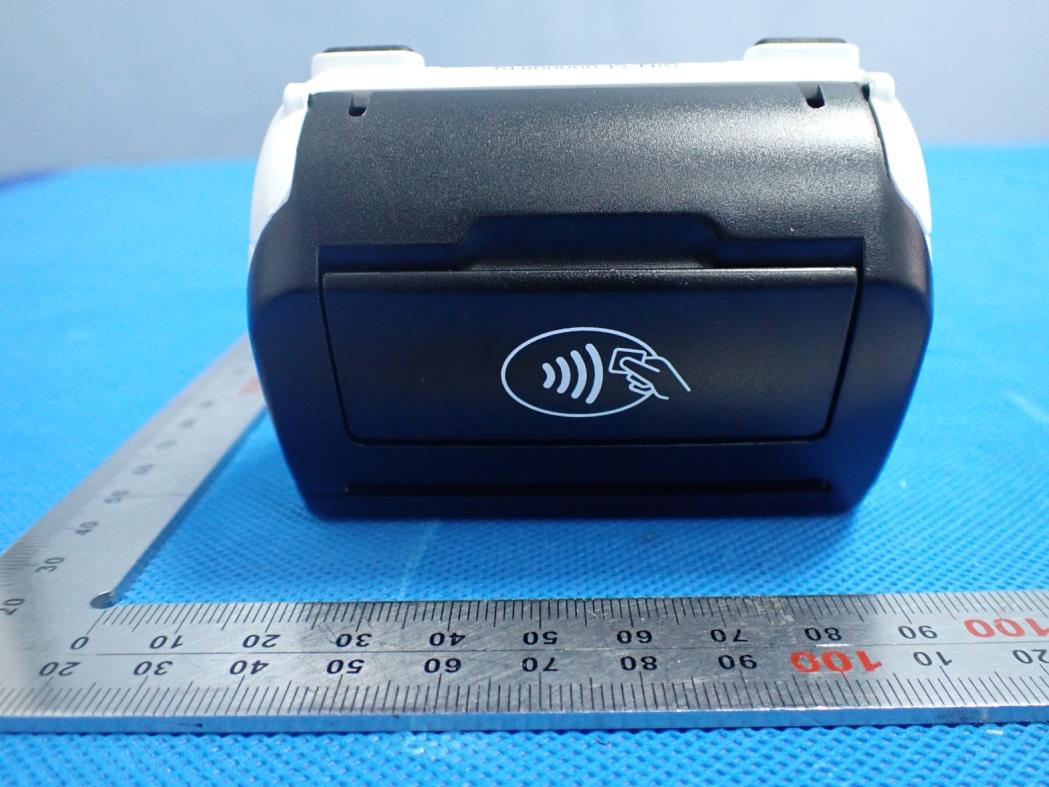

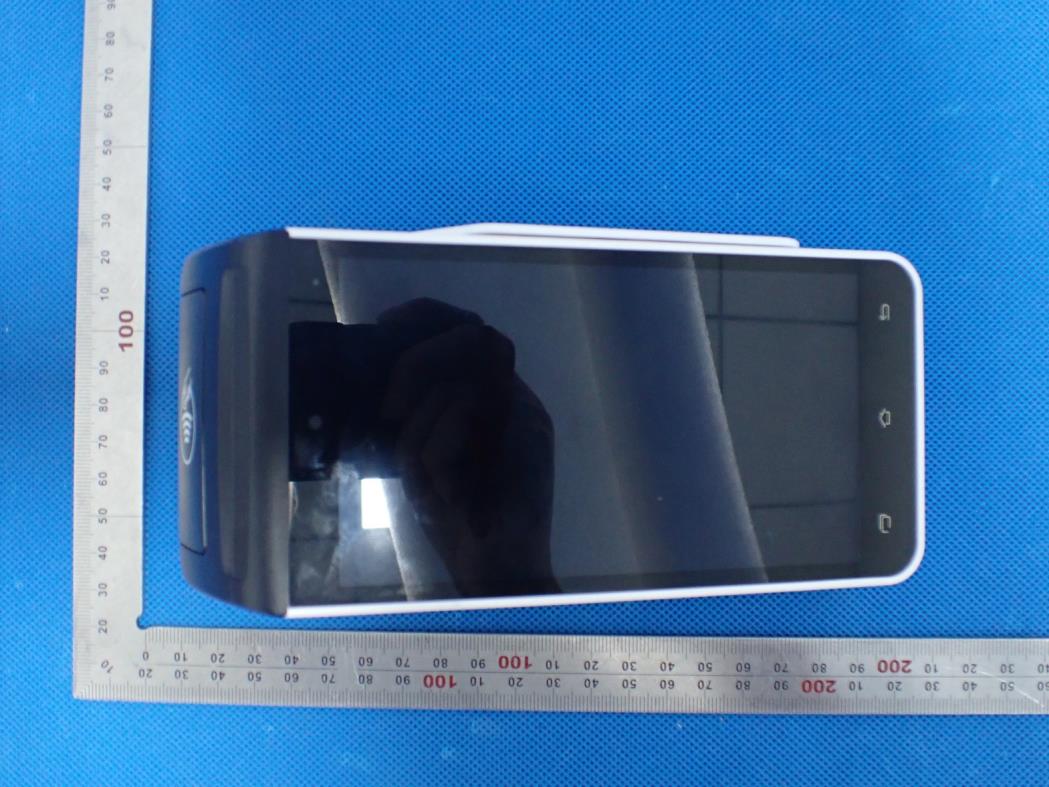

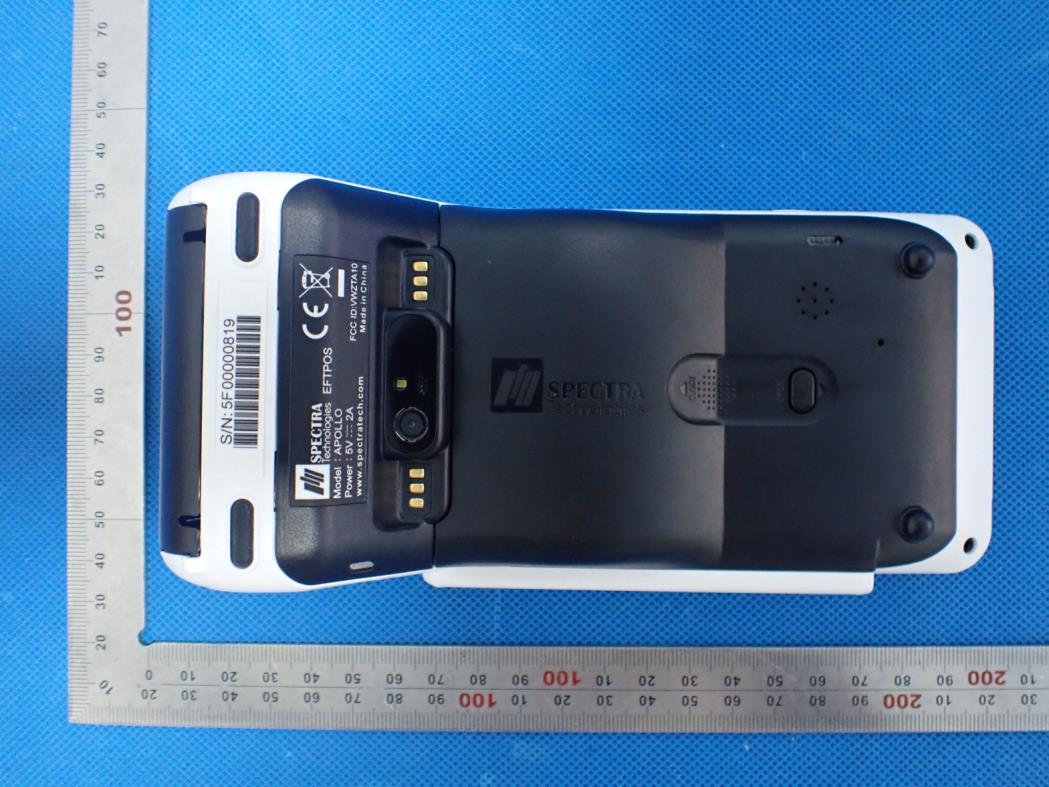

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 OPEN VIEW OF EUT-4 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Battery of EUT-1 Battery of EUT-2 Position of Antenna BT&WIFI Antenna GPS Antenna

Page 1 of 50 SAR Test Report Report No.: AGC02962200901FH01 FCC ID : VWZTA10V PRODUCT DESIGNATION : Android POS BRAND NAME : SPECTRA Technologies MODEL NAME : APOLLO APPLICANT : SPECTRA Technologies Holdings Co. Ltd. DATE OF ISSUE : Oct. 19,2020 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. Report No.: AGC02962200901FH01 Page 2 of 50 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Oct. 19,2020 Valid Initial Release Report No.: AGC02962200901FH01 Page 3 of 50 Test Report Applicant Name SPECTRA Technologies Holdings Co. Ltd. Applicant Address Unit 1301-09, 19-20, Tower II, Grand Century Place,Kowloon,Hong Kong Manufacturer Name SPECTRA Technologies Holdings Co. Ltd. Manufacturer Address Unit 1301-09, 19-20, Tower II, Grand Century Place,Kowloon,Hong Kong Factory Name FALCON (Dong Guan) Electronics Co., Ltd Factory Address No.19, Bei An First Road, Huang Jiang Town, Dong Guan City, Guang Dong Province, China Product Designation Android POS Brand Name SPECTRA Technologies Model Name APOLLO EUT Voltage DC7.2V Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 Test Date Sep. 19,2020 to Sep. 25,2020 Report Template AGCRT- US -5G/SAR (2018-01-01) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Thea Huang (Project Engineer) Sep. 25,2020 Reviewed By Angela Li (Reviewer) Oct. 19,2020 Approved By Forrest Lei (Authorized Officer) Oct. 19,2020 Report No.: AGC02962200901FH01 Page 4 of 50 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ....................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. EUT DESCRIPTION ...................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ..................................................................................................................... 7 3.1. THE DASY5 SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS.................... 7 3.2. DASY5 E-FIELD PROBE .............................................................................................................................. 8 3.3. DATA ACQUISITION ELECTRONICS DESCRIPTION ............................................................................................. 8 3.4. ROBOT ....................................................................................................................................................... 9 3.5. LIGHT BEAM UNIT ....................................................................................................................................... 9 3.6. DEVICE HOLDER ....................................................................................................................................... 10 3.7. MEASUREMENT SERVER ............................................................................................................................ 10 3.8. PHANTOM ............................................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE .......................................................................................................... 12 4.1. SPECIFIC ABSORPTION RATE (SAR) ........................................................................................................... 12 4.2. SAR MEASUREMENT PROCEDURE ............................................................................................................. 13 4.3. RF EXPOSURE CONDITIONS ....................................................................................................................... 15 5. TISSUE SIMULATING LIQUID ..................................................................................................................... 17 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................... 17 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS .............................................................. 17 5.3. TISSUE CALIBRATION RESULT ..................................................................................................................... 18 6. SAR SYSTEM CHECK PROCEDURE ......................................................................................................... 19 6.1. SAR SYSTEM CHECK PROCEDURES ........................................................................................................... 19 6.2. SAR SYSTEM CHECK ................................................................................................................................ 20 7. EUT TEST POSITION ................................................................................................................................... 22 7.1. TEST POSITION ......................................................................................................................................... 22 8. SAR EXPOSURE LIMITS ............................................................................................................................ 23 9. TEST FACILITY ........................................................................................................................................... 24 10. TEST EQUIPMENT LIST ........................................................................................................................... 25 11. MEASUREMENT UNCERTAINTY .............................................................................................................. 26…

Text truncated - open the document above for the full version.

CALIBRATION DATA PROBE CALIBRATION DATA DAE CALIBRATION DATA DIPOLE CALIBRATION DATA

Page 1 of 157 FCC Test Report Report No.: AGC04983200901FE06 FCC ID : VWZTA10V APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Android POS BRAND NAME : SPECTRA Technologies MODEL NAME : APOLLO APPLICANT : SPECTRA Technologies Holdings Co. Ltd. DATE OF ISSUE : Oct. 13, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.407 KDB 789033 D02 v02r01 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC04983200901FE06 Page 2 of 157 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Oct. 13, 2020 Valid Initial Release Report No.: AGC04983200901FE06 Page 3 of 157 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 7 2.3. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.4. TEST METHODOLOGY .......................................................................................................................... 8 2.5. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.6. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.7. ANTENNA REQUIREMENT .................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN EUT SYSTEM .................................................................................................... 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP ........................................................................................................................................ 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 6DB BANDWIDTH ....................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 17 9. EMISSION BANDWIDTH ............................................................................................................................. 22 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 22 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 22 9.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 23 10. MAXIMUM CONDUCTED OUTPUT PEAK POWER SPECTRAL DENSITY ............................................ 38 Report No.: AGC04983200901FE06 Page 4 of 157 10.1 MEASUREMENT PROCEDURE .......................................................................................................... 38 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 38 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................. 38 10.4 LIMITS AND MEASUREMENT RESULT .............................................................................................. 38 11. CONDUCTED SPURIOUS EMISSION ...................................................................................................... 58 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 58 11.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 58 11.3. MEASUREMENT EQUIPMENT USED ................................................................................................ 58 11.4. LIMITS AND MEASUREMENT RESULT .............................................................................................. 58 12. RADIATED EMISSION .........................…

Text truncated - open the document above for the full version.

Report No.: AGC04983200901FE06 Page 49 of 157 TEST PLOT OF SPECTRAL DENSITY FOR 5300MHz TEST PLOT OF SPECTRAL DENSITY FOR 5320MHz Report No.: AGC04983200901FE06 Page 50 of 157 TEST PLOT OF SPECTRAL DENSITY FOR 5500MHz TEST PLOT OF SPECTRAL DENSITY FOR 5600MHz Report No.: AGC04983200901FE06 Page 51 of 157 TEST PLOT OF SPECTRAL DENSITY FOR 5700MH TEST PLOT OF SPECTRAL DENSITY FOR 5745MHz Report No.: AGC04983200901FE06 Page 52 of 157 TEST PLOT OF SPECTRAL DENSITY FOR 5785MHz TEST PLOT OF SPECTRAL DENSITY FOR 5825MHz Report No.: AGC04983200901FE06 Page 53 of 157 802.11n40 TEST RESULT TEST PLOT OF SPECTRAL DENSITY FOR 5190MHz TEST PLOT OF SPECTRAL DENSITY FOR 5230MHz Report No.: AGC04983200901FE06 Page 54 of 157 TEST PLOT OF SPECTRAL DENSITY FOR 5270MHz TEST PLOT OF SPECTRAL DENSITY FOR 5310MHz Report No.: AGC04983200901FE06 Page 55 of 157 TEST PLOT OF SPECTRAL DENSITY FOR 5510MHz TEST PLOT OF SPECTRAL DENSITY FOR 5590MHz Report No.: AGC04983200901FE06 Page 56 of 157 TEST PLOT OF SPECTRAL DENSITY FOR 5670MHz TEST PLOT OF SPECTRAL DENSITY FOR 5755MHz Report No.: AGC04983200901FE06 Page 57 of 157 TEST PLOT OF SPECTRAL DENSITY FOR 5795MHz Report No.: AGC04983200901FE06 Page 58 of 157 11. CONDUCTED SPURIOUS EMISSION 11.1. MEASUREMENT PROCEDURE 1. Connect EUT RF output port to the Spectrum Analyzer through an RF attenuator 2, Set the EUT Work on the top, the middle and the bottom operation frequency individually. 3. Set SPA Trace 1 Max hold, then View. Note: The EUT was tested according to KDB 789033 for compliance to FCC 47CFR 15.407 requirements. 11.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) The same as described in section 8.2. 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6. 11.4. LIMITS AND MEASUREMENT RESULT LIMITS AND MEASUREMENT RESULT Applicable Limits Measurement Result Test channel Criteria -27dBm/MHz 5150MHz-5250MHz PASS -27dBm/MHz 5250MHz-5350MHz PASS -27dBm/MHz 5470MHz-5725MHz PASS All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edgeincreasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge. 5725MHz-5850MHz PASS Report No.: AGC04983200901FE06 Page 59 of 157 FOR 802.11A20 MODULATION TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5180MHz Report No.: AGC04983200901FE06 Page 60 of 157 Report No.: AGC04983200901FE06 Page 61 of 157 Report No.: AGC04983200901FE06 Page 62 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5240MHz Report No.: AGC04983200901FE06 Page 63 of 157 Report No.: AGC04983200901FE06 Page 64 of 157 Report No.: AGC04983200901FE06 Page 65 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5260MHz Report No.: AGC04983200901FE06 Page 66 of 157 Report No.: AGC04983200901FE06 Page 67 of 157 Report No.: AGC04983200901FE06 Page 68 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5320MHz Report No.: AGC04983200901FE06 Page 69 of 157 Report No.: AGC04983200901FE06 Page 70 of 157 Report No.: AGC04983200901FE06 Page 71 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5500MHz Report No.: AGC04983200901FE06 Page 72 of 157 Report No.: AGC04983200901FE06 Page 73 of 157 Report No.: AGC04983200901FE06 Page 74 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5700MHz Report No.: AGC04983200901FE06 Page 75 of 157 Report No.: AGC04983200901FE06 Page 76 of 157 Report No.: AGC04983200901FE06 Page 77 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5745MHz Report No.: AGC04983200901FE06 Page 78 of 157 Report No.: AGC04983200901FE06 Page 79 of 157 Report No.: AGC04983200901FE06 Page 80 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5825MHz Report No.: AGC04983200901FE06 Page 81 of 157 Report No.: AGC04983200901FE06 Page 82 of 157 Report No.: AGC04983200901FE06 Page 83 of 157 FOR 802.11N40 MODULATION TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5190MHz Report No.: AGC04983200901FE06 Page 84 of 157 Report No.: AGC04983200901FE06 Page 85 of 157 Report No.: AGC04983200901FE06 Page 86 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5230MHz Report No.: AGC04983200901FE06 Page 87 of 157 Report No.: AGC04983200901FE06 Page 88 of 157 Report No.: AGC04983200901FE06 Page 89 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5270MHz

Report No.: AGC04983200901FE06 Page 90 of 157 Report No.: AGC04983200901FE06 Page 91 of 157 Report No.: AGC04983200901FE06 Page 92 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5310MHz Report No.: AGC04983200901FE06 Page 93 of 157 Report No.: AGC04983200901FE06 Page 94 of 157 Report No.: AGC04983200901FE06 Page 95 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5510MHz Report No.: AGC04983200901FE06 Page 96 of 157 Report No.: AGC04983200901FE06 Page 97 of 157 Report No.: AGC04983200901FE06 Page 98 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5670MHz Report No.: AGC04983200901FE06 Page 99 of 157 Report No.: AGC04983200901FE06 Page 100 of 157 Report No.: AGC04983200901FE06 Page 101 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5755MHz Report No.: AGC04983200901FE06 Page 102 of 157 Report No.: AGC04983200901FE06 Page 103 of 157 Report No.: AGC04983200901FE06 Page 104 of 157 TEST PLOT OF OUT OF BAND EMISSIONS FOR MODULATION IN 5795M Report No.: AGC04983200901FE06 Page 105 of 157 Report No.: AGC04983200901FE06 Page 106 of 157 Note: All the 20MHz bandwidth modulation had been tested, the 802.11a20 was the worst case and record in his test report. All the 40MHz bandwidth modulation had been tested, the 802.11N40 was the worst case and record in his test report. Report No.: AGC04983200901FE06 Page 107 of 157 12. RADIATED EMISSION 12.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3M VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC04983200901FE06 Page 108 of 157 12.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC04983200901FE06 Page 109 of 157 12.3. LIMITS AND MEASUREMENT RESULT 15.209(a) Limit in the below table has to be followed Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested For restricted ban…
