VZ9110003ENTERPRISE ACCESS POINT

EAP260 V1.00 Enterprise Access Point Quick Installation Guide Quick Installation GuideQuick Installation Guide Quick Installation Guide EAP260 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. i Copyright Notice This document is protected by USA copyright laws and other laws. Besides, the document is the property of 4IPNET, INC. You may not copy, reproduce, distribute, publish, display, perform, or modify any part of this publication in any form or by any means without prior written permission from 4IPNET, INC. You may not alter or remove any copyright or other notice from copies of the content. All other brand and product names are claimed or registered marks of their respective companies or organizations. All rights reserved. To download up-to-date version, please visit www.4ipnet.com. Quick Installation Guide Quick Installation GuideQuick Installation Guide Quick Installation Guide EAP260 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. ii FCC CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and proven to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The device contains a low power transmitter which will send out Radio Frequency (RF) signal when transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Quick Installation Guide Quick Installation GuideQuick Installation Guide Quick Installation Guide EAP260 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. iii CE CAUTION Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for European Community, Switzerland, Norway, Iceland, and Liechtenstein Model: EAP260 For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement. • Radio: EN 300.328 : • EMC: EN 301.489-1, EN 301.489-17, • EMC: EN 55022 Class B, EN 55024 : + A1 + A2 including the followings: EN 61000-3-2, EN 61000-3-3. EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 • Safety: EN 60950-1 + A11, Caution:



This declaration is only valid for configurations (combinations of software, firmware, and hardware) provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by 4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements. European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory authority for compliance. Taiwan NCC Statement 根據NCC低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或 變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用，並改善至 無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。 Quick Installation Guide Quick Installation GuideQuick Installation Guide Quick Installation Guide EAP260 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. 1 Preface Package Contents 4ipnet EAP260 is a high-end 802.11n/b/g 2.4GHz MIMO Access Point (AP) with the best price/ performance for business and industrial applications and is compliant with the latest industrial wireless security standards that are required in the tightly secured enterprise network environments. EAP260 makes the wireless communication fast, secure and easy. It supports business grade security such as 802.1X, and Wi-Fi Protected Access (WPA and WPA2). By pushing a purposely built button, the 4ipWES (Press-n-Connect) feature makes it easy to bridge wireless links of multiple EAP260s for forming a wider wireless network coverage. EAP260 also features multiple ESSIDs with VLAN tags and multiple Virtual APs; great for enterprise applications, such as separating traffic from different departments using different ESSIDs. The PoE Uplink port is able to receive power from Power over Ethernet (PoE) sourcing devices. Its metal case is IP50 anti…

Text truncated - open the document above for the full version.

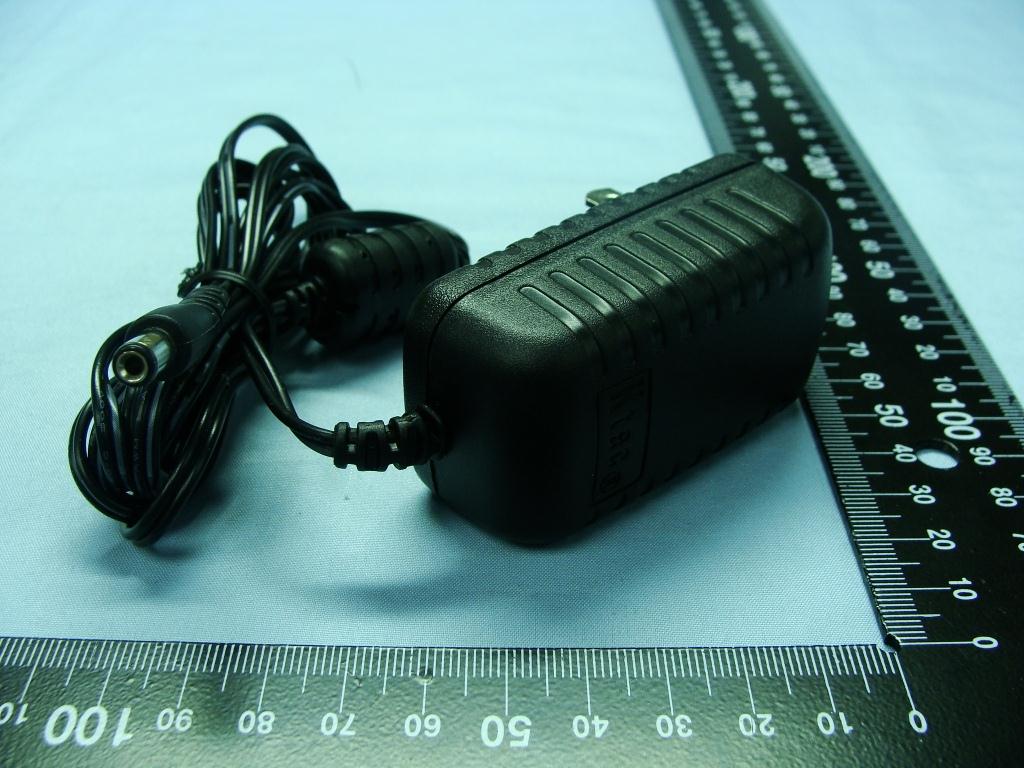

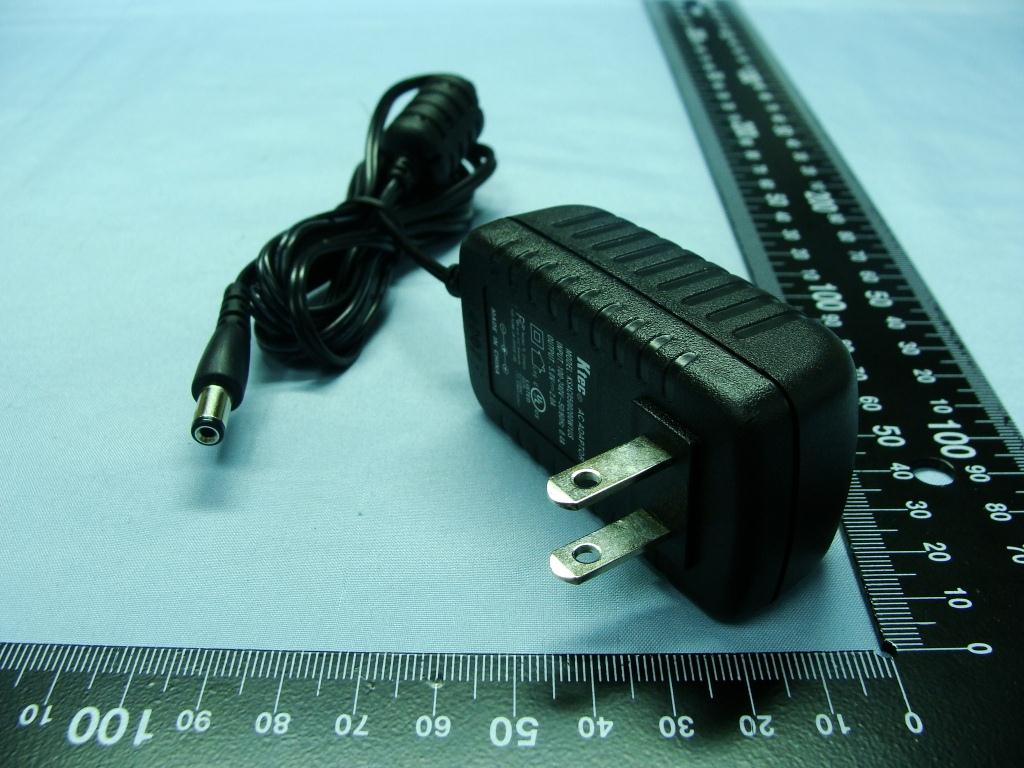

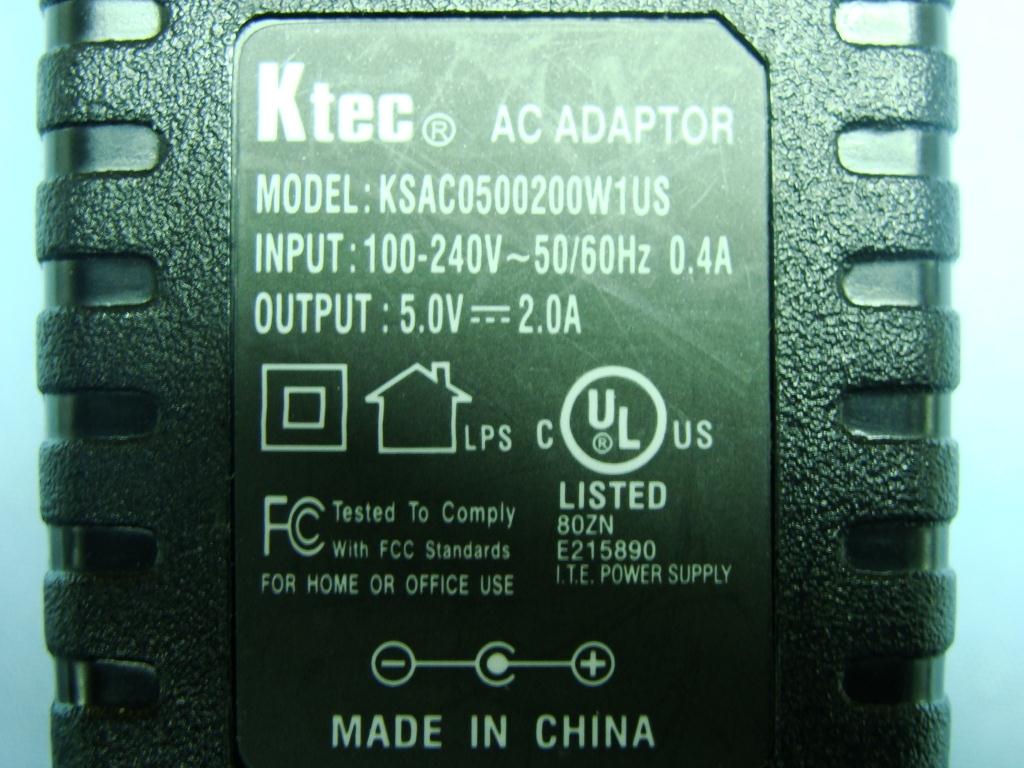

Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 1 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 2 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 3 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name KTEC Model Name KSAC0500200W1US AC Adapter 2 Brand Name JFEC Model Name JF015WR-0500200UH Module Brand Name Athores Model Name AR9223 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 4 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 AC Adapter 1 Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 5 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 6 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 7 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 AC Adapter 2 Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 8 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 9 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003

Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 10 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 3. Internal Photograph of EUT Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 11 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 12 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 WLAN Module Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 13 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 WLAN Antenna 1 <Tx / Rx> Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 14 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 720510 Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 15 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 720510 WLAN Antenna 2 <Tx / Rx> Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 16 of 16 TEL : 886-3-327-3456 Report Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 720510

Photographs of EUT Report No.: EP162914 Brand Name: 4ipnet / Model Name: EAP260 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Apr. 25, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VZ9110003 Antenna Location Length Width WLAN Antenna 1 <Tx / Rx> 19.5 cm 1.1cm WLAN Antenna 2 <Tx / Rx> 19.5 cm 1.1cm WLAN Antenna 2 <Tx / Rx> WLAN Antenna 1 <Tx / Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 RF Exposure Evaluation Report Report No. : FA162914 RF Exposure Evaluation Report APPLICANT : 4IPNET, INC. EQUIPMENT : Wireless Hotspot Gateway / Enterprise Access Point BRAND NAME : 4ipnet MODEL NAME : EAP260 FCC ID : VZ9110003 ENTERPRISE ACCESS POINT : Brand Name: 4ipnet Model Name: EAP260 ENTERPRISE ACCESS POINT : Brand Name: Cipherium Model Name: A260 ENTERPRISE ACCESS POINT : Brand Name: USC Model Name: A260 WIRELESS HOTSPOT GATEWAY : Brand Name: 4ipnet Model Name: HSG260 WIRELESS HOTSPOT GATEWAY : Brand Name: Cipherium Model Name: W1161 WIRELESS HOTSPOT GATEWAY : Brand Name: USC Model Name: W1161 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 RF Exposure Evaluation Report Report No. : FA162914 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 RF Exposure Evaluation Report Report No. : FA162914 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA162914 Rev. 01 Initial issue of report Apr. 25, 2012 FA162914 Rev. 02 Update report for revising equipment name Apr. 26, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 RF Exposure Evaluation Report Report No. : FA162914 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL INC. Page Number : 5 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 RF Exposure Evaluation Report Report No. : FA162914 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to es…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 137 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 FCC RF Test Report Report No. : FR162914 FCC RF Test Report APPLICANT : 4IPNET, INC. EQUIPMENT : Wireless Hotspot Gateway / Enterprise Access Point BRAND NAME : 4ipnet MODEL NAME : EAP260 FCC ID : VZ9110003 ENTERPRISE ACCESS POINT : BRAND NAME: 4IPNET MODEL NAME: EAP260 ENTERPRISE ACCESS POINT : BRAND NAME: CIPHERIUM MODEL NAME: A260 ENTERPRISE ACCESS POINT : BRAND NAME: USC MODEL NAME: A260 WIRELESS HOTSPOT GATEWAY : BRAND NAME: 4IPNET MODEL NAME: HSG260 WIRELESS HOTSPOT GATEWAY : BRAND NAME: CIPHERIUM MODEL NAME: W1161 WIRELESS HOTSPOT GATEWAY : BRAND NAME: USC MODEL NAME: W1161 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Jun. 29, 2011 and completely tested on Nov. 10, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 137 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 FCC RF Test Report Report No. : FR162914 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 6 1.4 Testing Site ........................................................................................................................................ 7 1.5 Applied Standards ............................................................................................................................. 7 1.6 Ancillary Equipment List .................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 RF Power ........................................................................................................................................... 8 2.2 Test Mode ........................................................................................................................................ 10 2.3 Connection Diagram of Test System ............................................................................................... 11 2.4 RF Utility .......................................................................................................................................... 12 3 TEST RESULT ........................................................................................................................................... 13 3.1 6dB Bandwidth Measurement ......................................................................................................... 13 3.2 Output Power Measurement ............................................................................................................ 30 3.3 Band Edges Measurement .............................................................................................................. 33 3.4 Spurious Emission Measurement .................................................................................................... 51 3.5 Power Spectral Density Measurement ............................................................................................ 76 3.6 AC Conducted Emission Measurement........................................................................................... 93 3.7 Radiated Emission Measurement .................................................................................................... 97 3.8 Antenna Requirements .................................................................................................................. 134 4 LIST OF MEASURING EQUIPMENT ...................................................................................................... 135 5 UNCERTAINTY OF EVALUATION ......................................................................................................... 136 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 137 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 FCC RF Test Report Report No. : FR162914 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR162914 Rev. 01 Initial issue of report Apr. 25, 2012 FR162914 Rev. 02 Update report for revising equipment name Apr. 26, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 137 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 FCC RF Test R…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 FCC RF Test Report Report No. : FR162914 Appendix B. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Apr. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : VZ9110003 FCC RF Test Report Report No. : FR162914 <Radiated Emission> LF HF
