VZ9150001Enterprise Access Point/ Wireless Hotspot Gateway/ Cluster Access Point

EAP706 V1.00 Enterprise Access Point Product Handbook Product Handbook Product HandbookProduct Handbook Product Handbook EAP706 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. i Copyright Notice This document is protected by USA copyright laws and other laws. Besides, the document is the property of 4IPNET, INC. You may not copy, reproduce, distribute, publish, display, perform, or modify any part of this publication in any form or by any means without prior written permission from 4IPNET, INC. You may not alter or remove any copyright or other notice from copies of the content. All other brand and product names are claimed or registered marks of their respective companies or organizations. All rights reserved. To download up-to-date version, please visit www.4ipnet.com. Product Handbook Product HandbookProduct Handbook Product Handbook EAP706 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. ii FCC CAUTION This equipment has been tested and proven to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. The device contains a low power transmitter which will send out Radio Frequency (RF) signal when transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Product Handbook Product HandbookProduct Handbook Product Handbook EAP706 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. iii CE CAUTION Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for European Community, Switzerland, Norway, Iceland, and Liechtenstein Model: EAP706 For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement. • Radio: EN 300.328 : • EMC: EN 301.489-1, EN 301.489-17, • EMC: EN 55022 Class B, EN 55024 : + A1 + A2 including the followings: EN 61000-3-2, EN 61000-3-3. EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 • Safety: EN 60950-1 + A11, Caution:



This declaration is only valid for configurations (combinations of software, firmware, and hardware) provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by 4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements. European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory authority for compliance. Taiwan NCC Statement 根據NCC低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或 變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用，並改善至 無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。 在5.25 ~ 5.35秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。 Product Handbook Product HandbookProduct Handbook Product Handbook EAP706 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. 1 Preface Package Contents The 4ipnet EAP706 Wall Jack Access Point is an on-the-wall as well as a ceiling-mounted dual radio Wi-Fi IEEE 802.11b/g/n + a/n/ac 2 X 2 MIMO access point, designed to blend into a working or a living environment practically and elegantly with its simplistic yet sleek design. The compact EAP706 in a small form factor lays snug in a standard wall outlet box. Its side panel features LED status indicators and two RJ45 ports. It has the interfaces to serve both wireless and wired LAN access. The RJ45 pass-through port allows phone or IP-based devices to pass through EAP706 without the need for additional outlets. When coupled with the 4ipnet WHG series Controller, the EAP706 supports Tunnel-based AP Management, and comes with all standards demanded by enterprise applications, including business-grade security (802.1X, WPA and WPA2), and multiple ESSIDs with VLAN tags to separate the traffics of different departments. A centralized WLAN management allows enterprises and organizations to support a wide array of value added applications, such as load balancing, bandwidth control, and access control. The patent-pending 4ipWES (Press-n-Connect) technology br…

Text truncated - open the document above for the full version.

EAP705 V1.00 Enterprise Access Point Product Handbook Product Handbook Product HandbookProduct Handbook Product Handbook EAP705 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. i Copyright Notice This document is protected by USA copyright laws and other laws. Besides, the document is the property of 4IPNET, INC. You may not copy, reproduce, distribute, publish, display, perform, or modify any part of this publication in any form or by any means without prior written permission from 4IPNET, INC. You may not alter or remove any copyright or other notice from copies of the content. All other brand and product names are claimed or registered marks of their respective companies or organizations. All rights reserved. To download up-to-date version, please visit www.4ipnet.com. Product Handbook Product HandbookProduct Handbook Product Handbook EAP705 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. ii FCC CAUTION This equipment has been tested and proven to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. The device contains a low power transmitter which will send out Radio Frequency (RF) signal when transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Product Handbook Product HandbookProduct Handbook Product Handbook EAP705 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. iii CE CAUTION Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for European Community, Switzerland, Norway, Iceland, and Liechtenstein Model: EAP705 For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement. • Radio: EN 300.328 : • EMC: EN 301.489-1, EN 301.489-17, • EMC: EN 55022 Class B, EN 55024 : + A1 + A2 including the followings: EN 61000-3-2, EN 61000-3-3. EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 • Safety: EN 60950-1 + A11, Caution:



This declaration is only valid for configurations (combinations of software, firmware, and hardware) provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by 4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements. European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory authority for compliance. Taiwan NCC Statement 根據NCC低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或 變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用，並改善至 無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。 在5.25 ~ 5.35秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。 Product Handbook Product HandbookProduct Handbook Product Handbook EAP705 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. 1 Preface Package Contents The 4ipnet EAP705 Wall Jack Access Point is an on-the-wall as well as a ceiling-mounted dual radio Wi-Fi IEEE 802.11b/g/n + a/n/ac 2 X 2 MIMO access point, designed to blend into a working or a living environment practically and elegantly with its simplistic yet sleek design. The compact EAP705 in a small form factor lays snug in a standard wall outlet box. Its side panel features LED status indicators and two RJ45 ports. It has the interfaces to serve both wireless and wired LAN access. The RJ45 pass-through port allows phone or IP-based devices to pass through EAP705 without the need for additional outlets. When coupled with the 4ipnet WHG series Controller, the EAP705 supports Tunnel-based AP Management, and comes with all standards demanded by enterprise applications, including business-grade security (802.1X, WPA and WPA2), and multiple ESSIDs with VLAN tags to separate the traffics of different departments. A centralized WLAN management allows enterprises and organizations to support a wide array of value added applications, such as load balancing, bandwidth control, and access control. The patent-pending 4ipWES (Press-n-Connect) technology br…

Text truncated - open the document above for the full version.

Page 1 of 11 Antenna Test Report Document Number NE3-14133 1 st Released Date 02/10/2014 Last Released Date 07/10/2014 Designers Yuan Chiu Review by Sky Lo Page 2 of 11 Revised History Date Version Revised Record 10/02/14 1.01 新測試。 10/07/14 1.02 變更天線位子。 Page 3 of 11 Electrical Specification Rough description None Item Initial Specification Final Specification Dimensions None Impedance 50Ω Test environment With Housing Spectrum None Freq. Range 4.9~5.825GHz Antenna type None Gain(Peak gain) Ant_1 : 2.57 VSWR 1.92：1 Radiation Omni Polarization Linear HPBW / H None HPBW / E None Rad. efficiency None Connector type I-Pex Cable type 1.13 Cable length None Isolation None Page 4 of 11 1. Antennas’ setup and environment Ant 1 Page 5 of 11 2. Network Analyzer Measurement 2.1 S11 Test Results 2.1.1 Ant 1 Page 6 of 11 3. Gain & Patterns test results 3.1 Lab information  Lab name：Satimo  Address ：No.326 Sec.2, Kung Tao 5 Road, HsinChu City, Taiwan  Certification：none (Satimo system certification: CTIA, 3GPP, Wi-Fi alliance and WiMAX Forum)  Size (LxWxH)：5m x 5m x 5m  Isolation level：>100dB  Normal applications：antenna radiation pattern measurement, OTA performance testing.  Frequency measurement range：0.4 to 6 GHz  EUT scanning method：conical cut method  Measurement distance：1.6m  Measurement antenna specification (for θ and Φ polarization each)：dual polarization antenna for 0.4 to 6.0 GHz frequency range  Equipment list： Page 7 of 11 3.2 Measurement setting XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left AUT X Y Z Up(+Z) Right (+X) Left Down Front Back(+Y) Page 8 of 11 θ φ Total angle 175 ̊ 360 ̊ How many angle scan one point 5 ̊ 5 ̊ Total scan point 36 73 Page 9 of 11 3.3 2D Patterns 3.3.1 Ant 1 X-Z Plane Y-Z Plane Y Z X Z Page 10 of 11 X-Y Plane Y X Page 11 of 11 4. Summary 4.1 Return Loss Frequency Ant 1 (dB) 4900MHz -14.9 5150MHz -22.1 5350MHz -17.1 5725MHz -13.7 5825MHz -11.0 4.2 3D total Peak Gain & Efficiency Frequency Ant 1 Peak Gain (dBi) Efficiency (%) 4900MHz 2.15 45.28% 5150MHz 2.57 45.95% 5350MHz 1.72 42.90% 5725MHz 1.91 46.10% 5825MHz 1.94 46.49%

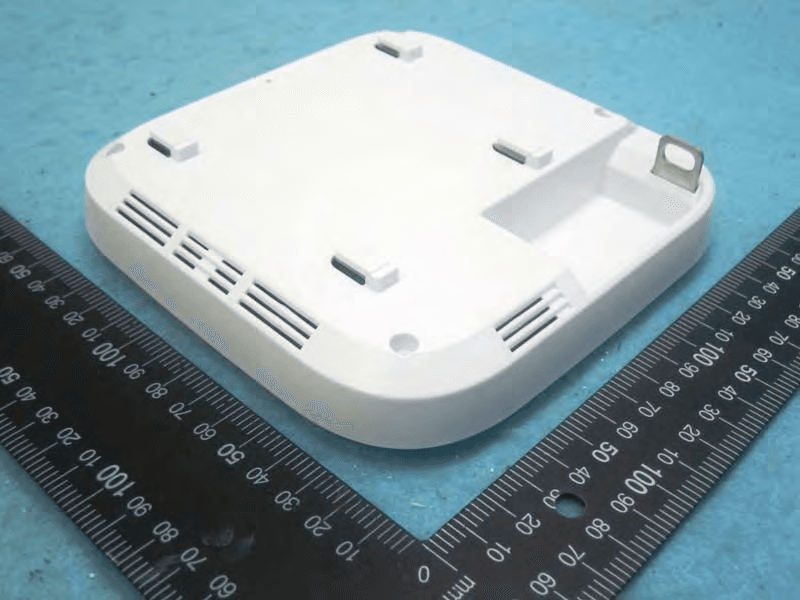

Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A1 / 28 External Photo (EAP706; HSG326; CAP326) Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A2 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A3 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A4 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A5 / 28 External Photo (EAP705; HSG325; CAP325) Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A6 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A7 / 28

Diagram Label location Label location FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Marked in the Manual

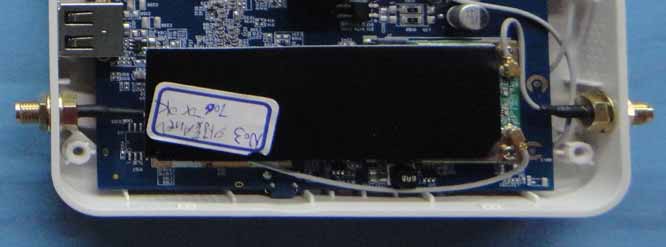

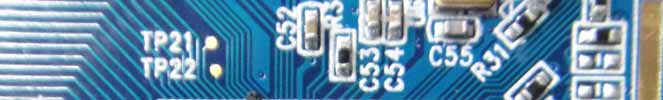

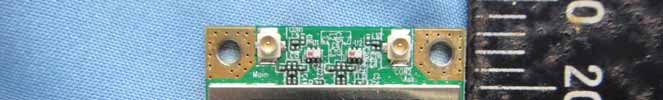

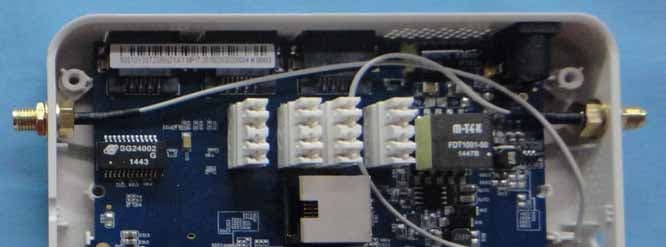

Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A8 / 28 Internal Photo (EAP706; HSG326; CAP326) Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A9 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A10 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A11 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A12 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A13 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A14 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A15 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A16 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A17 / 28 2.4G Antenna 5G Antenna Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A18 / 28 Internal Photo (EAP705; HSG325; CAP325) Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A19 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A20 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A21 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A22 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A23 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A24 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A25 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A26 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A27 / 28 Compliance Certification Services Inc. Report No.T150225N03 Date of IssueMay 15, 2015 Page A28 / 28 2.4G Antenna 5G Antenna (PIFA) 5G Antenna (Chip)

Description of Operation The EUT is a Enterprise Access Point / Wireless Hotspot Gateway / Cluster Access Point with IEEE 802.11b/g/n (2T2R) , IEEE 802.11a/ac (2T2R) . And this device provided of transmitting speed: 2.4G IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n (HT20) : 130, 117, 104, 78, 65, 58.5, 52, 39, 26, 19.5, 13, 6.5Mbps IEEE 802.11n (HT40) : 300, 270, 243, 216, 162, 150, 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps 5G IEEE 802.11a : 54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n(HT20) : 130, 117, 104, 78, 52, 39, 26 13Mbps IEEE 802.11n(HT40) :300, 243, 216, 162, 108, 81, 54, 27 Mbps IEEE 801.11ac (HT20):156, 130, 117, 104, 78, 52, 39, 26, 13 Mbps (HT40):360, 270, 243, 216, 162, 108, 81, 54, 27 Mbps (HT80):866.7, 702, 585, 526.5, 468, 351, 234, 175.5, 117, 58.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK, BPSK and OFDM The device adapts DSSS and OFDM modulation. And the antennas were 3 chip Antennas + 1 Dipole antenna & 4 Dipole antenna and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11a/b/g/n/ac network. 2.4G frequence : 2.4~2.473 (GHz) , 5G Frequence: 5.15~5.25 & 5.725~5.85 (GHz) The other instruction, please have a look at the user’s manual.

Compliance Certification Services Inc. Report No.: T150225N03-MF Date of Issue: May 15, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Model Product name Model Enterprise Access Point EAP706; EAP705 Wireless Hotspot Gateway HSG326; HSG325 Cluster Access Point CAP326; CAP325 Brand 4ipnet RF Module MediaTek Model: 2.4G: MT7603E 5G: MT7612E Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a, 802.11n HT20 : 5180MHz ~ 5240MHz; 5745 ~ 5825MHz 802.11n HT40 : 5190MHz ~ 5230MHz; 5755 ~ 5795MHz 802.11ac VHT80 : 5210MHz; 5755MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Antenna Gain 2.4GHz 2.7 dBi (Numeric gain: 1.86) Antenna Gain 5GHz 3.2 dBi (Numeric gain: 2.09) Maximum Average output power IEEE 802.11b Mode : 17.27 dBm (53.333 mW) IEEE 802.11g Mode : 20.50 dBm (112.202 mW) IEEE 802.11n HT20 Mode : 17.73 dBm (59.293 mW) IEEE 802.11n HT40 Mode : 15.15 dBm (32.734 mW) IEEE 802.11a Mode : 17.05 dBm (50.699 mW) IEEE 802.11n HT20 Mode: 18.28 dBm (67.298 mW) IEEE 802.11n HT40 Mode: 15.22 dBm (33.266 mW) IEEE 802.11AC HT80 Mode: 16.15 dBm (41.210 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T150225N03-MF Date of Issue: May 15, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 15, 2015 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. Report No.: T150225N03-MF Date of Issue: May 15, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T150225N03-MF Date of Issue: May 15, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11b Mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result High 2462 53.333 1.86 20 0.0198 1 Pass IEEE 802.11g Mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result Mid 2437 112.202 1.86 20 0.0416 1 Pass IEEE 802.11n HT 20 Mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result Low 2412 59.293 3.72 20 0.0439 1 Pass IEEE 802.11n HT 40 Mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result Low 2422 32.734 3.72 20 0.0243 1 Pass IEEE 802.11a Mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result High 5240 50.699 2.09 20 0.0211 1 Pass IEEE 802.11n HT20 Mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result Mid 5785 67.298 6.21 20 0.0832 1 Pass IEEE 802.11n HT40 Mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result High 5795 33.266 6.21 20 0.0411 1 Pass IEEE 802.11AC HT80 Mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result Mid 5775 41.210 6.21 20 0.0509 1 Pass

Reference No.T130909N91-RP1-1 FCC IDVZ9150001 Report No.T150225N03-RP1-1 Page 1 / 197 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART E: 2013 AND ANSI C63.10: 2009 TEST REPORT For Product name Model Enterprise Access Point EAP706; EAP705 Wireless Hotspot Gateway HSG326; HSG325 Cluster Access Point CAP326; CAP325 Brand Name : 4ipnet Issued for 4IPNET, INC. 5F, No. 367, Fusing N. Rd., Songshan Dist., Taipei 105, Taiwan(R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: May 15, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Reference No.T130909N91-RP1-1 FCC IDVZ9150001 Report No.T150225N03-RP1-1 Page 2 / 197 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 15, 2015 Initial Issue ALL Sunny Chang Reference No.T130909N91-RP1-1 FCC IDVZ9150001 Report No.T150225N03-RP1-1 Page 3 / 197 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 8 4. TEST METHODOLOGY ............................................................................................... 10 5. FACILITIES AND ACCREDITATION ........................................................................... 11 5.1 FACILITIES............................................................................................................ 11 5.2 ACCREDITATIONS................................................................................................ 11 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 12 7. FCC PART 15.407 REQUIREMENTS.......................................................................... 16 7.1 26dB BANDWIDTH ................................................................................................ 16 7.2 6DB BANDWIDTH.................................................................................................. 35 7.3 MAXIMUM CONDUCTED OUTPUT POWER ........................................................ 45 7.4 PEAK POWER SPECTRAL DENSITY ................................................................... 65 7.5 DUTY CYCLE......................................................................................................... 85 7.6 CONDUCTED SPURIOUS EMISSION .................................................................. 102 7.7 RADIATED EMISSION........................................................................................... 131 7.8 CONDUCTED EMISSION ...................................................................................... 175 7.9 FREQUENCY STABILITY...................................................................................... 182 APPENDIX II SETUP PHOTOS ....................................................................................... 192 Reference No.T130909N91-RP1-1 FCC IDVZ9150001 Report No.T150225N03-RP1-1 Page 4 / 197 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant : 4IPNET, INC. 5F, No. 367, Fusing N. Rd., Songshan Dist., Taipei 105, Taiwan(R.O.C.) Manufacturer :Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Equipment Under Test : Model : Product name Model Enterprise Access Point EAP706; EAP705 Wireless Hotspot GatewayHSG326; HSG325 Cluster Access Point CAP326; CAP325 Brand : 4ipnet Date of Test : March 25, 2015 ~ May 07, 2015 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart E: 2013 AND ANSI C63.10: 2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Reference No.T130909N91-RP1-1 FCC IDVZ9150001 Report No.T150225N03-RP1-1 Page 5 / 197 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Model Number Product name Model Enterprise Access Point EAP706; EAP705 Wireless Hotspot GatewayHSG326; HSG325 Cluster Access Point CAP326; CAP325 Brand Name 4ipnet Identify Number T150225N03 Received Date February 25, 2015 IEEE 802.11a, 802.11n HT20 : 5180MHz ~ 5240MHz; 5745 ~ 5825MHz IEEE 802.11n HT40 : 5190MHz ~ 5230MHz; 5755 ~ 5795MHz Frequency Range IEEE 802.11ac VHT80 : 5210MHz; 5775MHz IEEE 802.11a : 17.05dBm IEEE …

Text truncated - open the document above for the full version.

Reference No.T130909N91-RP1-1 FCC IDVZ9150001 Report No.T150225N03-RP1-1 Page 101 / 197 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Test Mode: IEEE 802.11ac VHT 80 MHz mode / 5150 ~ 5250MHz CH …
