VZ9140003Enterprise Access Point

Quick Installation Guide Wireless AC1200 Concurrent Dual Band PoE Access Point This document will guide you through the basic installation process for your new 4ipnet Wireless AC Access Point. EAP727 Quick Installation Guide Краткое руководство по установке Guía de Instalación Rápida Guia de Instalação Rápida 快速安裝指南 Petunjuk Pemasangan Cepat クイックインストールガイド Documentation also available on CD and via the 4ipnet Website ENGLISH This installation guide provides basic instructions for installing the EAP727 Wireless Access Point on your network. For additional information about how to use the Access Point, please see the User’s Manual which is available on the CD included in this package or from the 4ipnet support website. EAP727 Quick Install Guide System Requirements Minimum System Requirements: ƒ CD-ROM Drive ƒ an Ethernet port, or an installed Ethernet adapter ƒ Internet Explorer 7.0, Safari 5.0, Firefox 3.5, Chrome 20 or later versions of these browsers 1. Package Contents ƒ ƒ ƒ ƒ ƒ EAP727 802.11ac Access Point Power Adapter Mounting Brackets Ethernet Cable CD-ROM If any of the above items are missing, please contact your reseller. Note: Using a power supply with a different voltage than the one included with the EAP727 will cause damage and void the warranty for this product. 2 4ipnet EAP727 Quick Install Guide ENGLISH 2. Hardware Overview LED Power/Status LED - Dual color (Red/green) ƒ Flash Red during booting up or malfunction ƒ Static Green while it’s ready/working ƒ Solid Red while boot up fail ƒ Flash Green while traffic is passing through. Interfaces Power Receptor LAN Port (PoE) 4ipnet EAP727 Quick Install Guide 3 ENGLISH 3. Installation Power on the access point To power on the EAP727, you can use ONE of the following methods: 1. Connect the supplied power adapter, OR 2. Plug one end of your Ethernet cable into the LAN port of the EAP727, and the other end into a port on a PoE switch. Configure the access point To set up and manage the EAP727, use one of the following methods: 1. Connect the access point and your computer directly via a straight-through Ethernet cable. Manage the access point from the computer. Ensure your computer is configured with a static IP address in 192.168.0.0/24 subnet. Launch a web browser, type the default IP address of the access point (http://192.168.0.50) and then press Enter. Log in to the Administration Web pages. The default login information is: Username: admin Password: (Leave the password field blank) EAP727 Computer 2. Connect the access point and your computer to the same switch. Manage the access point from the computer. Enter 192.168.0.50 in the address field of your browser, which is the default IP address of the access point. Log in to the Administration Web pages. The default login information is: Username: admin Password: (Leave the password field blank) EAP727 Switch Computer 4 4ipnet EAP727 Quick Install Guide ENGLISH Solid wall or ceiling Installation 1. Place the mounting bracket on a wall or ceiling. 4. Use the supplied screws to attach the mounting ring to the wall. 2. Mark the points where you will insert the screws. Take out the mounting ring. 3. Drill holes in the marked points and insert the plastic wall anchors. 5. Plug the Ethernet cable into the LAN port on the access point. 6. To attach the access point to the mounting bracket. 4ipnet EAP727 Quick Install Guide 5 ENGLISH Mounting with a ceiling bracket Installation 1. Clip two ceiling brackets onto the ceiling panels. Make sure both brackets are in line with each other. Ceiling crossbar 3. Plug the Ethernet cable into the LAN port on the access point. 4. Place the EAP727’s male bracket in the mounting bracket’s female bracket. Click EAP727 and the mounting bracket to lock in position. Ceiling bracket 2. Use the provided screws to attach the mounting ring to the ceiling bracket. 6 4ipnet EAP727 Quick Install Guide TECHNICAL SUPPORT You can find software updates and user documentation on the 4ipnet website. ENGLISH Tech Support for customers in Australia: Tel: 1300-766-868 24/7 Technical Support Web: http://www.dlink.com.au E-mail: [email protected] 4ipnet Middle East - Dubai, U.A.E. Plot No. S31102, Jebel Ali Free Zone South, P.O.Box 18224, Dubai, U.A.E. Tel: +971-4-8809022 Fax: +971-4-8809066 / 8809069 Technical Support: +971-4-8809033 General Inquiries: [email protected] Tech Support: [email protected] India: Tel: +91-832-2856000 Toll Free 1800-233-0000 Web: www.dlink.co.in E-Mail: [email protected] Singapore, Thailand, Indonesia, Malaysia, Philippines, Vietnam: Singapore - www.dlink.com.sg Thailand - www.dlink.co.th Indonesia - www.dlink.co.id Malaysia - www.dlink.com.my Philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Egypt 1, Makram Ebeid Street - City Lights Building Nasrcity - Cairo, Egypt Floor 6, office C2 Tel.: +2 02 26718375 - +2 02 26717280 Technical Support: +2 02 26738470 General Inquiries: [email protected] Tech Support: [email protected] Korea: Kingdom of Saudi Arabia Office # 84 , Al Khaleej Building ( Mujamathu Al-Khaleej) Opp. King Fahd Road, Olaya Riyadh - Saudi Arabia Tel: +966 1 217 0008 Technical Support: +966 1121 70009 General Inquiries: [email protected] Tech Support: [email protected] Tel : +82-2-2028-1810 Monday to Friday 9:00am to 6:00pm Web : http://4ipnet.co.kr E-mail : [email protected] New Zealand: Tel: 0800-900-900 24/7 Technical Support Web: http://www.dlink.co.nz E-mail: [email protected] Pakistan Islamabad Office: 61-A, Jinnah Avenue, Blue Area, Suite # 11, EBC, Saudi Pak Tower, Islamabad - Pakistan Tel.: +92-51-2800397, 2800398 Fax: +92-51-2800399 Karachi Office: D-147/1, KDA Scheme # 1, Opposite Mudassir Park, Karsaz Road, Karachi – Pakistan Phone: +92-21-34548158, 34326649 Fax: +92-21-4375727 Technical Support: +92-21-34548310, 34305069 General Inquiries: [email protected] Tech Support: [email protected] South Africa and Sub Sahara Region: Tel: +27 12 661 2025 08600 DLINK (for South …

Text truncated - open the document above for the full version.

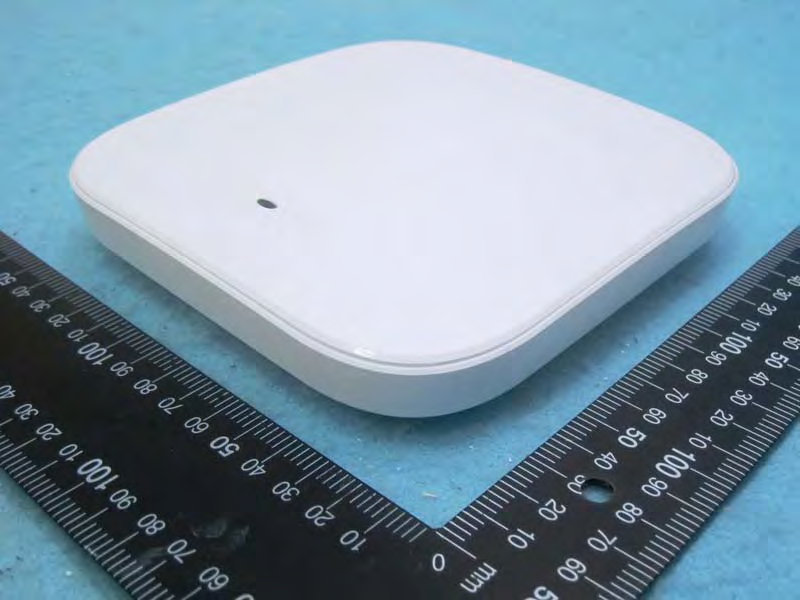

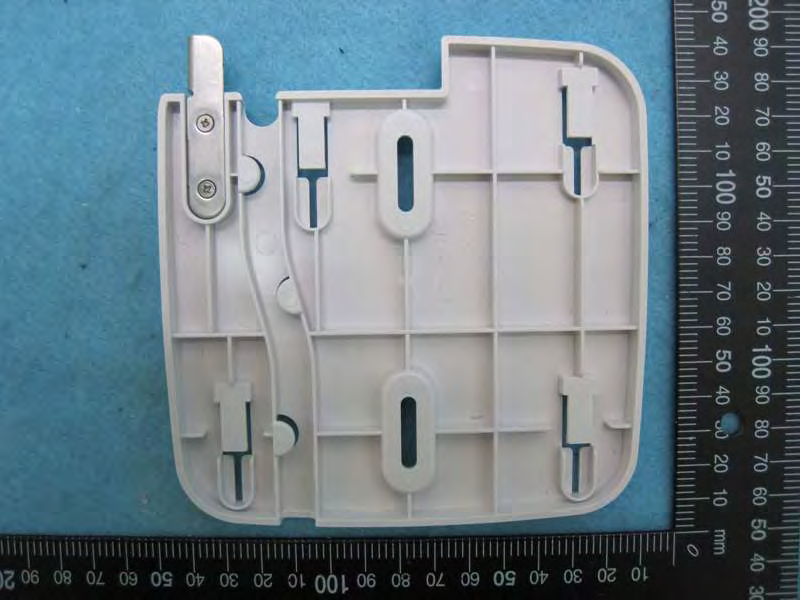

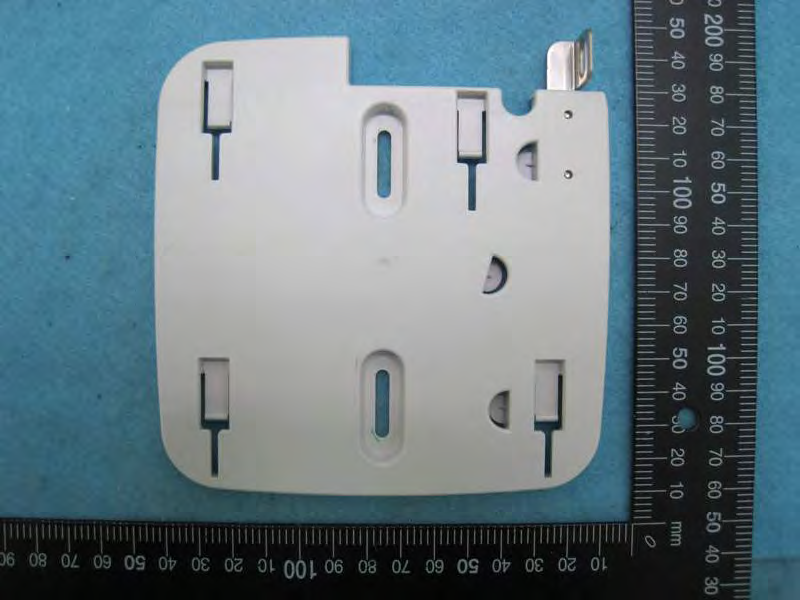

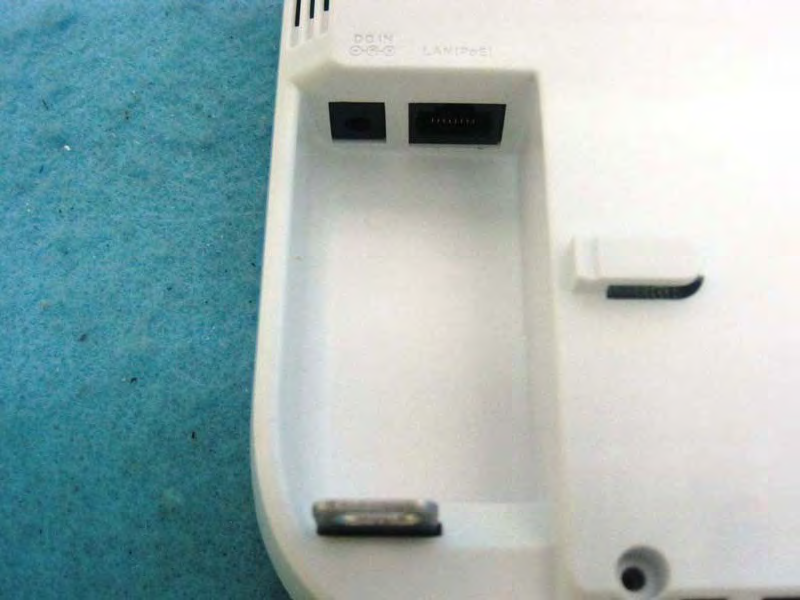

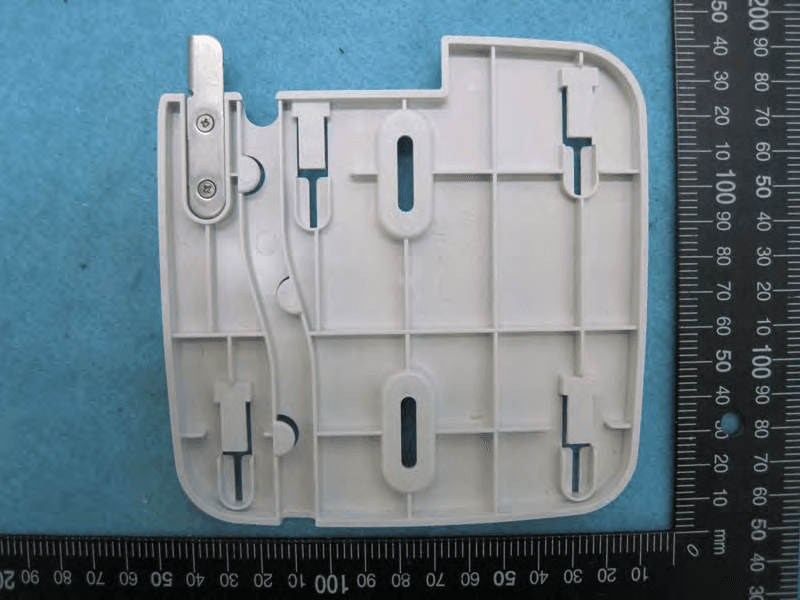

Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 08, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 08, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 08, 2014 FAX : 886-3-327-0973 Wall-mounted rack Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 08, 2014 FAX : 886-3-327-0973

Label: Label Here

Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 1 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 2 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 3 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 4 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 5 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 6 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 7 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 8 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 9 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 10 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 11 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 Report No.:432156-05 SPORTON International Inc. PAGE NUMBER : 12 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973

Report No.: FR432156-05 FCC ID: VZ9140003 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR432156-05 FCC ID: VZ9140003 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR432156-05 FCC ID: VZ9140003 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11a: 27.57dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 4.64 2.9107 27.5657 570.9103 0.330764 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11b: 28.23 dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 3.88 2.4434 28.2256 664.6069 0.323233 1 Complies Conclusion: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.323233 / 1 + 0.330764 / 1 = 0.653997, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.
